MLC203C axle scale button load cell

axle scale load cell,warehouse scale load cell,experimental machine load cell

Model: MLC203C
Table of contents: spoke type weighing sensor
Rated load: 30kg, 200kg, 1000kg, 2000kg, 3000kg
Size: dia 58 * 24mm
Overload: 150%/200%
Materials: alloy steel, stainless steel, alloy aluminum
Applicable to: hopper scale. Packaging scale, platform scale, dynamic weighing system, and force measuring machine


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

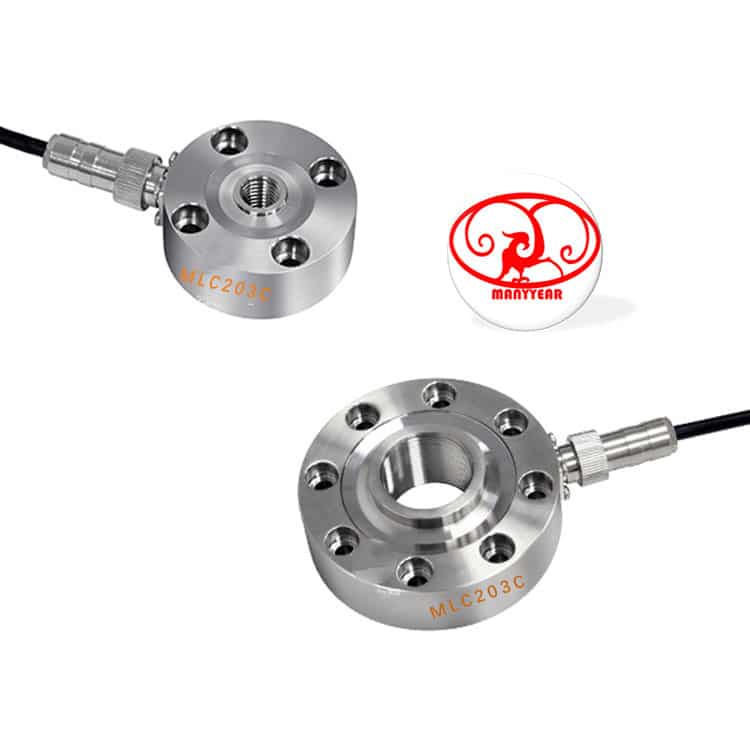

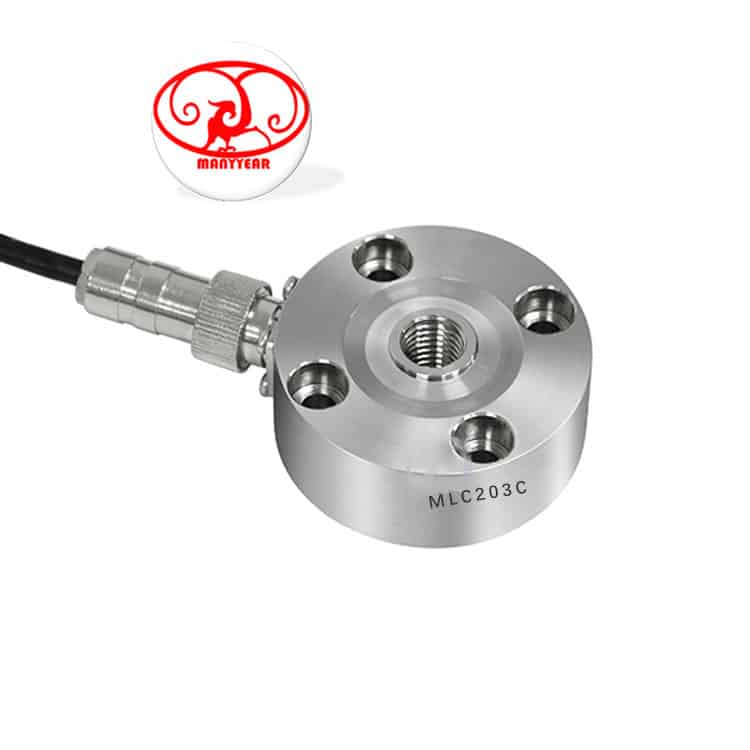

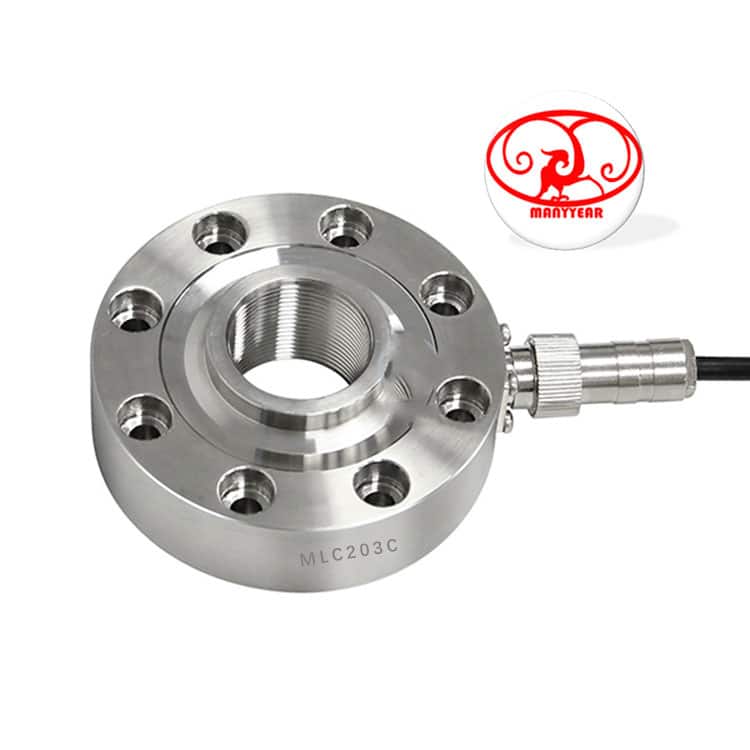

Product Picture Reference

MLC203C axle scale button load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

  MLC203B axle scale button load cell

Model: MLC203C
Table of contents: spoke type weighing sensor
Rated load: 30kg, 200kg, 1000kg, 2000kg, 3000kg
Size: dia 58 * 24mm
Overload: 150%/200%
Materials: alloy steel, stainless steel, alloy aluminum
Applicable to: hopper scale. Packaging scale, platform scale, dynamic weighing system, and force measuring machine

Other Dimension (mm)
Specification
Comprehensive error:0.03%FSOutput resistance:700±10Ω
Rated output:2±0.002mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:9~12VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.03%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:700±10ΩDefend grade:IP66

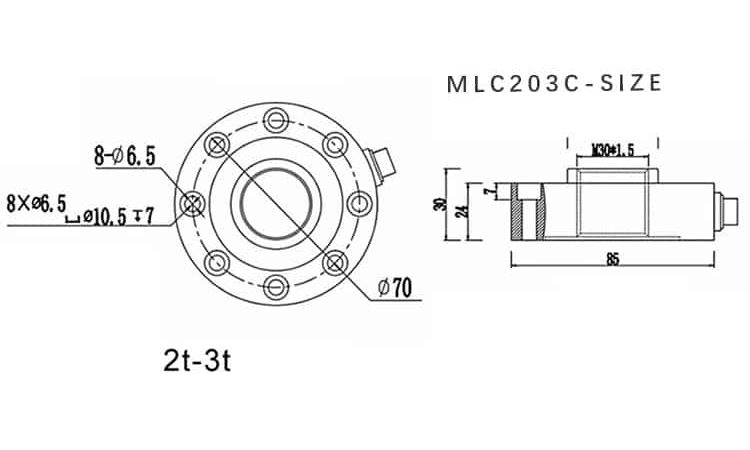

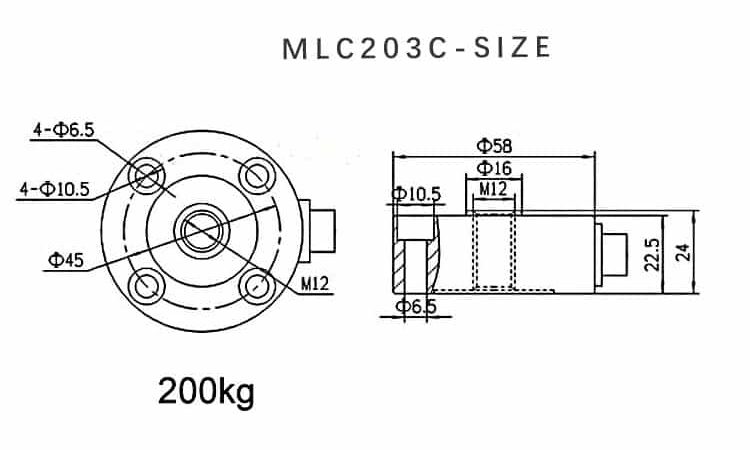

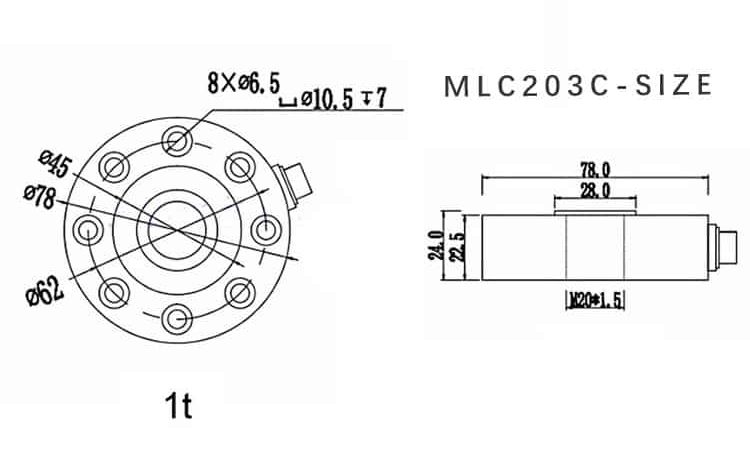

Product Dimension

MLC203C axle scale button load cell-MANYYEAR TECHNOLOGY

MLC203C axle scale button load cell-MANYYEAR TECHNOLOGY

MLC203C axle scale button load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC203C axle scale button load cell-MANYYEAR TECHNOLOGY

Product Application

MLC203C axle scale button load cell-MANYYEAR TECHNOLOGYMLC203C axle scale button load cell-MANYYEAR TECHNOLOGYMLC203C axle scale button load cell-MANYYEAR TECHNOLOGY
