MLC203 axle scale button load cell

2021/11/10 Force Load Cell MLC200 Button Load Cell 3046 0

axle scale load cell,warehouse scale load cell,experimental machine load cell

Model: MLC203B
Category: button load cell
Range: 1t,2t,3t,5t,10t,20t,25t,30t
Dimension: 105*67m；121*80mm; 121*85mm
Material: alloy steel,stainless steel
Characteristic: axle scale load cell,warehouse scale load cell,experimental machine load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

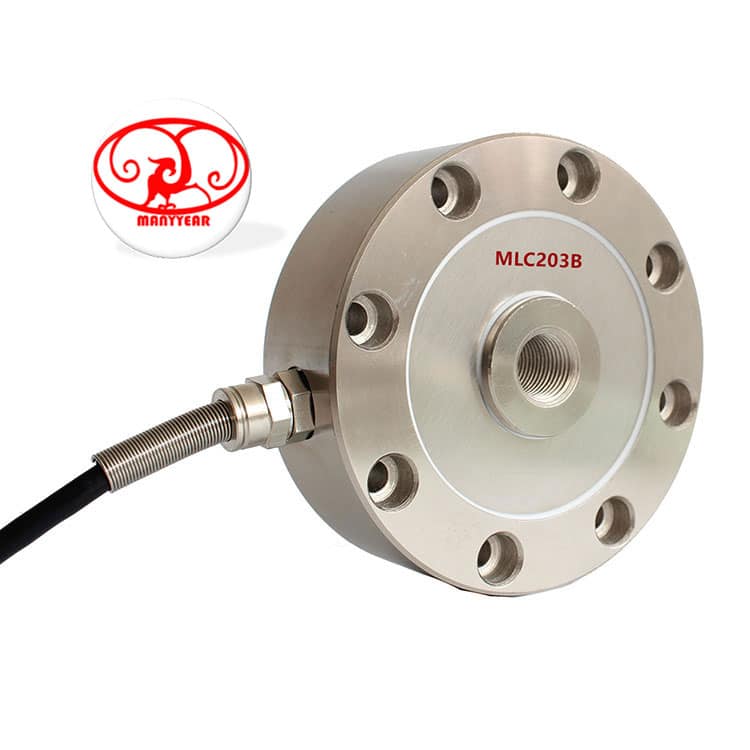

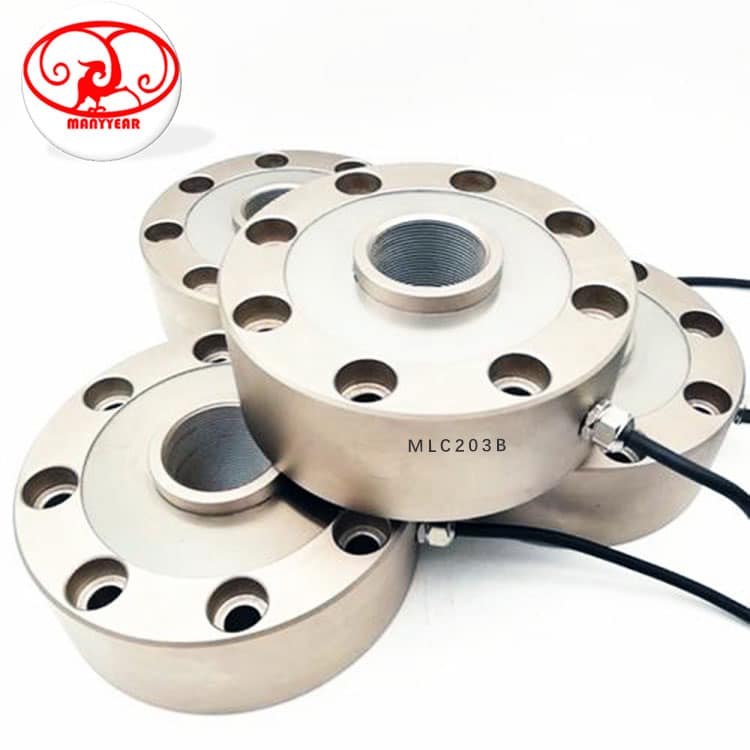

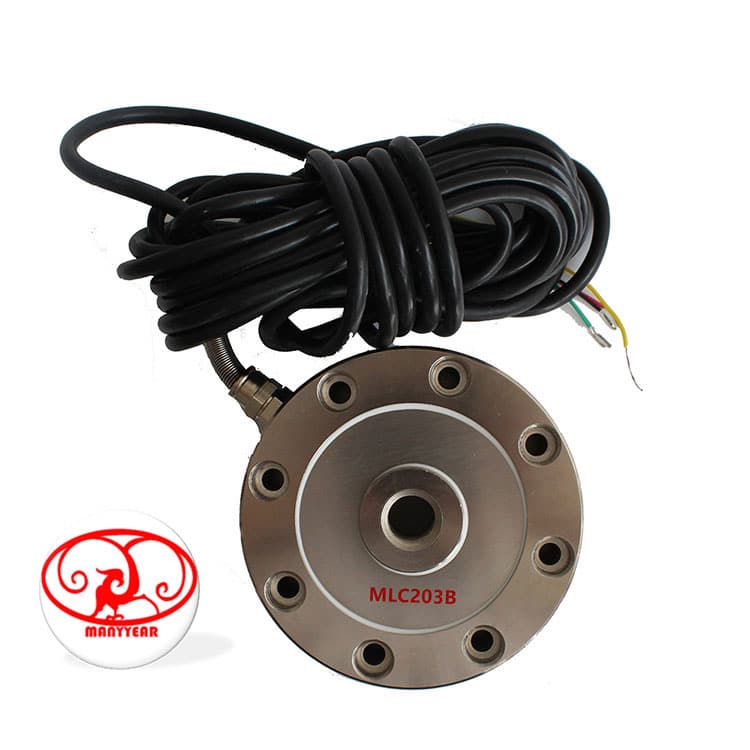

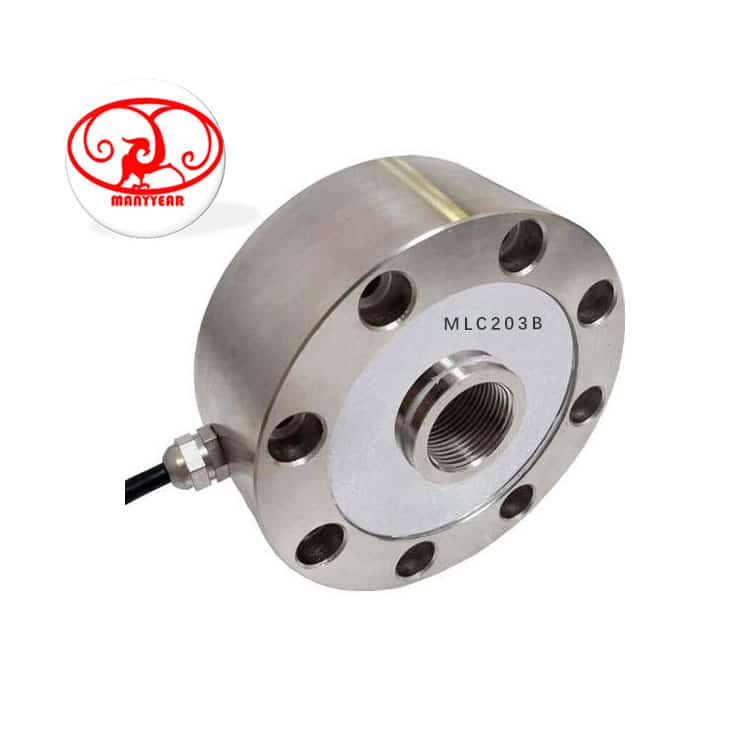

MLC203B axle scale button load cell

Model: MLC203B Category: button load cell Range: 1t,2t,3t,5t,10t,20t,25t,30t Dimension: 10567m；12180mm; 121*85mm Material: alloy steel,stainless steel Characteristic: axle scale load cell,warehouse scale load cell,experimental machine load cell

Other Dimension (mm)
Load range	1~5ton		10ton	20ton	25ton		30ton
H1	67		80	85	85		85
H2	46		53.8	53.8	53.8		53.8
H3	34		41	47	47		47
M	M16*1.5		M32*1.5	M32*1.5	M32*1.5		M32*1.5
D1	32		41	41	41		41
D2	105		121	121	121		121
Specification
Comprehensive error:		0.03%FS		Output resistance:		700±10Ω
Rated output:		2±0.002mV/V		Insulation resistance:		≥5000MΩ(100VDC)
Non-linearity:		0.05%FS		Excitation voltage:		9~12VDC
Hysteresis:		0.05%FS		Compensated temp:		-10~+40ºC
Repeatability:		0.02%FS		Use temperature:		-20~+55ºC
Creep:		0.03%FS/10Min		Temp effect on zero:		0.03%FS/10ºC
Zero balance:		±1%FS		Temp effect on span:		0.02%FS/10ºC
Input resistance:		700±10Ω		Defend grade:		IP66

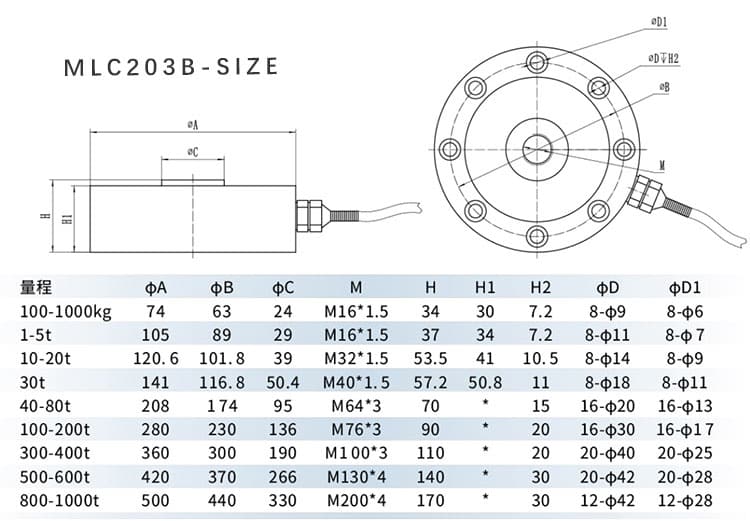

Product Dimension

Force Structure & Assembly Reference

Product Application

weighing solution-cinema seats management system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
