MLC407 compression force load cell 600t

big capacity load cell, compression force load cell, hydraulic equipment force load cell

Model: MLC407
Category: Compression Load Cell
Load range:600ton
Dimension:256*225mm
Material: alloy steel
Cable: Φ6mm*12m
Characteristic: big capacity load cell, compression force load cell, hydraulic equipment force load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

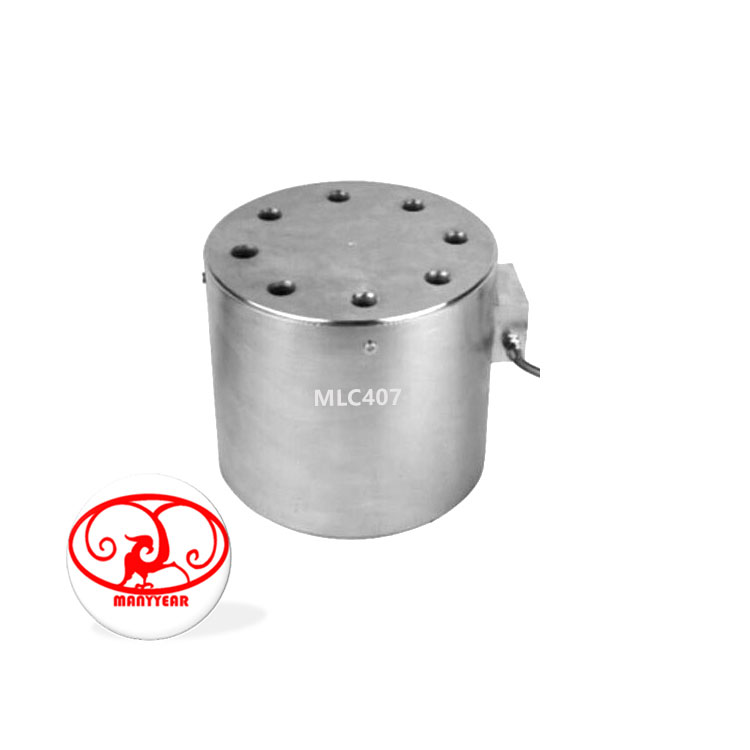

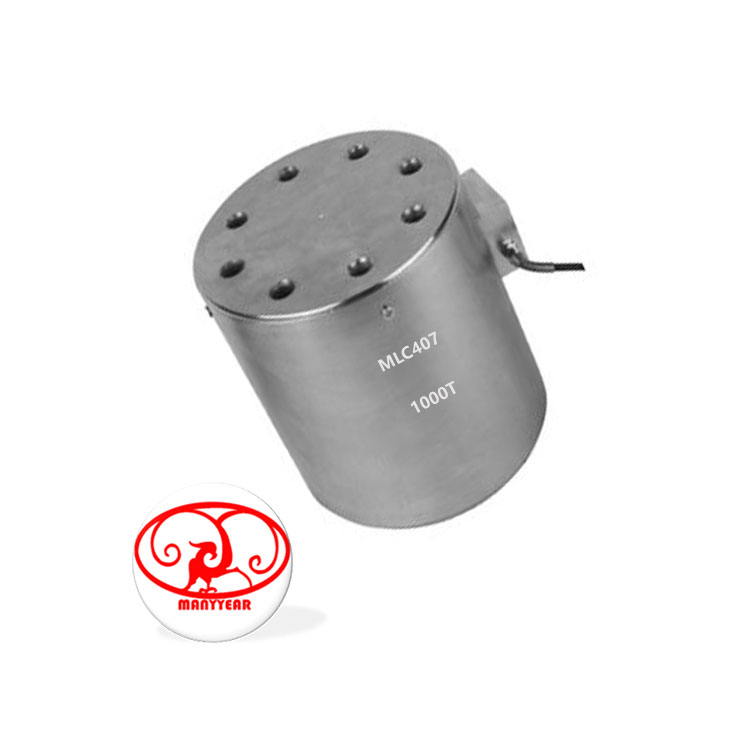

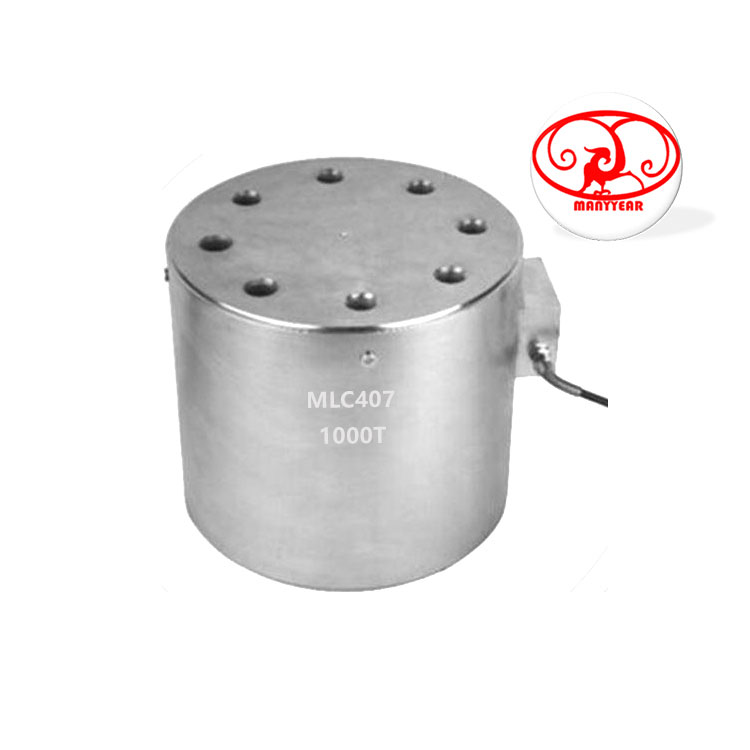

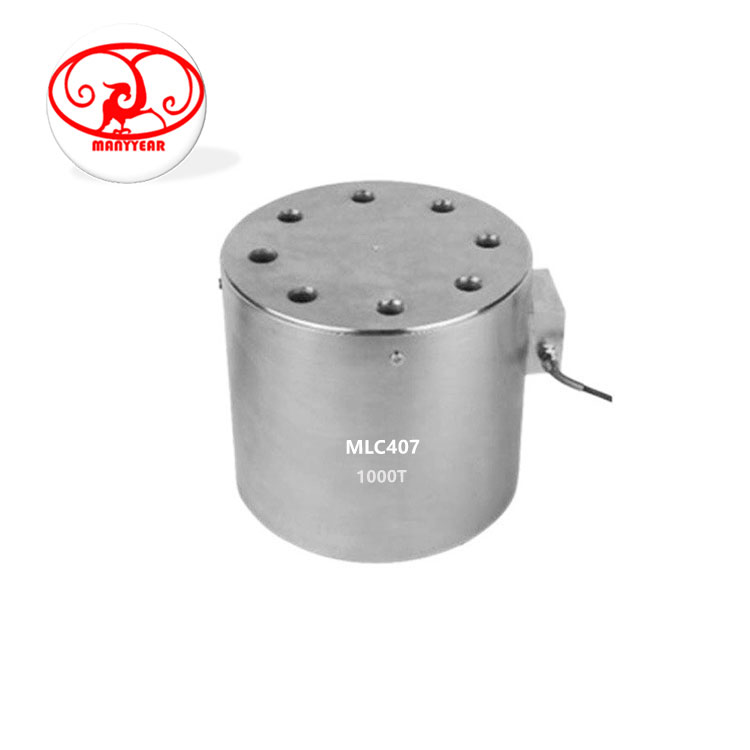

Product Picture Reference

MLC407 compression force load cell 600t-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC407 compression force load cell 600t

Model: MLC407
Category: Compression Load Cell
Load range:600ton
Dimension:256*225mm
Material: alloy steel
Cable: Φ6mm*12m
Characteristic: big capacity load cell, compression force load cell, hydraulic equipment force load cell

Specification
Comprehensive error:±0.5%FSOutput resistance:352±3Ω
Rated output:2.0±0.005mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-30~+60℃
Repeatability:0.03%FSUse temperature:-20~+55℃
Creep:0.05%FS/30minTemp effect on zero:0.03%F.S/10℃
Zero balance:±1%FSTemp effect on span:0.03%F.S/10℃
Input resistance:350±10ΩDefend grade:IP67



Product Dimension

MLC407 compression force load cell 600t-MANYYEAR TECHNOLOGY MLC407 compression force load cell 600t-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC407 compression force load cell 600t-MANYYEAR TECHNOLOGY

Product Application

MLC407 compression force load cell 600t-MANYYEAR TECHNOLOGYMLC407 compression force load cell 600t-MANYYEAR TECHNOLOGYMLC407 compression force load cell 600t-MANYYEAR TECHNOLOGY
