MLC203E axle scale button load cell

axle scale load cell,warehouse scale load cell,experimental machine load cell

Model: MLC203E
Table of contents: Button weighing sensor
Rated load: 50kg, 500, 5000kg, 100t, 200t, 300t
Size: Outer diameter 330mm * 100mm
Overload: 150%/200%
Materials: alloy steel, stainless steel, alloy aluminum
Applicable to: force measuring machines, hydraulic presses, hopper scales, packaging scales, platform scales, dynamic weighing systems


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

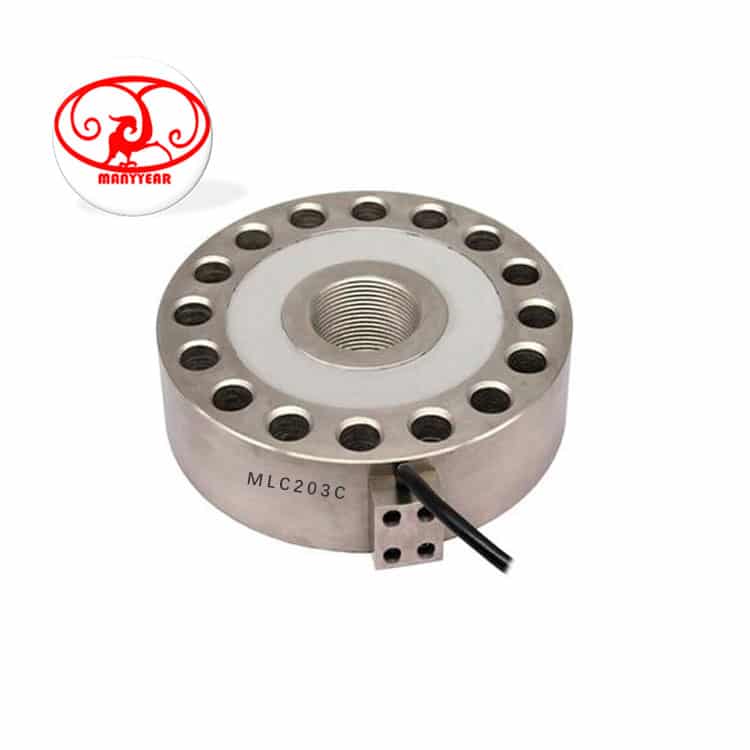

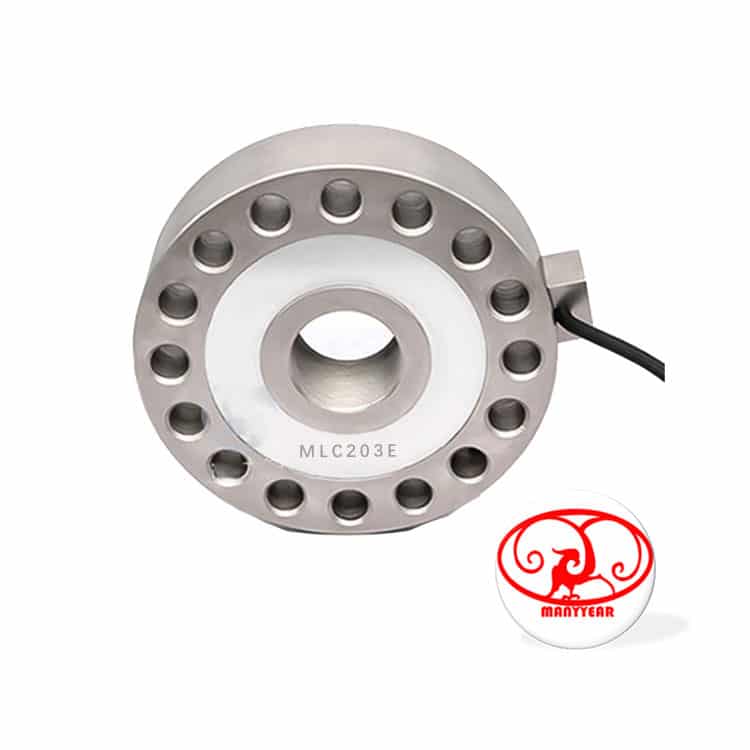

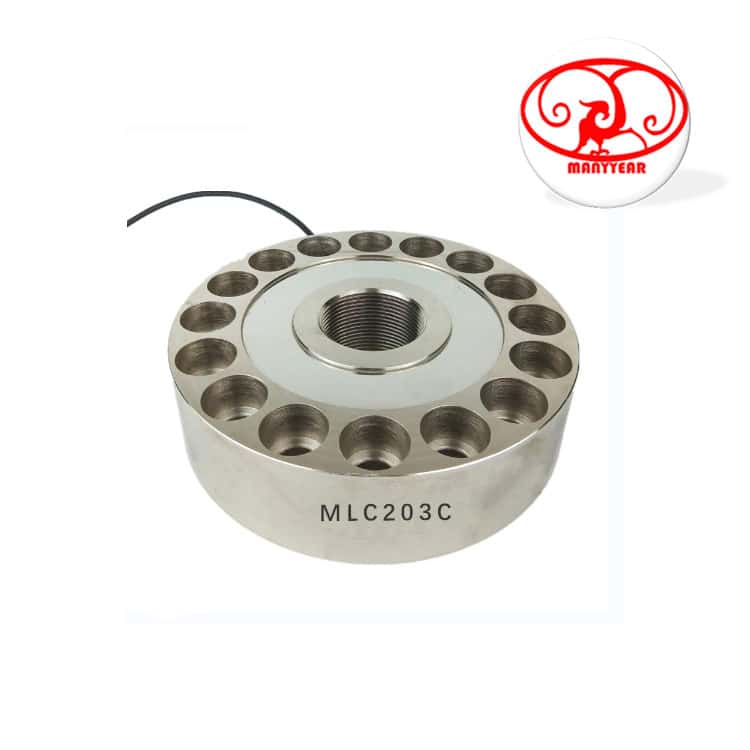

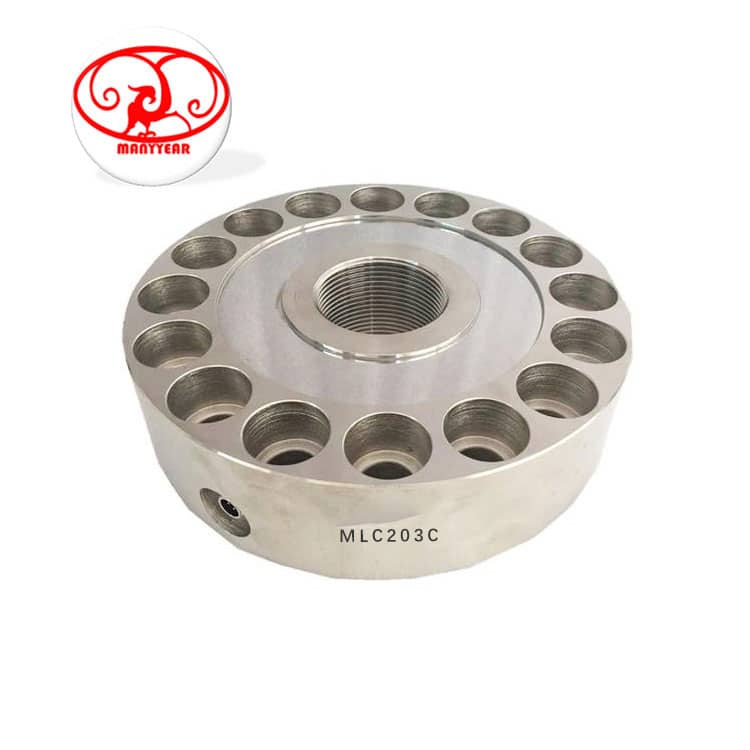

Product Picture Reference

MLC203E axle scale button load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

Model: MLC203E
Table of contents: Button weighing sensor
Rated load: 50kg, 500, 5000kg, 100t, 200t, 300t
Size: Outer diameter 330mm * 100mm
Overload: 150%/200%
Materials: alloy steel, stainless steel, alloy aluminum
Applicable to: force measuring machines, hydraulic presses, hopper scales, packaging scales, platform scales, dynamic weighing systems

Other Dimension (mm)
Specification
Comprehensive error:0.03%FSOutput resistance:700±10Ω
Rated output:2±0.002mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:9~12VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.03%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:700±10ΩDefend grade:IP66

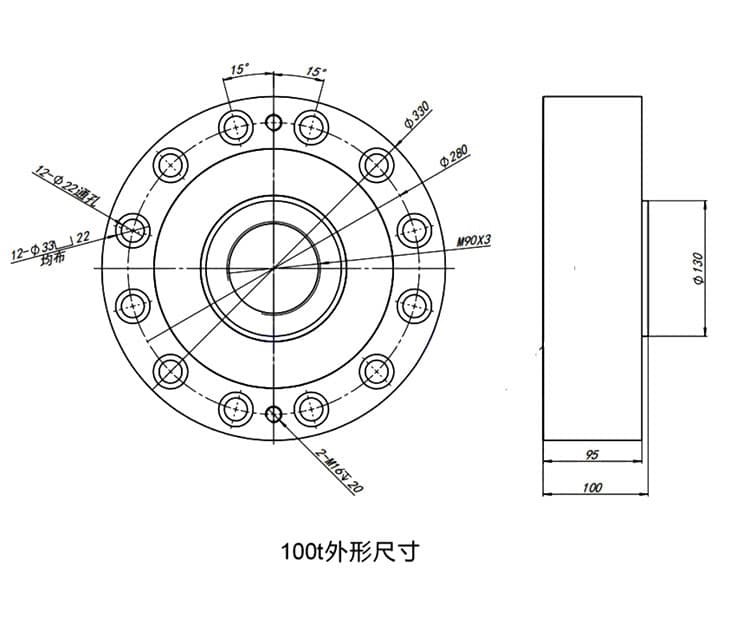

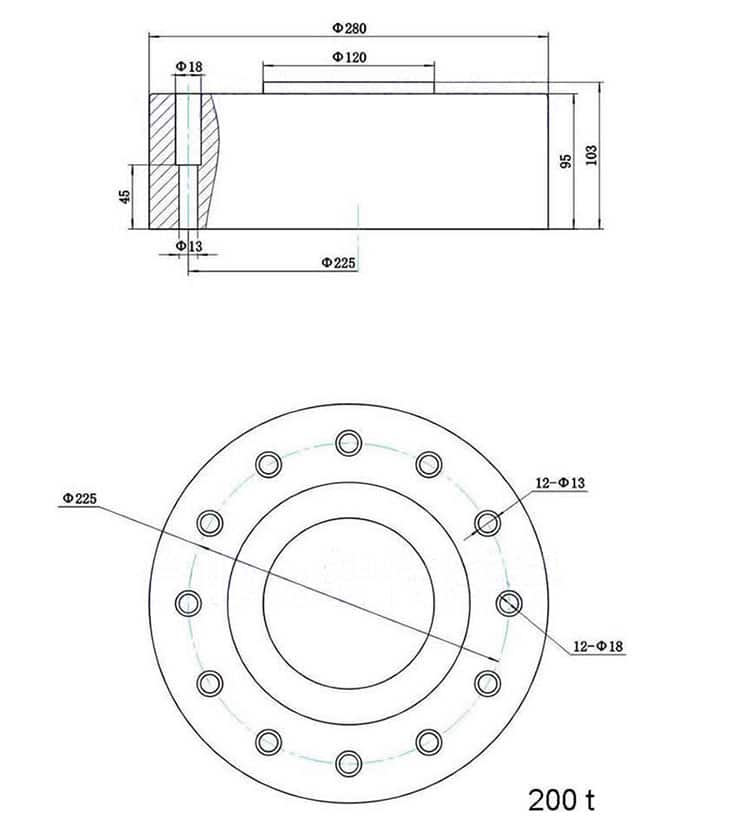

Product Dimension

MLC203E axle scale button load cell-MANYYEAR TECHNOLOGY

MLC203E axle scale button load cell-MANYYEAR TECHNOLOGY





Force Structure & Assembly Reference

MLC203E axle scale button load cell-MANYYEAR TECHNOLOGY

Product Application

MLC203E axle scale button load cell-MANYYEAR TECHNOLOGYMLC203E axle scale button load cell-MANYYEAR TECHNOLOGYMLC203E axle scale button load cell-MANYYEAR TECHNOLOGY
