MLC201 button force load cell 50ton

2021/09/18 Force Load Cell MLC200 Button Load Cell 1662 0

button force sensor, floor scale load cell

Model: MLC201
Category: Button force load cell
Range: 1t,2t,3t,5t,10t,15t,20t,30t,50ton
Dimension: 115*36mm/158*63mm/264*90mm
Material: alloy steel, stainless steel.
Application: round force load cell, button force sensor, floor scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

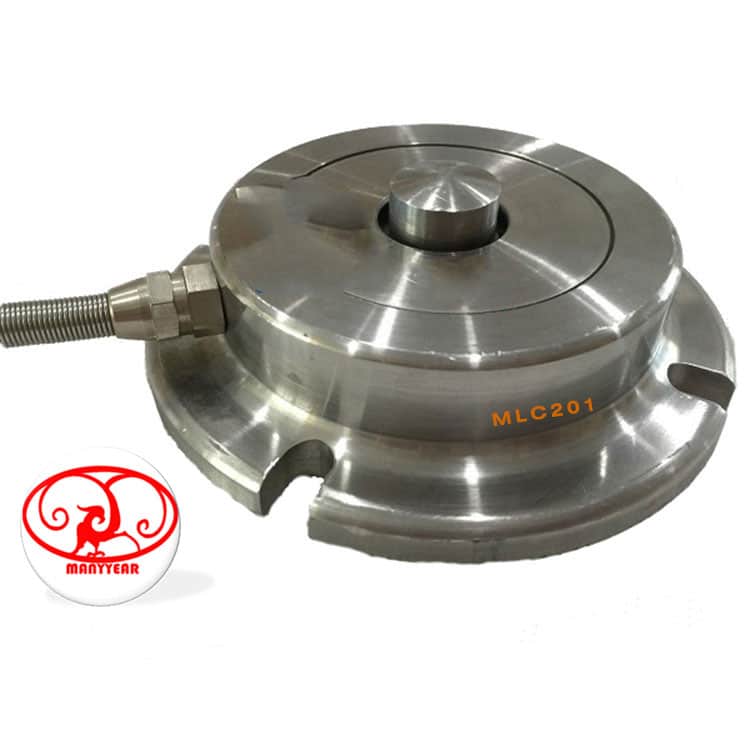

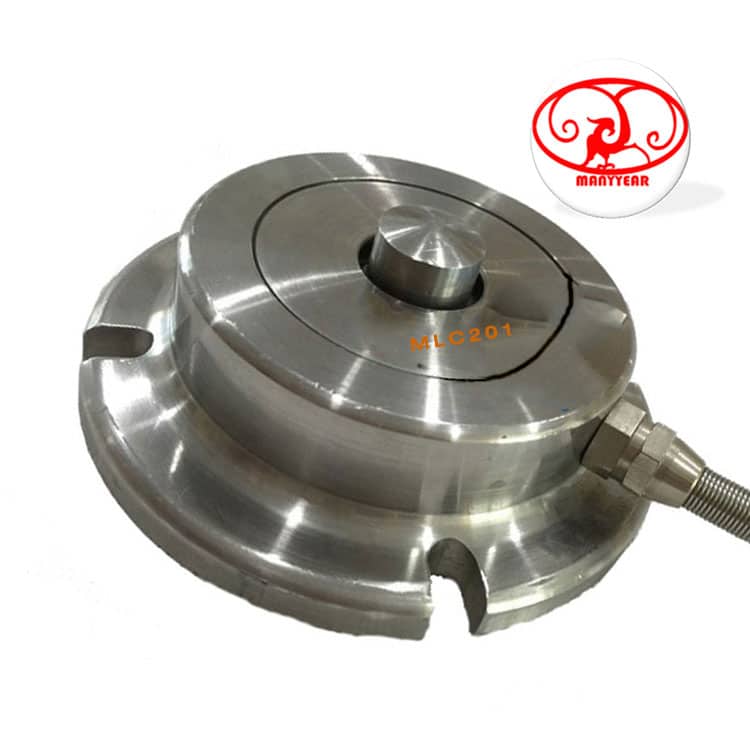

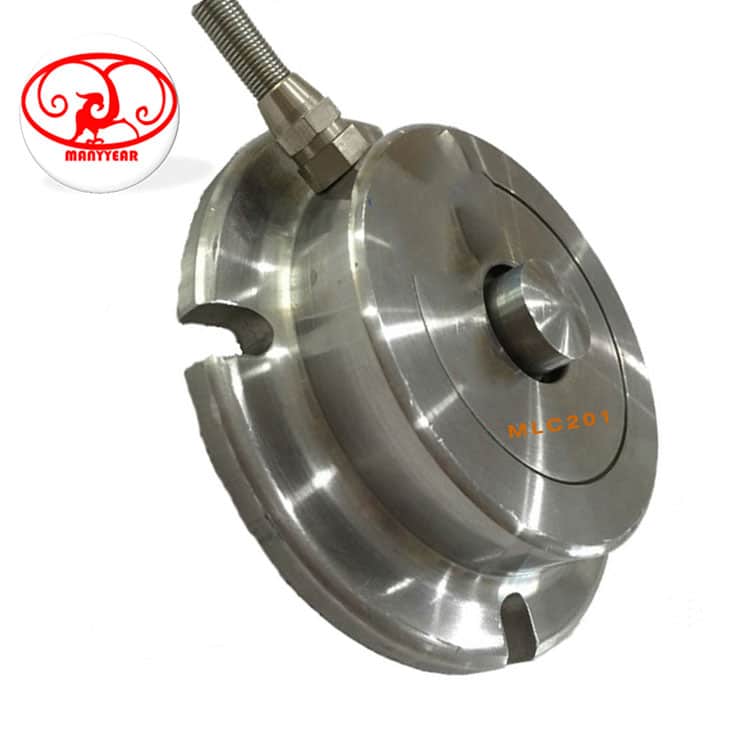

Product Picture Reference

MLC201 button force load cell 50ton-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC201-Alloy steel compression force sensor 50ton

Model: MLC201 Category: Button load cell Range: 1t,2t,3t,5t,10t,15t,20t,30t,50ton Dimension: 11536mm/15863mm/264*90mm Material: alloy steel, stainless steel Application: compression measurement, force test system

Other Dimension
Load range	1ton	2ton		3~5ton	10ton		15ton	20ton		30ton	50ton
D	115	120		128	158		194	220		230	264
D1	20	20		20	40		42	44		48	52
D2	99	104		114	140		170	196		206	240
H	36	38		46	63		68	73		78	90
H1	8	8		8	15		20	22		25	30
B	8.4	8.4		10.4	10.4		12.4	12.4		12.4	12.4
Specification
Comprehensive error:			0.03%FS			Output resistance:			700±10Ω
Rated output:			3±0.0006mV/V			Insulation resistance:			≥5000MΩ(100VDC)
Non-linearity:			0.03%FS			Excitation voltage:			9~12VDC
Hysteresis:			0.02%FS			Compensated temp:			-10~+40ºC
Repeatability:			0.01%FS			Use temperature:			-20~+55ºC
Creep:			0.03%FS/10Min			Temp effect on zero:			0.03%FS/10ºC
Zero balance:			±1%FS			Temp effect on span:			0.02%FS/10ºC
Input resistance:			700±10Ω			Defend grade:			IP66

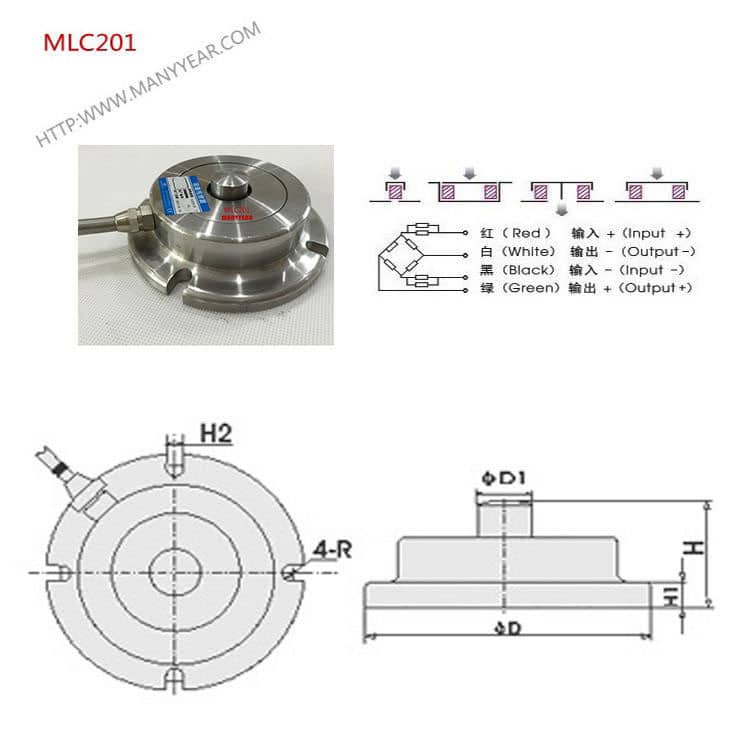

Product Dimension

Force Structure & Assembly Reference
