MLC501 -Through – shaft gasket type ring load cell 45t

Model: MLC501
Catalog: Multi-Axis Force Sensors
Rated load: 0.3, 0.5, 1, 2, 2.5, 3, 3.5, 4, 5, 10, 15, 20, 30, 45 t
Material: alloy steel, stainless steel
Accuracy: C2
Safe overload: 150%; ultimate overload: 200%
Features: ring force sensor, gasket force sensor, axial force sensor, extrusion force sensor, preload force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

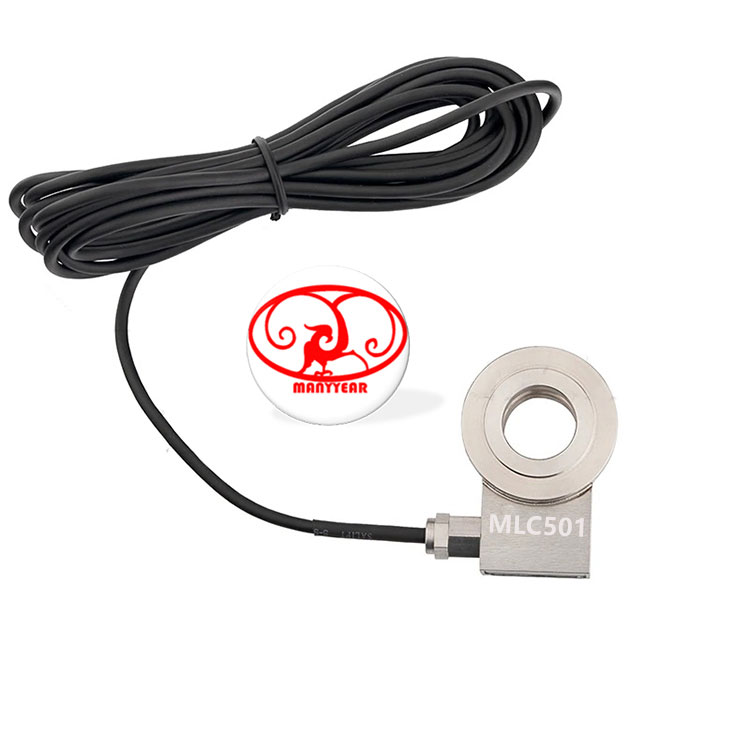

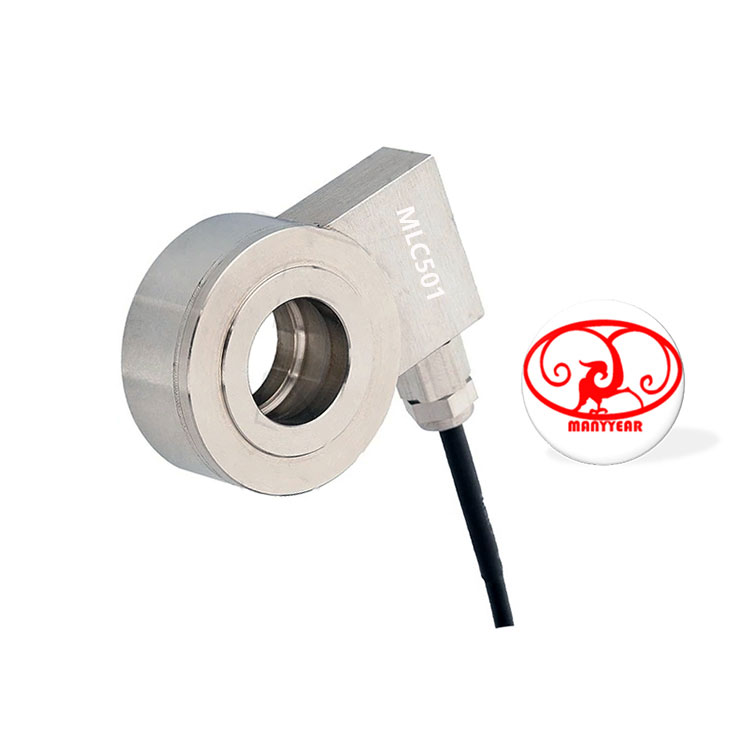

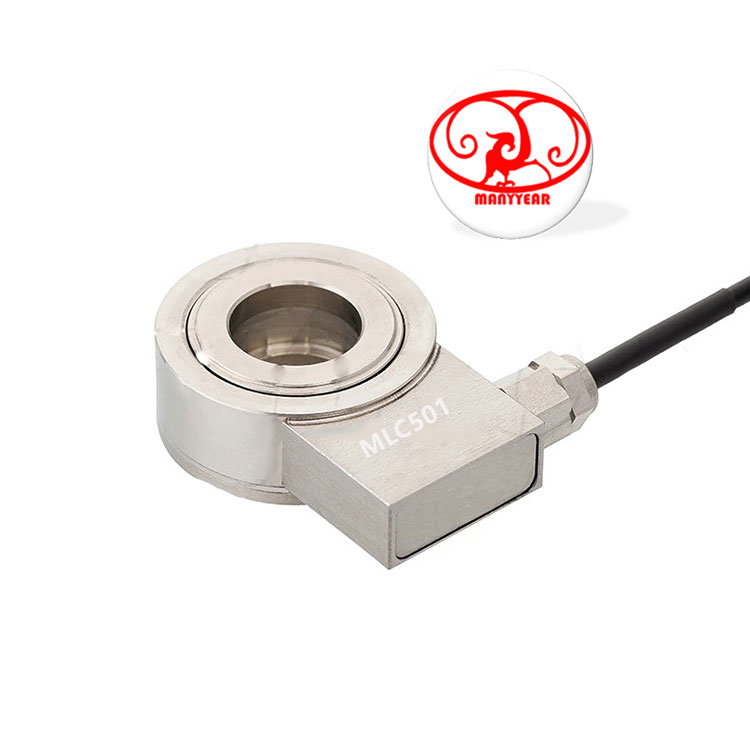

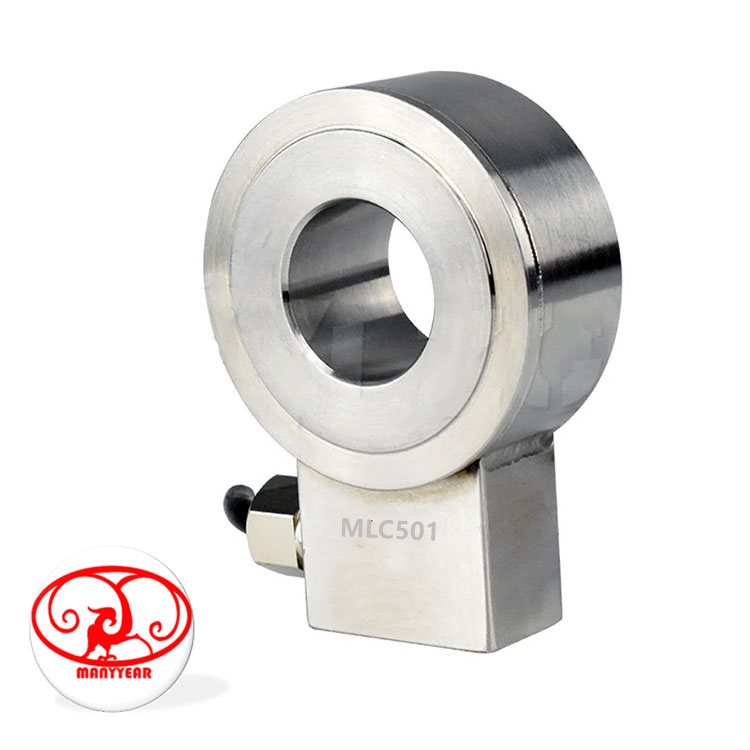

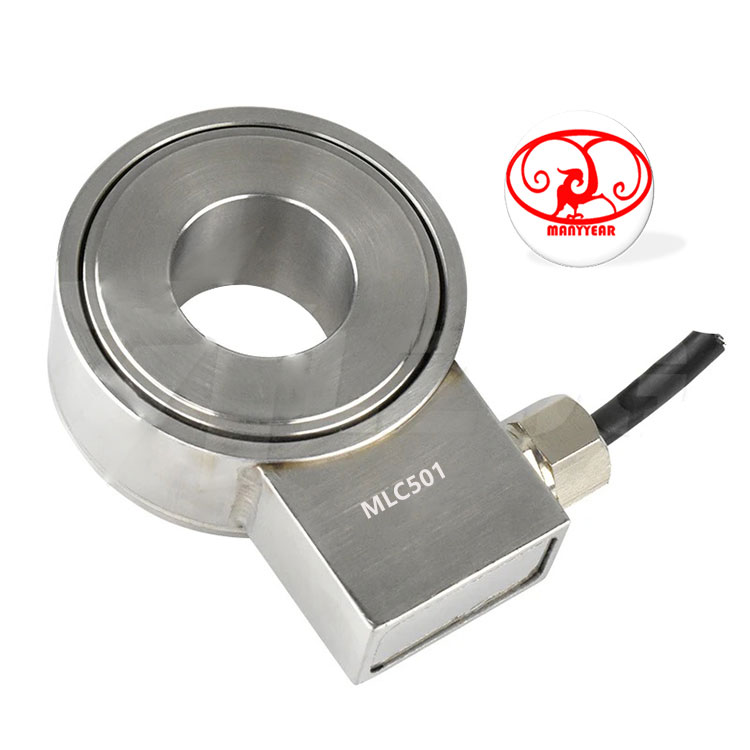

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

Gasket force load cell, washer force sensor, Circle load cell, Ring gasket load cell, compression load cell, Axial force sensor.

Model: MLC501 Catalog: Multi-Axis Force Sensors Rated load: 0.3, 0.5, 1, 2, 2.5, 3, 3.5, 4, 5, 10, 15, 20, 30, 45 t Material: alloy steel, stainless steel Accuracy: C2 Safe overload: 150%; ultimate overload: 200% Features: ring force sensor, gasket force sensor, axial force sensor, extrusion force sensor, preload force sensor

Specification
Comprehensive error:	0.5%FS	Output resistance:	352±5Ω
Rated output:	1±0.002mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~15VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.02%FS	Use temperature:	-40~+80℃
Creep:	0.02%FS/10Min	Temp effect on zero:	0.03%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.02%FS/10℃
Input resistance:	400±5Ω	Defend grade:	IP68

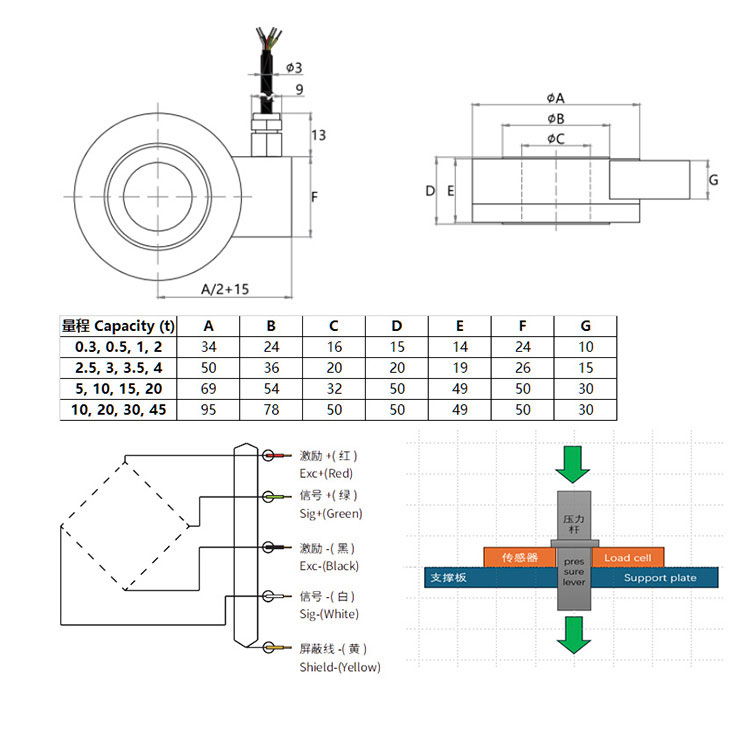

Product Dimension

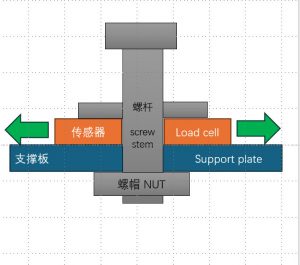

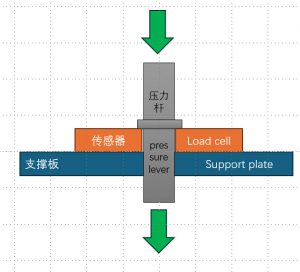

Force Structure & Assembly Reference
