MLC5905 multi directional force sensor MLC5905 multi directional force sensor
MLC5905 multi directional force sensor
MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY
MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY
MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY
MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY

MLC5905 multi directional force sensor

multi axis load cell,multi-directional force sensor,tri-axial force sensor,compression test professional load cell

Model: MLC5905
Category: Multi Axis Load Cell
Range: Fz:5~100T; Fx:1/2 FZ; Fy:1/2 FZ
Dimension: Customize
Material: alloy steel
Characteristics: multi axis force sensor, multi directional force sensor, tri-axial force sensor, compression test professional load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

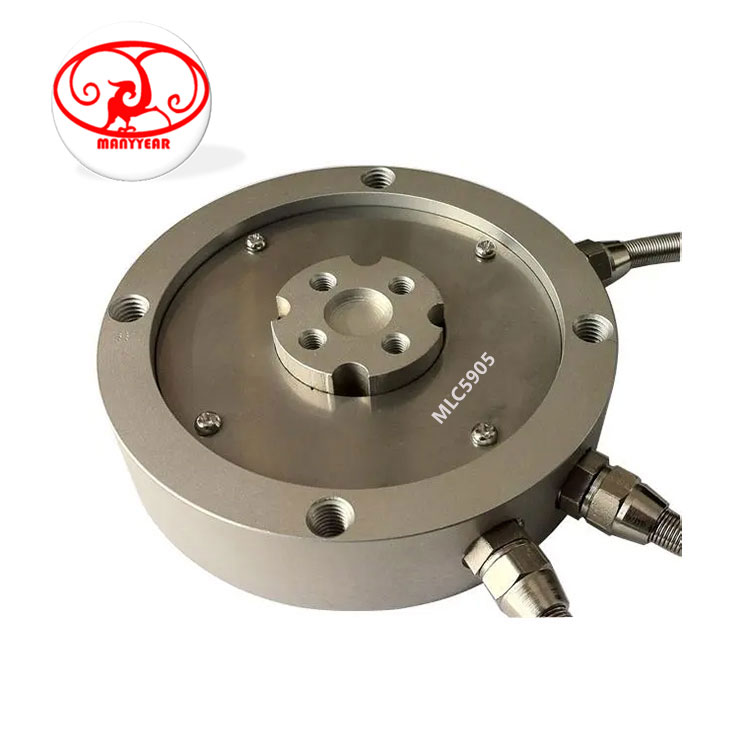

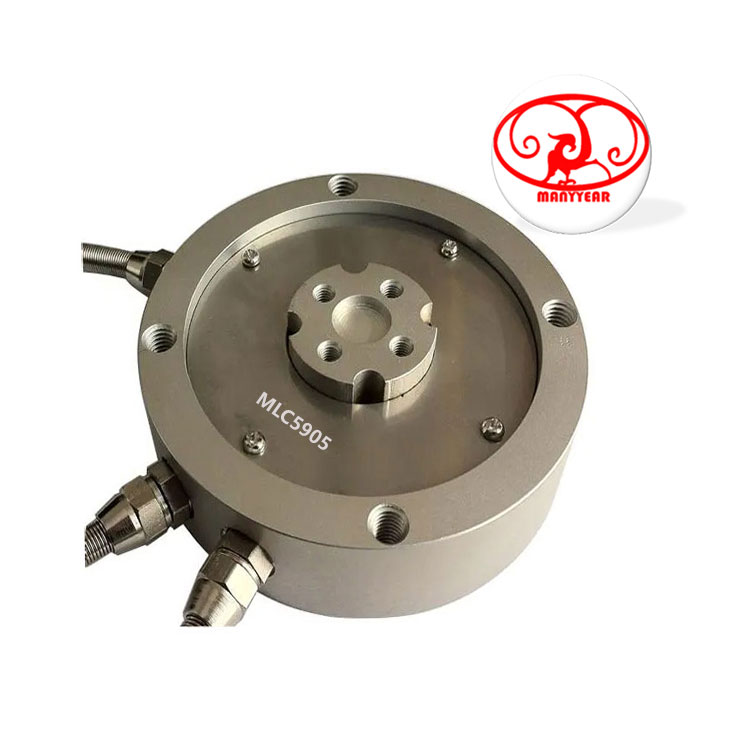

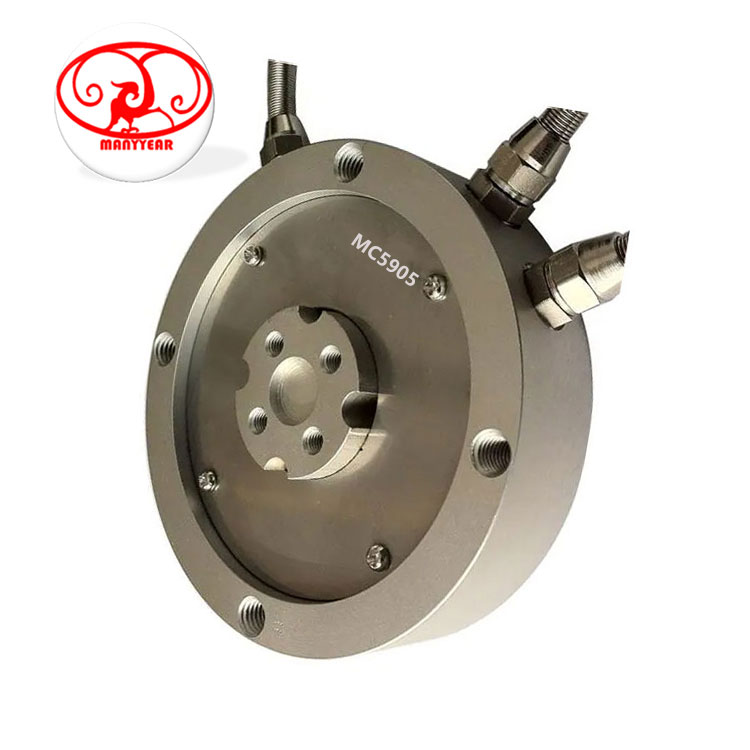

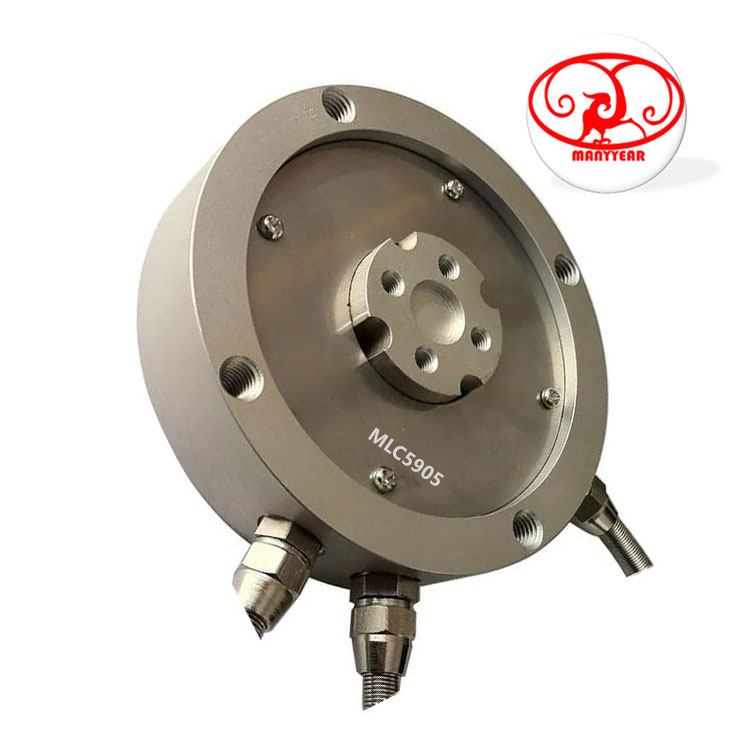

Product Picture Reference

MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY

MLC5905 multi-directional force sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC5905 multi-directional force sensor

Model: MLC5905

Category: Multi Axis Load Cell

Range: Fz:5~100T; Fx:1/2 FZ; Fy:1/2 FZ

Dimension: Customize

Material: alloy steel

Characteristics: multi axis load cell, multi-directional force sensor, tri-axial force sensor, compression test professional load cell

Multi-axis force sensor is able to measure more than two directions component of the force and torque sensors.

Force and torque in a Cartesian coordinate system can be broken down into three components, therefore, multidimensional force six-dimension force/torque sensor is the most complete form, is capable of simultaneously measuring the three forces and three moment components of the sensor.

Application:

Industry covering robots, automobile manufacturing, automation, assembly, biomechanics, aeronautics and astronautics, the textile industry and other fields.

Multi-axis force sensors are widely used in robotics research on fingers, hands, feet; robotic surgery research; research; dental research force feedback, brake testing, precision assembly, machining and restoration research; research of plastic surgery; product testing haptic feedback; teaching study

                         Specification
Range:Fz:5~100T; Fx:1/2 FZ; Fy:1/2 FZResponse frequency:100μS
Rated output:2.0 mV/V; 0-5vdc/4-20MAInsulation resistance:2000 MΩ/100VDC
Comp. precision0.05~0.1F.SInput resistance:700±10/350±10Ω
Work temp.:-35~+80℃Output resistance:700±5/350±5Ω
Temp compensation:20~+60℃Zero point:0~±1%F.S
Temp effect at zero:±0.03%F.S/10 ℃Safe overload:120%F.S
Work voltage:12 VDCWater proof:IP65/66



Product Dimension

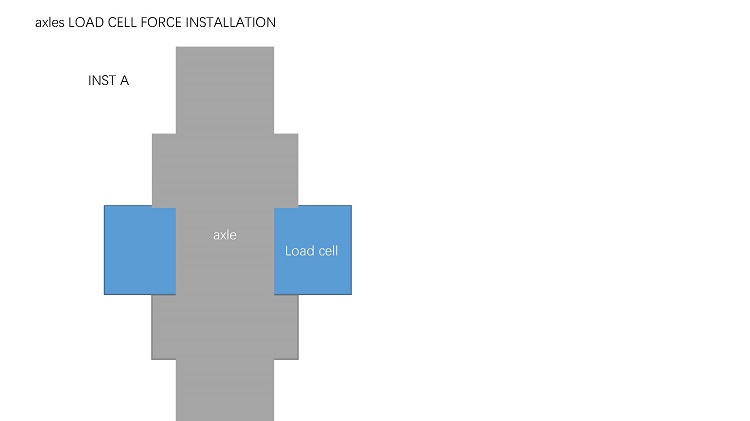

Force Structure & Assembly Reference

MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY

Product Application

MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY

apw-force-test-6

MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY

apw-force-test-7

MLC5905 multi directional force sensor-MANYYEAR TECHNOLOGY

apw-force-test-3
