MLC205SS miniature compression and tension load cell

MLC205SS – Pressure measurement, tension measurement, micro bolt type force sensor

Model: MLC205SS
Category: Spoke type weighing sensor
Range: 10kg, 15kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 400kg, 500kg
Size: 33mm * phi 13
Material: Alloy steel, stainless steel
Application: Micro force sensors, tensile testing machines, pressure testing machines, screw force measurement
Application: Small compression and tensile tests, small crane scales


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

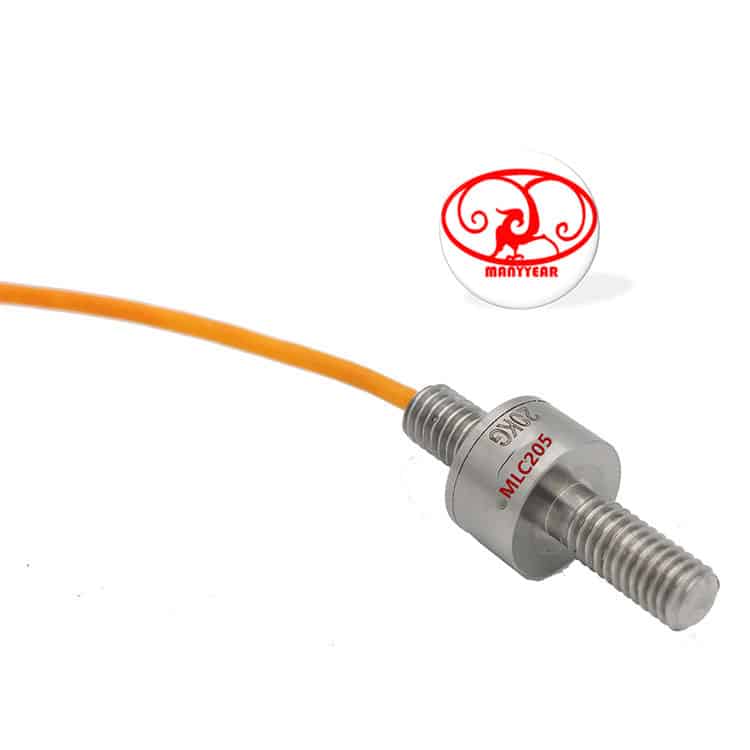

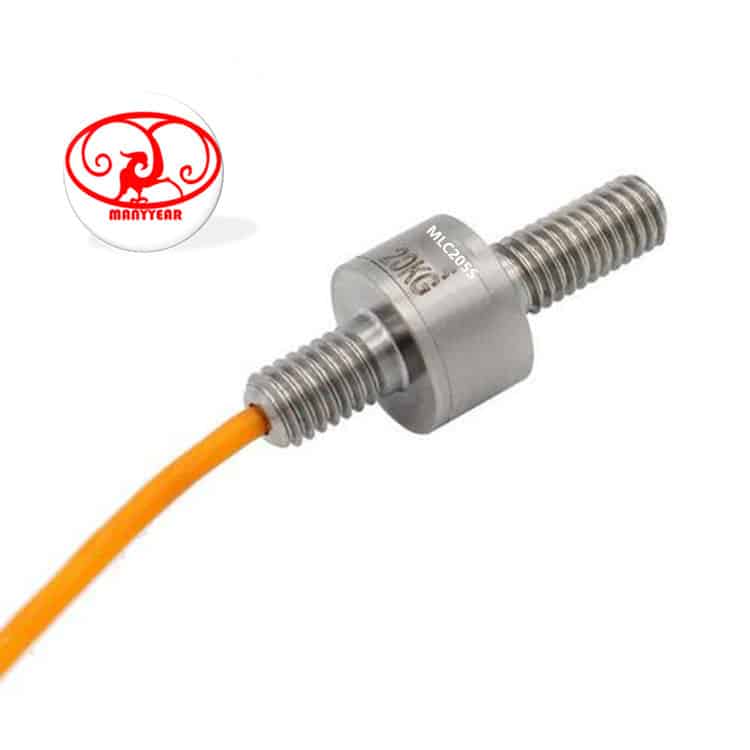

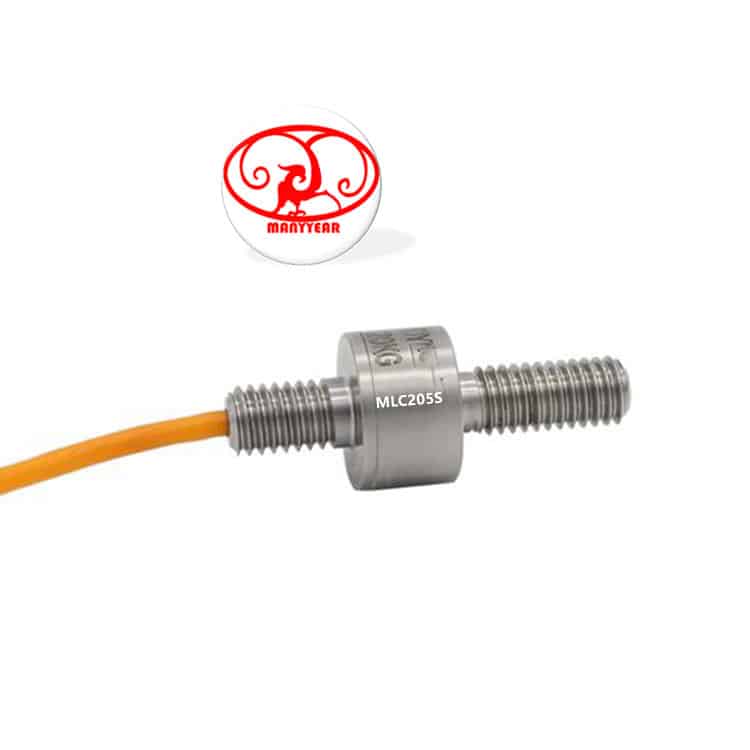

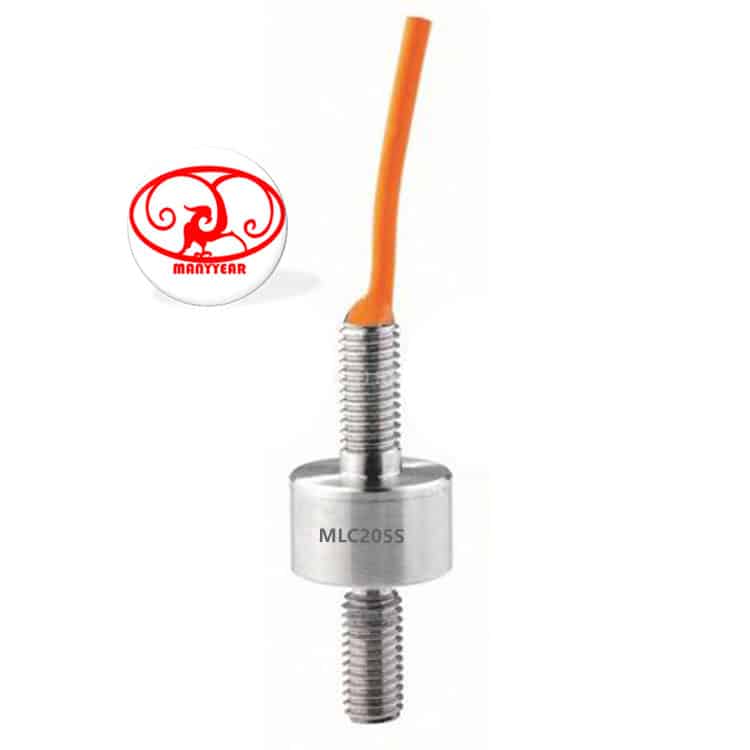

Product Picture Reference

MLC205SS  miniature compression and tension load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

                  MLC205SS miniature compression and tension load cell

MLC205SS - Pressure measurement, tension measurement, micro bolt type force sensor
Model: MLC205SS
Category: Spoke type weighing sensor
Range: 10kg, 15kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 400kg, 500kg
Size: 33mm * phi 13
Material: Alloy steel, stainless steel
Application: Micro force sensors, tensile testing machines, pressure testing machines, screw force measurement

Other Dimension (mm)
    Specification
Comprehensive error:0.2%FSOutput resistance:350±10Ω, 700±5Ω
Rated output:1±0.15mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:9~12VDC
Hysteresis:0.2%FSCompensated temp:-10~+40ºC
Repeatability:0.1%FSUse temperature:-20~+55ºC
Creep:0.03%FS/10minTemp effect on zero:0.05%FS/10ºC
Zero balance:±5%FSTemp effect on span:0.05%FS/10ºC
Input resistance:350±10Ω, 700±5ΩDefend grade:IP66

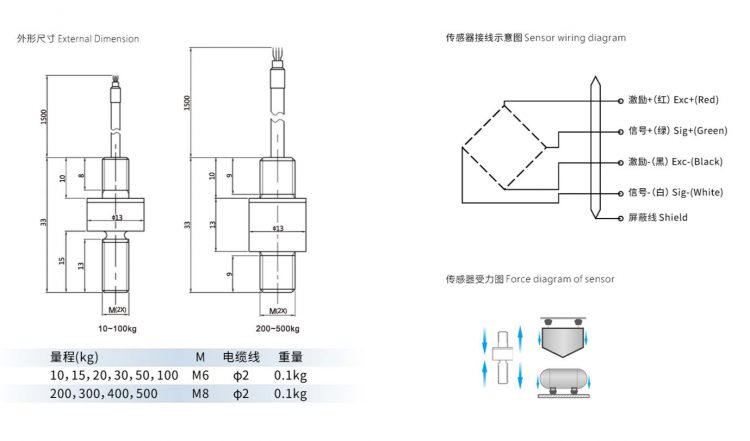

Product Dimension

MLC205SS  miniature compression and tension load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC205SS  miniature compression and tension load cell-MANYYEAR TECHNOLOGY

Product Application

MLC205SS  miniature compression and tension load cell-MANYYEAR TECHNOLOGYMLC205SS  miniature compression and tension load cell-MANYYEAR TECHNOLOGYMLC205SS  miniature compression and tension load cell-MANYYEAR TECHNOLOGY
