MLC206 vibratory feeding scale weight sensor

feed scale weight sensor,vibratory feeding scale load cell,compression and tension load cell

Model: MLC206
Category: Button load cell
Range: 0.05t,1t,2t,5t,10t,20t
Dimension: 50*72mm; 100*141mm; 135*232mm
Material: alloy steel,stainless steel
Characteristic: feed scale weight sensor,vibratory feeding scale load cell, compression and tension load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

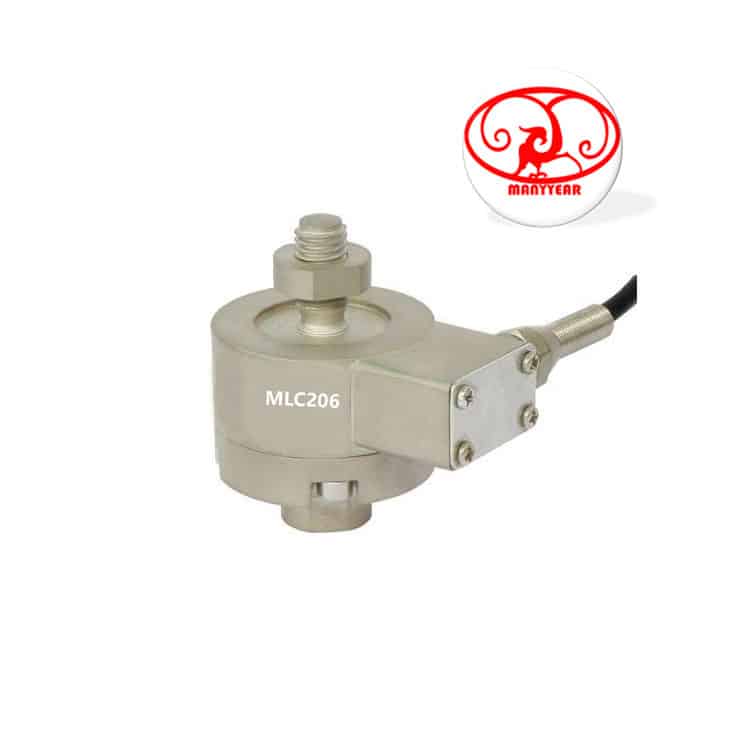

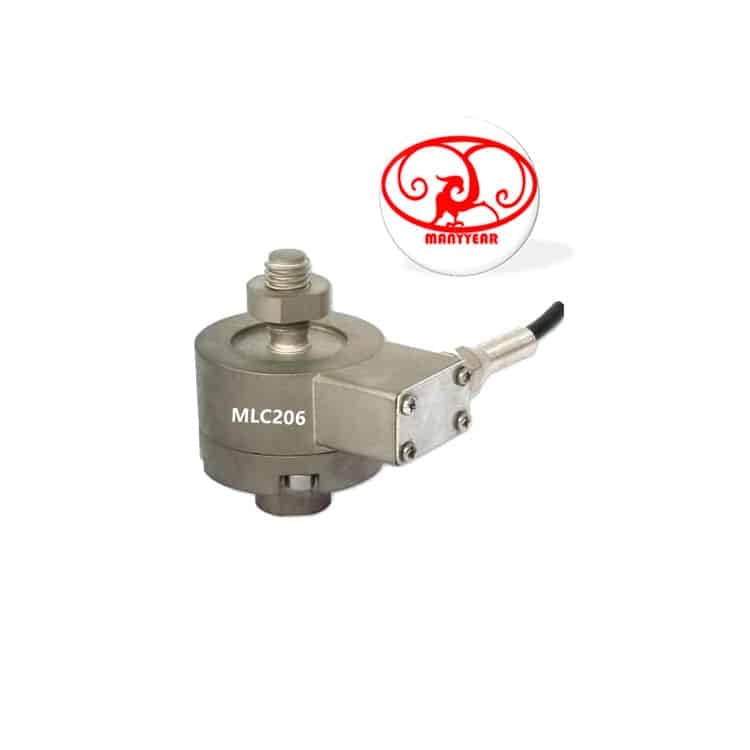

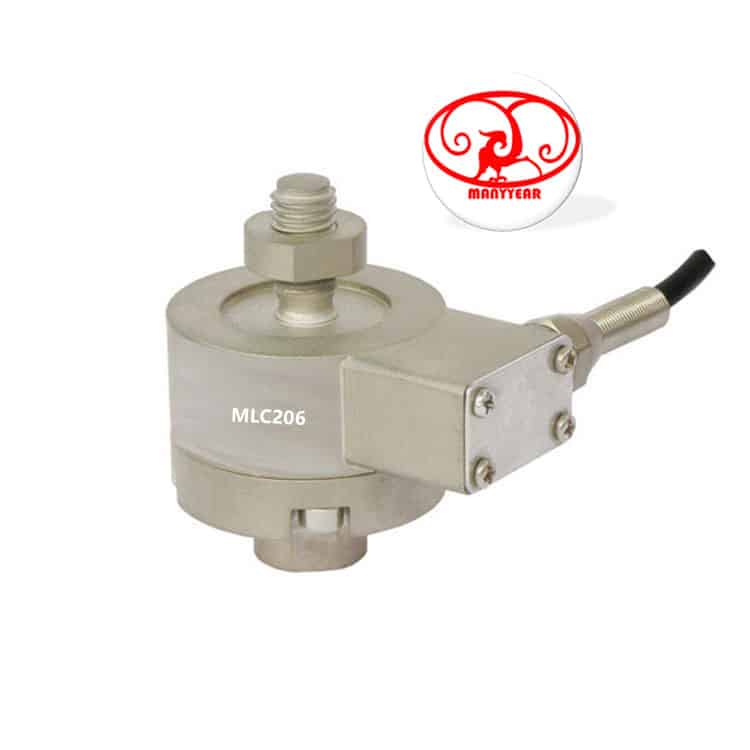

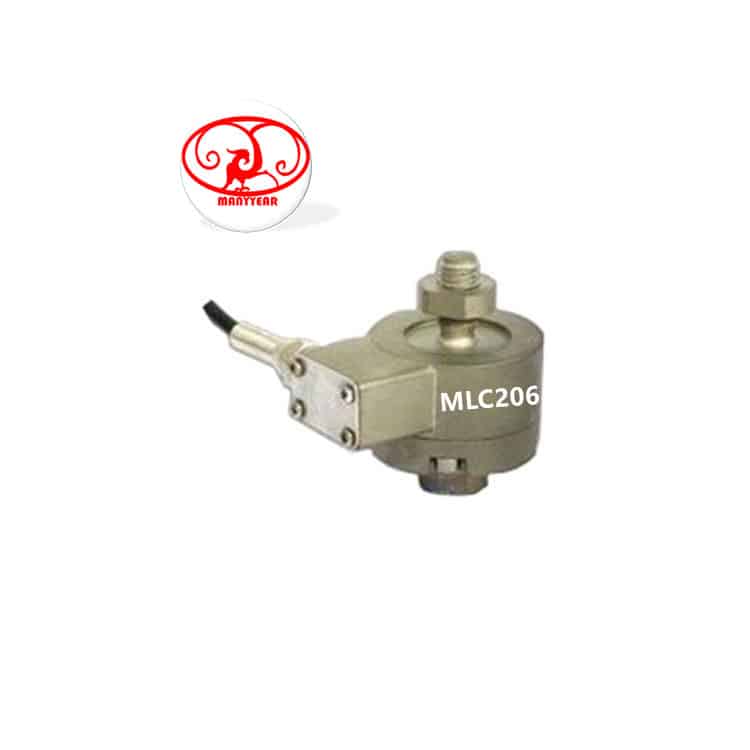

Product Picture Reference

MLC206 vibratory feeding scale weight sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

                  MLC206 vibratory feeding scale weight sensor

Model: MLC206
Category: Button load cell
Range: 0.05t,1t,2t,5t,10t,20t
Dimension: 50*72mm; 100*141mm; 135*232mm
Material: alloy steel,stainless steel
Characteristic: feed scale weight sensor,vibratory feeding scale load cell, compression and tension load cell

       Other Dimension (mm)
Load rangeΦABΦCKMXYZ
0.05~1ton50722122M12203225
2ton901123325M20x1.5263634
5ton1001414025M24x2263634
10ton1351976826M39x2263634
20ton1352328226.5M48x2263634
     Specification
Comprehensive error:0.2%FSOutput resistance:700±10Ω
Rated output:2±0.002mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:9~12VDC
Hysteresis:0.1%FSCompensated temp:-10~+40ºC
Repeatability:0.05%FSUse temperature:-20~+55ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:700±10ΩDefend grade:IP68

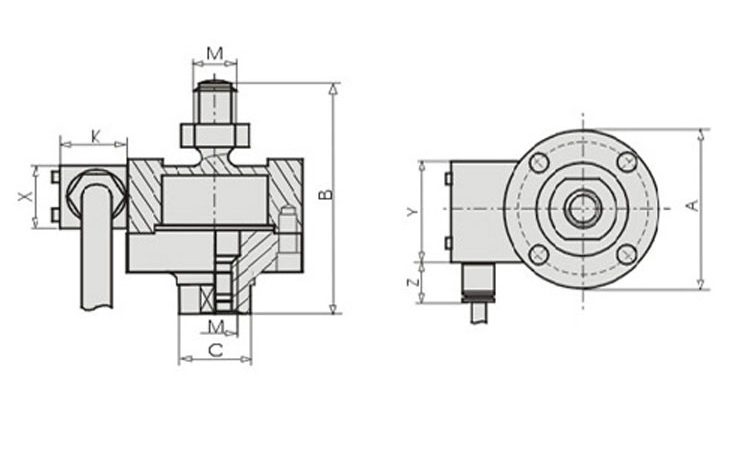

Product Dimension

MLC206 vibratory feeding scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC206 vibratory feeding scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC206 vibratory feeding scale weight sensor-MANYYEAR TECHNOLOGYMLC206 vibratory feeding scale weight sensor-MANYYEAR TECHNOLOGYMLC206 vibratory feeding scale weight sensor-MANYYEAR TECHNOLOGY
