MLC5906W03 Multidirectional force sensor

Model: MLC5906W03
Category: Multidirectional force sensor
Range: 0-50N. m 50-1000N
Size: Ø 42 * 38mm
Material: Aluminum alloy
Applications: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, automation equipment and testing fields
Features: three-component force sensor, multi-component force sensor, three-way force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

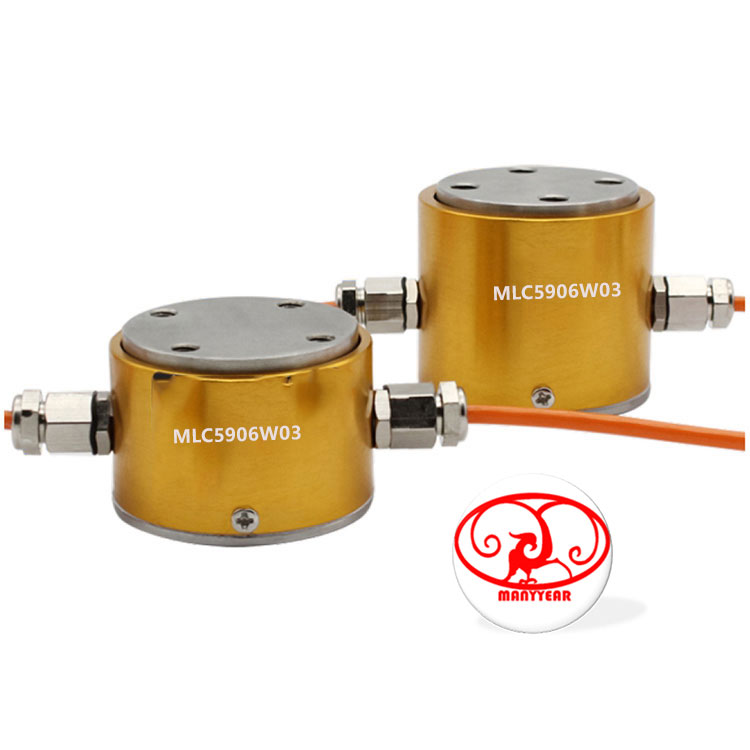

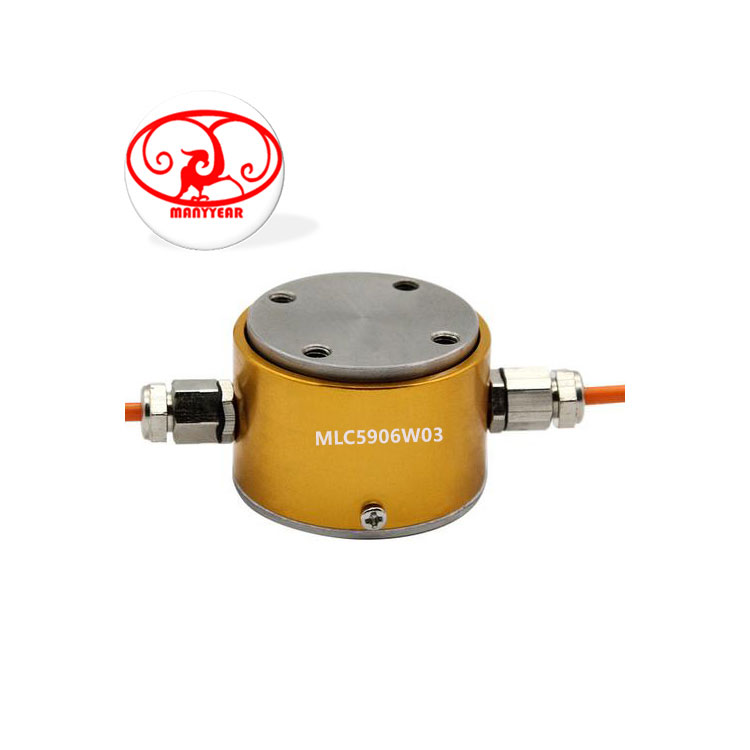

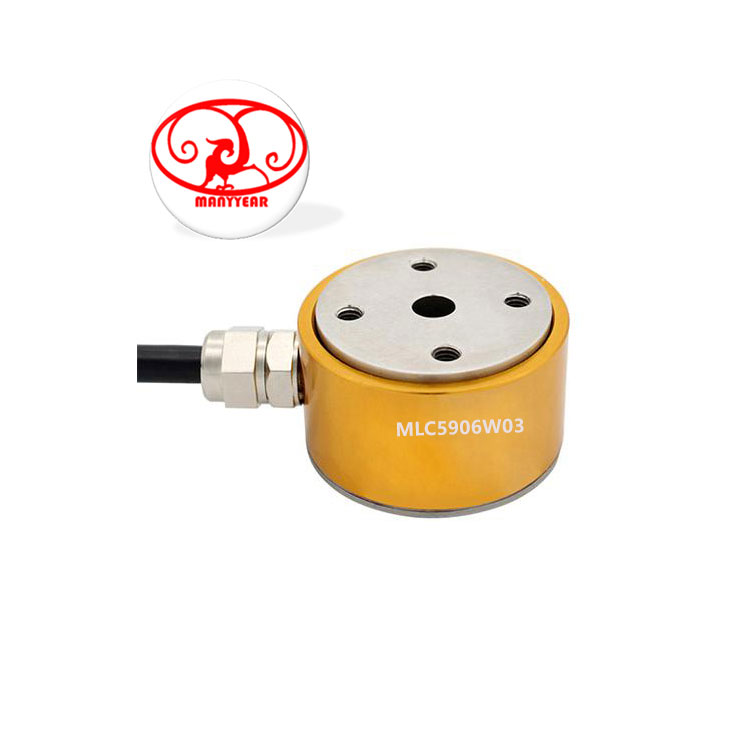

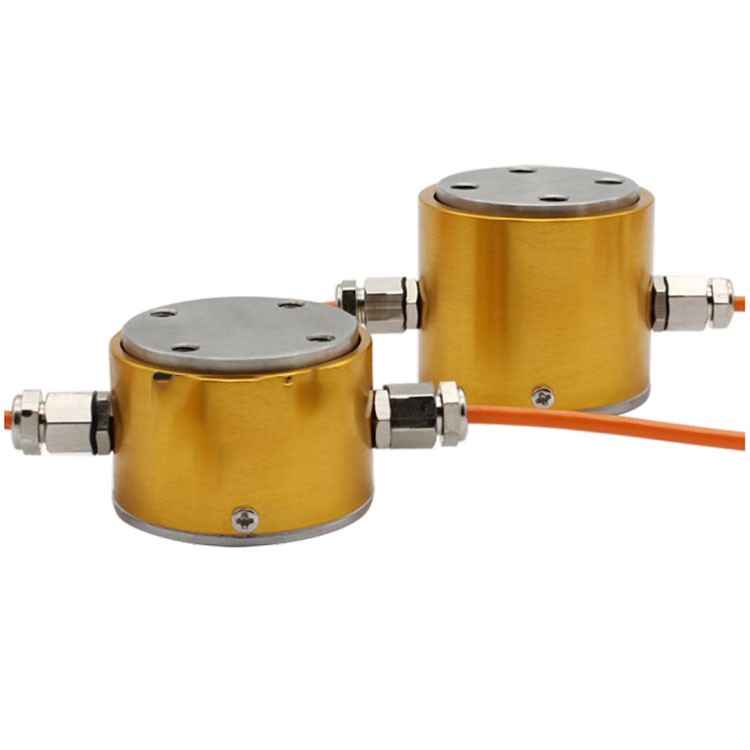

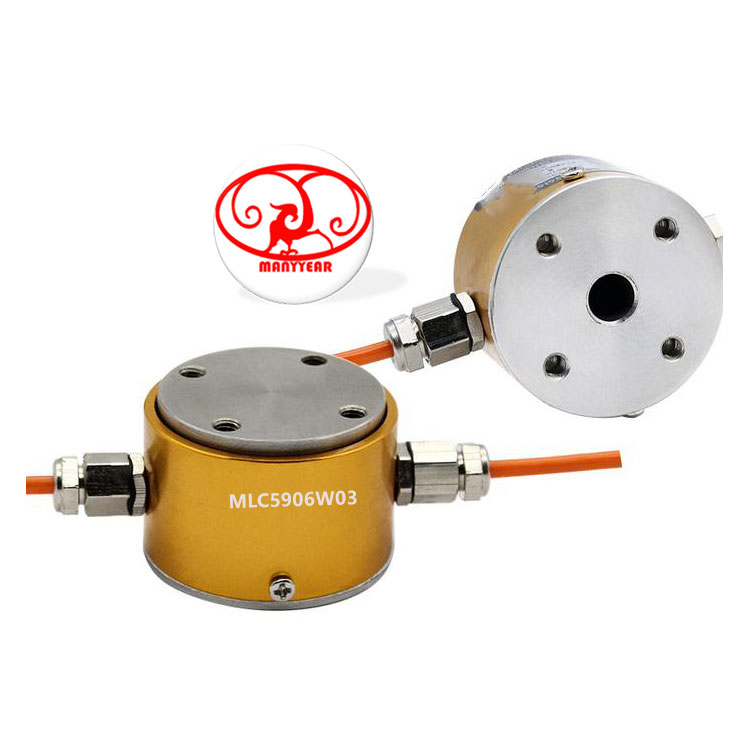

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC5906W03 Multidirectional force sensor

Model: MLC5906W03

Category: Multidirectional force sensor

Range: 0-50N. m 50-1000N

Size: Ø 42 * 38mm

Material: Aluminum alloy

Applications: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, automation equipment and testing fields

Features: three-component force sensor, multi-component force sensor, three-way force sensor

High stability

Can be installed in narrow spaces
Non standard customizable
Stable anti-interference signal
High quality alloy steel

·Widely used in automotive pressing, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, and other industrial testing, automation equipment and testing fields

TECHNOLOGY SPEC.
Rated range Output sensitivity	TORQUE	1-50N. M
Rated range Output sensitivity	COMPRESSION/TENSION	50-1000N
Nonlinear	mV/V	2.0+10%
lagging	%F.S.	2
Repeatability	%F. S.	0.1
Dimensional coupling error	%F.S.	0.1
Creep (30 minutes)	%F.S.	0.1
Zero point output	%F.S.	0.05
Zero temperature drift	%F. S./10C	0.05
Temperature sensitivity drift	%F.S./10C	0.05
Operating temperature range	Hz	1k
Input resistance		42CrMoA
Output resistance	Ω	350
insulation resistance	MΩ/100V DC	≥5000
Safety overload	V	5-10
Using voltage	C	-20-80
Cable specifications	%R.C.	120
Ultimate cable tension	%R. C.	200
TEDS	m	3*2m
Rated range	N	98
Output sensitivity		可选

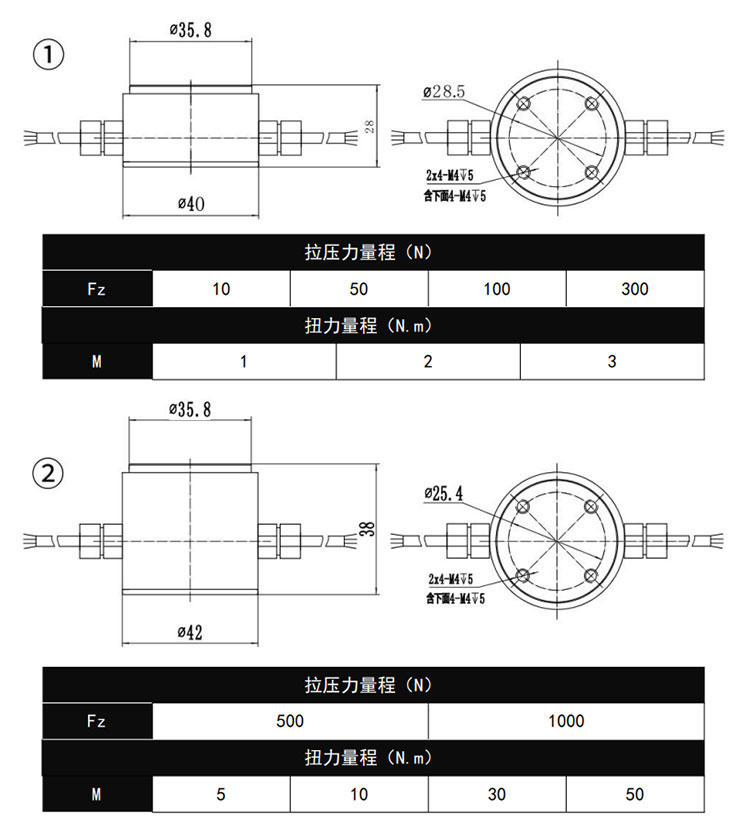

Product Dimension

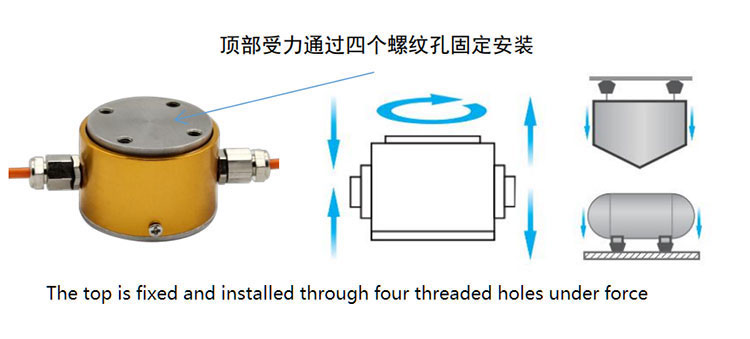

Force Structure & Assembly Reference
