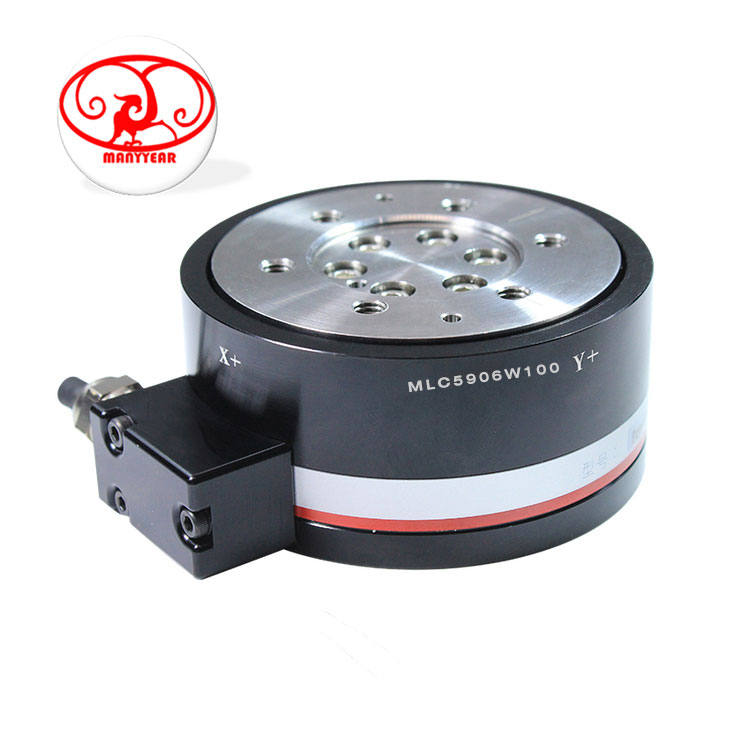

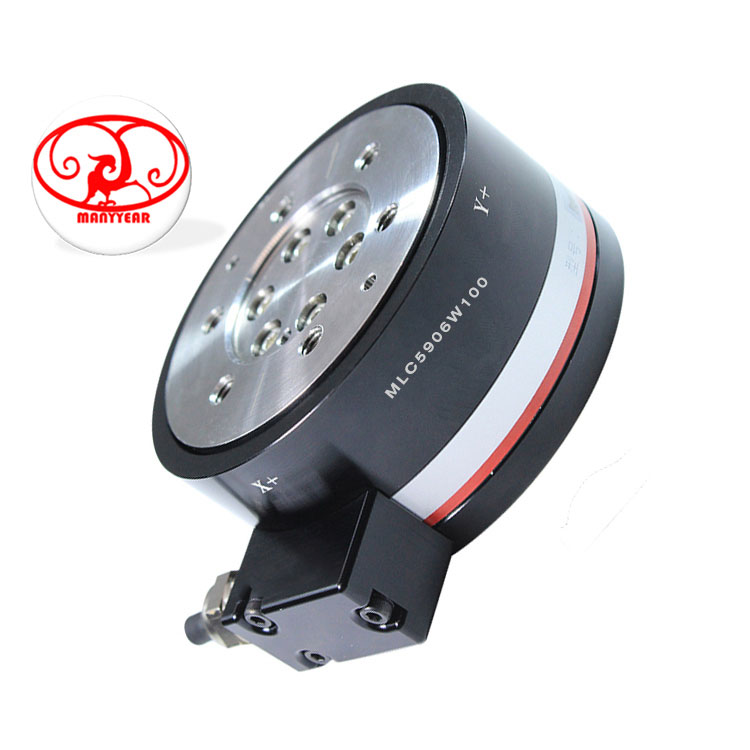

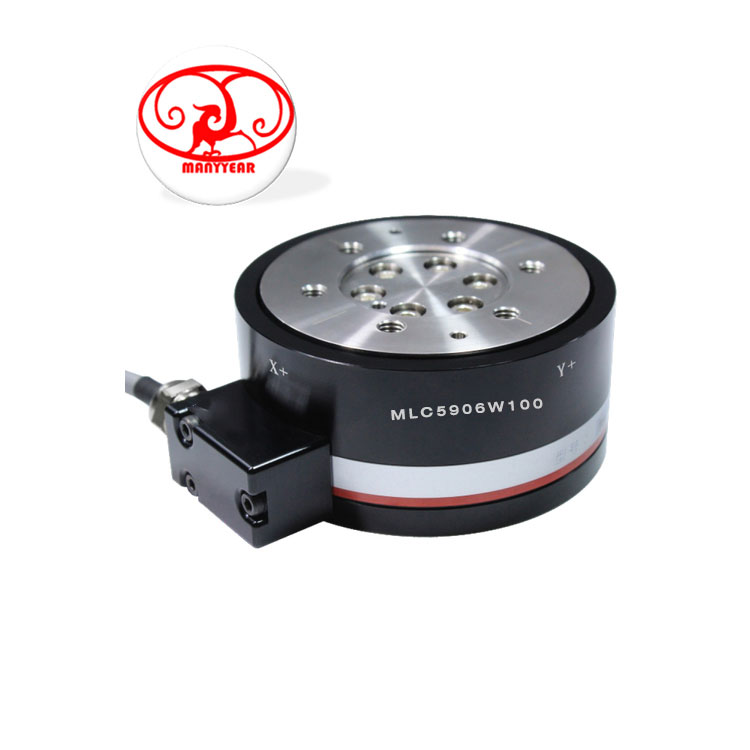

MLC5906W-100 Multidirectional force sensor

MLC5906W-100 Multidirectional force sensor

2023/10/25 MLC5900 Multidirectional force sensor Force Load Cell 2342 0

MLC5906W-100 Multidirectional force sensor

Model: MLC5906W-100

Category: Multidirectional force sensor

Range: 0-500，1000，2000N

Size: 120 * 120 * 30/160 * 160 * 66/300 * 300 * 100mm

Material: Aluminum alloy

Applications: automotive press fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, automation equipment and testing fields

Features: three-component force sensor, multi-component force sensor, three-way force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

Product Picture Reference

MLC505 multi-directional force sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC5906A-100 Multidirectional force sensor

Model: MLC5906A-100

Category: Multidirectional force sensor

Range: 0-50010002000N

Size: 120 * 120 * 30/160 * 160 * 66/300 * 300 * 100mm

Material: Aluminum alloy

Features: three-component force sensor, multi-component force sensor, three-way force sensor

Rated range	2000N 20N.m	Fx	Fy	Fz	Nx	Ny	Nz
Output sensitivity	mV/V	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0
Nonlinear	%F.S.	±0.3	±0.3	±0.3	±0.3	±0.3	±0.3
lagging	%F.S.	±0.3	±0.3	±0.3	±0.3	±0.3	±0.3
Repeatability	%F.S.	±0.3	±0.3	±0.3	±0.3	±0.3	±0.3
Dimensional coupling error	%F.S.	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1
Creep (30 minutes)	%F.S.	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Zero point output	%F.S./10℃	±1	±1	±1	±1	±1	±1
Zero temperature drift	%F.S./10℃	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01
Temperature sensitivity drift	Hz	±0.3	±0.3	±0.3	±0.3	±0.3	±0.3
Operating temperature range	℃	-80
Input resistance	Ω	350/700±20
Output resistance	MΩ(50V DC)	≥5000
insulation resistance	V	10v-15v
Safety overload	%R.C.	200

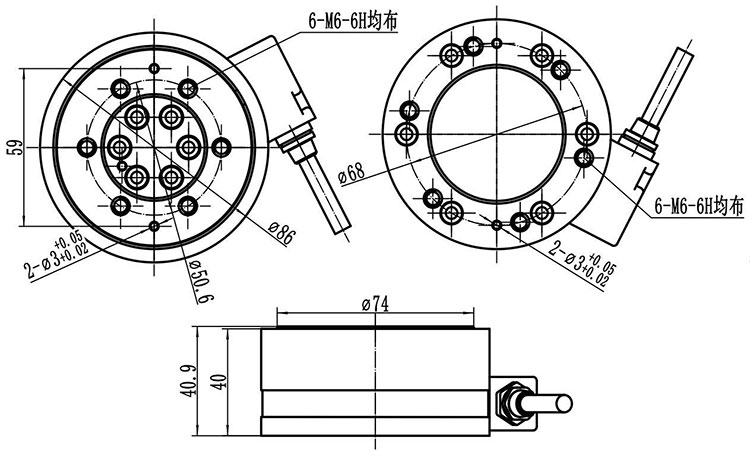

Product Dimension

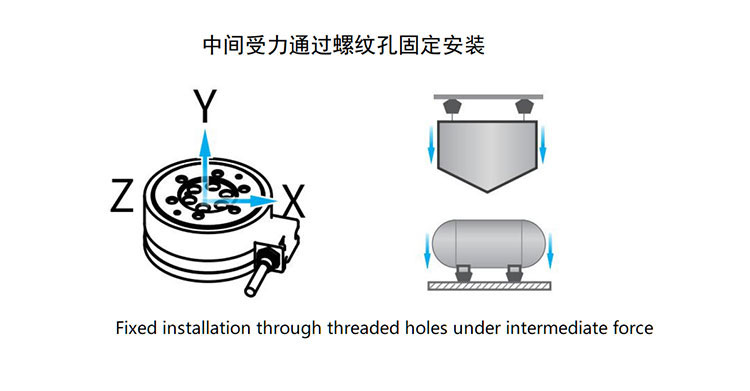

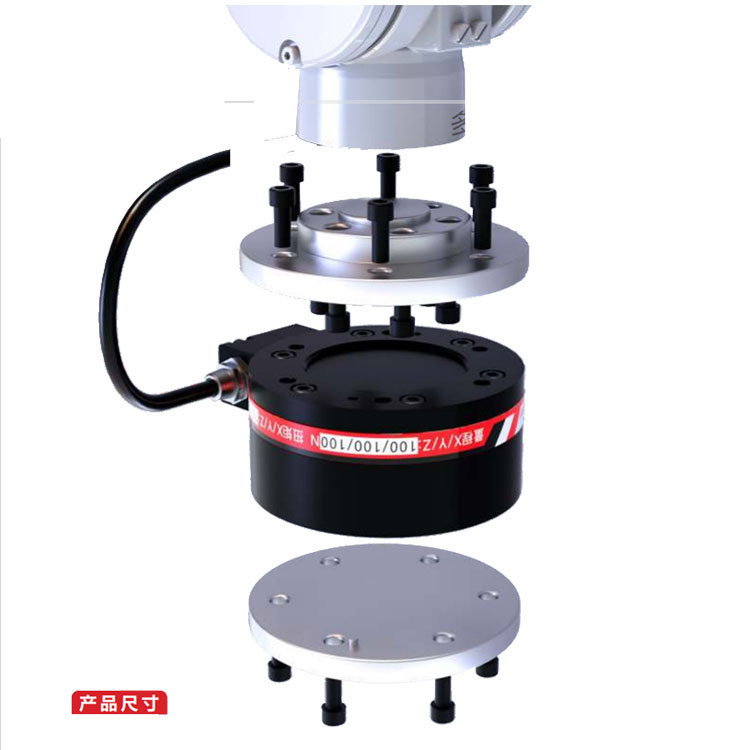

Force Structure & Assembly Reference

Product Application
