MLC213 round button force load cell

2021/11/10 Force Load Cell MLC200 Button Load Cell 2341 0

hopper scale weight sensor,round force sensor, compression force sensor, button force load cell

Model: MLC213
Category: button load cell
Range: 1t,2t,3t,5t,10t,20t, 30t, 60t
Dimension: 226*45/226*66mm
Material: alloy steel,stainless steel
Characteristic: hopper scale weight sensor,round force sensor, compression force sensor, button force load cell

Product selection reference

Product Introduction Technical Documents

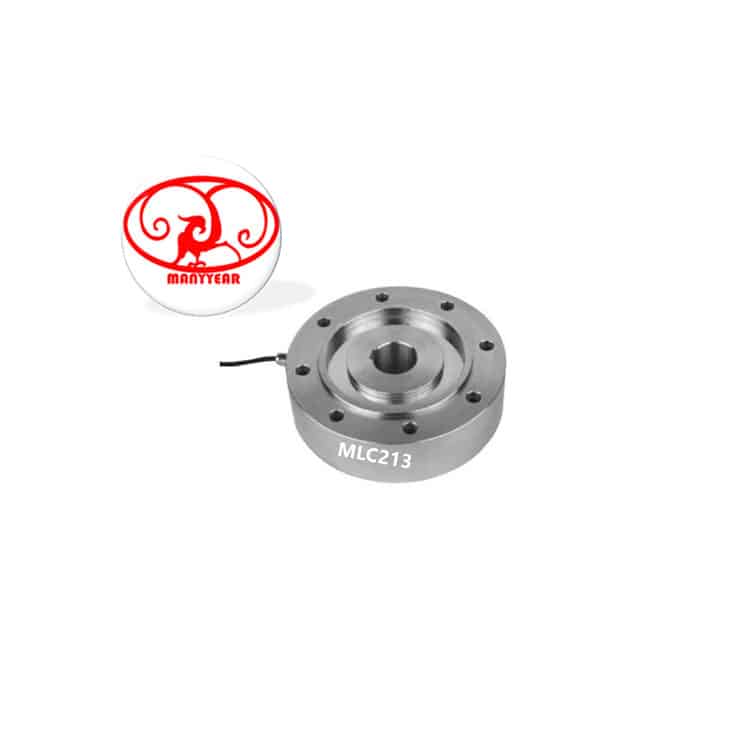

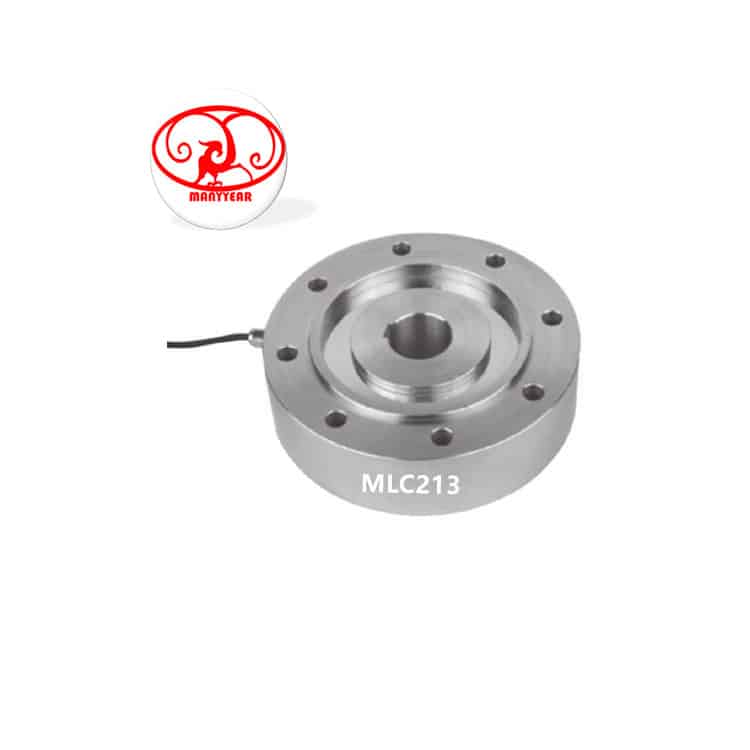

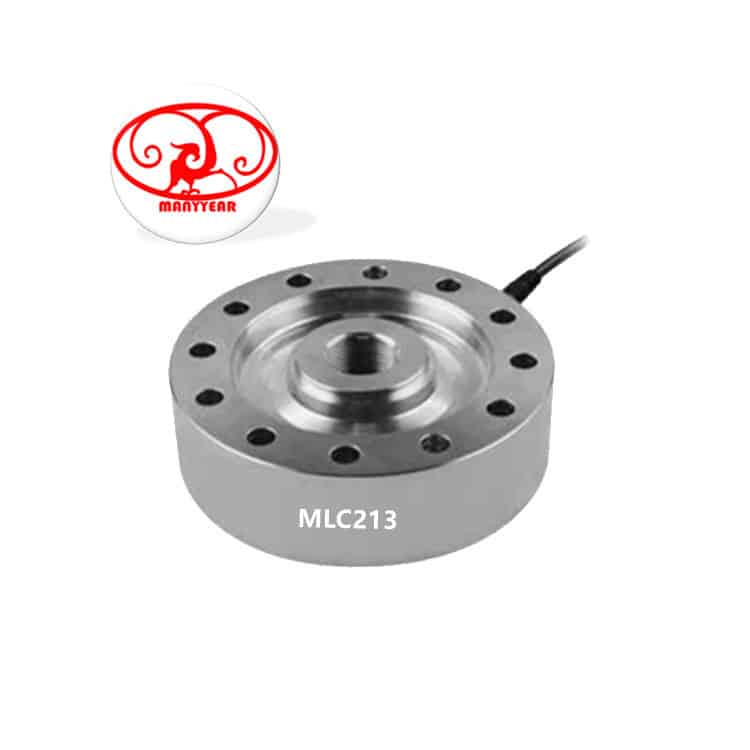

Product Picture Reference

MLC213 round button force load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC213 round button force load cell

Model: MLC213 Category: button load cell Range: 1t,2t,3t,5t,10t,20t, 30t, 60t Dimension: 22645/22666mm Material: alloy steel,stainless steel Characteristic: hopper scale weight sensor,round force sensor, compression force sensor, button force load cell

Specification
Comprehensive error:	0.05%FS	Output resistance:	352±5Ω
Rated output:	2.0±0.005mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10min	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	400±10Ω	Defend grade:	IP66 & IP68

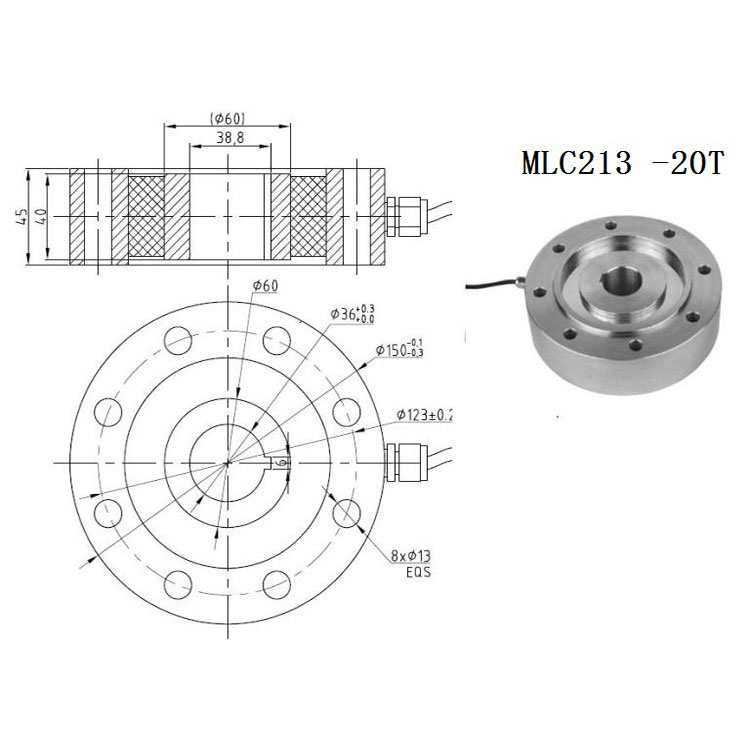

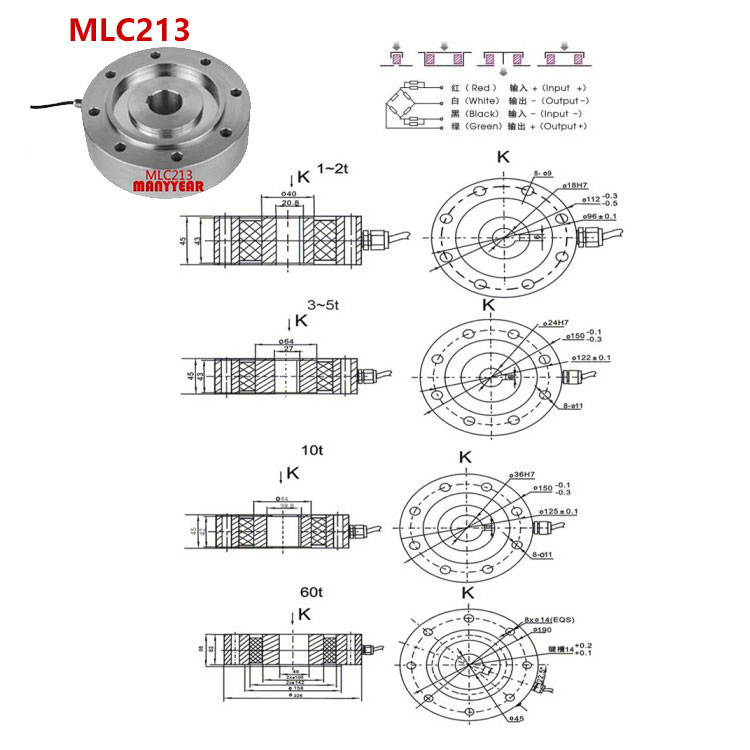

Product Dimension

Force Structure & Assembly Reference
