MLC212 hopper scale compression load cell 5ton

hopper scale load cell, round force sensor, compression load cell, button force load cell

Model: MLC212
Catalog: Button load cell
Rated load:2t,5t,10t
Dimension: D142*49mm
Material: alloy steel, stainless steel, alloy aluminum
Characteristic: hopper scale load cell, round force sensor, compression load cell, button force load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

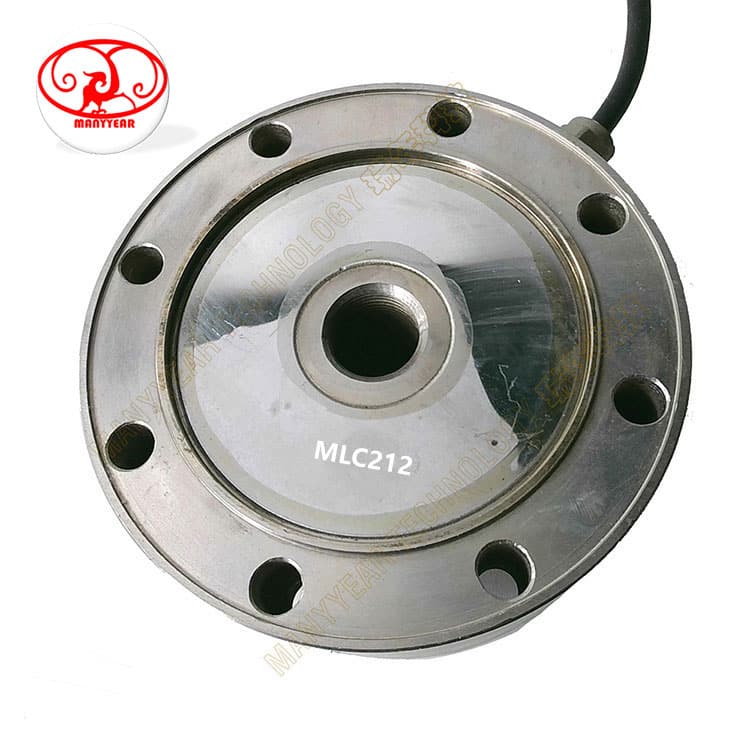

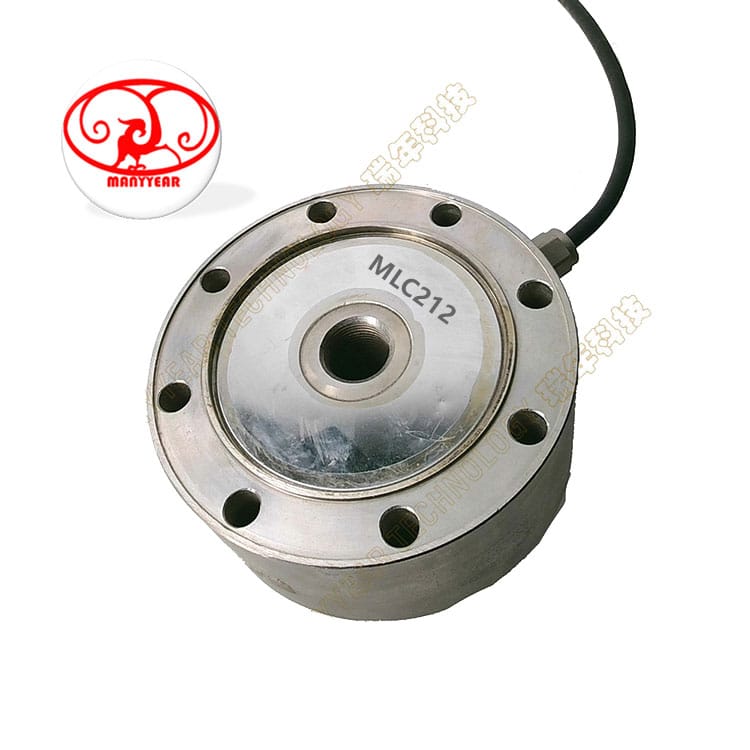

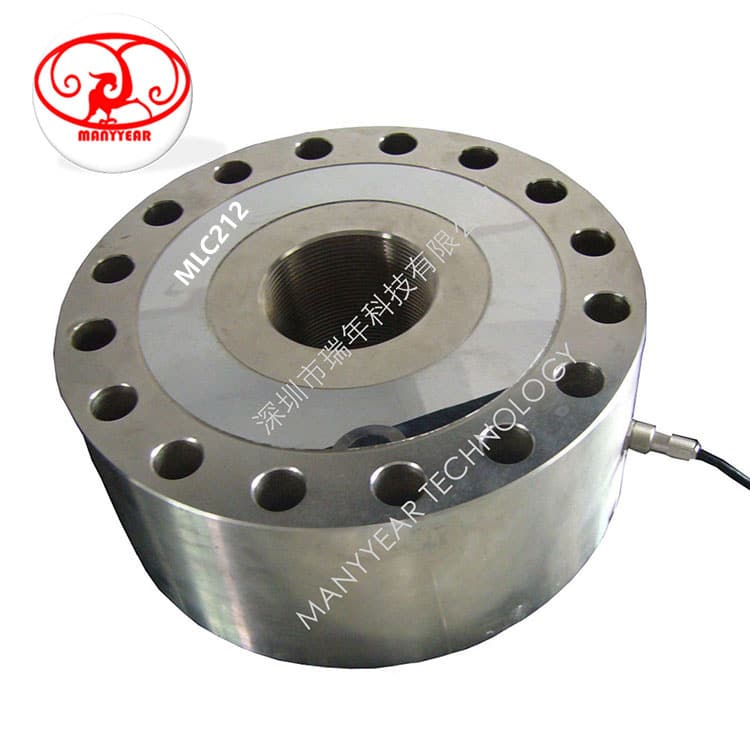

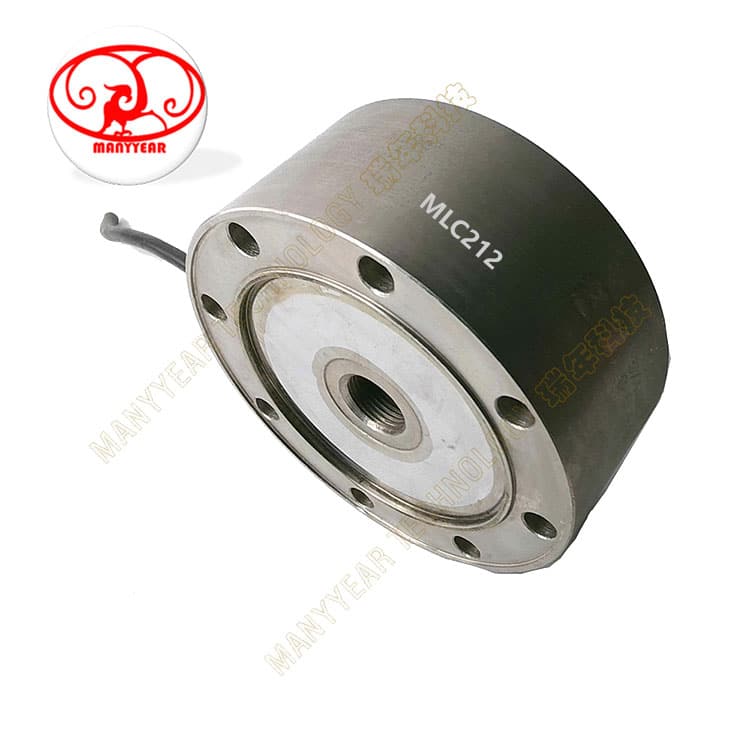

Product Picture Reference

MLC212 hopper scale compression load cell 5ton-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
               MLC212 hopper scale compression load cell 5ton

Model: MLC212
Catalog: Button load cell
Rated load:2t,5t,10t
Dimension: D142*49mm
Material: alloy steel, stainless steel, alloy aluminum
Characteristic: hopper scale load cell, round force sensor, compression load cell, button force load cell

Specification
Comprehensive error:0.05%FSOutput resistance:352±5Ω
Rated output:2.0±0.005mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:9~12VDC
Hysteresis:0.05%FSCompensated temp:-10~+40℃
Repeatability:0.03%FSUse temperature:-20~+55℃
Creep:0.03%FS/10MinTemp effect on zero:0.05%FS/10℃
Zero balance:±1%FSTemp effect on span:0.05%FS/10℃
Input resistance:350±10ΩDefend grade:IP66 & IP68

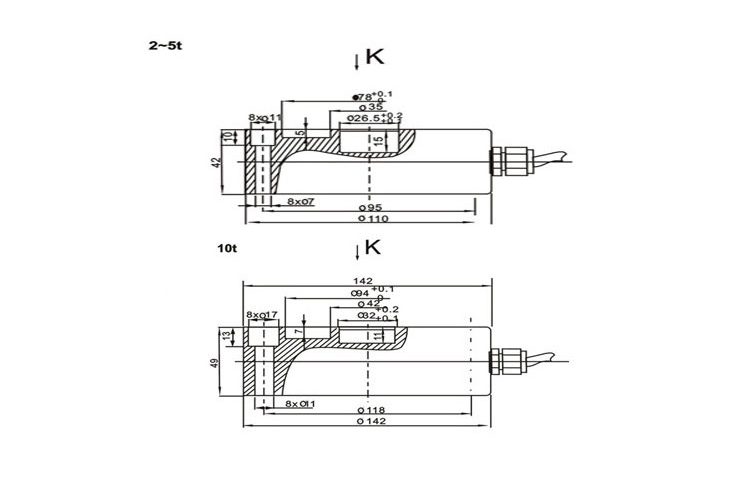

Product Dimension

MLC212 hopper scale compression load cell 5ton-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC212 hopper scale compression load cell 5ton-MANYYEAR TECHNOLOGY

Product Application

MLC212 hopper scale compression load cell 5ton-MANYYEAR TECHNOLOGYMLC212 hopper scale compression load cell 5ton-MANYYEAR TECHNOLOGYMLC212 hopper scale compression load cell 5ton-MANYYEAR TECHNOLOGY
