MLC204E20 miniature button force load cell

miniature button load cell,miniature force sensor, round force load cell

Model: MLC204E20
Category: button load cell
Range: 5kg,10kg,20kg,50kg,100kg,200kg
Dimension: 20*10mm; 20*11mm
Material: alloy steel,stainless steel
Characteristic: miniature button load cell,miniature force sensor, round force load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

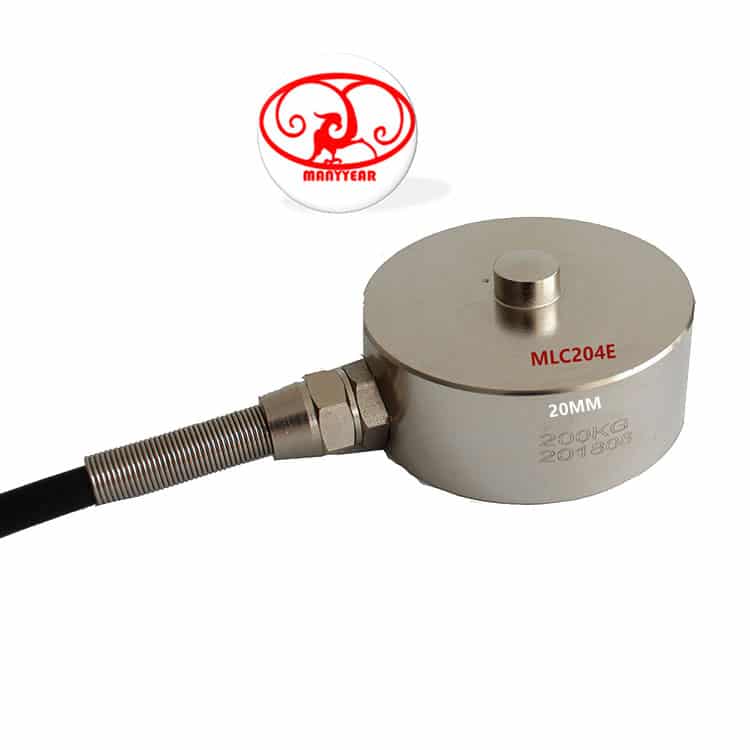

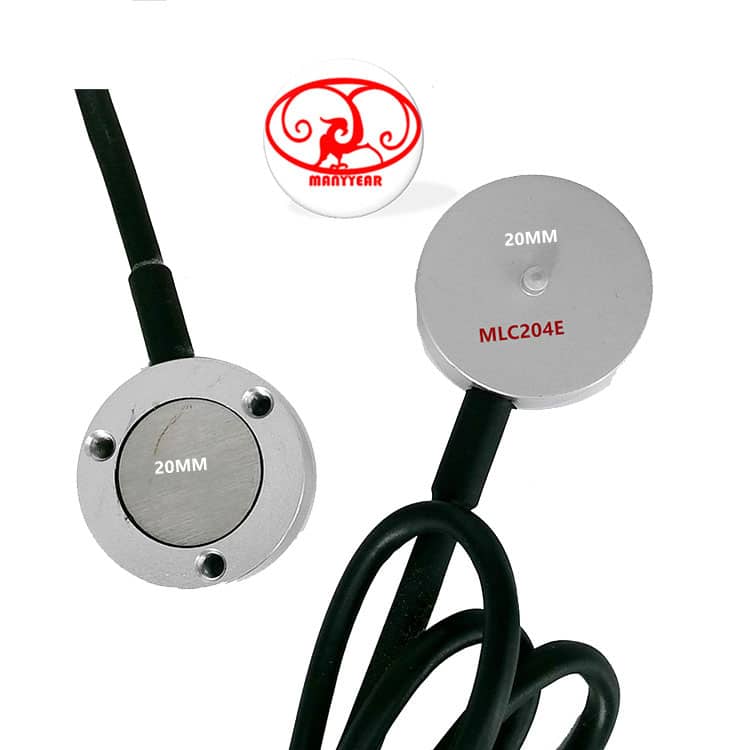

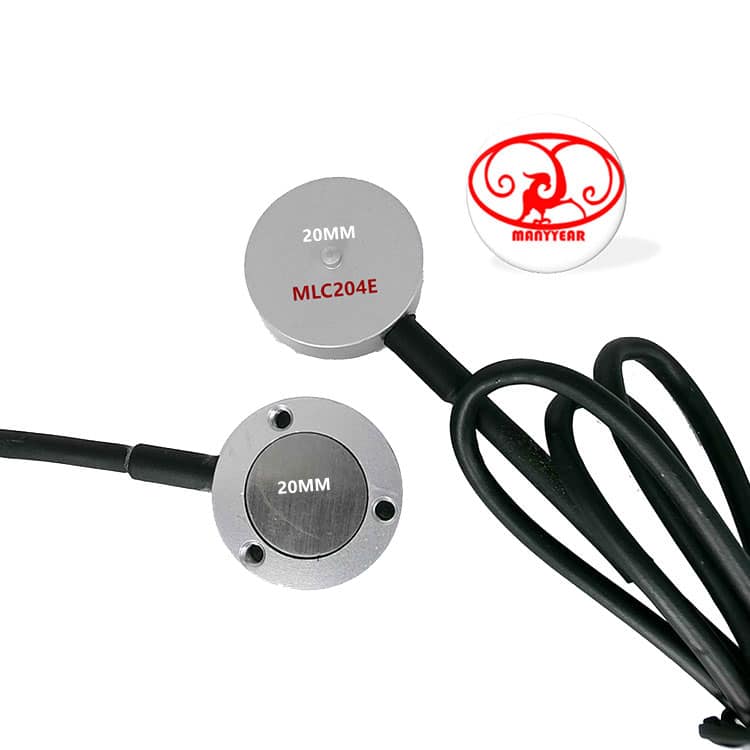

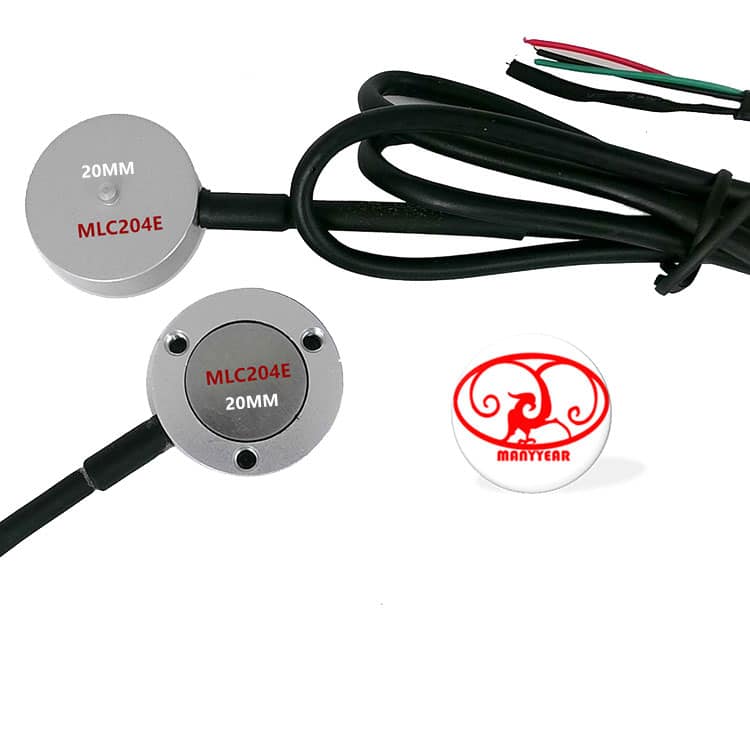

Product Picture Reference

MLC204E20 miniature button force load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC204G miniature button force load cell

Model: MLC204E20
Category: button load cell
Range: 5kg,10kg,20kg,50kg,100kg,200kg
Dimension: 20*10mm; 20*11mm
Material: alloy steel,stainless steel
Characteristic: miniature button load cell,miniature force sensor, round force load cell

Other Dimension (mm)
Load range5kg10kg20kg50kg100kg200kg
“A” size10mm11mm11mm11mm11mm11mm
“B” size8mm 9mm9mm9mm9mm9mm
Specification
Comprehensive error:0.2%FSOutput resistance:350±5Ω
Rated output:1±0.1mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:9~12VDC
Hysteresis:0.2%FSCompensated temp:-10~+40ºC
Repeatability:0.1%FSUse temperature:-20~+55ºC
Creep:0.03%FS/10MinTemp effect on zero:0.05%FS/10ºC
Zero balance:±5%FSTemp effect on span:0.05%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66

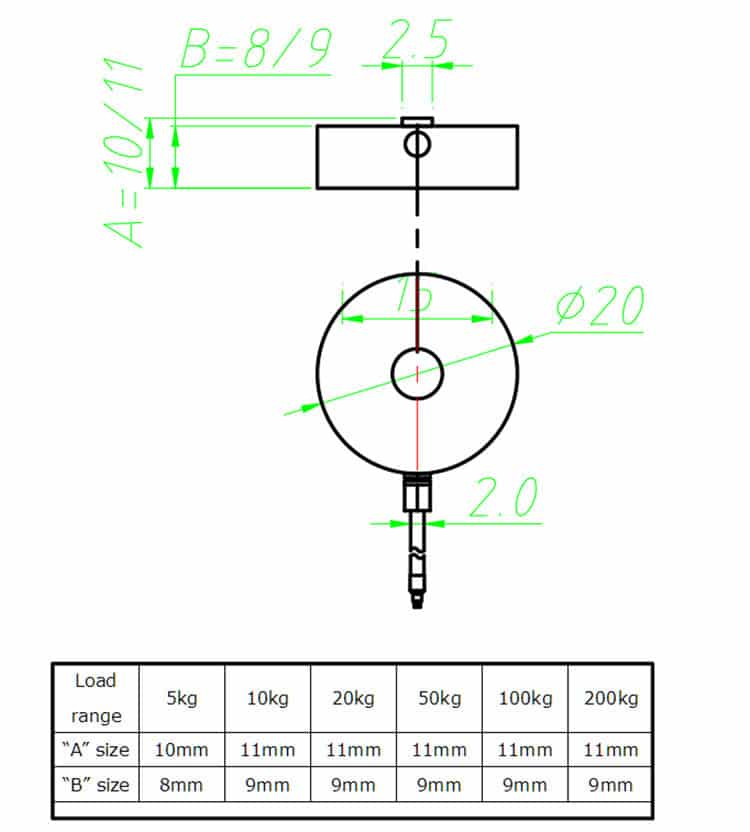

Product Dimension

MLC204E20 miniature button force load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC204E20 miniature button force load cell-MANYYEAR TECHNOLOGY

Product Application

MLC204E20 miniature button force load cell-MANYYEAR TECHNOLOGYMLC204E20 miniature button force load cell-MANYYEAR TECHNOLOGYMLC204E20 miniature button force load cell-MANYYEAR TECHNOLOGY
