MLC117 alloy steel vehicle scale sensor

vehicle scale load cell, automobile examination load cell, force load cell

  • Model: MLC117
    Category: Bridge Load Cell
    Range: 5t, 10t, 20t
    Dimension: 348*48*56mm/590*59.5*55.4mm
    Material: alloy steel,stainless steel
    Characteristic: vehicle scale load cell, automobile examination load cell, force load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

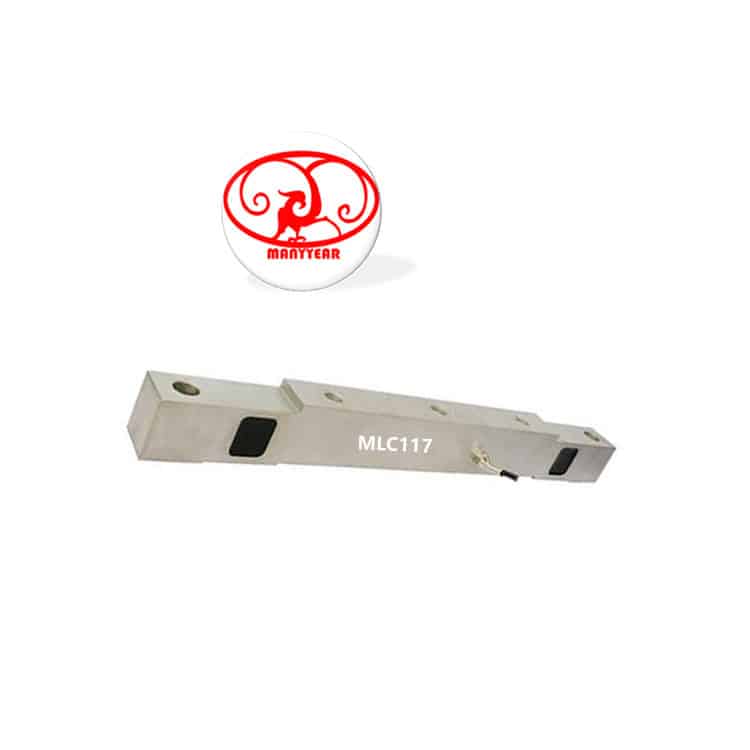

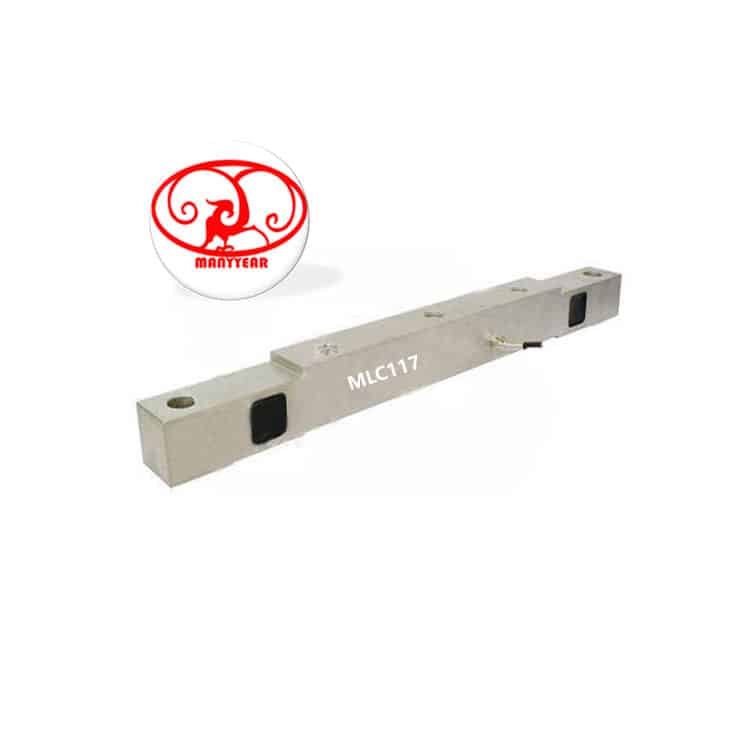

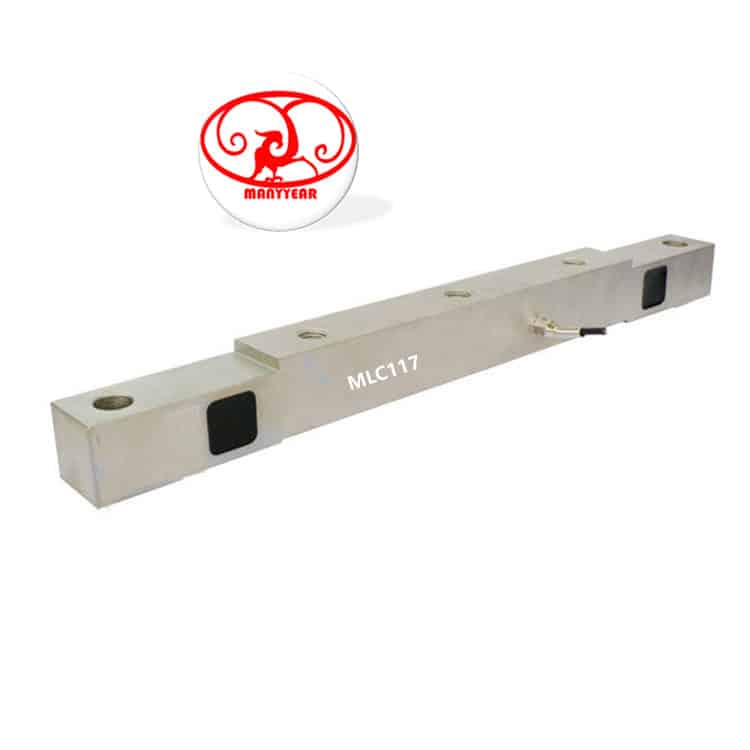

Product Picture Reference

MLC117 alloy steel vehicle scale sensor-MANYYEAR TECHNOLOGY

bridge load cell

MLC117 alloy steel vehicle scale sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC117 alloy steel vehicle scale sensor

Model: MLC117

Category: Bridge Load Cell

Range:5t, 10t, 20t

Dimension:348*48*56mm/590*59.5*55.4mm

Material: alloy steel, stainless steel

Characteristic: vehicle scale load cell, automobile examination load cell, force load cell

                                                                   Specification
Comprehensive error:0.2%FSOutput resistance:700±5Ω
Rated output:2.5±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:9~12VDC
Hysteresis:0.2%FSCompensated temp:-10~+40℃
Repeatability:0.05%FSUse temperature:-25~+55℃
Creep:0.05%FS/10MinTemp effect on zero:0.03%FS/10℃
Zero balance:±1%FSTemp effect on span:0.03%FS/10℃
Input resistance:700±10ΩDefend grade:IP65

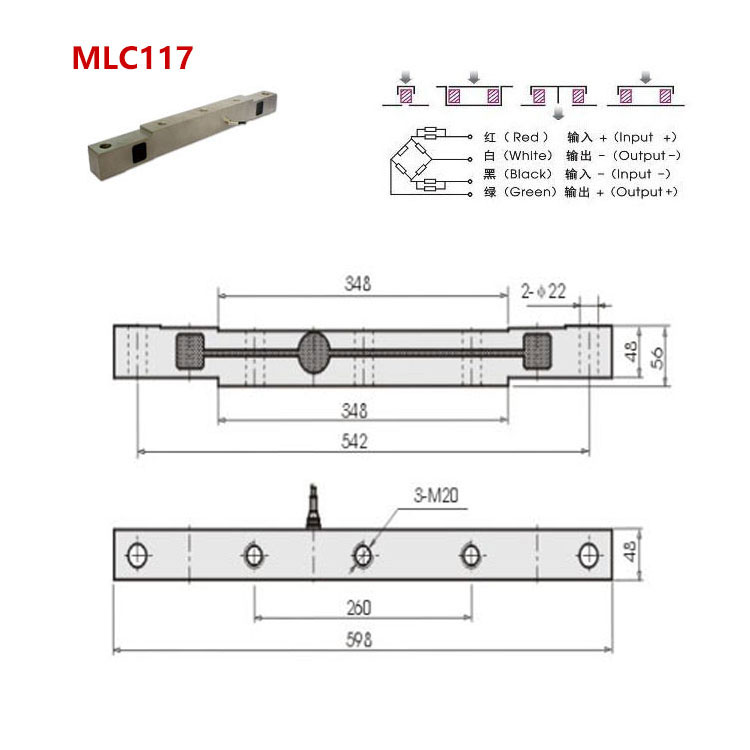

Product Dimension

MLC117 alloy steel vehicle scale sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC117 alloy steel vehicle scale sensor-MANYYEAR TECHNOLOGY

Product Application

MLC117 alloy steel vehicle scale sensor-MANYYEAR TECHNOLOGYMLC117 alloy steel vehicle scale sensor-MANYYEAR TECHNOLOGYMLC117 alloy steel vehicle scale sensor-MANYYEAR TECHNOLOGY
