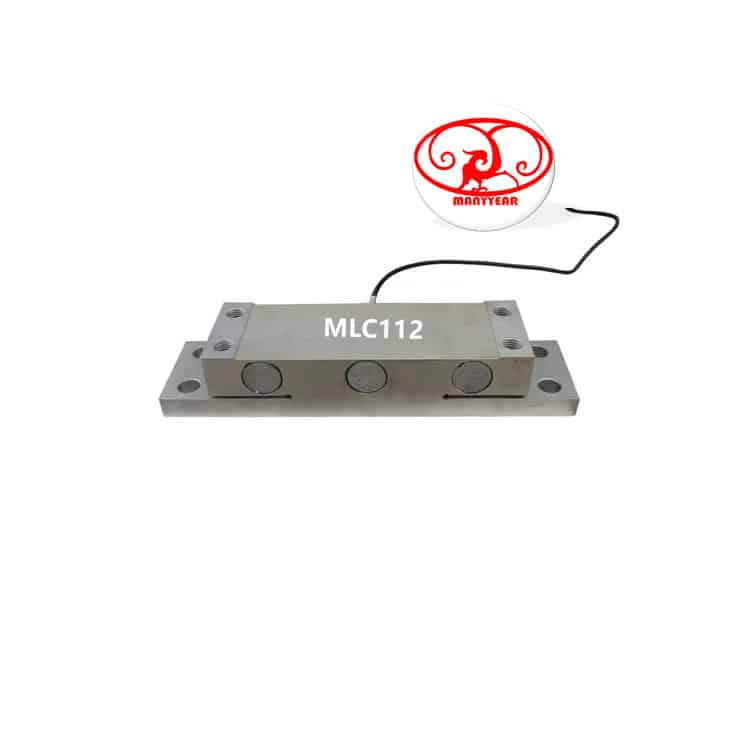

MLC112 truck scale weight sensor

truck scale weight sensor, vehicle scale load cell, ladle scale load cell, railroad scale, shaft measurement

Model: MLC112

Category: Bridge Load Cell

Load range:10t, 15t, 20t, 25t, 30ton

Dimension:480*80*85mm

Material: alloy steel, stainless steel

Characteristic: truck scale weight sensor, vehicle scale, ladle scale, railroad scale, shaft measurement


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales



Product Picture Reference

MLC112 truck scale weight sensor-MANYYEAR TECHNOLOGY

bridge load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC112 truck scale weight sensor

Model: MLC112

Category: Bridge Load Cell

Load range:10t, 15t, 20t, 25t, 30ton

Dimension:480*80*85mm

Material: alloy steel, stainless steel

Characteristic: truck scale weight sensor, vehicle scale, ladle scale, railroad scale, shaft measurement

 Specification
Comprehensive error:0.05%FSOutput resistance:700±5Ω
Rated output:2±0.005mv/vInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:9~12VDC
Hysteresis:0.05%FSCompensated temp:-10~+40℃
Repeatability:0.03%FSUse temperature:-20~+55℃
Creep:0.03%FS/10MINTemp effect on zero:0.05%FS/10℃
Zero balance:±1%FSTemp effect on span:0.05%FS/10℃
Input resistance:700±10ΩDefend grade:IP66 & IP68

Product Dimension

MLC112 truck scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC112 truck scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC112 truck scale weight sensor-MANYYEAR TECHNOLOGYMLC112 truck scale weight sensor-MANYYEAR TECHNOLOGYMLC112 truck scale weight sensor-MANYYEAR TECHNOLOGY
