MLC142 tension force load cell

safe overload load cell, safe overload force sensor, tension force sensor

Model: MLC142
Category: Bridge load cell
Range: 0.5t, 1t, 1.5, 2t, 5t
Dimension: 100*28*9mm
Material: alloy steel,stainless steel
Characteristic: safe overload load cell, safe overload force sensor, tension force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product Introduction Technical Documents

Product Picture Reference

MLC142 tension force load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC142 tension force load cell

Model: MLC142 Category: Bridge load cell Range: 500N Dimension: 100289mm Material: alloy steel, stainless steel Characteristic: safe overload load cell, safe overload force sensor, tension force sensor
Features: Sensor designed to evaluate and measure the micro-deformations on a metallic structure. • Optimal operation to traction. • Calibrated in the factory. • Fast and easy installation. • Ideal to measure the beam that works on traction and flexion • Manufactured in alloy steel with anti-corrosion treatment. • Effort supervision on the metallic structure. • Load limitation in the elevation system like Elevator, Freight lift, Crane scale and etc. • To measure the level of silos, hoppers, chutes and others..

Specification
Comprehensive error:	0.1%FS	Output resistance:	350±3Ω
Rated output:	1.9605mV/V	Insulation resistance:	≥5000MΩ(50VDC)
Non-linearity:	0.3%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.1%FS	Compensated temp:	-10~+40℃
Repeatability:	0.3%FS	Use temperature:	-20~+55℃
Creep:	0.1%FS/30Min	Temp effect on zero:	0.1%FS/10℃
Zero balance:	±1.5%FS	Temp effect on span:	0.1%FS/10℃
Input resistance:	350±3Ω	Defend grade:	IP65

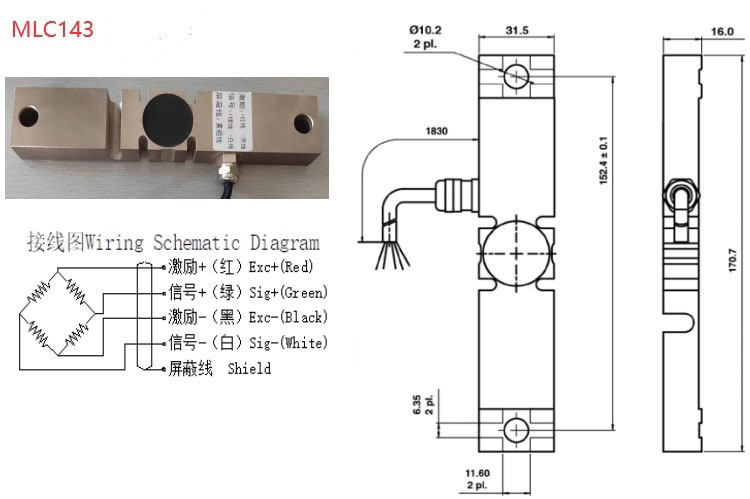

Product Dimension

Force Structure & Assembly Reference
