Model: MLC161
Category: Bridge load cell
Load range: 2t,3t,4t
Dimension: Φ55*123mm
Material: alloy steel, stainless steel
Characteristic: safety limiter load cell,overload load cell,pin load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

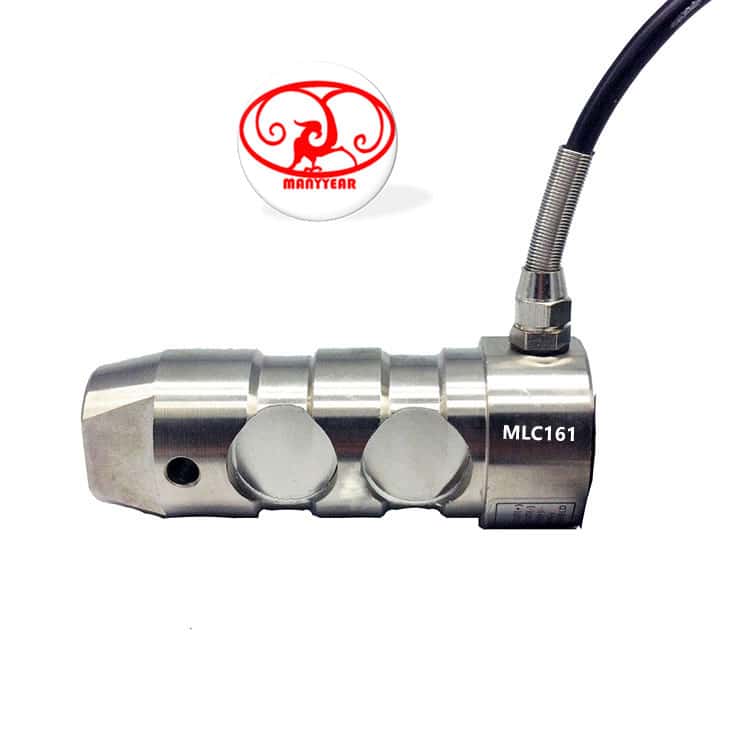

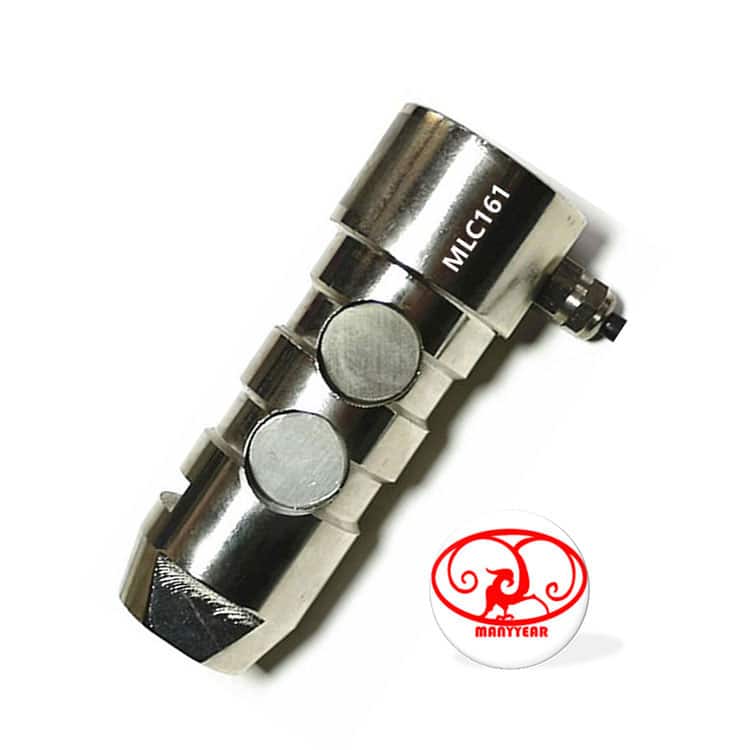

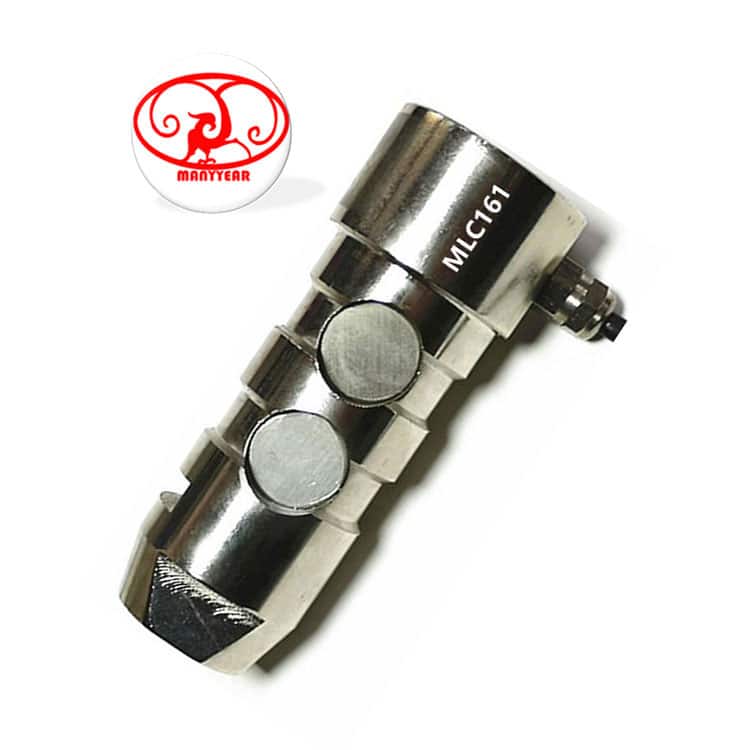

Product Picture Reference

MLC161 overload safety limiter pin load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC161 overload safety limiter pin load cell

Model: MLC161 Category: Bridge load cell Load range: 2t,3t,4t Dimension: Φ55*123mm Material: alloy steel, stainless steel Characteristic: safety limiter load cell,overload load cell,pin load cell

Specification
Comprehensive error:	0.5%FS	Output resistance:	702±5Ω
Rated output:	1.0±0.005mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10Min	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	750±10Ω	Defend grade:	IP66 & IP68

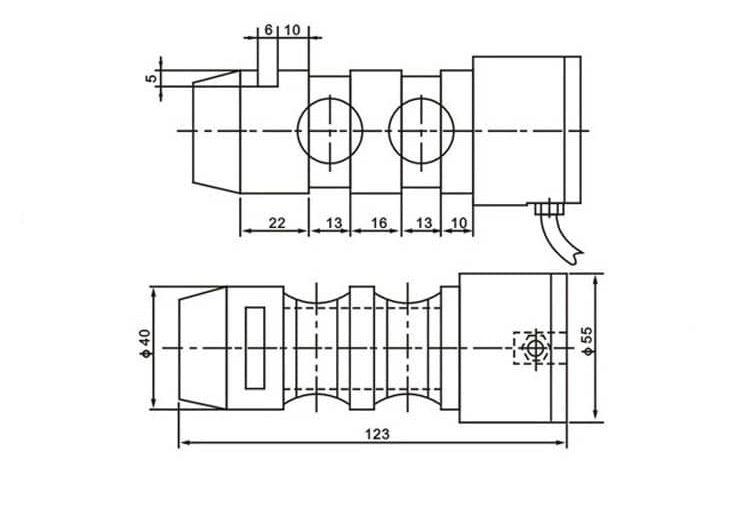

Product Dimension

Force Structure & Assembly Reference
