2021/11/04 Force Load Cell MLC300 Tension Load Cells 2995 0

Model: MLC313
Category: Tension load cell
Range: 10t
Dimension: 376*80*78mm
Material: Alloy steel,stainless steel
Application: crane scale weight sensor, safety overload weighing sensor, tension force load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

Product Picture Reference

MLC313-safety overload weighing sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC313-Crane scale weight sensor 10ton

Model: MLC313 Category: Tension load cell Range: 10ton Dimension: 3768078mm Material: Alloy steel, stainless steel Application: crane scale, tension test

Specification
Comprehensive error:	0.03%FS	Output resistance:	352±3Ω
Rated output:	2±0.002mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.03%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.03%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.02%FS	Use temperature:	-20~+65ºC
Creep:	0.02%FS/10Min	Temp effect on zero:	0.03%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.02%FS/10ºC
Input resistance:	380±3Ω	Defend grade:	IP68

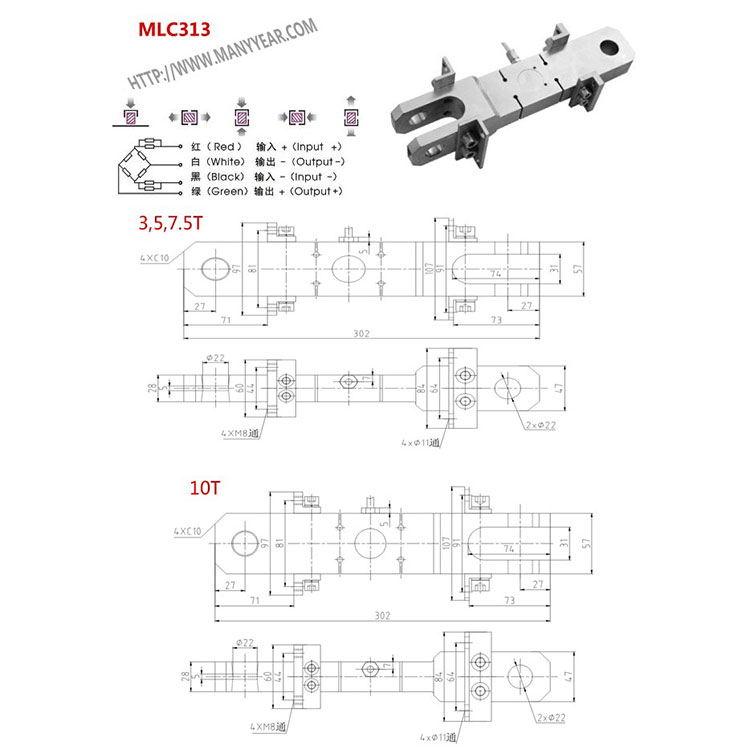

Product Dimension

MLC313-safety overload weighing sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC313-safety overload weighing sensor-MANYYEAR TECHNOLOGY

Product Application

MLC313-safety overload weighing sensor-MANYYEAR TECHNOLOGY

MLC313-safety overload weighing sensor-MANYYEAR TECHNOLOGY

MLC313-safety overload weighing sensor-MANYYEAR TECHNOLOGY
