2021/11/01 Weighing Load Cell MLC100 Bridge Load Cell 1779 0

steel embody scale load cell, high temperature load cell, ladle scale weight sensor

Model: MLC113
Category: Bridge Load Cell
Load range: 10t, 20t, 30t, 40t, 50t
Dimension:200*80*60/300*120*120/300*150*120mm
Material: alloy steel, stainless steel
Characteristic: steel embody scale load cell, high temperature load cell, ladle scale weight sensor

Product selection reference

Product Introduction Technical Documents

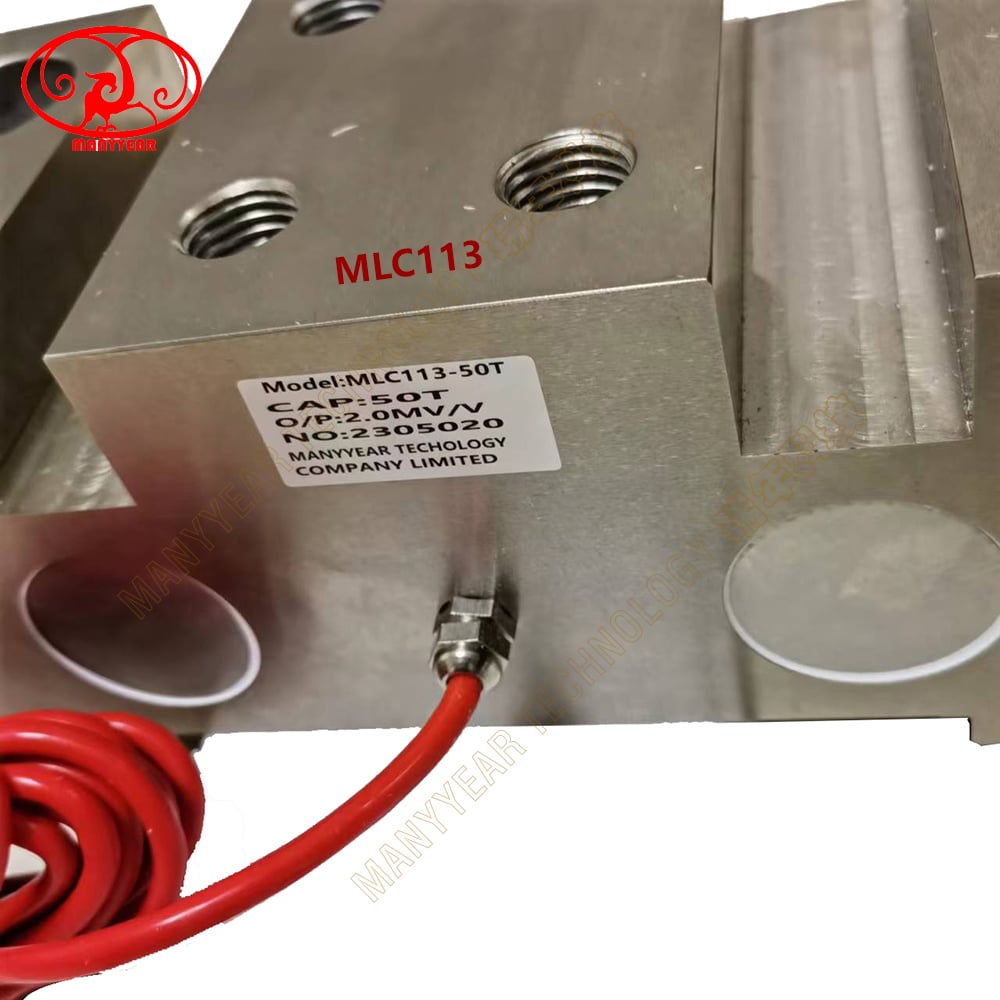

Product Picture Reference

MLC113 steel embody scale high temperature load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference, we can provide ODM product.

MLC113 steel embody scale high temperature load cell

Model: MLC113

Category: Bridge Load Cell

Load range: 10t, 20t, 30t, 40t, 50t

Dimension:200*80*60/300*120*120/300*150*120mm

Material: alloy steel, stainless steel

Characteristic: steel embody scale load cell, high temperature load cell, ladle scale weight sensor

Other Dimension (mm)

Range

A

B

C

D

E

F

G

H

J

K

D1

D2

D3

10t

200

170

90

60

80

60

60

60

50

17.5

26

18

M16

20,30t

300

240

110

60

120

70

70

120

115

30.5

43

26

M24

40.50t

300

240

110

60

150

70

80

120

115

30.5

43

26

M24

Specification

Comprehensive error:

0.2%FS

Output resistance:

750±5Ω

Rated output:

2±0.005mV/V

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.05%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.05%FS

Compensated temp:

-10~+40℃

Repeatability:

0.03%FS

Use temperature:

-20~+55℃/-20~+250℃

Creep:

0.03%FS/10Min

Temp effect on zero:

0.05%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10℃

Input resistance:

750±10Ω

Defend grade:

IP66 & IP68

Product Dimension

MLC113 steel embody scale high temperature load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC113 steel embody scale high temperature load cell-MANYYEAR TECHNOLOGY

Product Application

MLC113 steel embody scale high temperature load cell-MANYYEAR TECHNOLOGY

MLC113 steel embody scale high temperature load cell-MANYYEAR TECHNOLOGY

MLC113 steel embody scale high temperature load cell-MANYYEAR TECHNOLOGY

weighing solution-cinema seats management system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
wireless truck weighing system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
seat weighing system solution
Bus seat weighing solution is applicable to bus seat weighing and counting control.
platform scale weighing solution
weighing solution is applicable to price scale, kitchen scale, pet scale, truck scale, belt scale, packaging scale, batching scale, inspection scale, tank scale etc
