MLC306-S tension force load cell

2021/11/04 Force Load Cell MLC300 Tension Load Cells 1836 0

S type force load cell, tension force load cell, compression force load cell

Model: MLC306
Category: Tension load cell
Range: 500kg,750kg,1000kg
Dimension: 88*44*26mm
Material: Alloy steel,stainless steel
Application: S force load cell, tension force load cell, compression force load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Technical Documents

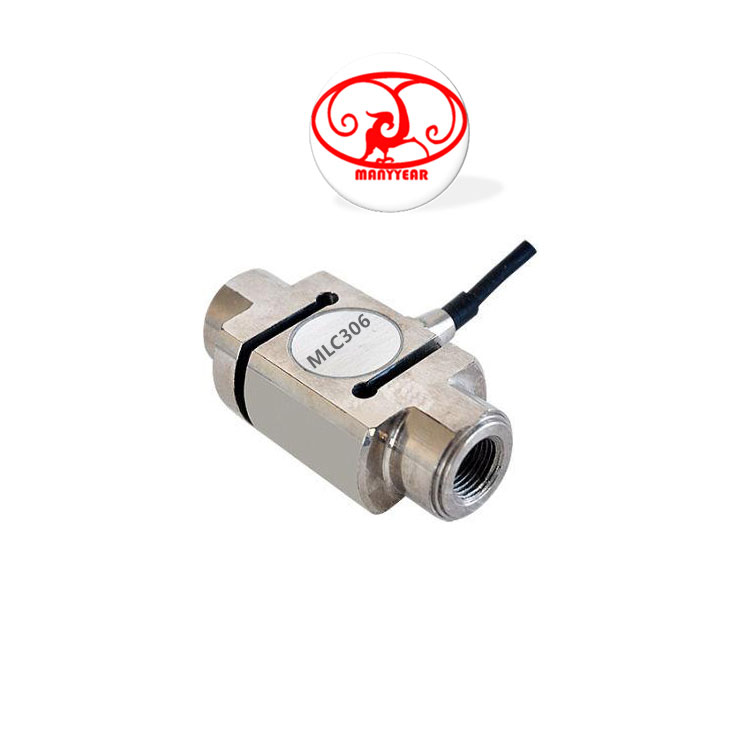

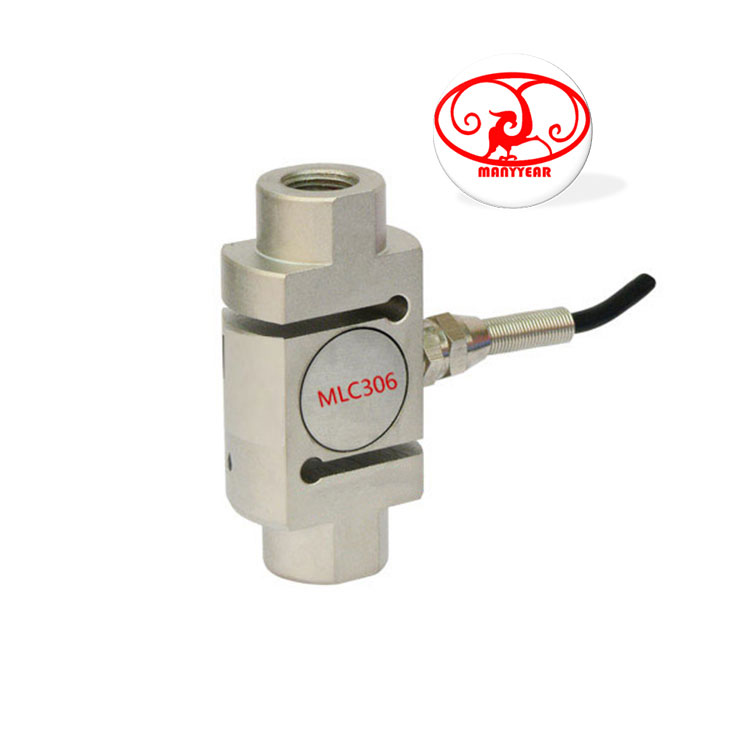

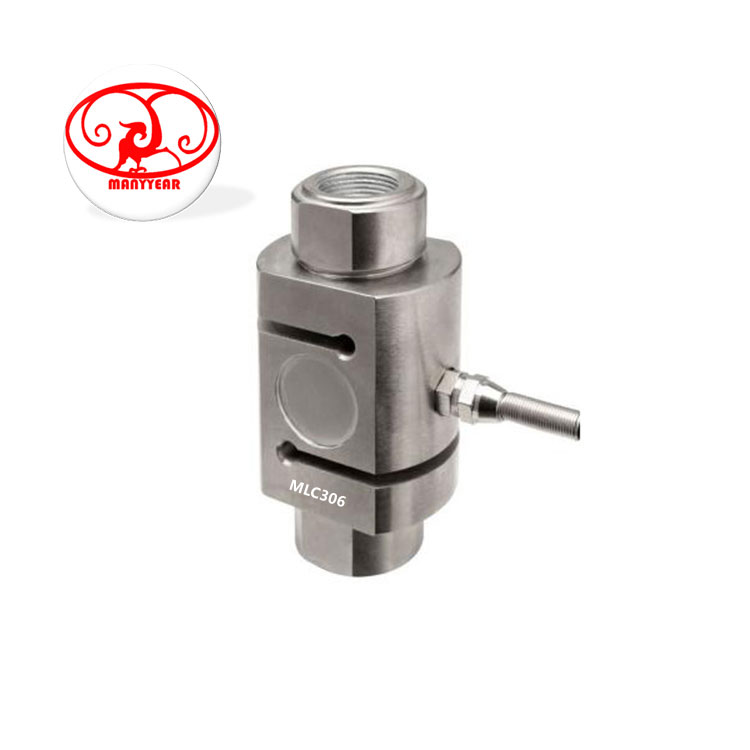

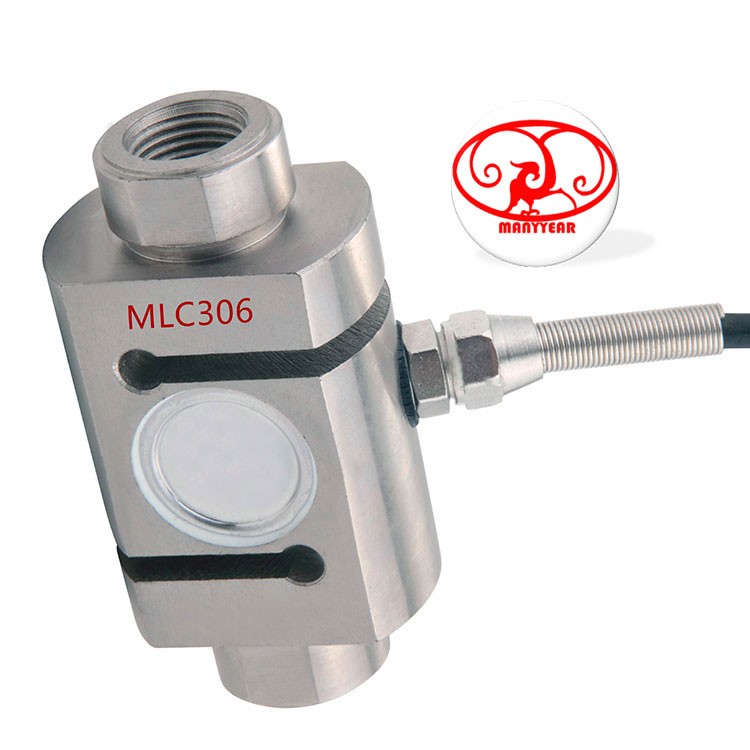

Product Picture Reference

MLC306-S tension force load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC306-Safety overload hopper scale weight sensor 40ton

Model: MLC306 Category: Tension load cell Range: 500kg,750kg,1000kg,20ton,30ton,40ton Dimension: 884426mm Material: alloy steel, stainless steel Application: hanging scale, , tension or compression test

Load range	H		H1	H2	D		M*P
20,30ton	185		38	57	78		M42*3
40ton	225		50	77	105		M56*3
Specification
Comprehensive error:		0.03%FS		Output resistance:		350±5Ω
Rated output:		2±0.002mv/v		Insulation resistance:		≥5000MΩ(100VDC)
Non-linearity:		0.03%FS		Excitation voltage:		9~12VDC
Hysteresis:		0.03%FS		Compensated temp:		-10~+40ºC
Repeatability:		0.02%FS		Use temperature:		-20~+65ºC
Creep:		0.02%FS/10MIN		Temp effect on zero:		0.03%FS/10ºC
Zero balance:		±1%FS		Temp effect on span:		0.02%FS/10ºC
Input resistance:		350±5Ω		Defend grade:		IP66

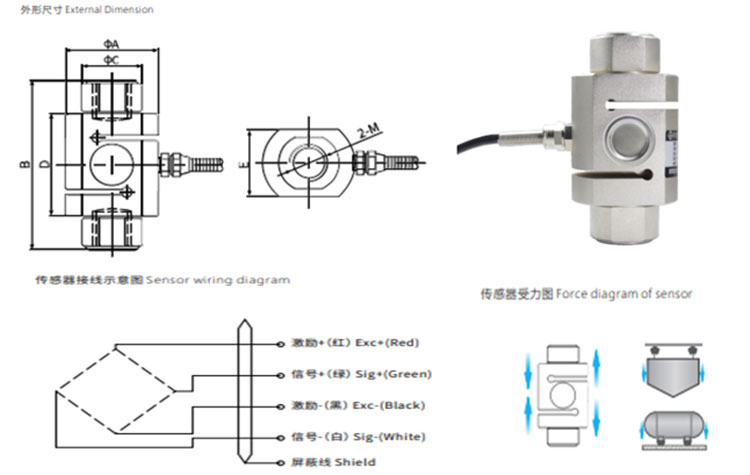

Product Dimension

Force Structure & Assembly Reference
