MLC308-floor scale load cell 20ton

S type tension load cell, crane load cell, hanging scale load cell, tension and compression test load cell

Model: MLC308
Category: Tension load cell
Range: 12t, 20t
Dimension: D178mm; D150mm
Material: Alloy steel,stainless steel
Application: truck scale weighing sensor, floor scale load cell, safety overload force sensor
MLC308 apply to truck scale weighing sensor, floor scale load cell, safety overload force sensor. support to load range of 500kg,750kg,1000kg.


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

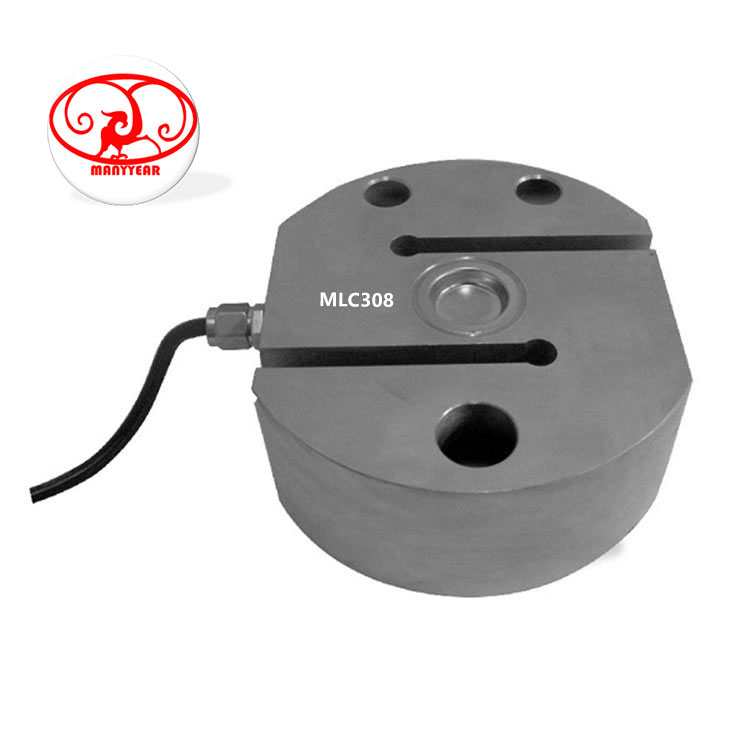

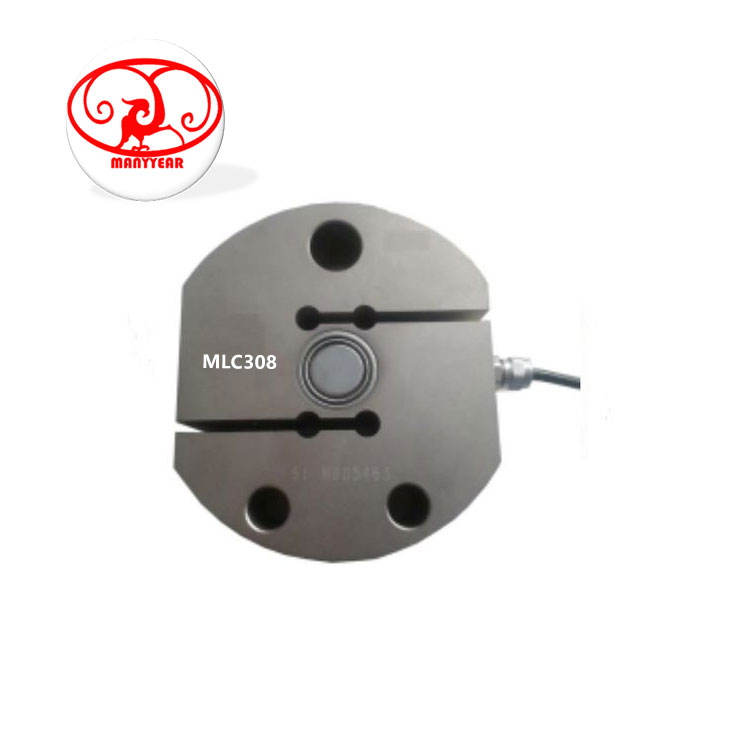

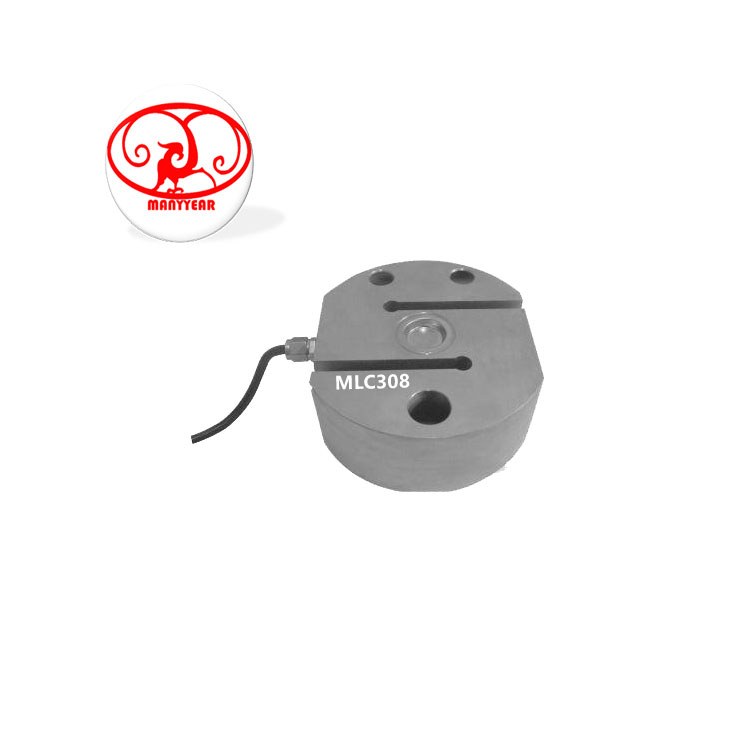

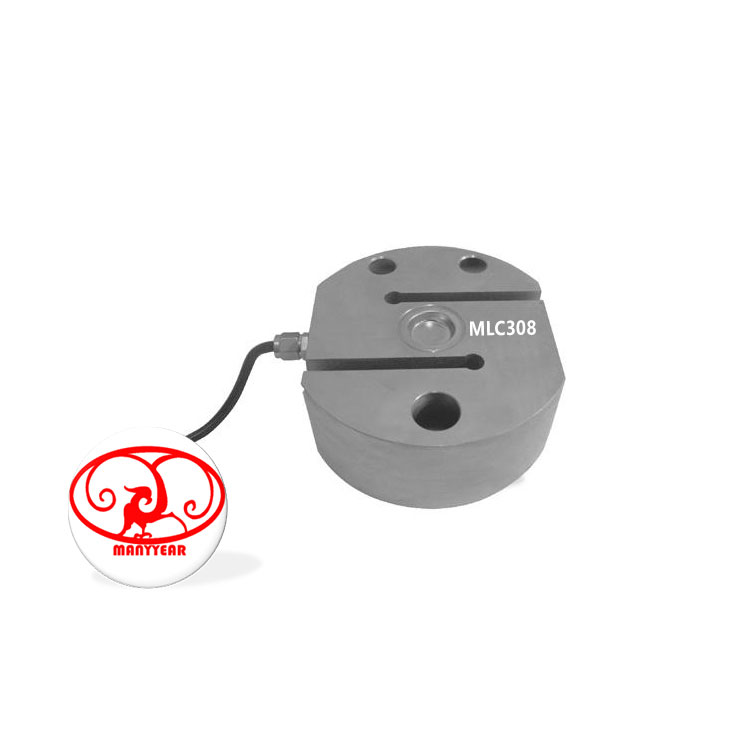

Product Picture Reference

MLC308-floor scale load cell 20ton-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC308-Truck scale alloy steel load cell 20ton

Model: MLC308

Catalog: Tension load cell

Rated load:12ton,20ton

Safe overload:150%; Ultimate overload: 200%

Material: Alloy steel, stainless steel

Apply to: crane scale, tension and compression measure, truck scale, axle scale

Dimension
RangeABCDEFG
12ton11013060ø15055ø 16.2ø 22.4
20ton12515065ø 17870ø 24ø 38.1
Specification
Comprehensive error:0.03%FSOutput resistance:350±5Ω
Rated output:2±0.002mv/vInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+65ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66

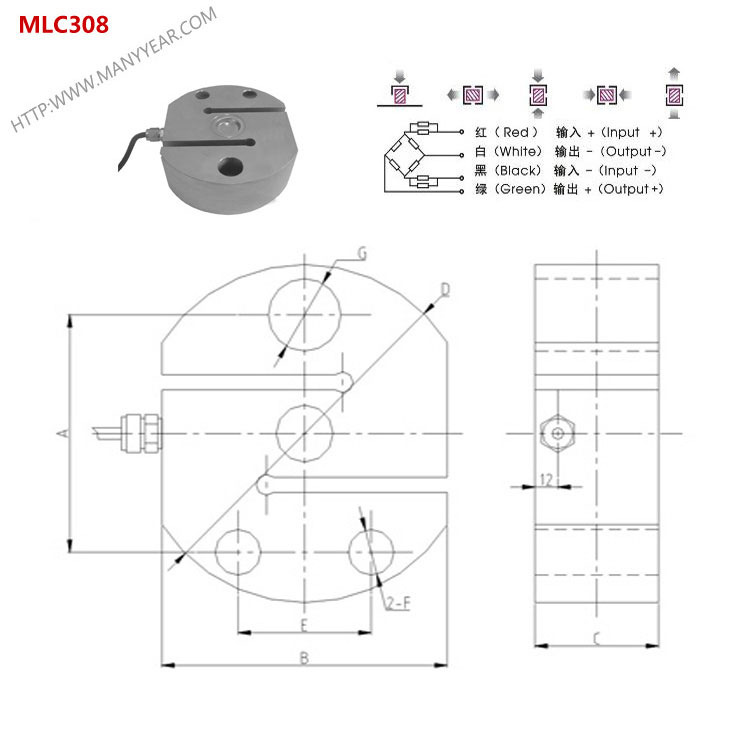

Product Dimension

MLC308-floor scale load cell 20ton-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC308-floor scale load cell 20ton-MANYYEAR TECHNOLOGY

Product Application

MLC308-floor scale load cell 20ton-MANYYEAR TECHNOLOGYMLC308-floor scale load cell 20ton-MANYYEAR TECHNOLOGYMLC308-floor scale load cell 20ton-MANYYEAR TECHNOLOGY
