MLC301 S type tension load cell

2021/09/18 Force Load Cell MLC300 Tension Load Cells 2625 0

S type load cell,tension load cell, compression load cell

Model: MLC301
Category: Tension load cell
Range: 100kg,150kg,200kg,250kg,300kg,500kg,1000kg,2000kg,5000kg
Dimension: 50.8*12.7*64/50.8*19*76/76.2*25.4*108mm
Material: Alloy steel,stainless steel
Application: S type load cell,tension load cell, compression load cell, hanging scales load cell,crane scale load cell, tension and compression load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

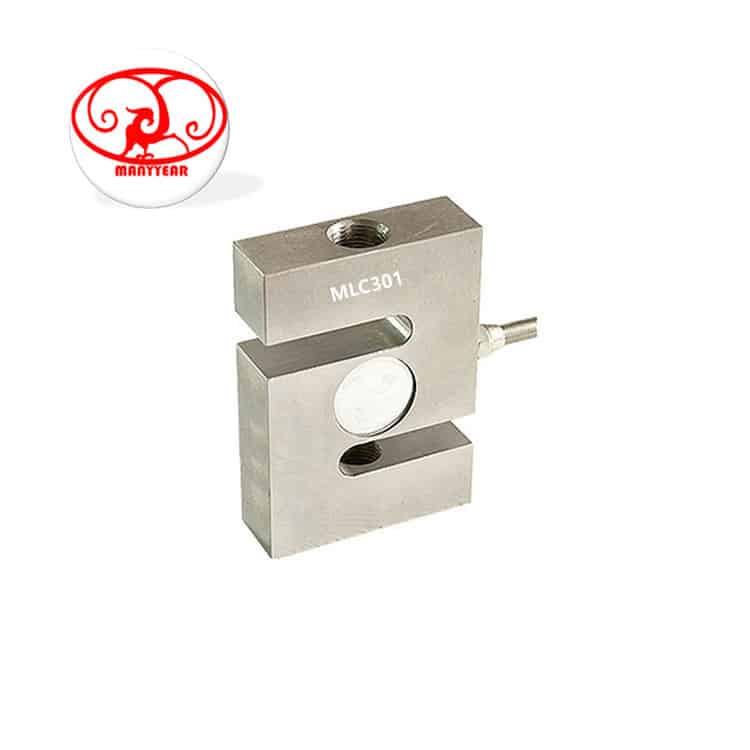

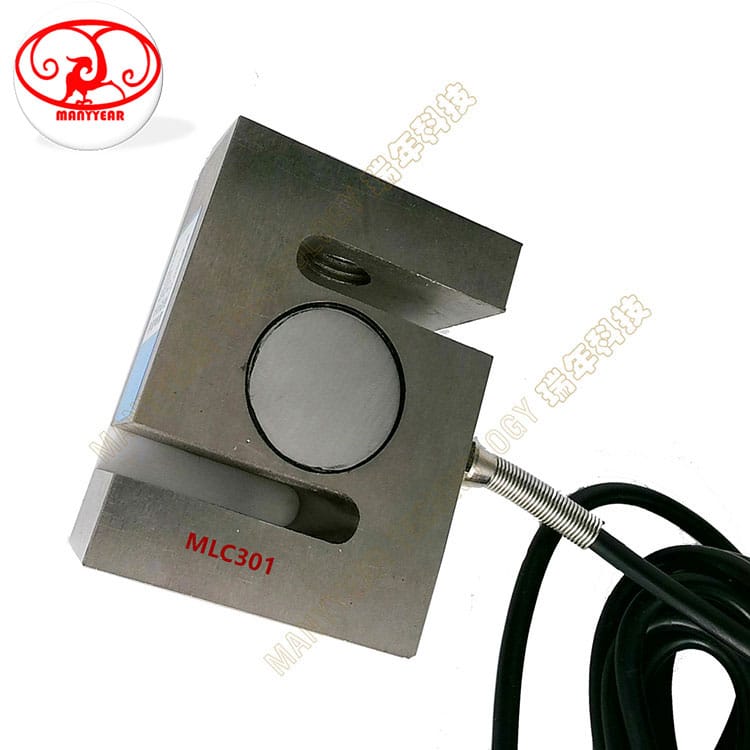

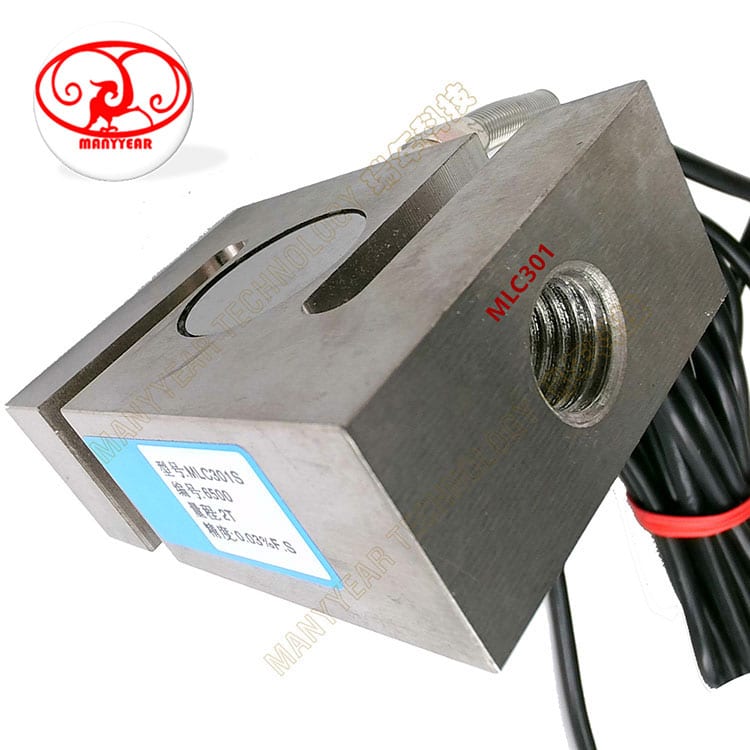

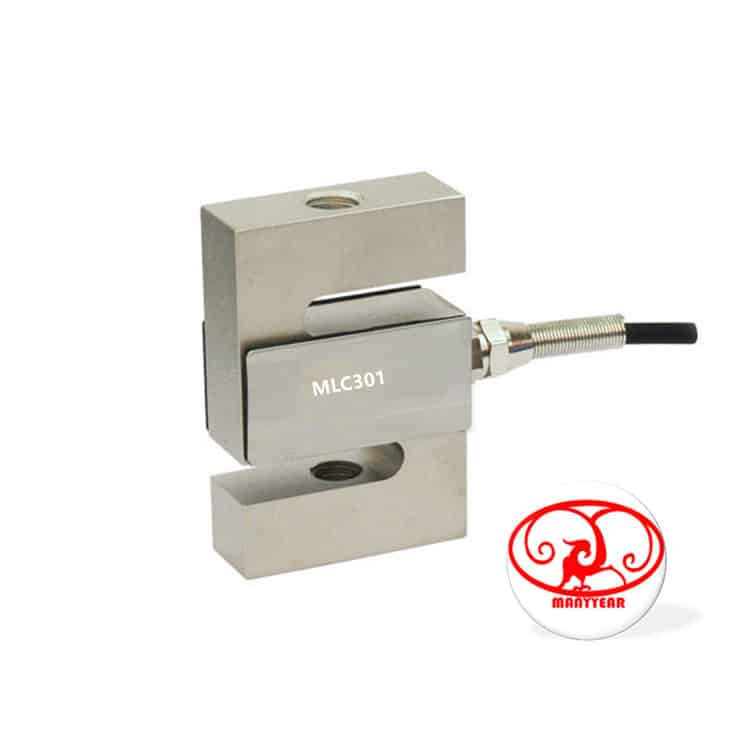

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC301 S type tension load cell

Model: MLC301 Category: Tension load cell Load range: 50kg,100kg,150kg,200kg,250kg,300kg,500kg,1ton,2ton,5ton Material: Alloy steel, stainless steel Safety overload:120%, Ultimate overload:200% Application: hanging scale, crane scale, tension and compression test

Specification
Comprehensive error:	0.03%FS	Output resistance:	400±10Ω/352±3Ω
Rated output:	3.0±0.003mv/v 2.0±0.002mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.03%FS	Excitation voltage:	5~12VDC
Hysteresis:	0.03%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.02%FS	Use temperature:	-30~+70ºC
Creep:	0.03%FS/10MIN	Temp effect on zero:	0.02%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.02%FS/10ºC
Input resistance:	400±10Ω/352±3Ω	Defend grade:	IP66

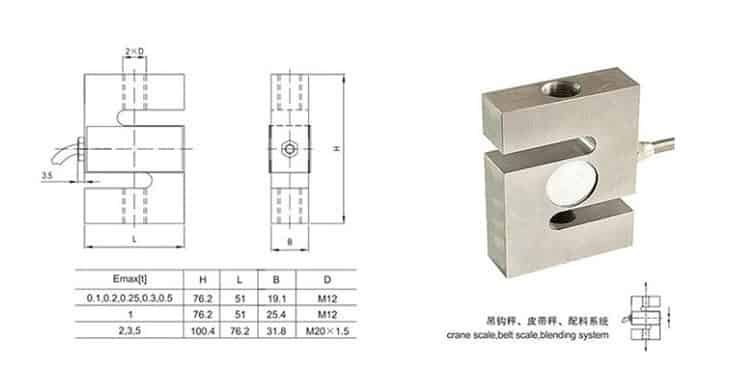

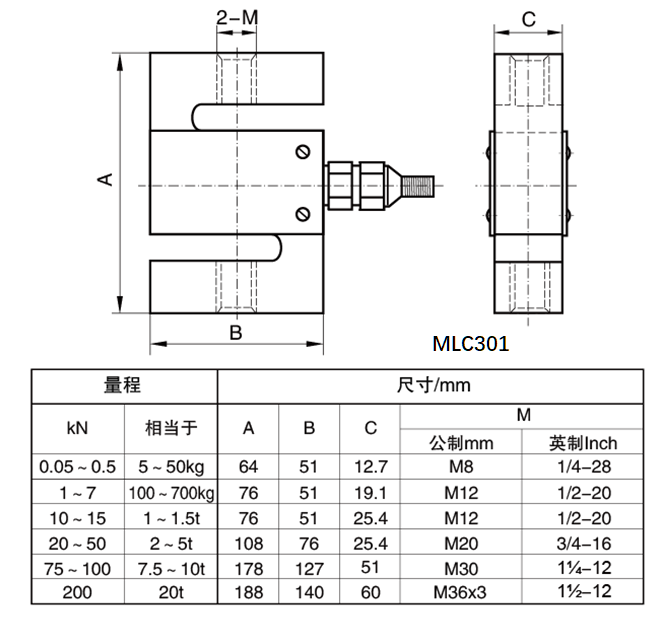

Product Dimension

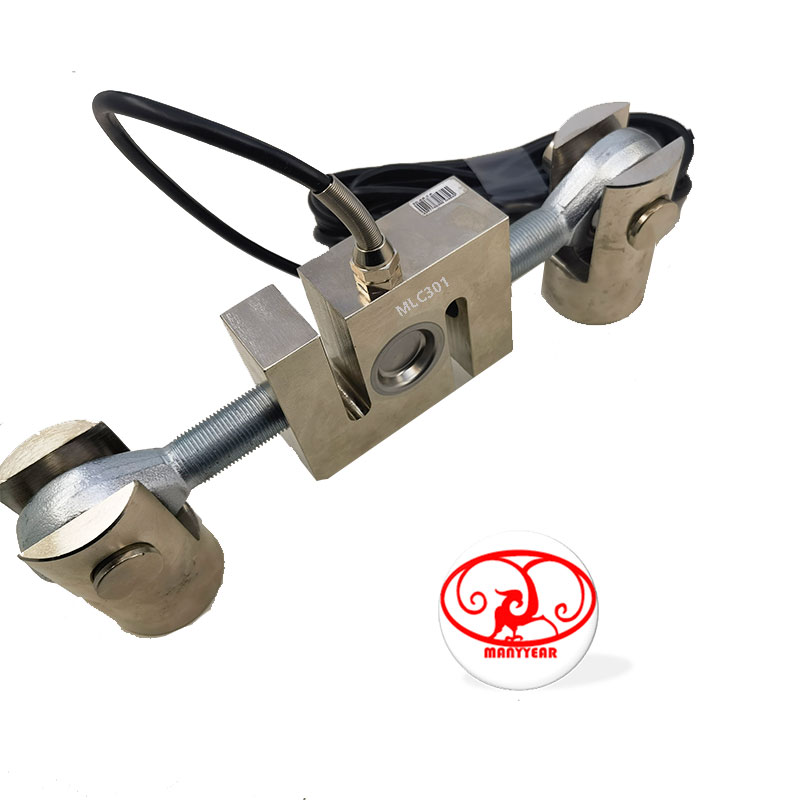

Force Structure & Assembly Reference
