MLC404 -hopper scale load cell

2021/11/09 Force Load Cell MLC400 Column Load Cell 1823 0

compression force load cell, compression force sensor, hopper scale load cell

Model: MLC404
Category: Compression Load Cell
Range: 30t,45t
Dimension: 101.6*200mm
Material: alloy steel, stainless steel
Application: compression force load cell, compression force sensor,hopper scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Technical Documents

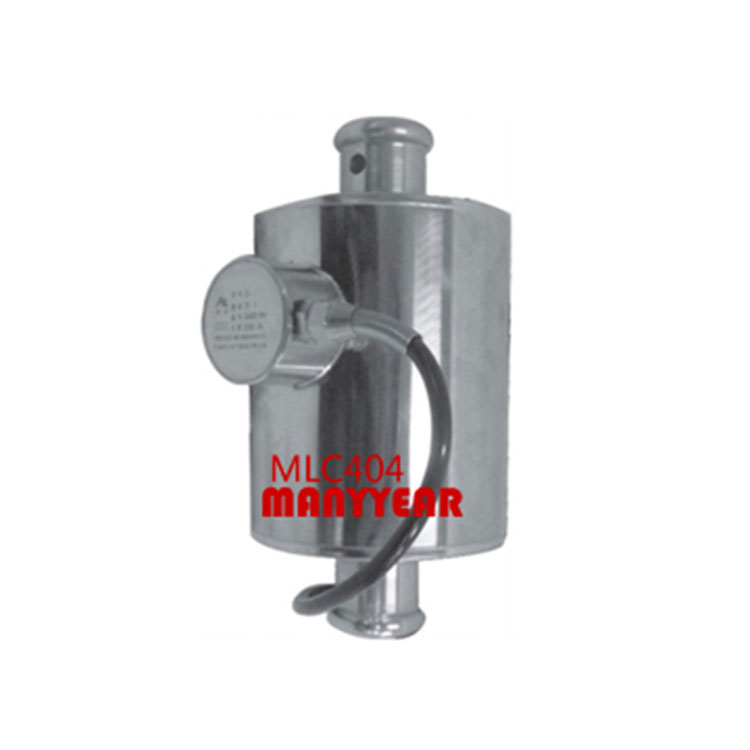

Product Picture Reference

MLC404 -hopper scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC404 -Truck scale load cell 30ton

Model: MLC404 Category: Compression load cell Range: 30t,45t Dimension: 101.6*200mm Material: alloy steel, stainless steel Application: truck scale, compression test

Specification
Comprehensive error:	0.05%FS	Output resistance:	352±5Ω
Rated output:	2.0±0.005mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10MIN	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	380±10Ω	Defend grade:	IP66 & IP68

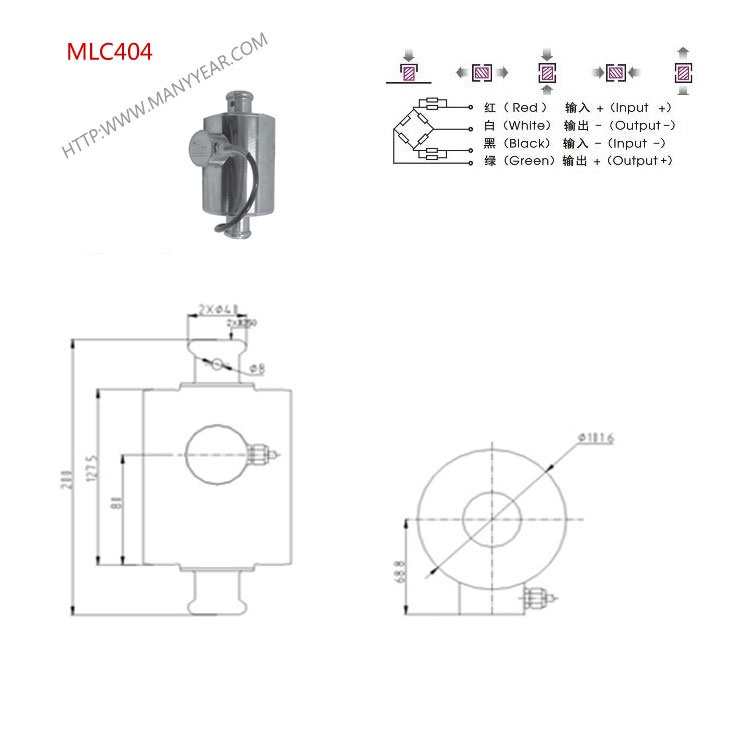

Product Dimension

Force Structure & Assembly Reference
