MLC322-30ton hanging scale load cell

crane scale weight sensor,tension force load cell, safety overload force load cell

Model: MLC322
Category: Tension load cell
Range: 2t,3t,5t,10t,15t,20t,30t
Dimension: 154*50*15/241*85*25/351*118*40mm
Material: Alloy steel,stainless steel
Application: crane scale weight sensor,tension force load cell, safety overload force load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product Introduction Technical Documents

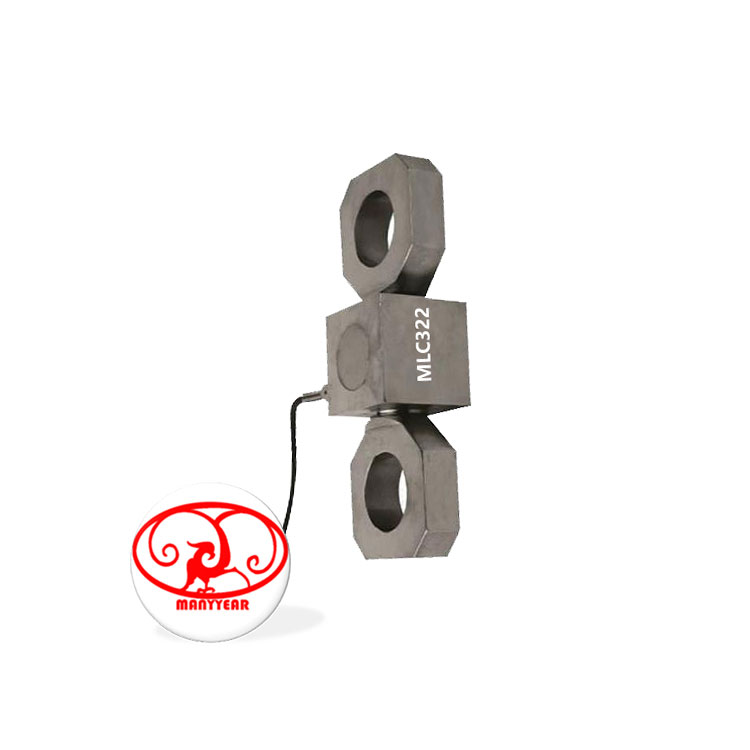

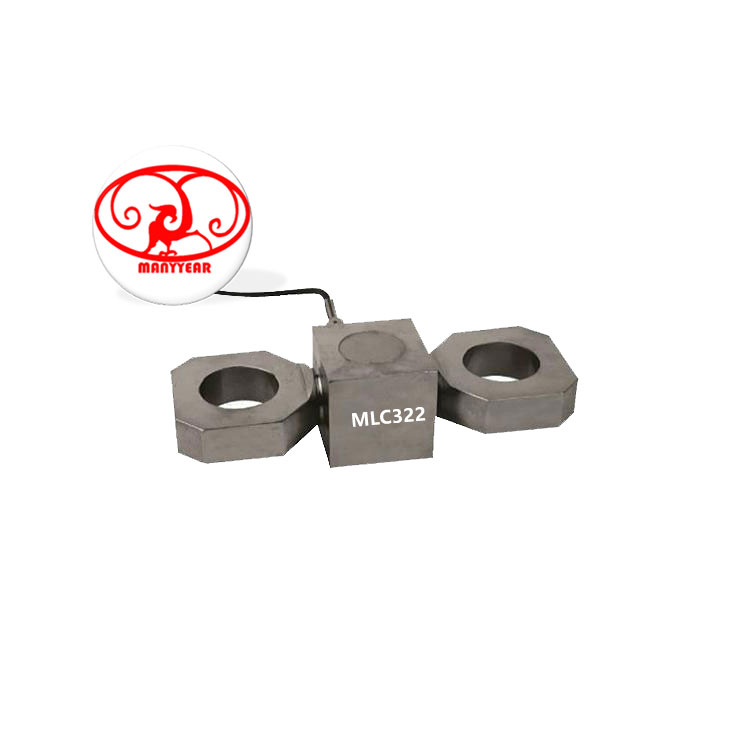

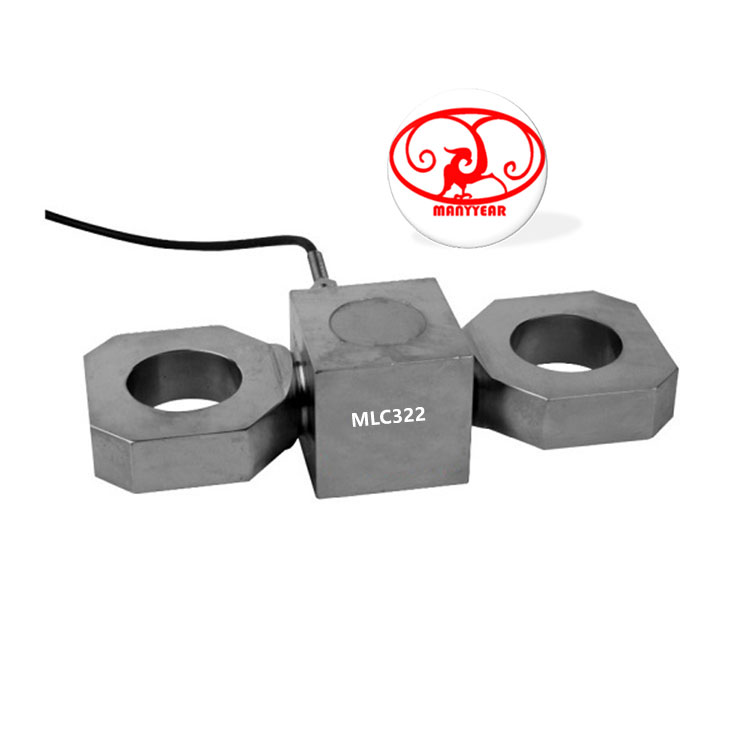

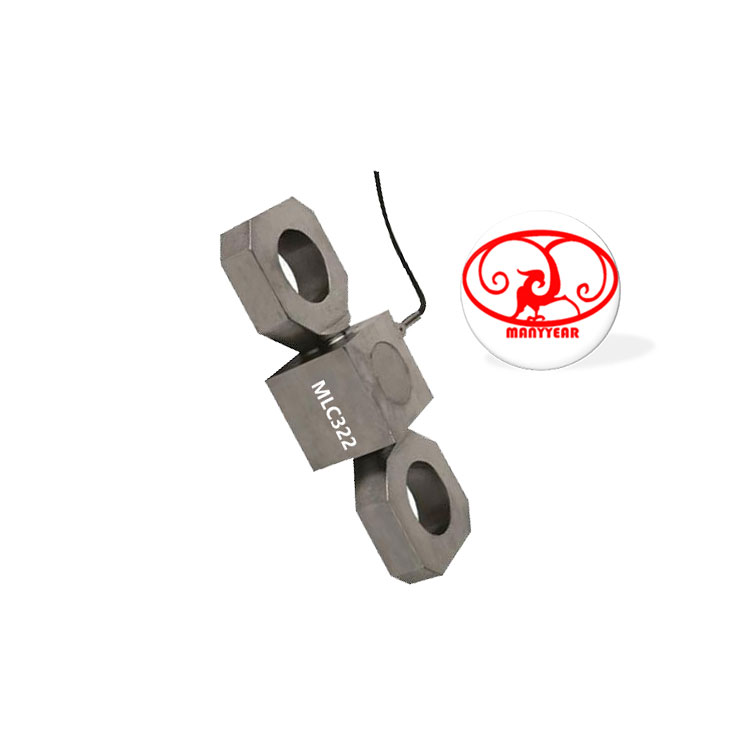

Product Picture Reference

MLC322-tension force load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC322-30ton hanging scale load cell

Model: MLC322 Category: Tension load cell Range: 2t,3t,5t,10t,15t,20t,30t Dimension: 1545015mm/2418525mm/35111840mm Material: alloy steel, stainless steel Application: crane scale, tension measuring equipment Characteristic: 30ton hanging scale load cell, overload limiter load cell

Other Dimension
Load range	L	L1	L2		L3	L4	H1		H2	A	A1		B	D	Axle Number
2,3t	154	104	42		48	8	50		40	15	40		8.5	D32	U17
5t	211	141	63		62	16.8	68		58	20	55		8.5	D35	Ge20
10t	241	161	64		78	17.3	85		68	25	62		8.75	D47	Ge30
15,20t	310	202	80		102	20	108		80	35	70		10	D55	Ge35
30t	351	227	85		118	23	118		85	40	75		10	D62	Ge40
Specification
Comprehensive error:				0.05%FS				Output resistance:				352±5Ω
Rated output:				1.8±0.005mv/v				Insulation resistance:				≥5000MΩ(100VDC)
Non-linearity:				0.05%FS				Excitation voltage:				9~12VDC
Hysteresis:				0.05%FS				Compensated temp:				-10~+40℃
Repeatability:				0.03%FS				Use temperature:				-20~+55℃
Creep:				0.03%FS/10Min				Temp effect on zero:				0.05%FS/10℃
Zero balance:				±1%FS				Temp effect on span:				0.05%FS/10℃
Input resistance:				380±10Ω				Defend grade:				IP66 & IP68

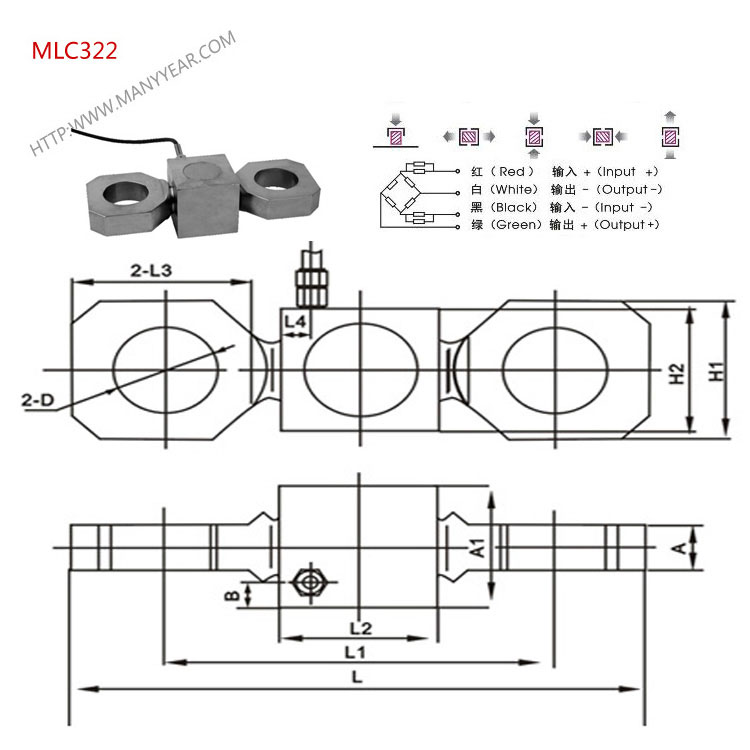

Product Dimension

Force Structure & Assembly Reference
