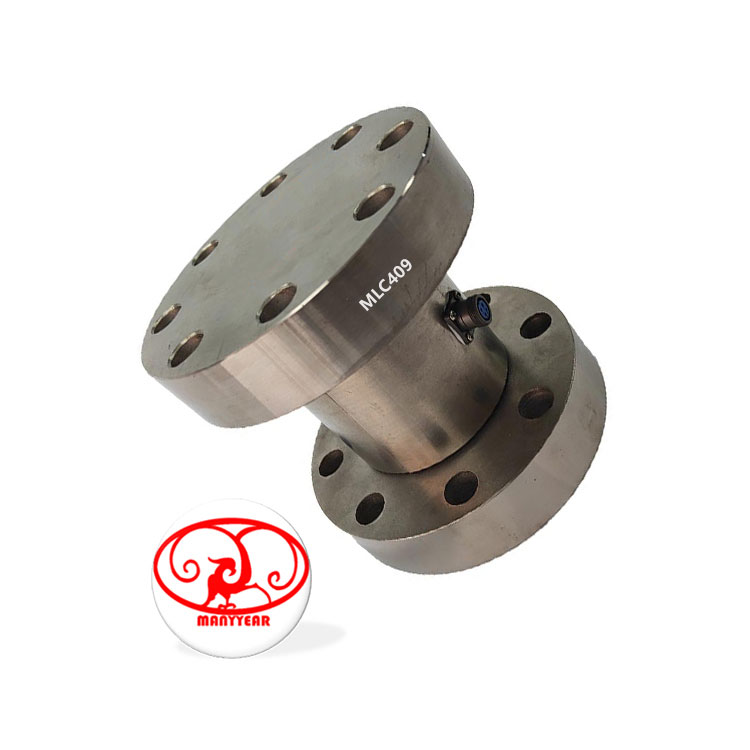

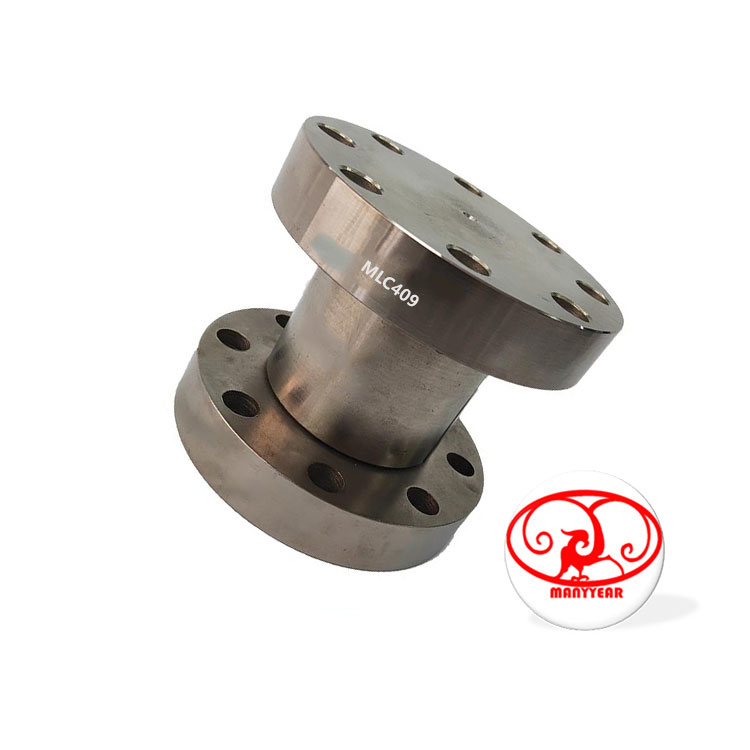

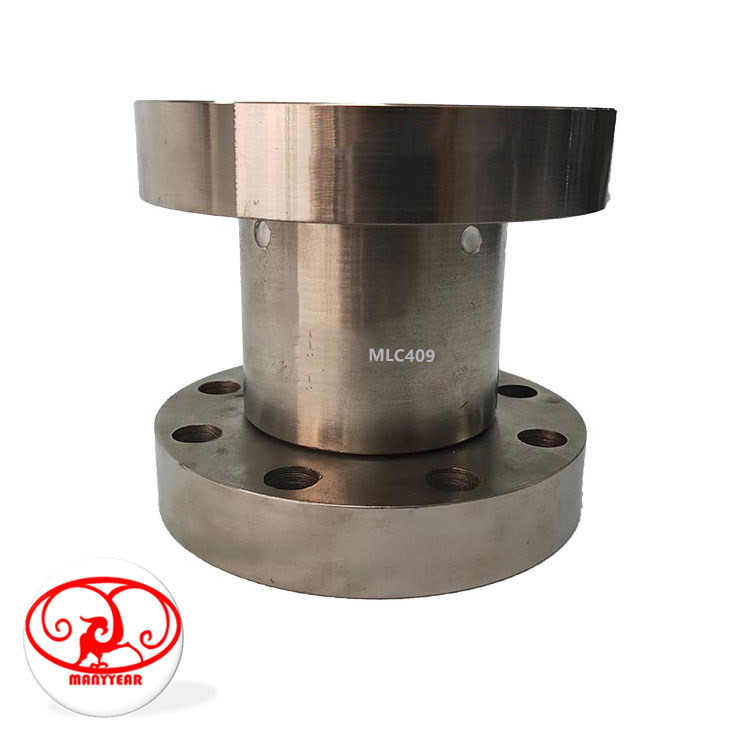

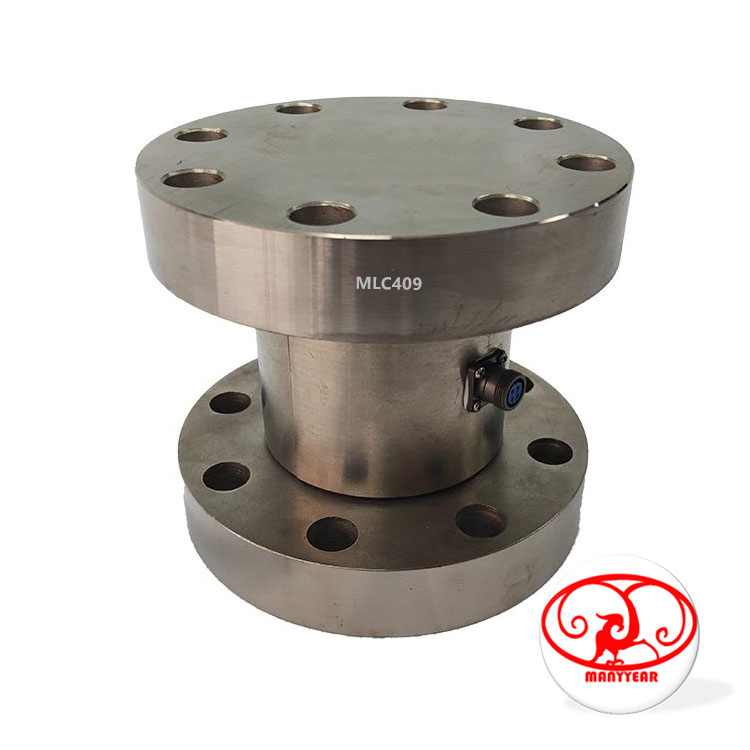

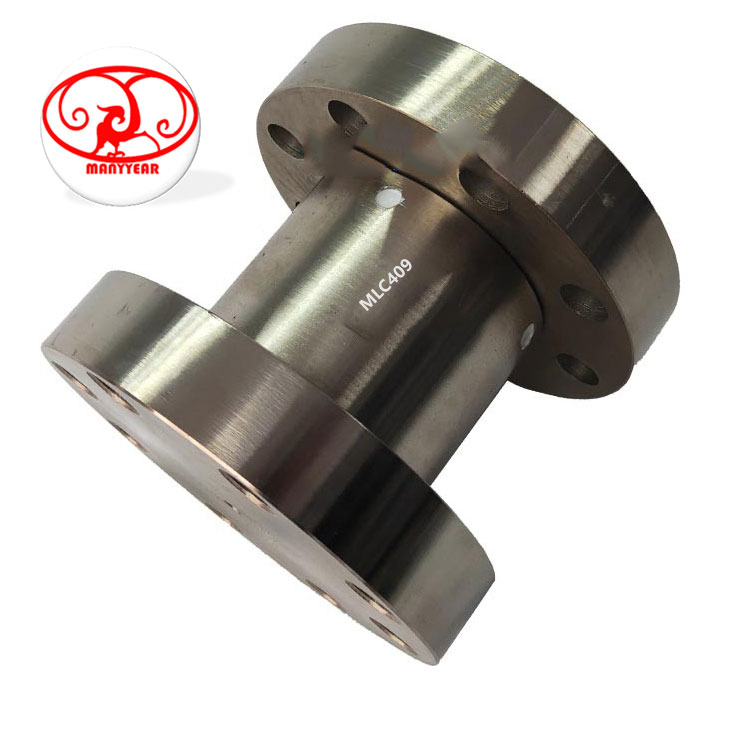

MLC409 compression force load cell

2021/11/09 Force Load Cell MLC400 Column Load Cell 1784 0

big capacity load cell,compression force load cell,tension force load cell,hydraulic equipment force load cell

Model: MLC409
Category: Compression Load Cell
Range: 40t,50t,60t,100t,150t,200t,300t
Dimension: 197*160mm; 240*230/305*326mm; 415*358mm
Material: alloy steel, stainless steel
Characteristic: big capacity load cell,compression force load cell,tension force load cell,hydraulic equipment force load cell

Product selection reference

Sales Online

Product Introduction Technical Documents

Product Picture Reference

MLC409 compression force load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC409 compression force load cell

Model: MLC409 Category: Compression Load Cell Range: 40t,50t,60t,100t,150t,200t,300t Dimension: 197160mm; 240230/305326mm; 415358mm Material: alloy steel, stainless steel Characteristic: big capacity load cell,compression force load cell,tension force load cell,hydraulic equipment force load cell

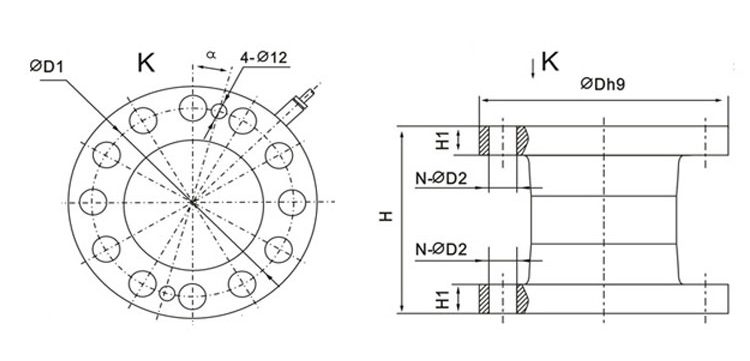

Other Dimension (mm)
Load range	H		H1	D		D1	NX D2		a
40, 60ton	160		25	197		160	12x D22		15 Degree
100ton	230		40	240		200	12x D26		15 Degree
150-200ton	326		57	305		250	12X D33		15 Degree
300ton	358		69	415		360	18 X D33		10 Degree
Specification (mm)
Comprehensive error:		0.1%FS			Output resistance:			702±5Ω
Rated output:		2.0±0.005mV/V			Insulation resistance:			≥5000MΩ(100VDC)
Non-linearity:		0.05%FS			Excitation voltage:			9~12VDC
Hysteresis:		0.05%FS			Compensated temp:			-10~+40℃
Repeatability:		0.03%FS			Use temperature:			-20~+55℃
Creep:		0.03%FS/10min			Temp effect on zero:			0.05%FS/10℃
Zero balance:		±1%FS			Temp effect on span:			0.05%FS/10℃
Input resistance:		750±10Ω			Defend grade:			IP66 & IP68
