MLC902 body scale load cell

2021/11/19 MLC900 Micro Load Cell Weighing Load Cell 1370 0

body scale load cell, health scale load cell, bathroom scale load cell, baby scale load cell, pet scale load cell

Model: MLC902
Catalog: Micro load cell
Rated load: 10kg, 30kg, 50kg, 75kg
Dimension:34*34*H(mm)
Material: alloy steel
Safe overload:150%; Ultimate overload: 200%
Characteristic: body scale load cell, health scale load cell, bathroom scale load cell, baby scale load cell, pet scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

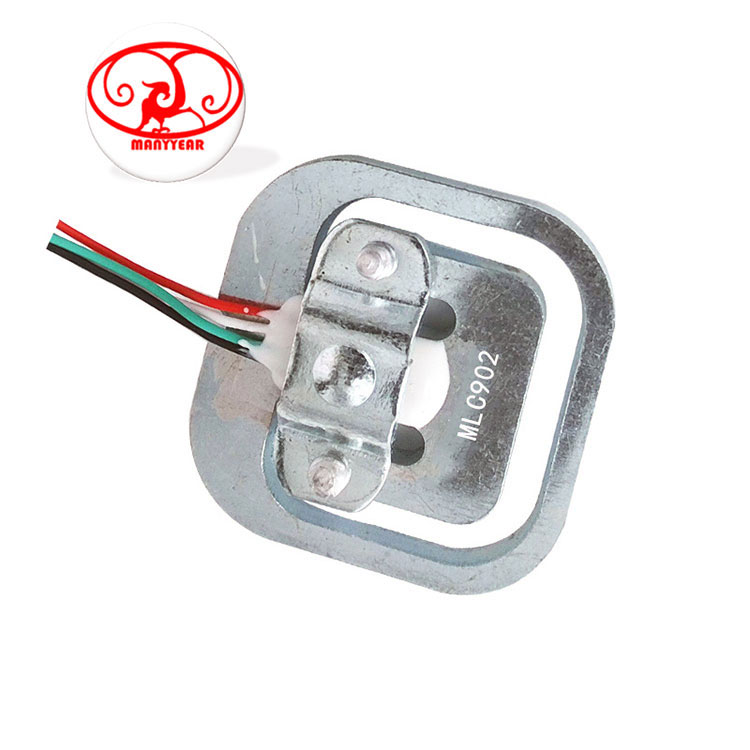

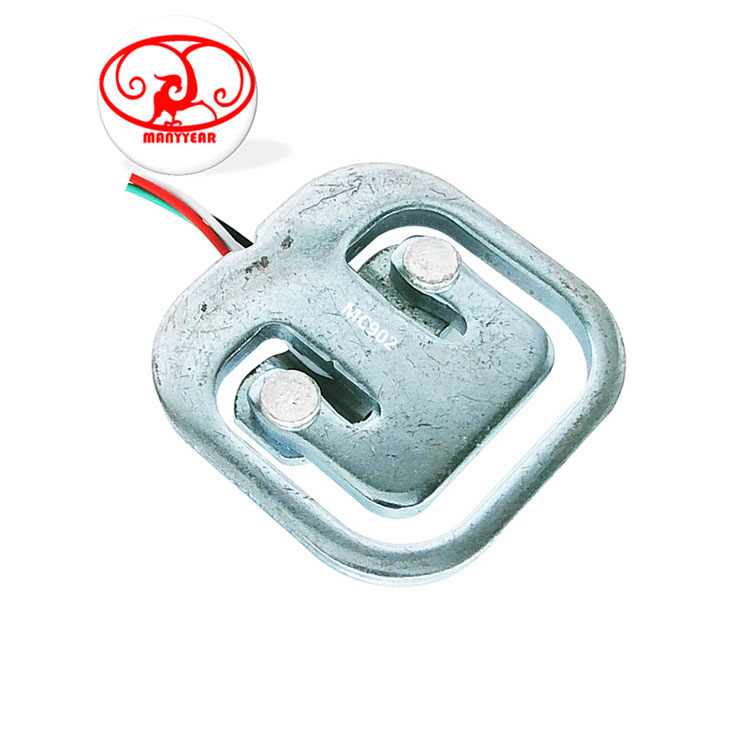

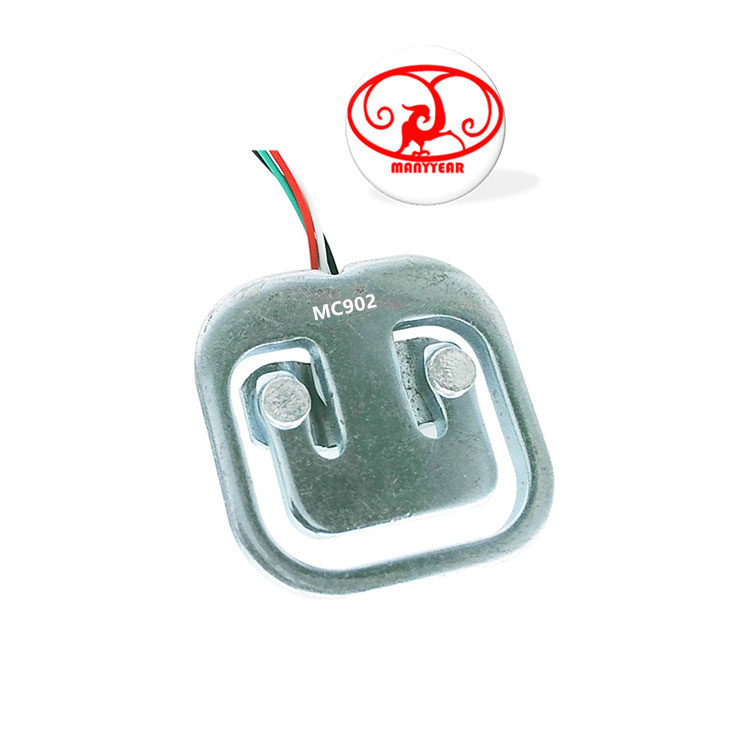

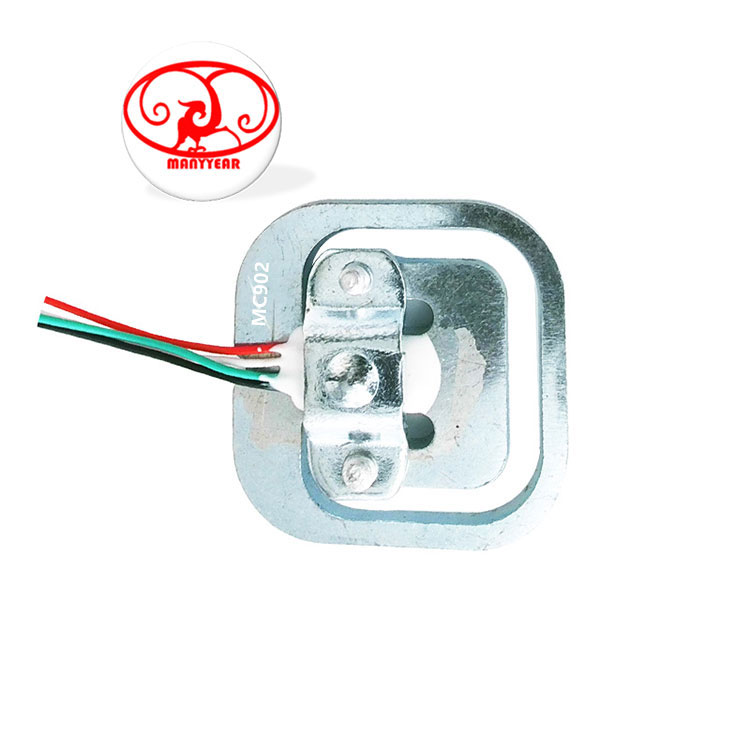

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC902 body scale load cell

Model: MLC902 Catalog: Micro load cell Rated load: 10kg, 30kg, 50kg, 75kg Dimension:3434H(mm) Material: alloy steel Safe overload:150%; Ultimate overload: 200% Characteristic: body scale load cell, health scale load cell, bathroom scale load cell, baby scale load cell, pet scale load cell
Output Specification
Load range	10kg		30kg		50kg		75kg
H1	1.5		2		2.5		3
H2	6.8		7.3		7.8		8.3
HB Rated output:	0.5±0.15mV/V		1.0±0.15mV/V		1.0±0.15mV/V		1.0±0.15mV/V
FB Rated output:	1.0±0.15mV/V		1.8±0.15mV/V		1.8±0.15mV/V		1.8±0.15mV/V
Specification
Comprehensive error:		0.2%FS		Output resistance:		1000±10Ω
Rated output:		Refer to above spec		Insulation resistance:		≥2000MΩ(100VDC)
Non-linearity:		0.2%FS		Excitation voltage:		3~10VDC
Hysteresis:		0.2%FS		Compensated temp:		-10~+40ºC
Repeatability:		0.15%FS		Use temperature:		-20~+55ºC
Creep:		0.15%FS/10Min		Temp effect on zero:		0.5%FS/10ºC
Zero balance:		±0.3mV/V		Temp effect on span:		0.2%FS/10ºC
Input resistance:		1000±5Ω		Defend grade:		IP66

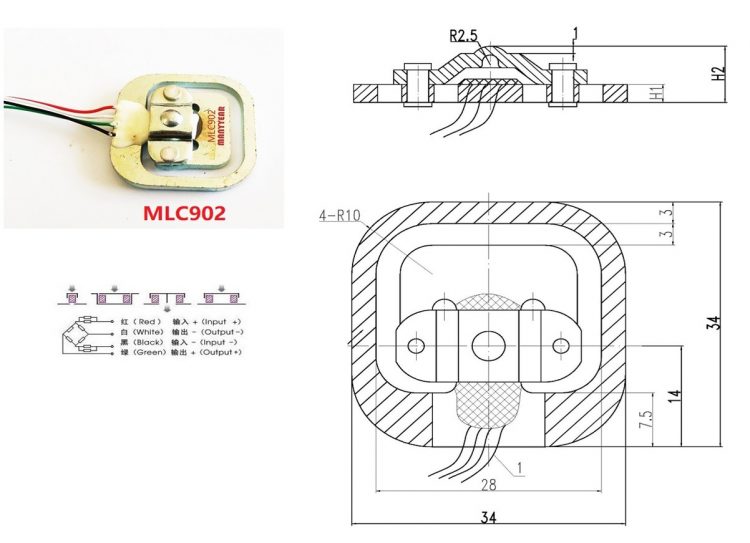

Product Dimension

MLC902 body scale load cell

Force Structure & Assembly Reference
