MLC913EC kitchen scale weighing sensor

2021/11/22 MLC900 Micro Load Cell Weighing Load Cell 2188 0

kitchen scale weighing sensor, pet scale weighing sensor, rice cooker weighing sensor

Model: MLC913EC
Catalog: Micro load cell
Rated load: 3kg, 5kg
Dimension:26*26*6.5mm
Material: alloy steel
Safe overload:150%; Ultimate overload: 200%
Characteristic: kitchen scale weighing sensor, pet scale weighing sensor,rice cooker weighing sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

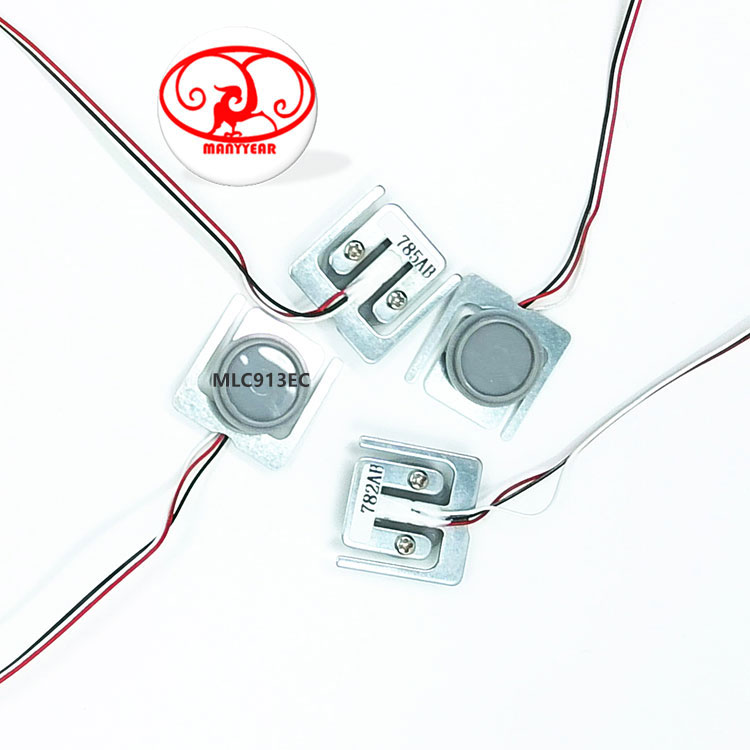

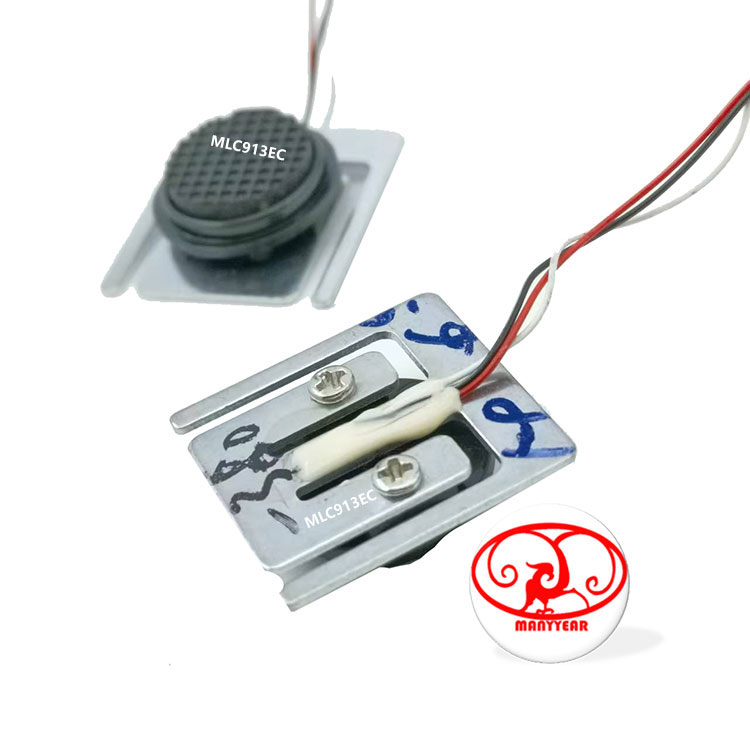

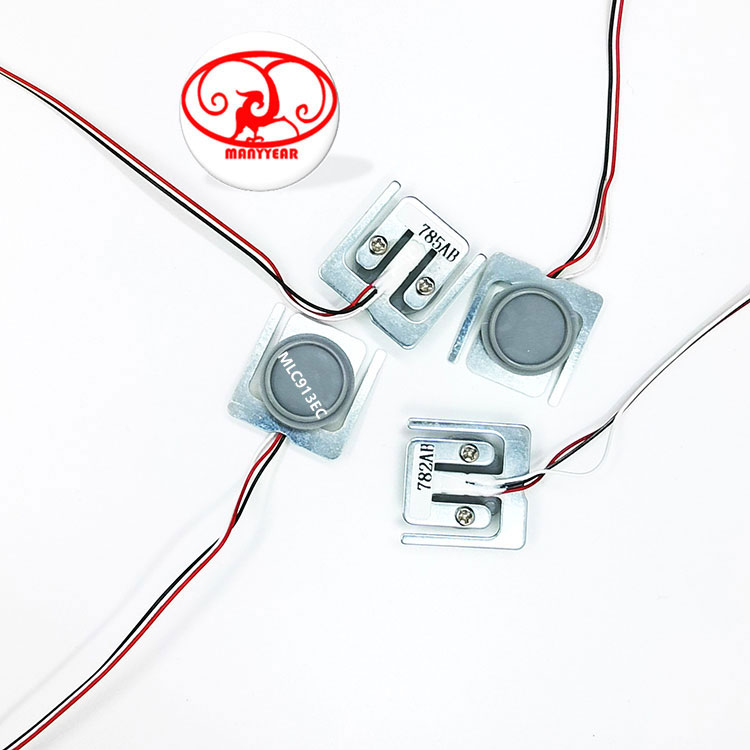

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC913EC kitchen scale weighing sensor

Model: MLC913EC Catalog: Micro load cell Rated load: 3kg, 5kg Dimension:26266.5mm Material: alloy steel Safe overload:150%; Ultimate overload: 200% Characteristic: kitchen scale weighing sensor, pet scale weighing sensor,rice cooker weighing sensor

Specification
Comprehensive error:	0.1%FS	Output resistance:	500/1000±10Ω
Rated output:	1.0±0.15mV/V; 1.5±0.15mV/V;	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	5~10VDC
Hysteresis:	0.1%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.1%FS/10Min	Temp effect on zero:	0.2%FS/10℃
Zero balance:	0.3mV/V	Temp effect on span:	0.1%FS/10℃
Input resistance:	500/1000±10Ω	Defend grade:	IP66

Product Dimension

MLC913EC kitchen scale weighing sensor

Force Structure & Assembly Reference

Product Application
