MLC700LD- robot stress sensing small size micro load cell 20kg MLC700LD- robot stress sensing small size micro load cell 20kg
MLC700LD- robot stress sensing small size micro load cell 20kg
MLC700LD- robot stress sensing small size micro load cell 20kg-MANYYEAR TECHNOLOGY

MLC700LD- robot stress sensing small size micro load cell 20kg

MLC700LD- robot stress sensing small size micro load cell 20kg

Model: MLC700LD
Product Category: Micro Load Cell
Load range: 20kg
Size: 20*15*1.5mm
Material: alloy steel
Safe overload: 120% FS
Ultimate overload: 150% FS
Application: Micro force measurement, robot force measurement, robot arm force measurement, stress switch, automation equipment




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

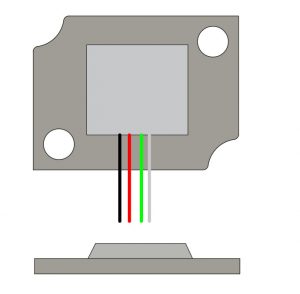

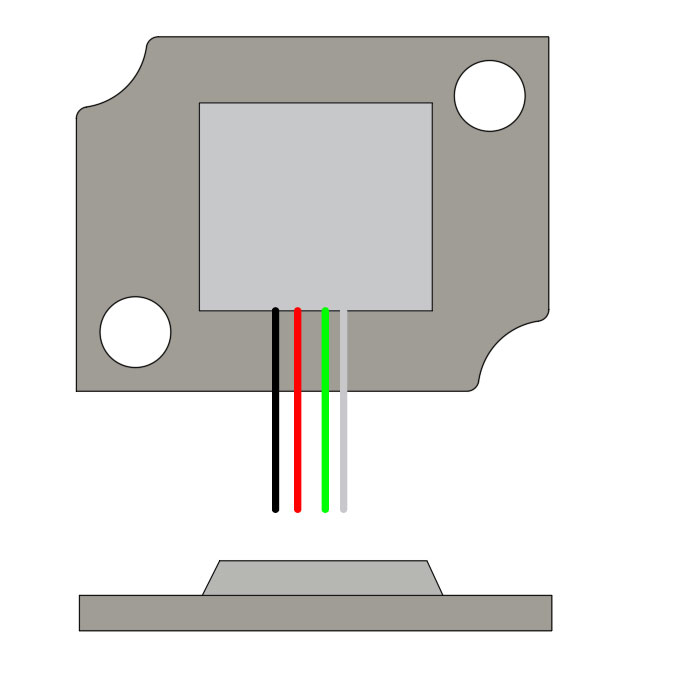

Product Picture Reference

MLC700LD- robot stress sensing small size micro load cell 20kg-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC700LD- robot stress sensing small size micro load cell 20kg

Model: MLC700LD
Product Category: Micro Load Cell
Load range: 20kg
Size: 20*15*1.5mm
Material: alloy steel
Safe overload: 120% FS
Ultimate overload: 150% FS
Application: Micro force measurement, robot force measurement, robot arm force measurement, stress switch, automation equipment

Specification
Comprehensive error:0.3%FSOutput resistance:1000±10Ω
Rated output:1.5±0.2mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:3~12VDC
Hysteresis:0.1%FSCompensated temp:-10~+60ºC
Repeatability:0.2%FSUse temperature:-0~+40ºC
Creep:0.1%FS/3MinTemp effect on zero:0.3%FS/10ºC
Zero balance:1±0.3%FSTemp effect on span:0.3%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP66

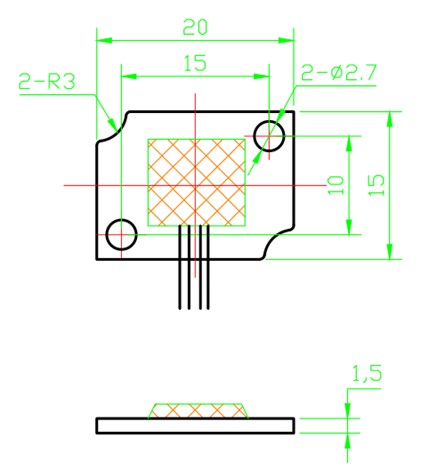

Product Dimension

MLC700LD- robot stress sensing small size micro load cell 20kg-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC700LD- robot stress sensing small size micro load cell 20kg-MANYYEAR TECHNOLOGY

Product Application

MLC700LD- robot stress sensing small size micro load cell 20kg-MANYYEAR TECHNOLOGYMLC700LD- robot stress sensing small size micro load cell 20kg-MANYYEAR TECHNOLOGYMLC700LD- robot stress sensing small size micro load cell 20kg-MANYYEAR TECHNOLOGY
