MLC716A04 vending machice weighing sensor

2021/11/19 MLC900 Micro Load Cell Weighing Load Cell 2197 0

kitchen scale weighing sensor, pet scale weighing sensor,smart water cup weighing sensor, vending machine weighing sensor

Model:MLC716A04
Catalog: Micro load cell
Rated load: 1kg,2kg,3kg,4kg,5kg,10kg
Dimension:35.5*30.2*5.2mm
Material: alloy aluminum
Safe overload:150%; Ultimate overload: 200%
Characteristic: kitchen scale weighing sensor,pet scale weighing sensor,smart water cup weighing sensor,vending machine weighing sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

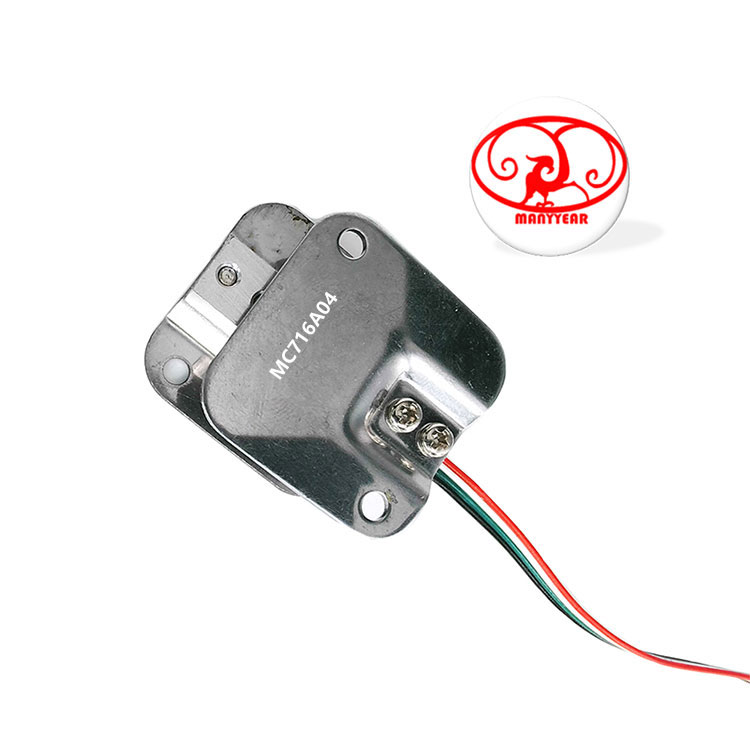

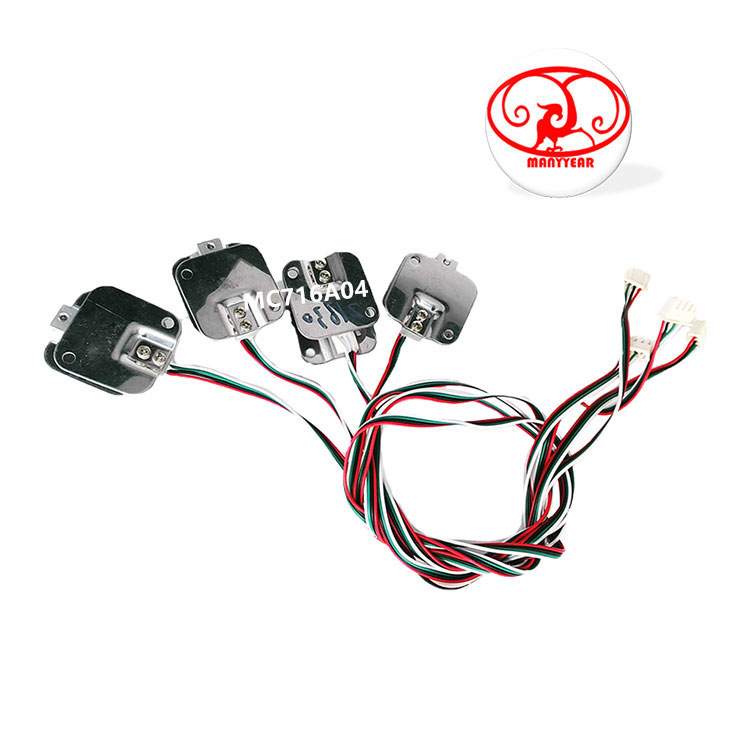

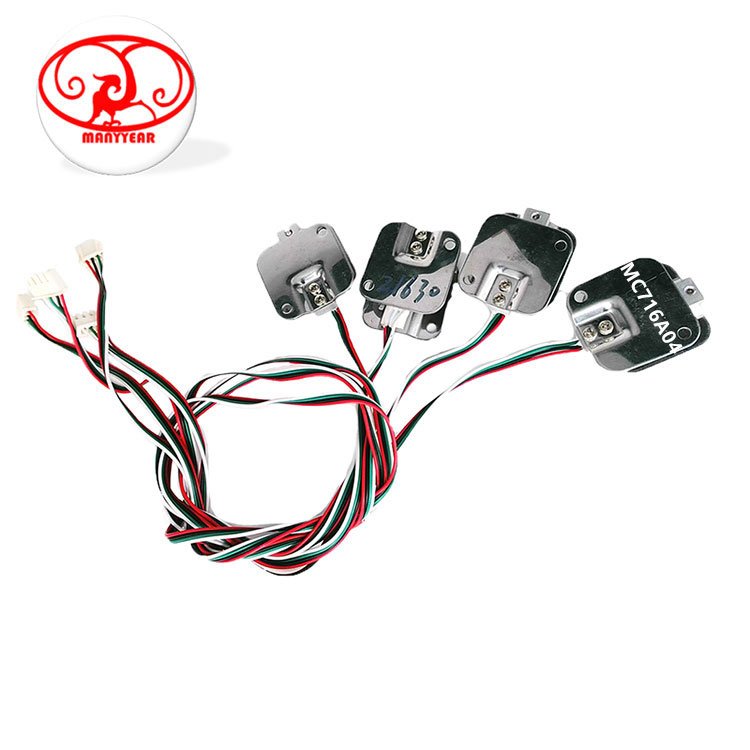

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC716A04 vending machine weighing sensor

Model:MLC716A04 Catalog: Micro load cell Rated load: 1kg,2kg,3kg,4kg,5kg,10kg Dimension:35.530.25.2mm Material: alloy aluminum Safe overload:150%; Ultimate overload: 200% Characteristic: kitchen scale weighing sensor,pet scale weighing sensor,smart water cup weighing sensor,vending machine weighing sensor

Specification
Comprehensive error:	0.05FS	Output resistance:	1000±10Ω
Rated output (full bridge):	2.0±0.15mV/V	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	3-5 VDC
Hysteresis:	0.02%FS	Compensated temp:	-10~+60ºC
Repeatability:	0.02%FS	Use temperature:	-20~+60ºC
Creep:	0.05%FS/10Min	Temp effect on zero:	0.1%FS/10ºC
Zero balance:	0.3mV±0.1%FS	Temp effect on span:	0.1%FS/10ºC
Input resistance:	1000±10Ω	Defend grade:	IP66

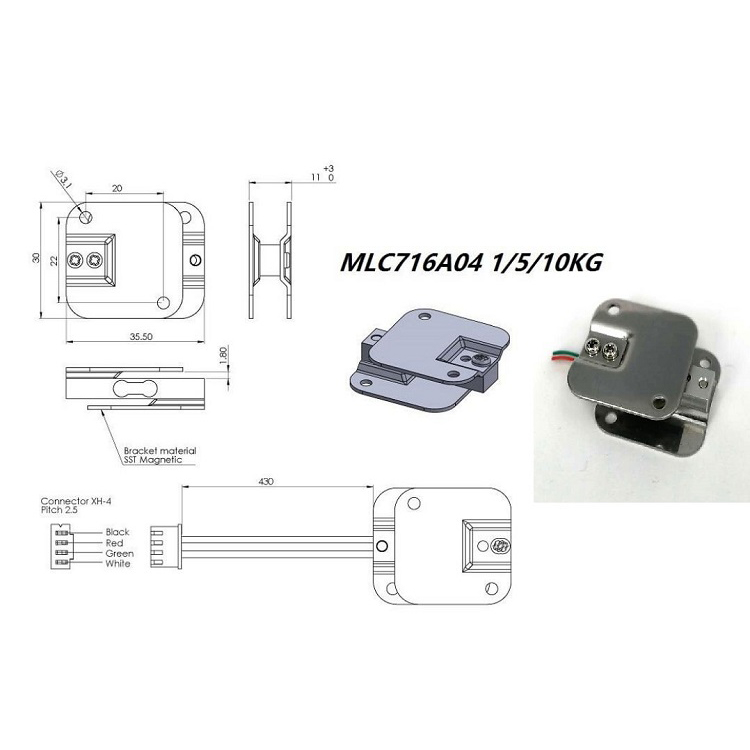

Product Dimension

MLC716A04 vending machine weighing sensor

Force Structure & Assembly Reference
