MLC602 electronic scale load cell MLC602 electronic scale load cell
MLC602 electronic scale load cell
MLC602 electronic scale load cell-MANYYEAR TECHNOLOGY
MLC602 electronic scale load cell-MANYYEAR TECHNOLOGY
MLC602 electronic scale load cell-MANYYEAR TECHNOLOGY
MLC602 electronic scale load cell-MANYYEAR TECHNOLOGY

MLC602 electronic scale load cell

MLC600-100KG Weighing Load Cell 3264 0

Parallel beam load cell, single point load cell, platform scale load cell, pricing scale load cell, electronic scale load cell

Model: MLC602
Category: Single point load cell
Range:3kg,5kg,6kg,10kg,15kg,20kg,30kg,40kg,50kg,60kg,100kg
Dimension: 88*22*20/88*22*30/88*22*40mm
Material: alloy aluminum
Characteristic electronic scale load cell, platform scale load cell, kitchen scale load cell, postal scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

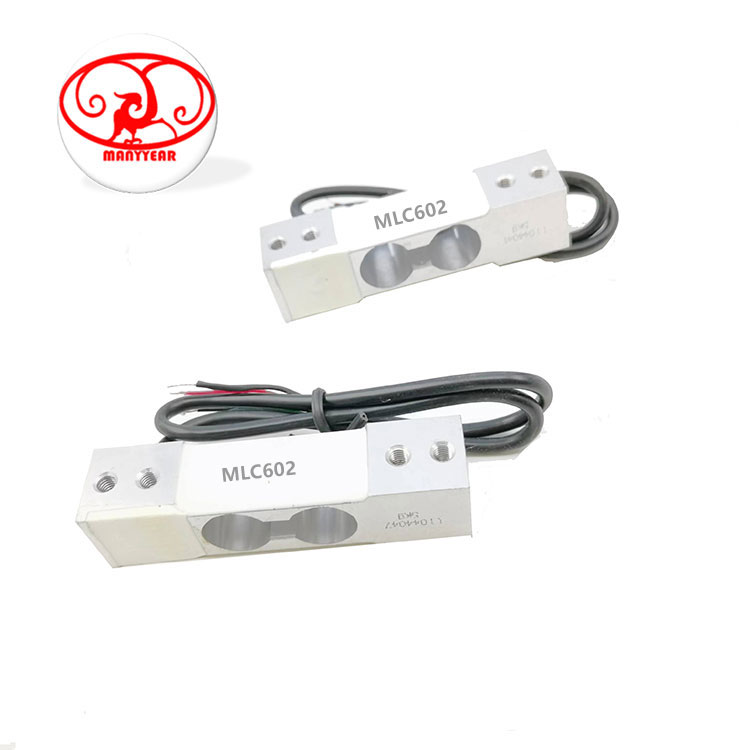

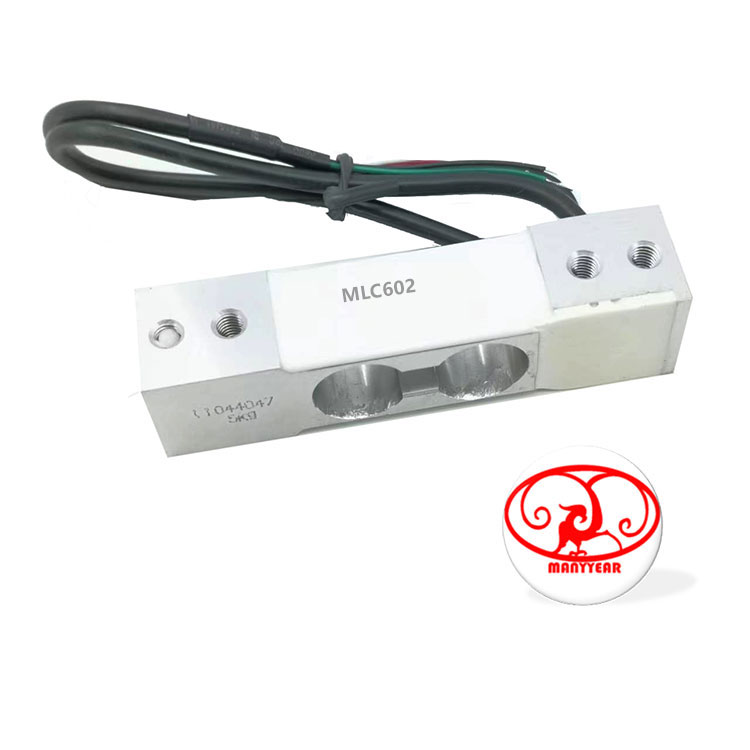

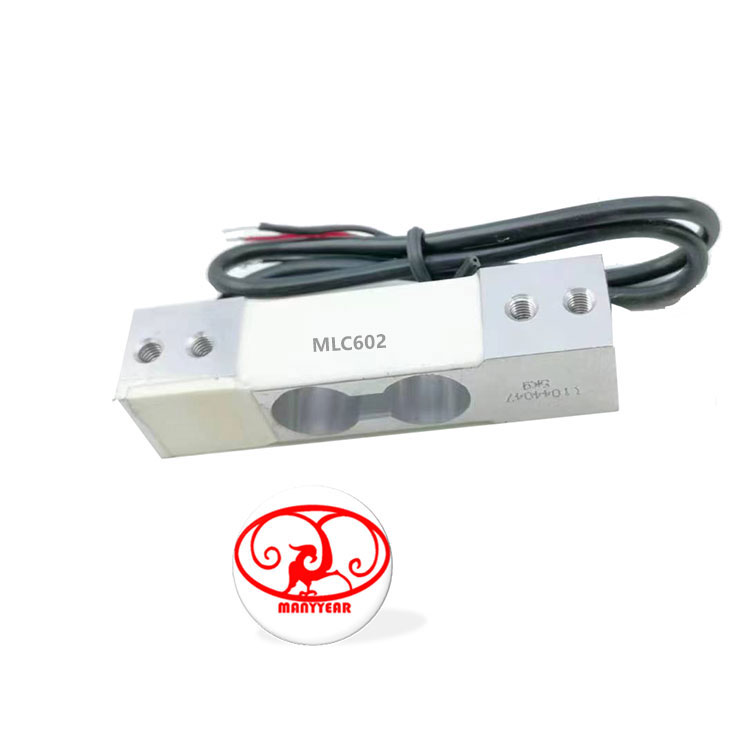

Product Picture Reference



MLC602 electronic scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC602 electronic scale load cell

Model: MLC602

Category: Single point load cell

Range:3kg,5kg,6kg,10kg,15kg,20kg,30kg,40kg,50kg,60kg,100kg

Dimension: 88*22*20/88*22*30/88*22*40mm

Material: alloy aluminum

Characteristic electronic scale load cell, platform scale load cell, kitchen scale load cell, postal scale load cell

Other Dimension
Rated load3,5,6kg10, 15, 20, 25, 30, 40, 50kg60, 100kg
"B"20mm30mm40mm
Specification
Comprehensive error:0.03%FSOutput resistance:405±10Ω
Rated output:2±0.1mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.03%FSUse temperature:-20~+60ºC
Creep:0.02%FS/30MinTemp effect on zero:±0.05%FS/10ºC
Zero balance:±0.1mV/VTemp effect on span:±0.05%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

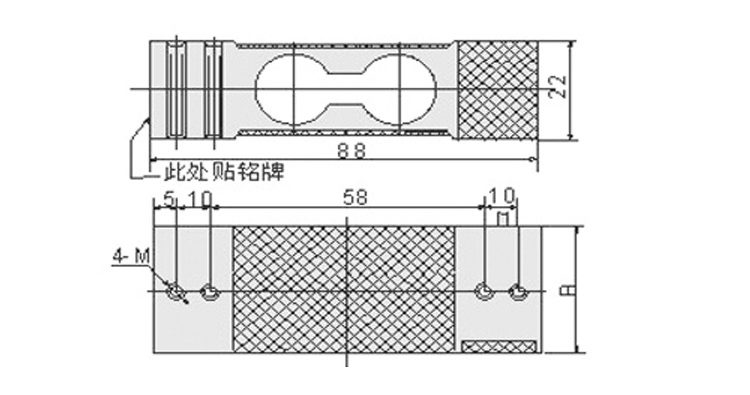

Product Dimension

MLC602 electronic scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC602 electronic scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC602 electronic scale load cell-MANYYEAR TECHNOLOGYMLC602 electronic scale load cell-MANYYEAR TECHNOLOGYMLC602 electronic scale load cell-MANYYEAR TECHNOLOGY
