MLC601 high precision parallel beam load cell MLC601 high precision parallel beam load cell
MLC601 high precision parallel beam load cell
MLC601 high precision parallel beam load cell-MANYYEAR TECHNOLOGY
MLC601 high precision parallel beam load cell-MANYYEAR TECHNOLOGY
MLC601 high precision parallel beam load cell-MANYYEAR TECHNOLOGY
MLC601 high precision parallel beam load cell-MANYYEAR TECHNOLOGY

MLC601 high precision parallel beam load cell

MLC600-100KG Weighing Load Cell 3432 0

parallel beam load cell, single point load cell, platform scale load cell, pricing scale load cell, electronic scale load cell

Model: MLC601
Category: Single point load cell
Range:3kg,5kg,6kg,10kg,15kg,20kg,30kg,40kg,50kg,60kg,100kg,120kg
Dimension: 130*30*22mm
Material: alloy aluminum
Characteristic: parallel beam load cell, single point load cell, pricing scale load cell, electronic scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

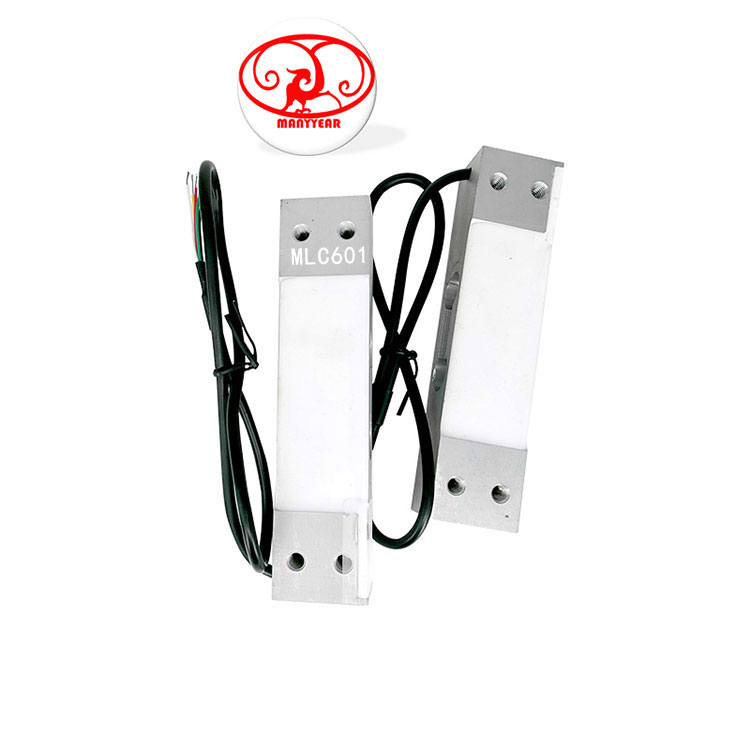

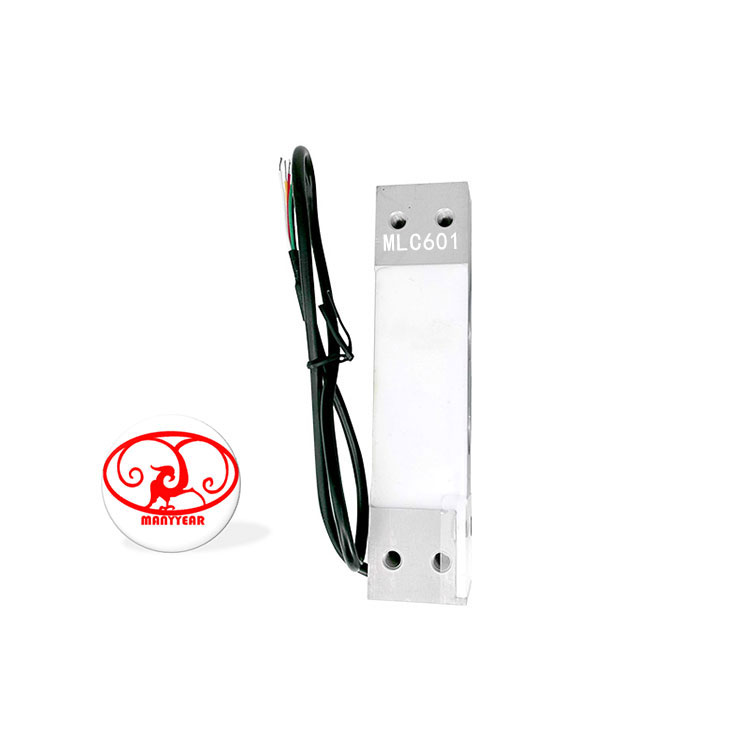

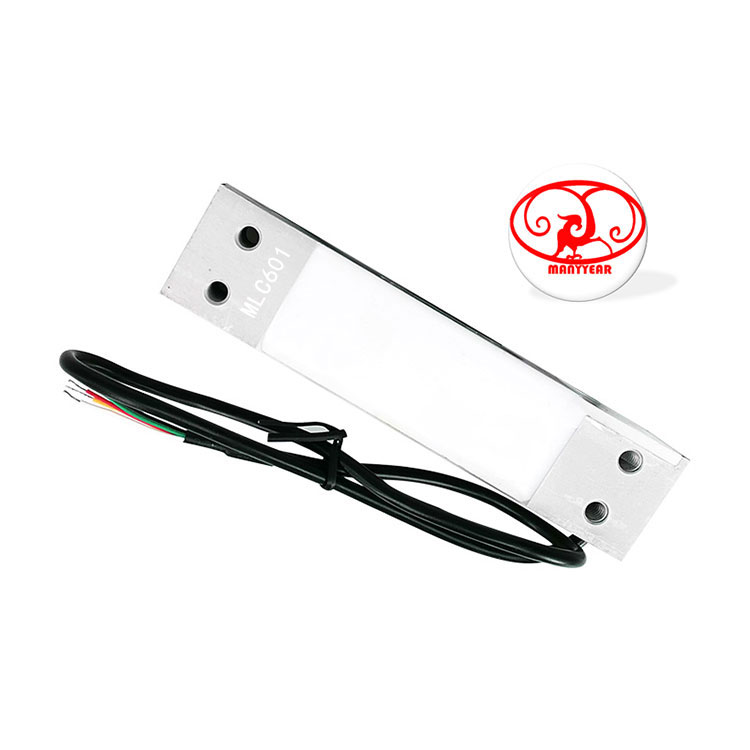

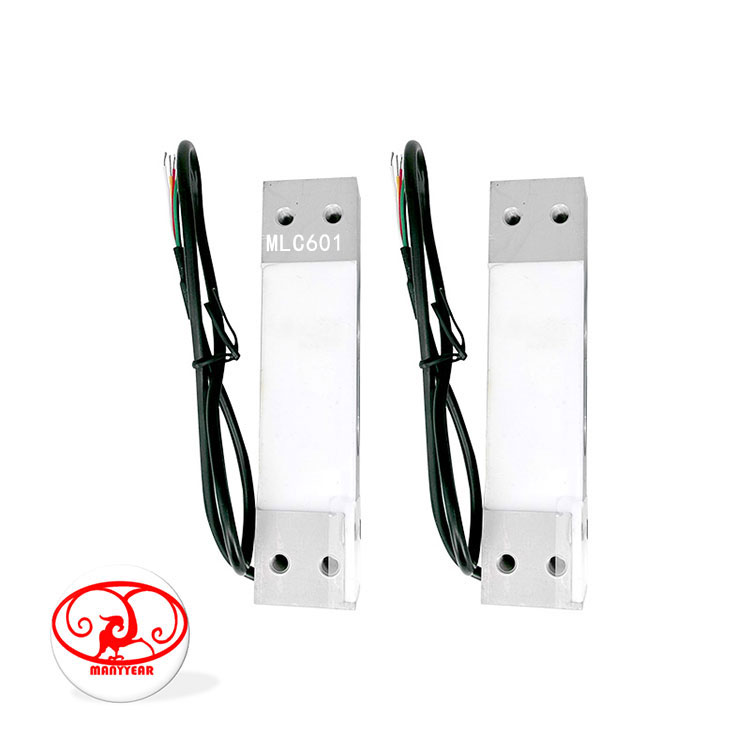

Product Picture Reference

MLC601 high precision parallel beam load cell-MANYYEAR TECHNOLOGY

MLC601 high precision parallel beam load cell

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC601 high precision parallel beam load cell

Model: MLC601

Category: Single point load cell

Range:3kg,5kg,6kg,10kg,15kg,20kg,30kg,40kg,50kg,60kg,100kg,120kg

Dimension: 130*30*22mm

Material: alloy aluminum

Characteristic: parallel beam load cell, single point load cell, pricing scale load cell, electronic scale load cell

Specification
Comprehensive error:0.017%FSOutput resistance:405±10Ω
Rated output:2±0.1mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.017%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.01%FSUse temperature:-20~+60ºC
Creep:0.017%FS/30MinTemp effect on zero:0.017% / 0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.014% / 0.02%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

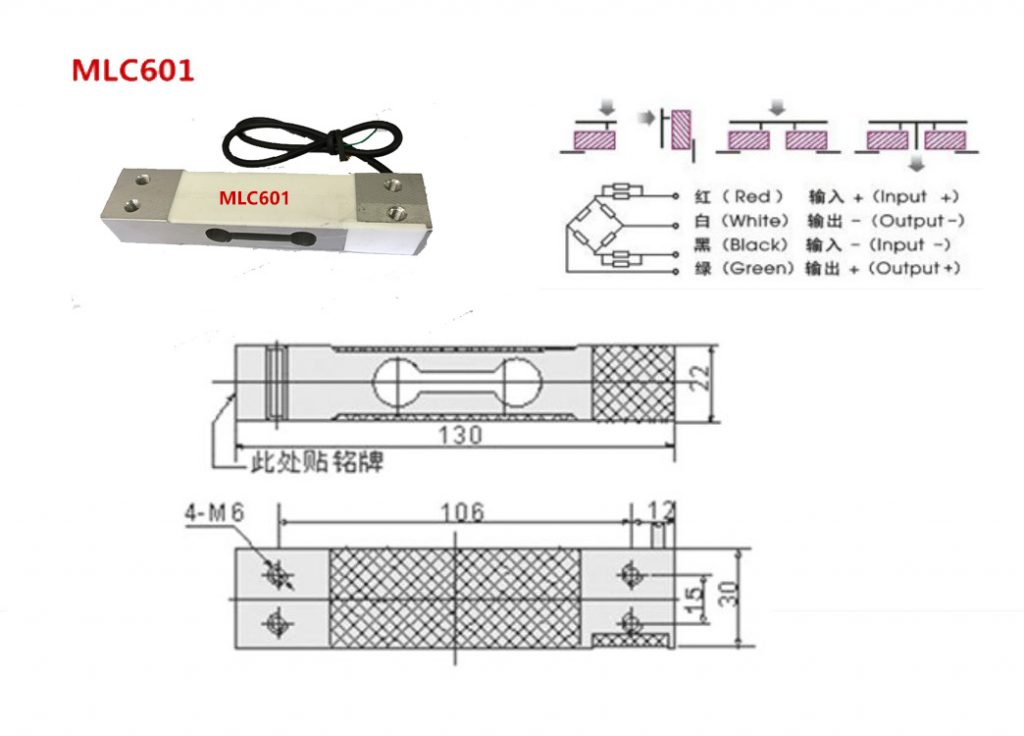

Product Dimension

MLC601 high precision parallel beam load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC601 high precision parallel beam load cell-MANYYEAR TECHNOLOGY

Product Application
