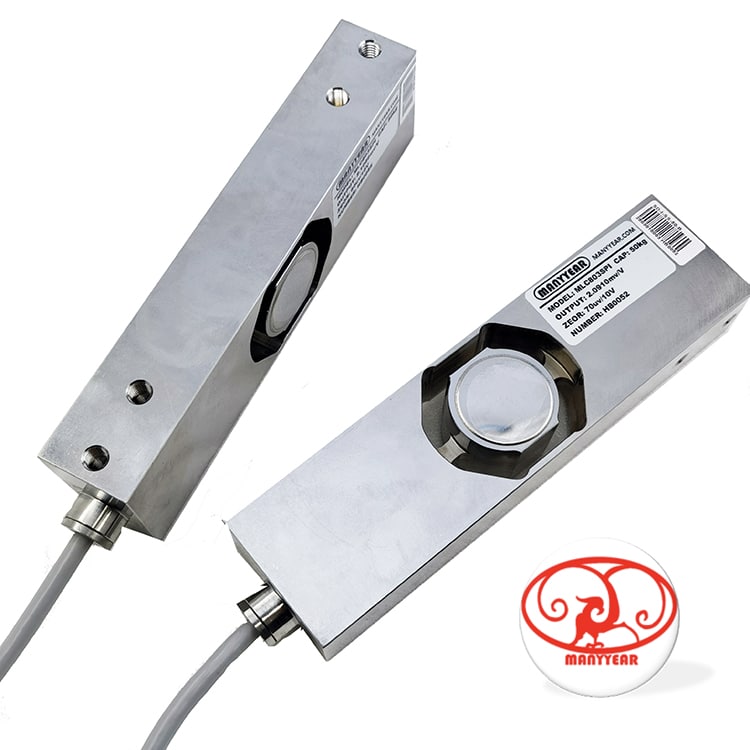

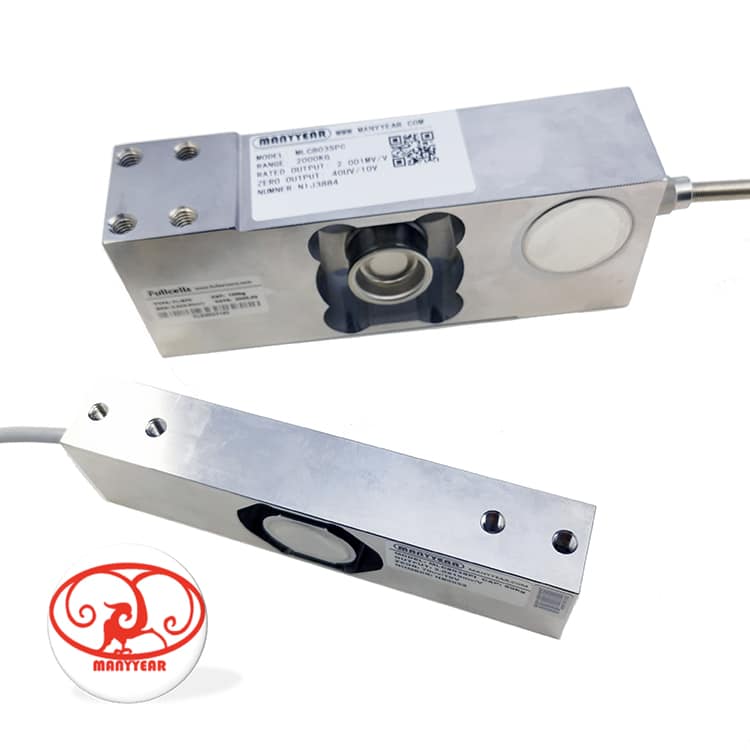

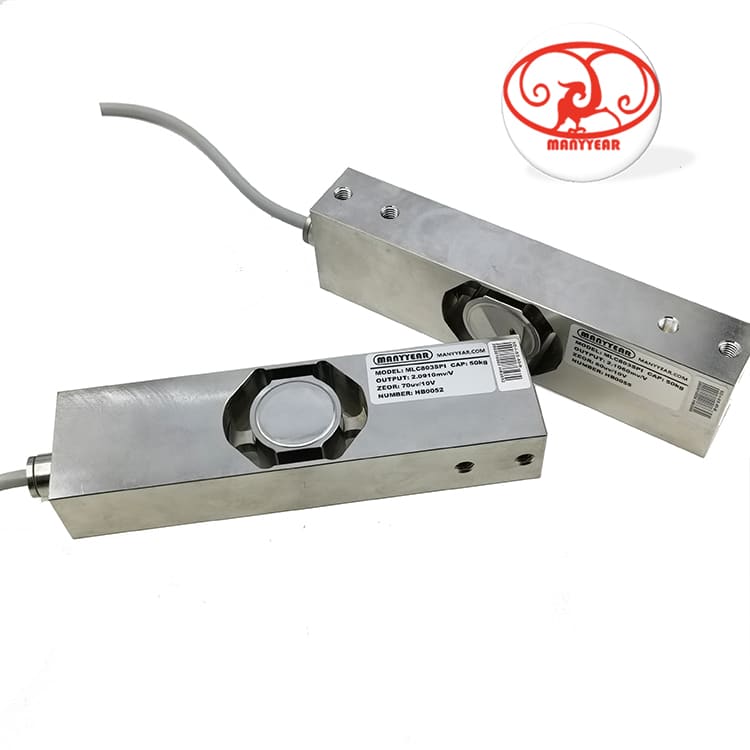

waterproof load cell, 10, 20, 50 , 100 kg, 140×40×25mm, alloy steel/stainless steel, IP68/IP69K, for filling scales
Model:MLC81 3-SPI
Category: Shear Beam Load Cells
Rated load: 10, 20, 50 , 100 kg

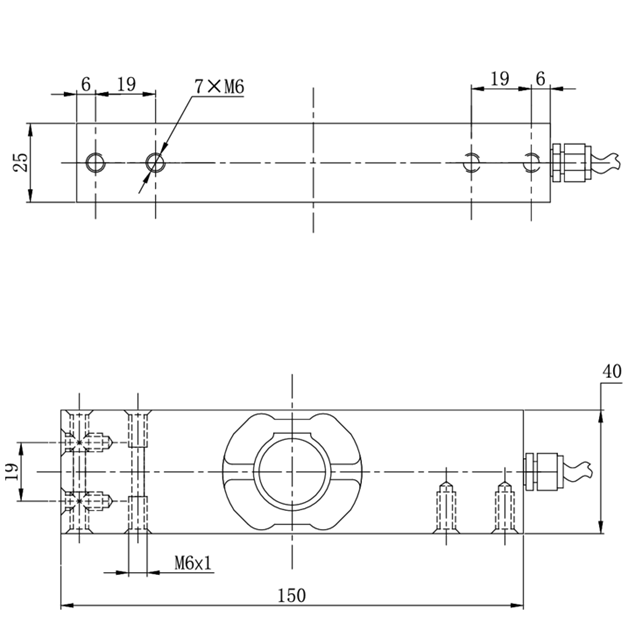

Product size: 140*40*25mm
Safe overload: 120%; Ultimate overload: 200%
Material: alloy steel, stainless steel
Scope of application: batching scale, canning scale, packaging scale , food processing, pharmaceutical production, waterproof load cell
| Technical Parameters | |||
| Comprehensive error: | 0.02%FS;0.01%FS | Output resistance: | 352±3 ohms |
| Rated output: | 2±0.002 mv/v | Insulation resistance: | ≥5000MΩ (100VDC) |
| Nonlinearity: | 0.017%FS | Excitation voltage: | 5~12VDC |
| Lag: | 0.02%FS | Compensation temperature: | -10~+40 C |
| Repeatability: | 0.01%FS | Operating temperature: | -30~+70 C |
| Creep: | 0.02%FS/10MIN | Effect of Temp. on zero point | 0.02%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity | 0.02%FS/10ºC |
| Input resistance: | 400±10ohm | Protection level: | IP68 /IP69K protection level |
