MLC803D batching scale load cell

shear beam load cell,platform scale load cell,batching scale load cell,packing scale load cell

Model: MLC803D
Category: Shear beam load cell
Rated load: 500,1000,1500,2000kg
Dimension:130*30*31mm
Safe overload:120%;Ultimate overload: 150%
Material: alloy steel, stainless steel
Characteristic: platform scale load cell,batching scale load cell,packing scale load cell
Online Sales


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

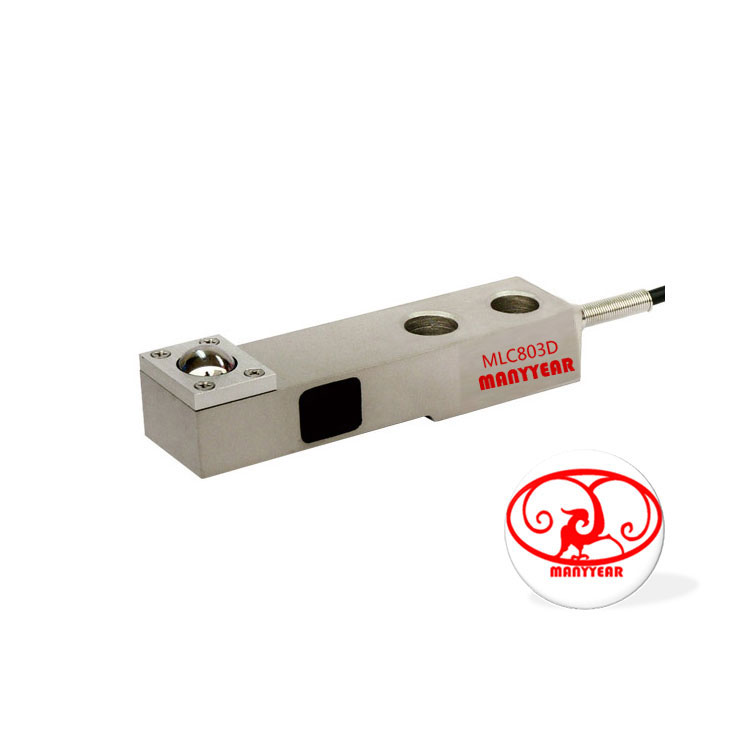

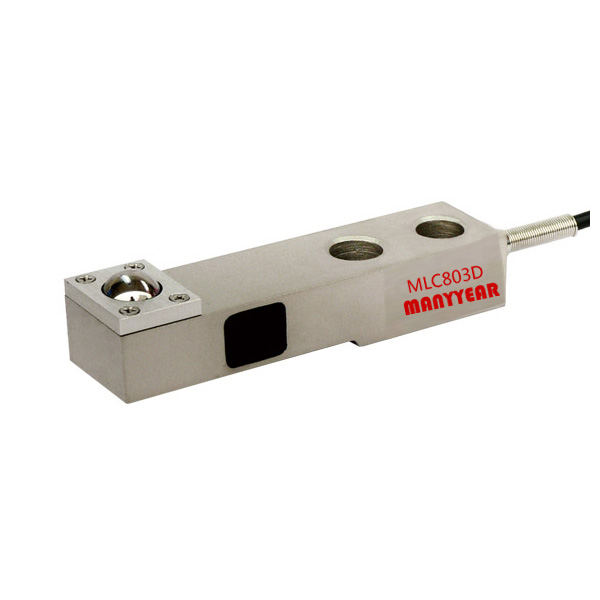

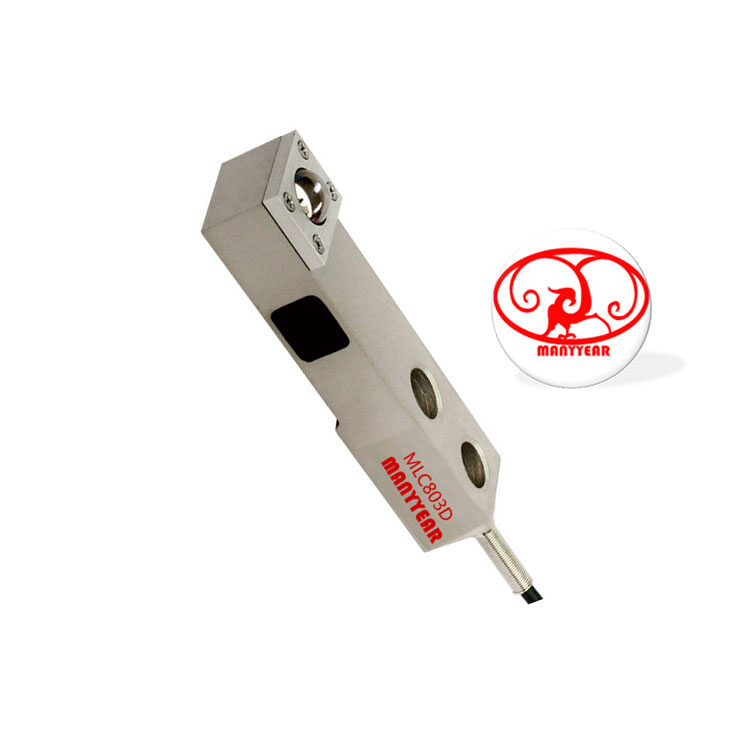

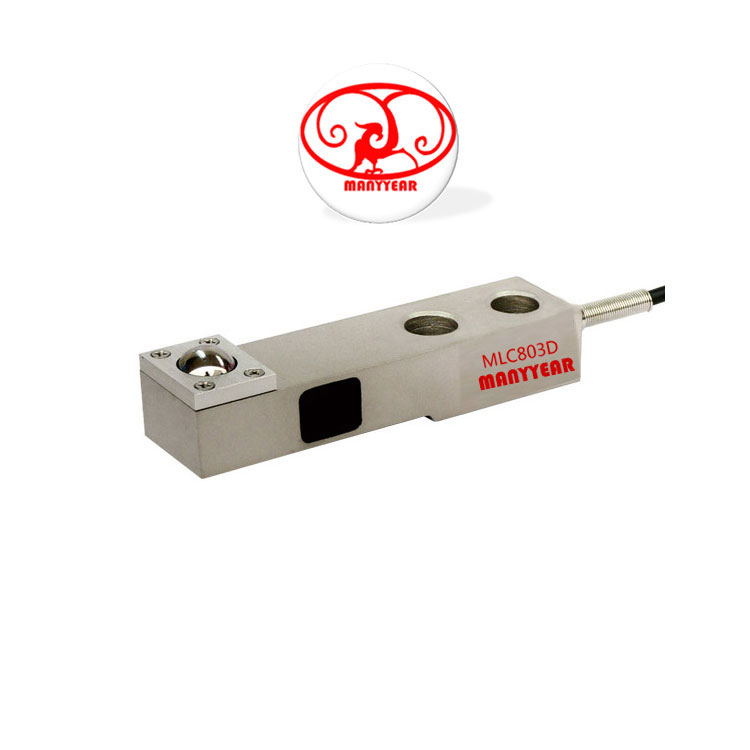

Product Picture Reference

MLC803D batching scale load cell-MANYYEAR TECHNOLOGY

MLC803D batching scale load cell

Technology Specification

Below spec is only for customer design reference, we can provide ODM product.
                                                                 MLC803D batching scale load cell

Model: MLC803D
Category: Shear beam load cell
Rated load: 500,1000,1500,2000kg
Dimension:130*30*31mm
Material: alloy steel, stainless steel
Safe overload:120%; Ultimate overload: 150%
Characteristic: platform scale load cell,batching scale load cell,packing scale load cell

  Specification
Comprehensive error:0.02%FSOutput resistance:350±3Ω
Rated output:3±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66

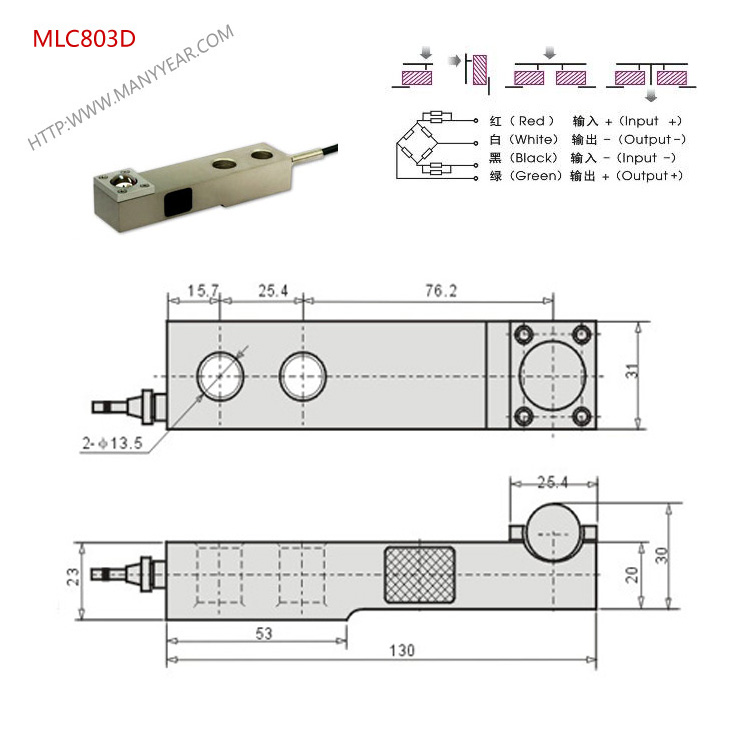

Product Dimension

MLC803D batching scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC803D batching scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC803D batching scale load cell-MANYYEAR TECHNOLOGYMLC803D batching scale load cell-MANYYEAR TECHNOLOGYMLC803D batching scale load cell-MANYYEAR TECHNOLOGY
