MTS-MRSF fiber monochromatic infrared pyrometer

Model: MTS-MRSF
Category: Infrared temperature sensor
Measurement range: 600-1600, 600-2000, 700-2500, 700-3000.
Sensors: Silicon, InGaAs
Wavelength: (0.85-1.1) μ m, (1.45-1.7) μ m
Signal output mv, 0-5vdc, 0-10vdc, 4-20mA, PNP, relay, RS485
Measurement accuracy: 0.5%,
Repeatability accuracy: 2 ℃,
Resolution: 0.1 ℃
Response time: 5ms
Application: Heat treatment, metal forging, casting, induction heating, glass, semiconductor, induction heating, heat treatment,
Single crystal, polycrystalline silicon, vacuum furnace, high-temperature furnace infrared thermometer, non-contact infrared high-temperature instrument, fiber optic infrared high-temperature instrument, monochromatic infrared high-temperature machine




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

MTS-MRSF fiber monochromatic infrared pyrometer
Model: MTS-MRSF
Category: Infrared temperature sensor
Measurement range: 600-1600, 600-2000, 700-2500, 700-3000.
Sensors: Silicon, InGaAs
Wavelength: (0.85-1.1) μ m, (1.45-1.7) μ m
Signal output mv, 0-5vdc, 0-10vdc, 4-20mA, PNP, relay, RS485
Measurement accuracy: 0.5%,
Repeatability accuracy: 2 ℃,
Resolution: 0.1 ℃
Response time: 5ms
Application: Heat treatment, metal forging, casting, induction heating, glass, semiconductor, induction heating, heat treatment,
Single crystal, polycrystalline silicon, vacuum furnace, high-temperature furnace infrared thermometer, non-contact infrared high-temperature instrument, fiber optic infrared high-temperature instrument, monochromatic infrared high-temperature machine

Technical Parameters



MTS-MRSF-FS Technical Parameter



ModelMTS-MRSF-FS-6016MTS-MRSF-FS-6020MTS-MRSF-FS-7025MTS-MRSF-FS-7030
Measuring range(degC)600 ~1600600~2000700~2500700~3000
DetectorSi(silicone photocell)
Working wavelength(0.85 ~1. 1) μm
Mostly applicationHeat treatment, Metal forging, Casting, Induction heating, Glass, SemiconductorInduction heating, heat treatment, Monocrystalline,                                         Polycrystalline, Vacume furnace, High temperature furnace
Distance coefficient100:1200:1
Measuring distanceManual adjustable focus lens, standard focus distance 0.15m to 10m.
Measuring accuracy±0.5%T     (T as temperature measuring value)
Temperature resolution0. 1 degC
Repeat accuracy± 0 . 1 T (T as temperature measuring value)
One-color coefficient0. 100~1.000 ,Adjustable in 0.001 increments
Response time5 ms~99.99 s, capable adjustable
Signal processingPeak value, valley value, Average value, ambient temperature too high and too low alarm, power down protection and others function etc.
 Multiple analog output 16bit (4mA~20mA, 0mA~20mA, 0V~5V, 0V~10V option) Resolution 0. 1 degC, Current loop output maximum load 600Ω, Voltage output











Output

allowed current 10mA
Alarm output: Upper limit, Lower limit alarm, with optocoupler relay has unlimited service life. On resistance≤ 1Ω, maximum allowed voltage: AC42V or DC60V, Maximum allowed current:100mA, response time:2ms.
RS4 85 output, capable parameter modification, data recording and query function
Display modeWith self- illumination industrial grade OLED display screen
Power supplyDC (20~30) V, power consumption: 5W (24V@200mA). With over voltage, over current, short circuit protection. With Built-in EMI filter, can resist 2500VDCpalus

group interference.

Ambient temperature compensationBuilt- in ambient temperature compensation, almost unaffected by ambient temperature changes
Aiming modeRed laser or green laser aiming
InterfaceWith fully sealed plug
Service EnvironmentWithout water cooling: -20 degC ~+70 degC.



With water cooling-20 degC ~+200 degC, (cooling water pressure: 0.2MPa, flow rate: 2L/min)

Lens and optical fiber: -20 degC~+250 degC (purging pressure is 0.1MPa, flow rate is 6L/min).

IP rateIP65



MTS-MRSF-FG Technical Parameter





ModelMTS-MRSF-FG-3014MTS-MRSF-FG-3518MTS-MRSF-FG-3525MTS-MRSF-F-EXG-2012
Measuring range(degC)300~1400350~1800350~2500200~1200
DetectorInGaAs(Indium gallium arsenic)InGaAs (Extended Indium gallium arsenic)
Working wavelength( 1.45~1.7) μm( 1.45~2. 1) um




Mostly application

Heat treatment, Galvanized         wire,

Nonferrous metal processing, annealing furnace

Induction heating, heat treatment, monocrystalline, polycrystalline, vacuum furnace, high temperature

furnace

Nonferrous Metal Processing,

Induction Heating, Coating

Distance coefficient100:1200:1100:1



Measuring coefficientManual adjustable focus lens, standard focus distance 0.15m to 10m.
Measuring accuracy±0.5%T     (T as temperature measuring value)
Temperature resolution0. 1 degC
Repeat accuracy±0.1%T (T as temperature measuring value)
One-color coeffient0. 100~1.000, Adjustable in 0.001 increments
Response time5ms~99.99s,capable adjustable, Need faster speed can be customized
Signal processingPeak value, valley value, Average value, ambient temperature too high and too low alarm, power down protection and others function etc.




Output

Multiple analog output 16bit (4mA~20mA, 0mA~20mA, 0V~5V, 0V ~10V option), Resolution 0. 1 degC, Current loop output maximum load 600Ω, Voltage output allowed current 10mA
Alarm output: Upper limit, Lower limit alarm,, with optocoupler relay has unlimited service life,, On resistance≤ 1Ω, maximum allowed voltage: AC42V or DC60V, Maximum allowed current: 100mA, Response time: 2ms
RS485 output, capable parameter modification, data recording and query function
Display modeWith self-illumination industrial grade OLED display screen
Power supplyDC (20~30) V, power consumption: 5W (24V@200mA), With over voltage, over current, short circuit protection, With Built-in EMI filter, can resist 2500VDCpalus group interference.
Ambient temperature compensationBuilt-in ambient temperature compensation, almost unaffected by ambient temperature changes.
Aiming modeRed laser or green laser aiming
InterfaceWith fully sealed plug
Service environmentWithout water cooling: -20 degC ~+70 degC.



With water cooling-20 degC ~+200 degC (cooling water pressure: 0.2MPa, flow rate: 2L/min)

Lens and optical fiber: -20 degC~+250degC (purging pressure is 0.1MPa, flow rate is 6L/min).

IP rateIP65

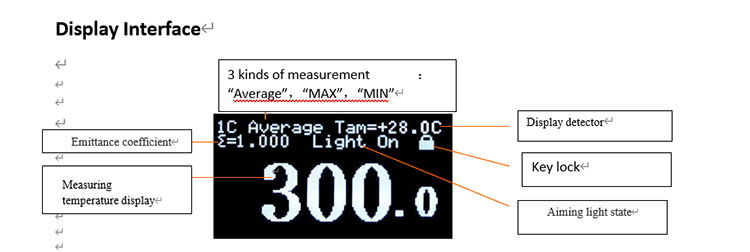

Display Interface

MTS-MRSF fiber monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY

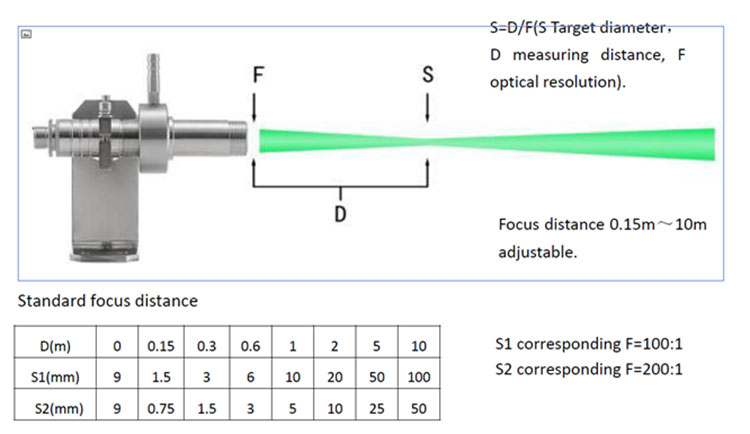

Infrared light path diagram

MTS-MRSF fiber monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY

  • Aiming Requirements

MTS-MRSF fiber monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY

Angle of Installation
