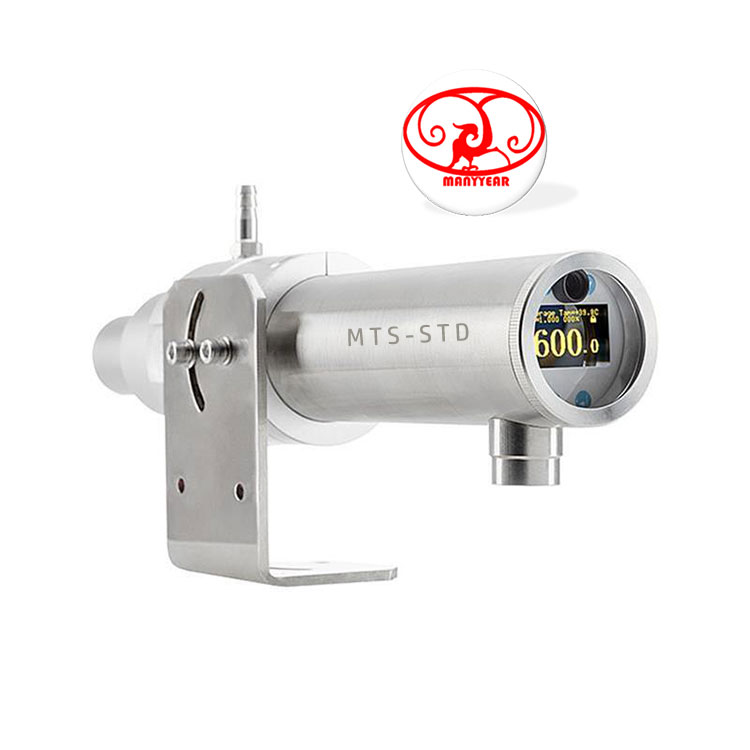

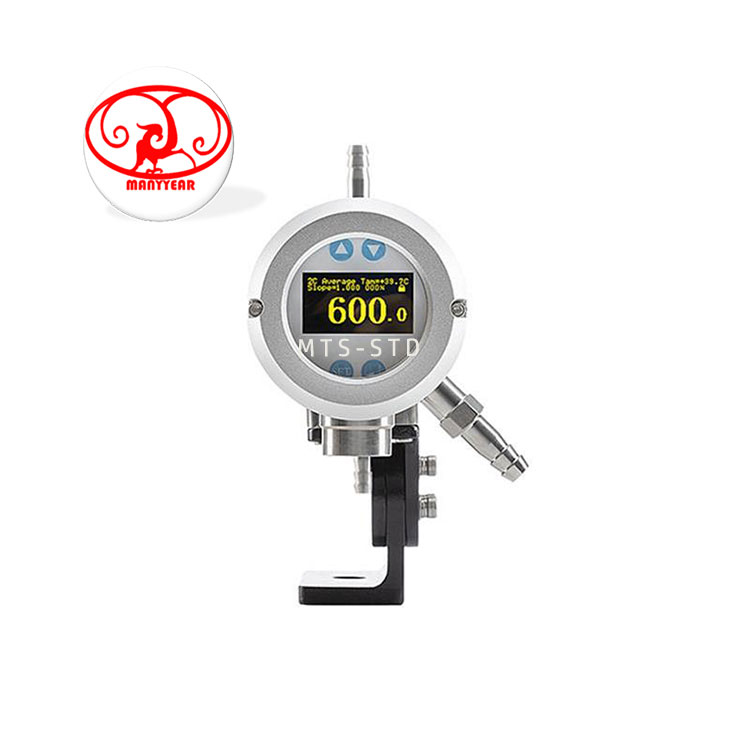

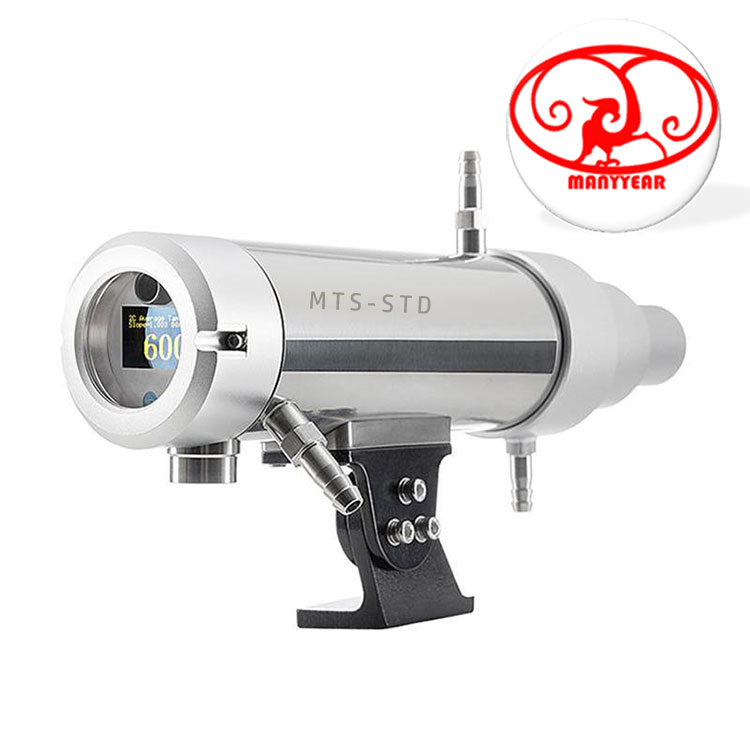

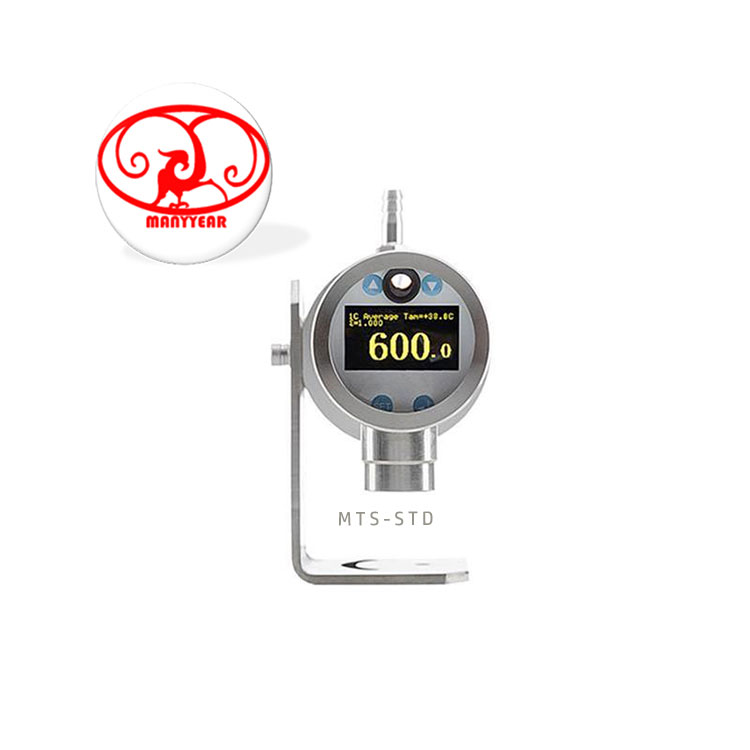

MTS-STD digital dual color infrared pyrometer

Model: MTS-STD
Category: Infrared temperature sensor
Range: 250 ℃ to 3000 ℃
Sensors: Silicon, InGaAs
Wavelength: (0.7~1.08) μ m, 1.08 μ m
Signal output mv, 0-5vdc, 0-10vdc, 4-20mA, PNP, relay, RS485
Measurement accuracy: 0.5%,
Repeatability accuracy: 2 ℃,
Resolution: 0.1 ℃
Response time: 5ms
Application: Heat treatment, metal forging, casting, induction heating, glass, semiconductor, induction heating, heat treatment,
Single crystal, polycrystalline silicon, vacuum furnace, high-temperature furnace






we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

MTS-STD digital dual color infrared pyrometer
Model: MTS-STD
Category: Infrared temperature sensor
Range: 250 ℃ to 3000 ℃
Sensors: Silicon, InGaAs
Wavelength: (0.7~1.08) μ m, 1.08 μ m
Signal output mv, 0-5vdc, 0-10vdc, 4-20mA, PNP, relay, RS485
Measurement accuracy: 0.5%,
Repeatability accuracy: 2 ℃,
Resolution: 0.1 ℃
Response time: 5ms
Application: Heat treatment, metal forging, casting, induction heating, glass, semiconductor, induction heating, heat treatment,
Single crystal, polycrystalline silicon, vacuum furnace, high-temperature furnace

MTS-STD digital dual color infrared pyrometer-MANYYEAR TECHNOLOGY

Technical Parameters

(1) MTS-STD-SR series colorimetric thermometer

modelMTS-STD-SR-6016MTS-STD-SR-6018MTS-STD-SR-7025MTS-STD-SR-7030
Measuring range600 ℃~1600 ℃600 ℃~1800 ℃700 ℃~2500 ℃700 ℃~3000 ℃
detectorSi/Si (stacked silicon)
Monochromatic working wavelengthone point zero eight μ M
Colorimetric working wavelengthWavelength 1: (0.7~1.08) μ m. Wavelength 2:1.08 μ M


Main applications

Hot rolled, wire rod, metal forging, casting, induction heating, melted glass, cement kiln, semiconductor, vacuum furnace

Polycrystalline silicon, monocrystalline silicon



High temperature furnace, graphite furnace, vacuum furnace, semiconductor



Distance coefficient



60:1

Standard 100:1,

60:1 customization required



200:1



Measure distance

Standard focal length: adjustable from 0.45m to infinity,

Near focal length: 0.25m~0.6m

measurement accuracy± 0.5% T (T is the reading temperature), higher precision customizable
resolving power0.1 ℃
Repetitive accuracy± 2 ℃
Monochromatic coefficient0.100~1.100, adjustable step distance of 0.001.
Bicolor coefficient0.850~1.150, adjustable step distance of 0.001.
response time5ms~99.99s adjustable, faster speed customizable
signal processingPeak value, valley value, average value, alarm for high or low ambient temperature, single color and dual color switchable, power failure protection and other functions








output

The first group of multiple analog outputs (4mA~20mA, 0mA~20mA, 0V~5V, 0V~10V can be switched),

Output resolution of 16 bits, accurate to 0.1 ℃, maximum load of 600 Ω for current loop output, allowable current of 10mA for voltage output

The second set of analog output is 4mA~20mA, with a resolution of 16bit and an accuracy of 0.1 ℃. The maximum load output of the current loop is 600 Ω
Alarm output: Upper and lower limit alarms, using optocoupler relays with unlimited service life,

Conduction resistance ≤ 2 Ω, maximum allowable voltage AC42V or DC60V, maximum allowable current 120mA, response time 2ms

PNP level output (output current 100mA, with overload protection)
RS485 output, capable of parameter modification, data recording, and querying functions
Display methodAdopting industrial grade self luminous OLED display screen





  • MTS-STD-GR series colorimetric thermometer



modelMTS-STD-GR-2512MTS-STD-GR-3514MTS-STD-GR-4020MTS-STD-GR-4525
Measuring range250 ℃~1200 ℃350 ℃~1400 ℃400 ℃~2000 ℃450 ℃~2500 ℃
detectorInGaAs/InGaAs (stacked indium gallium arsenic)
Monochromatic working wavelengthone point seven μ M
Colorimetric working wavelengthWavelength 1: (0.9-1.7) μ m. Wavelength 2:1.7 μ MWavelength 1: (1.25-1.7) μ m. Wavelength 2:1.7 μ M


Main applications

Hot rolling, wire and bar processing, non-ferrous metal processing

Induction heating, galvanized wire



Laser heating or vacuum furnace

Distance coefficient30:160:1100:1200:1
Measure distanceStandard focal length: 0.45m to infinity adjustable, near focal length: 0.25m to 0.6m
measurement accuracy± 0.5% T (T is the reading temperature), higher precision customizable
resolving power0.1 ℃
Repetitive accuracy± 2 ℃
Monochromatic coefficient0.100~1.100, adjustable step distance of 0.001
Bicolor coefficient0.850~1.150, adjustable step distance of 0.001
response time5ms~99.99s adjustable, faster speed customizable
signal processingPeak value, valley value, average value, alarm for high or low ambient temperature, single color and dual color switchable, power failure protection and other functions








output

The first group of multiple analog outputs (4mA~20mA, 0mA~20mA, 0V~5V, 0V~10V can be switched),

Output resolution of 16 bits, accurate to 0.1 ℃, maximum load of 600 Ω for current loop output, allowable current of 10mA for voltage output

The second set of analog output is 4mA~20mA, with a resolution of 16bit and an accuracy of 0.1 ℃. The maximum load output of the current loop is 600 Ω
Alarm output: Upper and lower limit alarms, using optocoupler relays with unlimited service life,

Conduction resistance ≤ 2 Ω, maximum allowable voltage AC42V or DC60V, maximum allowable current 120mA, response time 2ms

PNP level output (output current 100mA, with overload protection)
RS485 output, capable of parameter modification, data recording, and querying functions
Display methodAdopting industrial grade self luminous OLED display screen


Power supply

DC (20-30) V, with overvoltage, overcurrent, and short circuit protection, power consumption: 5W( 24V@200mA ),

Built in EMI filter, can resist interference from 2500VDC pulse group.



Environmental temperature compensation

Equipped with a 40 ℃ constant temperature heater, measure temperature after 10 minutes of power on.

Built in full temperature compensation, temperature measurement accuracy is almost unaffected by environmental temperature.

sighting systemYou can choose to use a visible high brightness green light or an eyepiece for aiming. The eyepiece aims at the target object in a positive image, and what you see is what you measure.
interface12 core high-temperature shielded cable and international brand fully sealed plug


Usage environment

Without water cooling: -20 ℃~+60 ℃, blowing pressure is 0.1MPa, flow rate is 6L/min

With water cooling: -20 ℃~+200 ℃, cooling water pressure is 0.2MPa, flow rate is 2L/min

Protection levelIP65



Display Interface

MTS-STD digital dual color infrared pyrometer-MANYYEAR TECHNOLOGY

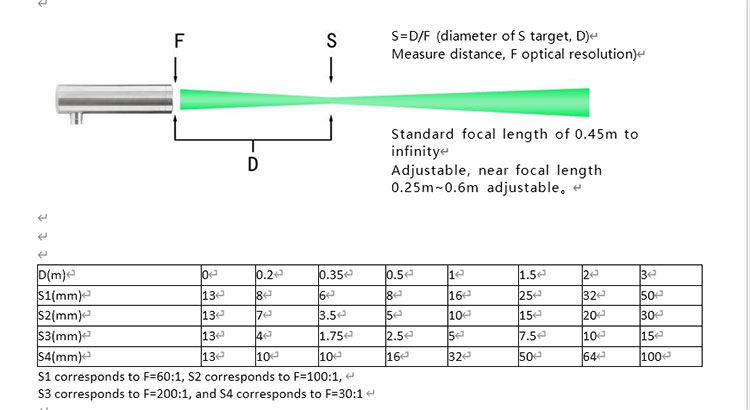

Infrared light path diagram

MTS-STD digital dual color infrared pyrometer-MANYYEAR TECHNOLOGY

  • Aiming Requirements

MTS-STD digital dual color infrared pyrometer-MANYYEAR TECHNOLOGY

Angle of Installation

MTS-STD digital dual color infrared pyrometer-MANYYEAR TECHNOLOGY

Air-cooled pipe

MTS-STD digital dual color infrared pyrometer-MANYYEAR TECHNOLOGY
