Infrared pyrometer 3396 0

MTS-MRS monochromatic infrared pyrometer

Model: MTS-MRS
Category: Infrared temperature sensor
Measurement range: 200-3000c
Sensors: Silicon, InGaAs
Wavelength: (0.85-1.1) μ m, (1.45-1.7) μ m
Signal output mv, 0-5vdc, 0-10vdc, 4-20mA, PNP, relay, RS485
Measurement accuracy: 0.5%,
Repeatability accuracy: 0.2 ℃,
Resolution: 0.1 ℃
Response time: 5ms
Application: Heat treatment, metal forging, casting, induction heating, glass, semiconductor, induction heating, heat treatment,
Single crystal, polycrystalline silicon, vacuum furnace, high-temperature furnace
Infrared pyrometer, non-contact infrared pyrometer, fiber optic infrared pyrometer, monochromatic infrared pyrometer


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Picture Reference

MTS-MRS Single Color Infrared Pyrometer-MANYYEAR TECHNOLOGY

Technology Specification

MTS-MRS monochromatic infrared pyrometer
Model: MTS-MRS
Category: Infrared temperature sensor
Measurement range: 200-3000
Sensors: Silicon, InGaAs
Wavelength: (0.85-1.1) μ m, (1.45-1.7) μ m
Signal output mv, 0-5vdc, 0-10vdc, 4-20mA, PNP, relay, RS485
Measurement accuracy: 0.5%,
Repeatability accuracy: 0.2 ℃,
Resolution: 0.1 ℃
Response time: 5ms
Application: Heat treatment, metal forging, casting, induction heating, glass, semiconductor, induction heating, heat treatment,
Single crystal, polycrystalline silicon, vacuum furnace, high-temperature furnace
Infrared pyrometer, non-contact infrared pyrometer, fiber optic infrared pyrometer, monochromatic infrared pyrometer
MTS-MRS Single Color Infrared Pyrometer-MANYYEAR TECHNOLOGY

Product Dimension

modelMTS-MRS-S-6016MTS-MRS-S-6022MTS-MRS-S-7025MTS-MRS-S-7030
Temperature measurement range (℃)600~1600600~2200700~2500700~3000
detectorSi (Silicon Photocell)
Working wavelength(0.85-1.1) μ M


Main applications

Heat treatment, metal forging, casting, induction heating, glass, semiconductorInduction heating, heat treatment, single crystal furnace, polycrystalline furnace, vacuum furnace, high-temperature furnace
Distance coefficient100:1200:1
Measure distanceStandard focal length adjustable from 0.45m to infinity, near focal length adjustable from 0.25m to 0.6m
measurement accuracy± 0.5% T (T is the reading temperature)
Temperature resolution0.1 ℃
Repetitive accuracy± 2 ℃
Monochromatic coefficient0.100~1.100, adjustable step distance of 0.001
response time5ms to 99.99s, adjustable
signal processingPeak, valley, average, alarm for high or low ambient temperature, and power failure protection functions




output

Multiple analog outputs (4mA~20mA, 0mA~20mA, 0V~5V, 0V~10V switchable), output resolution of 16 bits, accurate to 0.1 ℃, maximum load output of current loop 600 Ω, voltage output allowable current of 10mA
Alarm output: Upper and lower limit alarms, using optocoupler relays with unlimited service life,

Conduction resistance ≤ 1 Ω, maximum allowable voltage AC42V or DC60V, maximum allowable current 100mA, response time 2ms

RS485 output, capable of parameter modification, data recording, and querying functions
Display methodAdopting self luminous industrial grade OLED display screen


Power supply

DC (20-30) V, power consumption: 5W( 24V@200mA )Equipped with overvoltage, overcurrent, and short circuit protection, built-in EMI filter, capable of resisting interference from 2500VDC pulse groups.
Environmental temperature compensationBuilt in ambient temperature compensation, almost unaffected by changes in ambient temperature.
sighting systemBuilt in visible high brightness green light or eyepiece aiming
interfaceUsing fully sealed plugs
Usage environment-20 ℃~+60 ℃, without water cooling- 20 ℃~+200 ℃, with water cooling
Protection levelIP65
MTS-MRS-G Technical Parameter

modelMTS-MRS-G-2511MTS-MRS-G-3014MTS-MRS-G-3520MTS-MRS-G-3525MTS-MRS-EXG-2012
Temperature measurement range (℃)250~1100



300~1400350~2000350~2500200~1200
detectorInGaAsInGaAs (Extended Indium Gallium Arsenic)
Working wavelength(1.45-1.7) μ M(1.45-2.1) um


Main applications

Heat treatment, galvanizing line, non-ferrous metal processing, annealing furnaceInduction heating, heat treatment, single crystal furnace, polycrystalline furnace, vacuum furnace, high-temperature furnaceNonferrous metal processing, induction heating, coating
Distance coefficient60:1100:1200:1100:1
Measure distanceStandard focal length adjustable from 0.45m to infinity, near focal length adjustable from 0.25m to 0.6m
measurement accuracy± 0.5% T (T is the reading temperature)
Temperature resolution0.1 ℃
Repetitive accuracy± 2 ℃
Monochromatic coefficient0.100-1.00, adjustable step distance of 0.001
response time5ms to 99.99s, adjustable
signal processingPeak, valley, average, alarm for high or low ambient temperature, and power failure protection functions






output

Multiple analog outputs (4mA~20mA, 0mA~20mA, 0V~5V, 0V~10V switchable), output resolution of 16 bits, accurate to 0.1 ℃, maximum load output of current loop 600 Ω, voltage output allowable current of 10mA
Alarm output: Upper and lower limit alarms, using optocoupler relays with unlimited service life,

Conduction resistance ≤ 1 Ω, maximum allowable voltage AC42V or DC60V, maximum allowable current 100mA, response time 2ms

RS485 output, capable of remote parameter modification, data recording, and querying functions
Display methodAdopting self luminous industrial grade OLED display screen


Power supply

DC (20-30) V, power consumption: 5W( 24V@200mA )Equipped with overvoltage, overcurrent, and short circuit protection, built-in EMI filter, capable of resisting interference from 2500VDC pulse groups.
Environmental temperature compensationBuilt in full range ambient temperature compensation, almost unaffected by changes in ambient temperature.
sighting systemBuilt in visible high brightness green light or eyepiece aiming
interfaceUsing fully sealed plugs
Usage environment-20 ℃~+60 ℃, without water cooling- 20 ℃~+200 ℃, with water cooling
Protection levelIP65

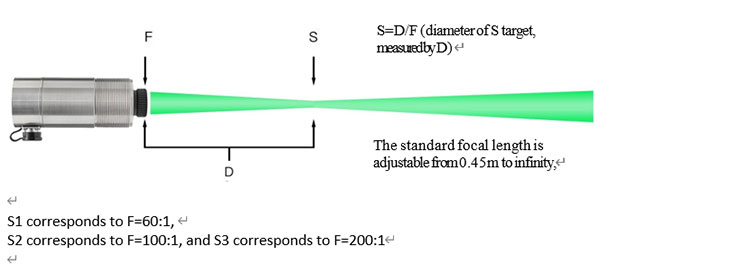

Optical Path Figure

D (m)00.20.350.511.523
S1 (mm)1386816253250
S2 (mm)1373.5510152030
S3 (mm)1341.752.557.51015



MTS-MRS Single Color Infrared Pyrometer-MANYYEAR TECHNOLOGY MTS-MRS Single Color Infrared Pyrometer-MANYYEAR TECHNOLOGY MTS-MRS Single Color Infrared Pyrometer-MANYYEAR TECHNOLOGY

















Product Application

MTS-MRS Single Color Infrared Pyrometer-MANYYEAR TECHNOLOGYMTS-MRS Single Color Infrared Pyrometer-MANYYEAR TECHNOLOGYMTS-MRS Single Color Infrared Pyrometer-MANYYEAR TECHNOLOGY
