MTS-STS monochromatic infrared pyrometer

Infrared pyrometer 3406 0

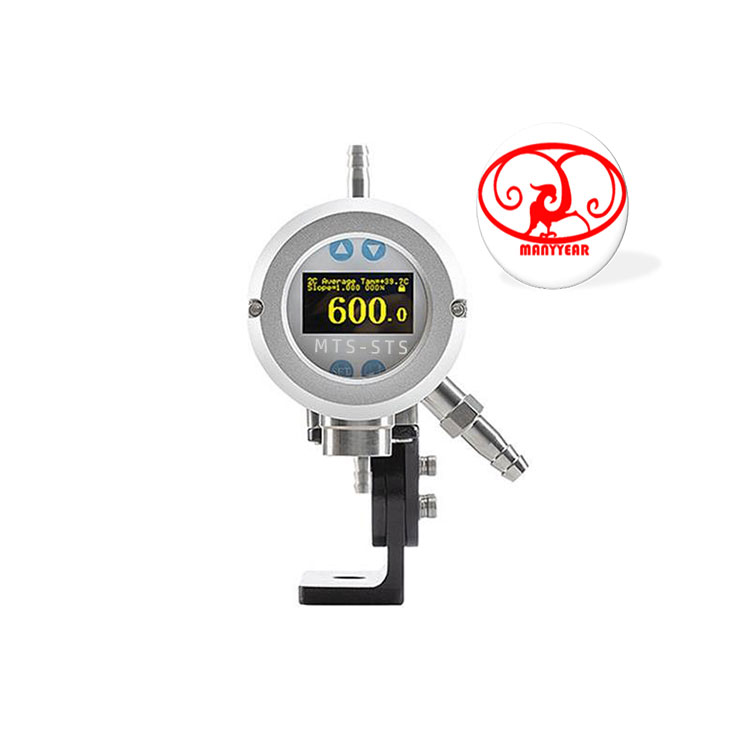

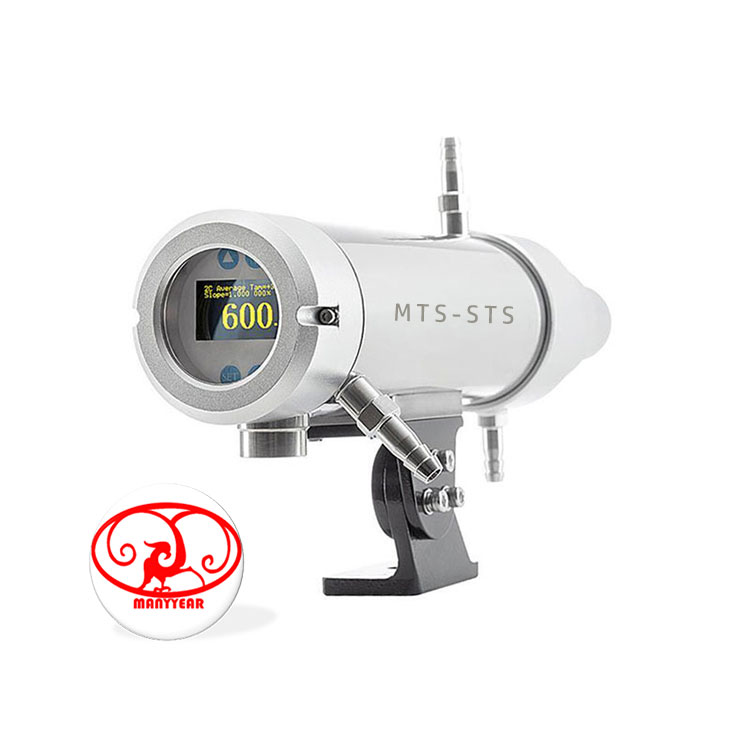

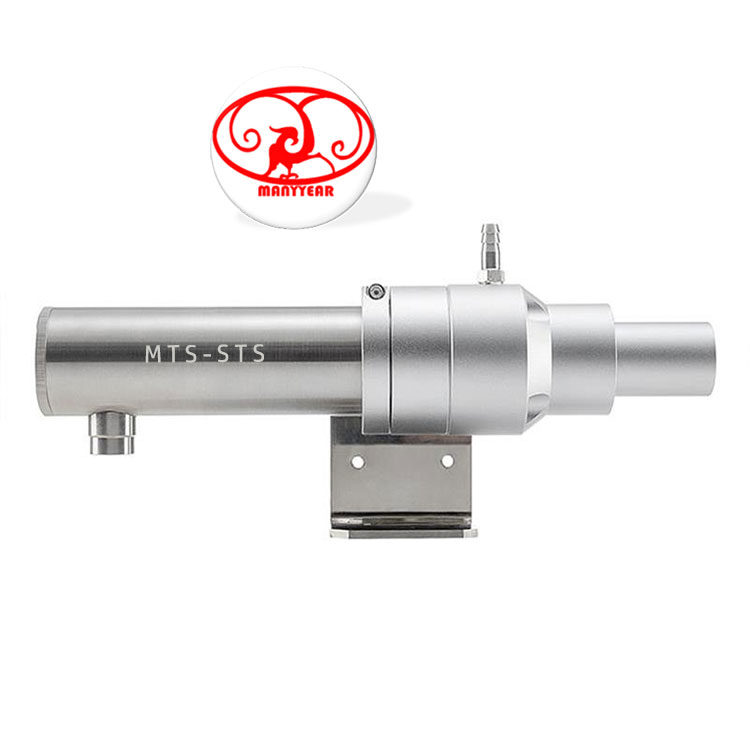

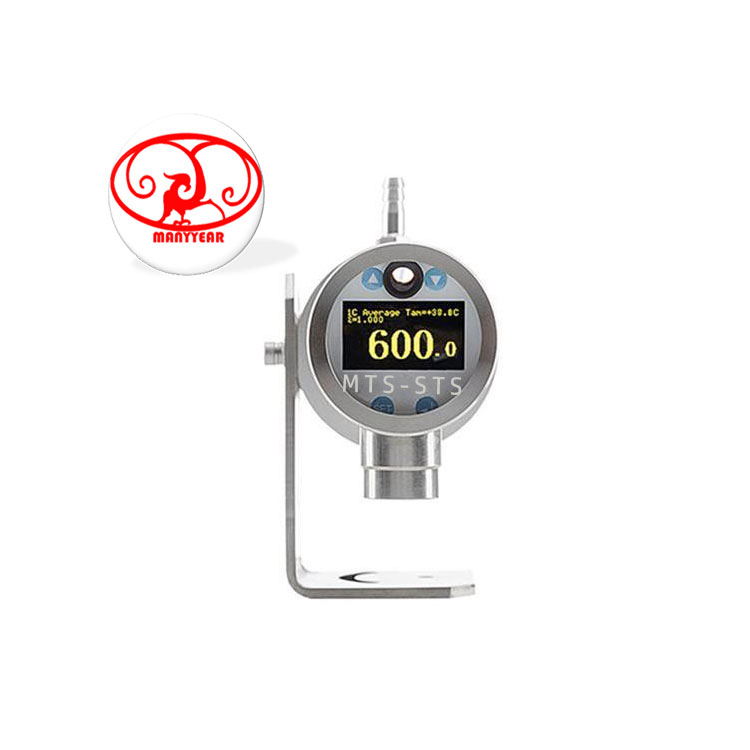

MTS-STS monochromatic infrared pyrometer

Model: MTS-STS
Category: Infrared temperature sensor
Range: 250 ℃ to 3000 ℃
Sensors: Silicon, InGaAs
Wavelength: 0.85-1.1 μ m, 1.45-1.7 μ m, 1.45-2.1 μ m
Signal output mv, 0-5vdc, 0-10vdc, 4-20mA, PNP, relay, RS485
Measurement accuracy: 0.5%,
Repeatability accuracy: 2 ℃,
Resolution: 0.1 ℃
Response time: 5ms
Application: Heat treatment, metal forging, casting, induction heating, glass, semiconductor, induction heating, heat treatment,
Single crystal, polycrystalline silicon, vacuum furnace, high-temperature furnace
MTS-SMSF fiber optic monochromatic infrared pyrometer




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

MTS-STS monochromatic infrared pyrometer
Model: MTS-STS
Category: Infrared temperature sensor
Range: 250 ℃ to 3000 ℃
Sensors: Silicon, InGaAs
Wavelength: 0.85-1.1 μ m, 1.45-1.7 μ m, 1.45-2.1 μ m
Signal output mv, 0-5vdc, 0-10vdc, 4-20mA, PNP, relay, RS485
Measurement accuracy: 0.5%,
Repeatability accuracy: 2 ℃,
Resolution: 0.1 ℃
Response time: 5ms
Application: Heat treatment, metal forging, casting, induction heating, glass, semiconductor, induction heating, heat treatment,
Single crystal, polycrystalline silicon, vacuum furnace, high-temperature furnace
MTS-SMSF fiber optic monochromatic infrared pyrometer

MTS-STS monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY

Technical Parameters

(1) MTS-STS-SR series colorimetric thermometer

modelSTRING-S-6016STRING-S-6020MTS-STS-S-7025STRING-S-7030
Temperature measurement range (℃)600~1600600~2000700~2500700~3000
detectorSi (Silicon Photocell)
Working wavelength(0.85-1.1) μ M


Main applications

Hot rolling, metal forging, casting, induction heating

Glass furnace, monocrystalline silicon, polycrystalline silicon, vacuum furnace

Distance coefficient100:1200:1


Measure distance

Standard focal length: adjustable from 0.45m to infinity,

Near focal length: 0.25m~0.6m

measurement accuracy± 0.5% T (T is the reading temperature), higher precision customizable
Temperature resolution0.1 ℃
Repetitive accuracy± 2 ℃
Monochromatic coefficient0.100~1.100, adjustable step distance of 0.001
response time5ms~99.99s adjustable, faster speed customizable
signal processingPeak, valley, average, alarm for high or low ambient temperature, and power failure protection functions








output

The first group of multiple analog outputs (4mA~20mA, 0mA~20mA, 0V~5V, 0V~10V can be switched),

Output resolution of 16 bits, accurate to 0.1 ℃, maximum load of 600 Ω for current loop output, allowable current of 10mA for voltage output

The second set of analog output is 4mA~20mA, with a resolution of 16bit and an accuracy of 0.1 ℃. The maximum load output of the current loop is 600 Ω
Alarm output: Upper and lower limit alarms, using optocoupler relays with unlimited service life,

Conduction resistance ≤ 2 Ω, maximum allowable voltage AC42V or DC60V, maximum allowable current 120mA, response time 2ms

PNP level output (output current 100mA, with overload protection)
RS485 output, capable of parameter modification, data recording, and querying functions
Display methodAdopting self luminous industrial grade OLED display screen


Power supply

DC (20-30) V, power consumption: 5W( 24V@200mA )Equipped with overvoltage, overcurrent, and short circuit protection,

Built in EMI filter, able to resist interference from 2500VDC pulse group.

Environmental temperature compensationEquipped with a built-in 40 ℃ constant temperature heater and full temperature compensation, the temperature measurement accuracy is almost unaffected by the ambient temperature.
sighting systemYou can choose to use a visible high brightness green light or an eyepiece for aiming. The eyepiece aims at the target object in a positive image, and what you see is what you measure.
interface12 core high-temperature shielded cable and international brand fully sealed plug
Usage environment-20 ℃~+60 ℃, without water cooling- 20 ℃~+200 ℃, with water cooling
Protection levelIP65







  • MTS-STS-GR series colorimetric thermometer







model

MTS-STS

-G-2511

MTS-STS

-G-3014

MTS-STS

-G-3522

STRING

-G-3530

MTS-STS

-EXG-1508

MTS-STS

-EXG-2012

Temperature measurement range (℃)250~1100300~1400350~2200350~3000150~800200~1200
detectorInGaAsInGaAs (Extended Indium Gallium Arsenic)
Working wavelength(1.45-1.7) μ M(1.45-2.1) um


Main applications

Hot rolled, galvanized wire

Non ferrous metal processing and annealing furnaces



Induction heating, vacuum furnace

Nonferrous metal processing

Induction heating, coating

Distance coefficient60:1100:1200:1100:1


Measure distance

Standard focal length: 0.35m to infinity adjustable,

Near focal length: 0.2m~0.5m

measurement accuracy± 0.5% T (T is the reading temperature), higher precision customizable
Temperature resolution0.1 ℃
Repetitive accuracy± 2 ℃
Monochromatic coefficient0.100~1.100, adjustable step distance of 0.001
response time5ms~99.99s adjustable, faster speed customizable
signal processingPeak, valley, average, alarm for high or low ambient temperature, and power failure protection functions








output

The first group of multiple analog outputs (4mA~20mA, 0mA~20mA, 0V~5V, 0V~10V can be switched),

Output resolution of 16 bits, accurate to 0.1 ℃, maximum load of 600 Ω for current loop output, allowable current of 10mA for voltage output

The second set of analog output is 4mA~20mA, with a resolution of 16bit and an accuracy of 0.1 ℃. The maximum load output of the current loop is 600 Ω
Alarm output: Upper and lower limit alarms, using optocoupler relays with unlimited service life,

Conduction resistance ≤ 2 Ω, maximum allowable voltage AC42V or DC60V, maximum allowable current 120mA, response time 2ms

PNP level output (output current 100mA, with overload protection)
RS485 output, capable of parameter modification, data recording, and querying functions
Display methodAdopting self luminous industrial grade OLED display screen


Power supply

DC (20-30) V, power consumption: 5W( 24V@200mA )Equipped with overvoltage, overcurrent, and short circuit protection,

Built in EMI filter, able to resist interference from 2500VDC pulse group.

Environmental temperature compensationEquipped with a built-in 40 ℃ constant temperature heater and full temperature compensation, the temperature measurement accuracy is almost unaffected by the ambient temperature.
sighting systemYou can choose to use a visible high brightness green light or an eyepiece for aiming. The eyepiece aims at the target object in a positive image, and what you see is what you measure.
interface12 core high-temperature shielded cable and international brand fully sealed plug
Usage environment-20 ℃~+60 ℃, without water cooling- 20 ℃~+200 ℃, with water cooling
Protection levelIP65



Display Interface

MTS-STS monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY

Infrared light path diagram

MTS-STS monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY

  • Aiming Requirements

MTS-STS monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY

Angle of Installation

MTS-STS monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY

Air-cooled pipe

MTS-STS monochromatic infrared pyrometer-MANYYEAR TECHNOLOGY
