MTS614HGY industrial smelting Infrared Pyrometer

Infrared pyrometer 3194 0

industrial smelting Infrared Pyrometer, aluminum thermal processing Infrared Pyrometer, heat treatment Infrared Pyrometer…

Model: MTS614HGY:
Category: Infrared Pyrometer
Range: 0-600C, 300-1400C, 200-1000C, 600-2000C
Wavelength: 1.6um/1.0um:
Signal output: CPI, mv, 0-5vdc, 0-10vdc, 4-20mA:
Product application: industrial smelting Infrared Pyrometer, aluminum thermal processing Infrared Pyrometer, heat treatment Infrared Pyrometer, glass processing..

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

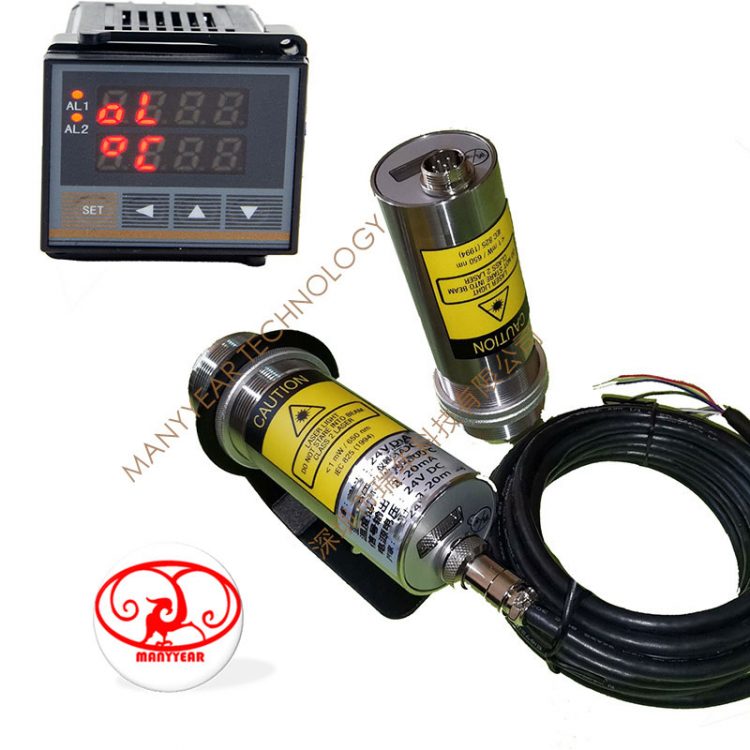

Product Picture Reference

MTS614HGY industrial smelting Infrared Pyrometer-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
Capability range:-18-538C,0-200,200-800C, 300-1400C, 200-1000C, 600-2000C
Measurement wavelength1.6um/1um
Distance coefficient100:1 (Optional microwave special type)
System accuracy±1% or ±1.5centigrade  (Take the maximum) (Ambient temperature:23±5centigrade )
Repeat accuracy±0.3% or ±0.5centigrade  (Take the maximum) (Ambient temperature:23±5centigrade )
Temperature resolution0.1 centigrade
Response time10ms (95%)
Environmental ClassIP65 (NEMA-4)
Ambient temperature0-60centigrade
Storage Temperature-20-80centigrade
Relative humidity10-95%, No condensation
Weight120g
Analog output4-20Ma (Can be customer-made 0-5V)
Maximum loop impedance750Ω (24VDC)
Power supply:12-24VDC (100mA)
Installation:

MTS614HGY metal housing with M18 X 1 screw can be used to directly install, and can also be installed by using the mounting bracket, and adjustable mounting bracket enables the adjustment of the measuring head is more convenient. Adjusting the measured object and the measuring head must ensure that the optical path is unobstructed.



Product Dimension

Force Structure & Assembly Reference

MTS614HGY industrial smelting Infrared Pyrometer-MANYYEAR TECHNOLOGY

pressure sensor signal output







Product Application

MTS614HGY industrial smelting Infrared Pyrometer-MANYYEAR TECHNOLOGY

Glass production

MTS614HGY industrial smelting Infrared Pyrometer-MANYYEAR TECHNOLOGY

MTS614HGY industrial smelting Infrared Pyrometer-MANYYEAR TECHNOLOGY

Metal heat treatment infrared pyrometer
