Infrared Colorimetric thermometer,industrial smelting Infrared Pyrometer, aluminum thermal processing Infrared Pyrometer

Model: MPT616HTS
Category: Infrared Pyrometer
Range: 600-1400c, 700-1800c, 900-2400c, 1000-3000c
Sensor: 0.85~1.1um/0.95um
Signal output: CPI,mv, 0-5vdc, 0-10vdc, 4-20mA
Product application: industrial smelting Infrared Pyrometer, aluminum thermal processing Infrared Pyrometer, heat treatment Infrared Pyrometer, glass processing…

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

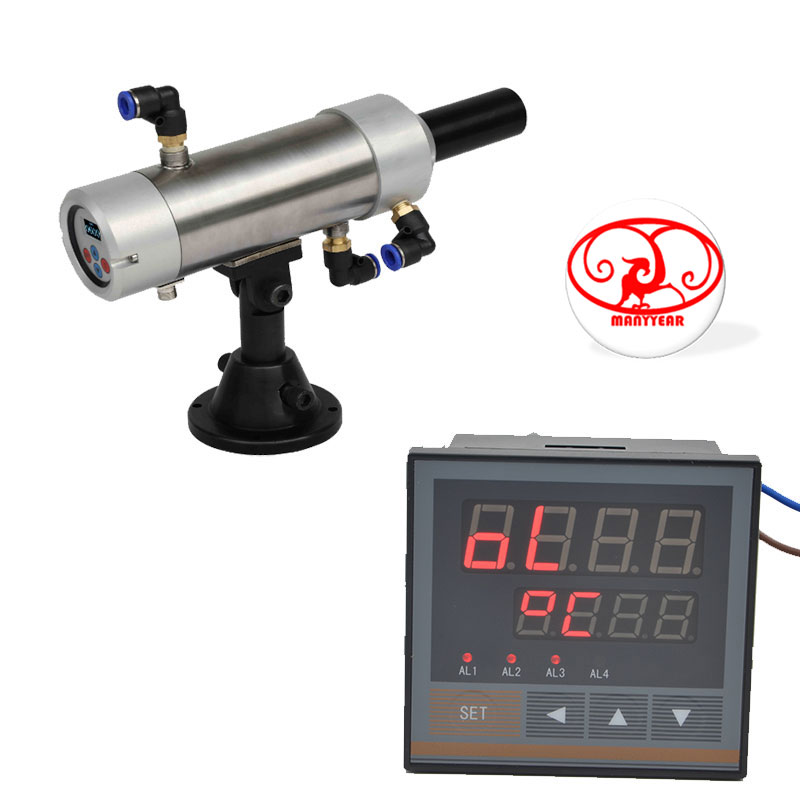

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

Capability range:	600-1400c, 700-1800c, 900-2500c, 1000-3000c
Measurement wavelength	0.85~1.1um/0.95um
Distance coefficient	100:1 (Optional microwave special type)
System accuracy	±0.5% or ±1centigrade
Repeat accuracy	±0.2% or ±1centigrade )
Temperature resolution	1 centigrade
Response time	20ms (95%)
Environmental Class	IP65 (NEMA-4)
Ambient temperature	0-60centigrade
Storage Temperature	-20-80centigrade
Relative humidity	10-95%, No condensation
Weight	120g
Analog output	4-20Ma (Can be customer-made 0-5V)
Maximum loop impedance	750Ω (24VDC)
Power supply:	12-24VDC (100mA)

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output

Product Application

Glass production

Metal heat treatment infrared pyrometer
