MLC5803 high speed dynamic torque sensor

2021/11/19 Torque Sensor Dynamic Torque Sensor 1323 0

Dynamic torque sensor, high speed torque sensor, motor torque sensor, engineer torque sensor

Model MLC5803
Category Torque sensor
Range 0-20, 100, 500, 5000, 10K, 20K, 50K, 100K, 300KN.m
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application Dynamic torque sensor, high speed torque sensor, motor torque sensor, engineer torque sensor

Product selection reference

Online Sales

Product Introduction Technical Documents

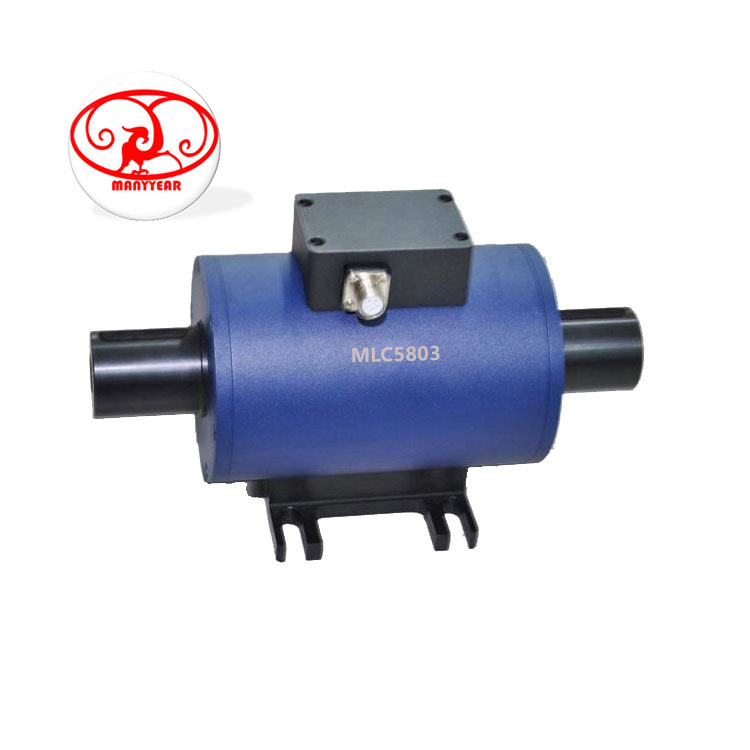

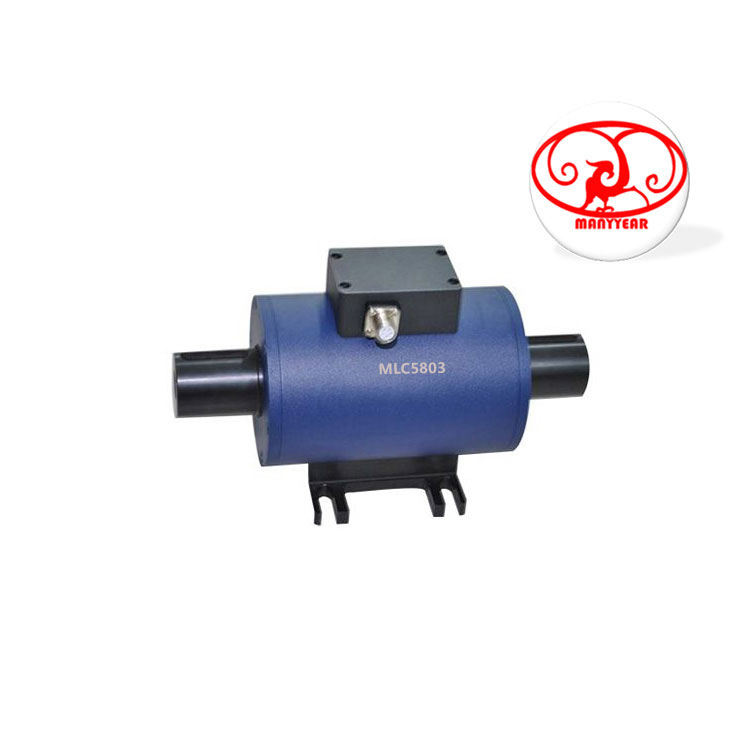

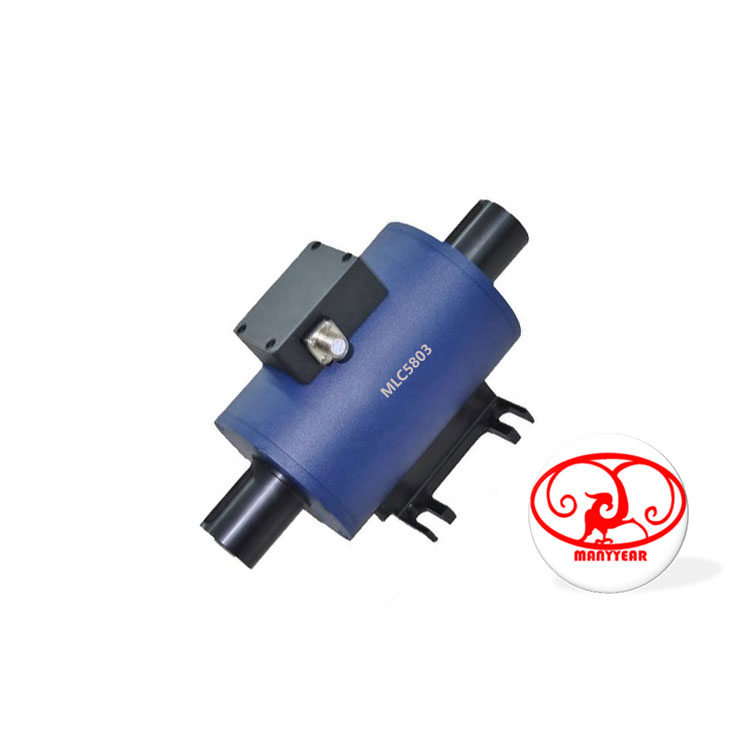

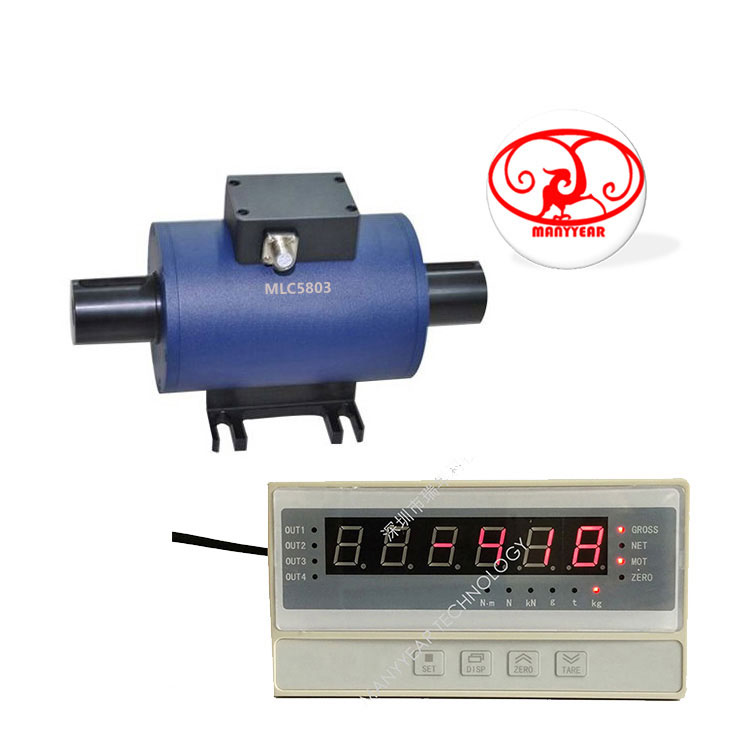

Product Picture Reference

MLC5803 high speed dynamic torque sensor

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC5803 Motor high-speed speed torque sensor

Rated Output:	0-12v HZ; load-current≥20mA.，input watt：110—130mA; zero torque:10 KHZ ; Forward full scale:15 KHZ ; Reverse full scale:5 KHZ	insulation:	≥5000MΩ/ 100VDC
Precision	±0.5%F.S	Input resistance:	350,750±10Ω
Work temp.：	-20 ~ 65℃	Output resistance:	350,700±5Ω
Compensated Temp.:	-10 ~ 60℃	Zero Output:	±1%F.S
Zero by temp.:	0.03% F.S. / 10℃	overload:	150%F.S
Work voltage:	10VDC(9-15VDC)	Others:	Customizabler

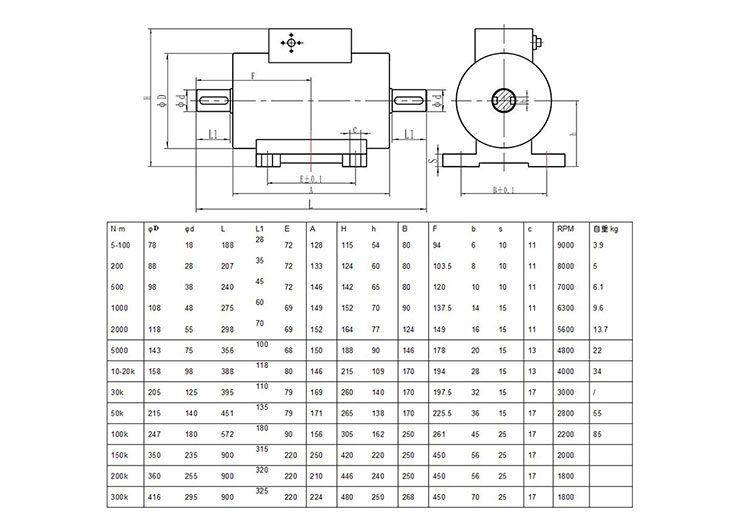

Product Dimension

MLC5803 high speed dynamic torque sensor

Force Structure & Assembly Reference

dynamic torque sensor installation
