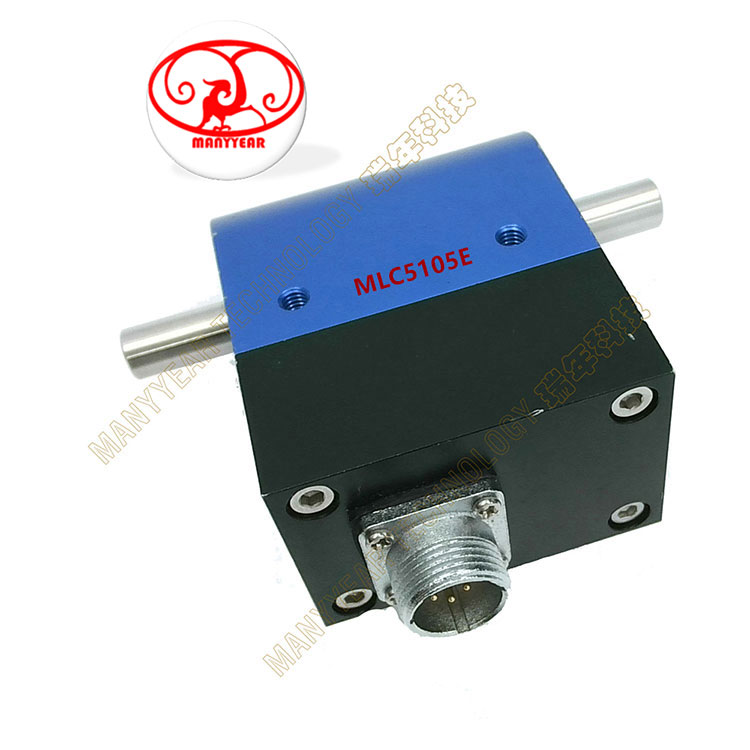

MLC5105E micro motor torque sensor MLC5105E micro motor torque sensor
MLC5105E micro motor torque sensor
MLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGY
MLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGY
MLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGY
MLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGY

MLC5105E micro motor torque sensor

Dynamic torque sensor, winding tension load cell, micro motor torque sensor, micro torque load cell

Model MLC5105E
Category Torque sensor
Range 0-0.03, 0.1, 0.2, 0.3, 0.5, 1-5, Nm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application: Dynamic torque sensor, winding tension load cell, micro torque load cell, micro motor torque sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales



Product Picture Reference



MLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC5105E Motor miniature dynamic torque sensor

Range0-0.03,0.1,0.2,0.3,0.5,1-5,NmInput resistance700±5Ω
Rated Output1-1.5 mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±2% F.S.Work voltage10-15VDC
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance750±10ΩMaterialstainless steel or alloy steel
Range0-0.03,0.1,0.2,0.3,0.5,1-5,NmInput resistance700±5Ω

Product Dimension

MLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGY

Product Application

MLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGYMLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGYMLC5105E micro motor torque sensor-MANYYEAR TECHNOLOGY
