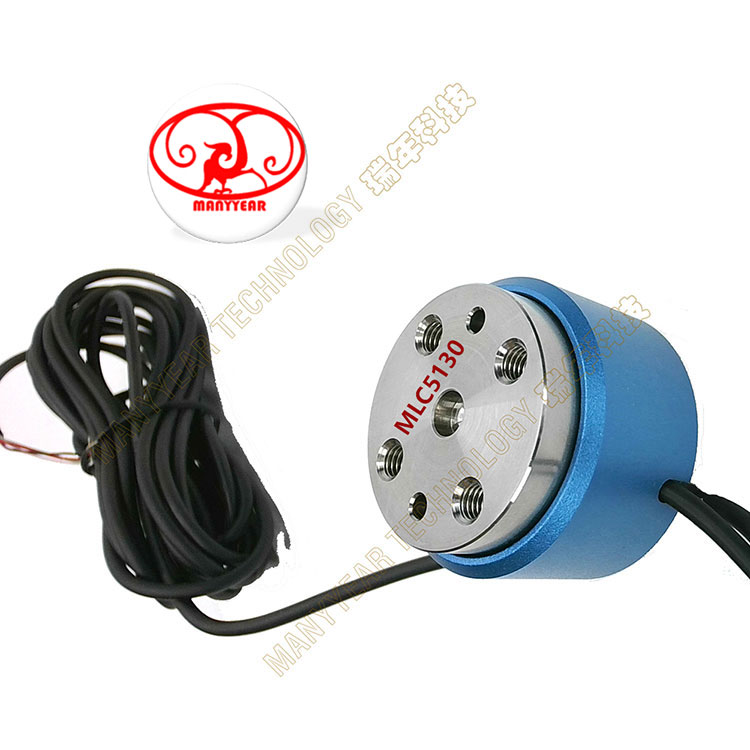

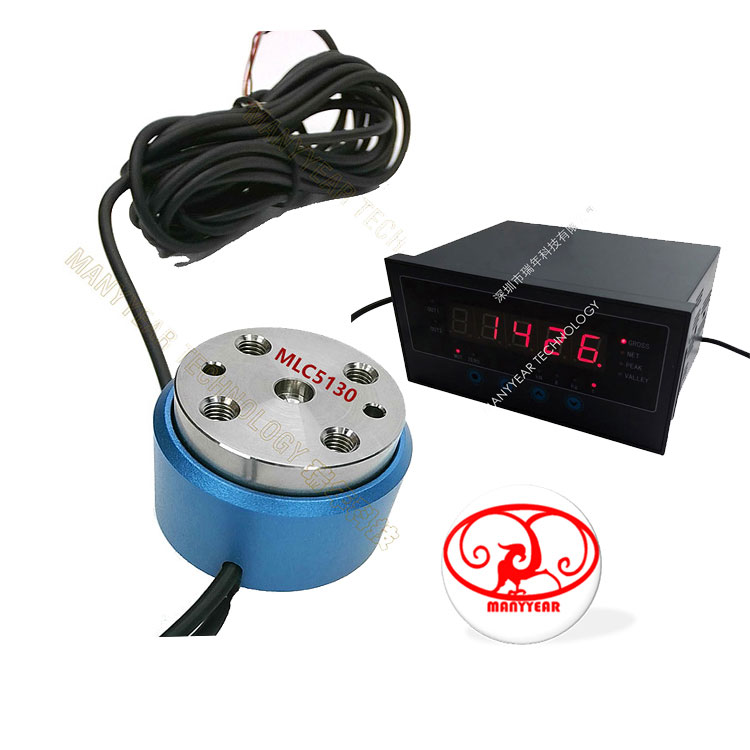

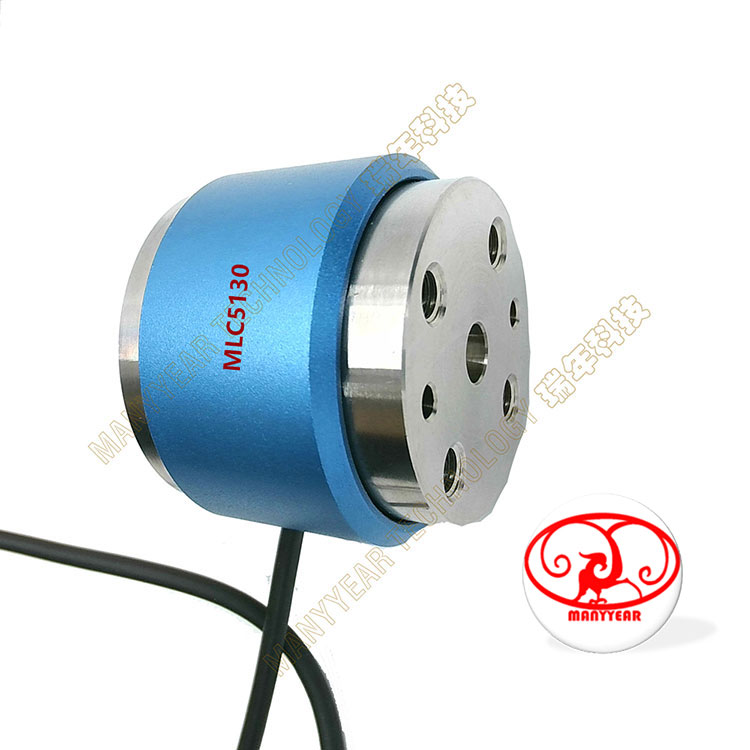

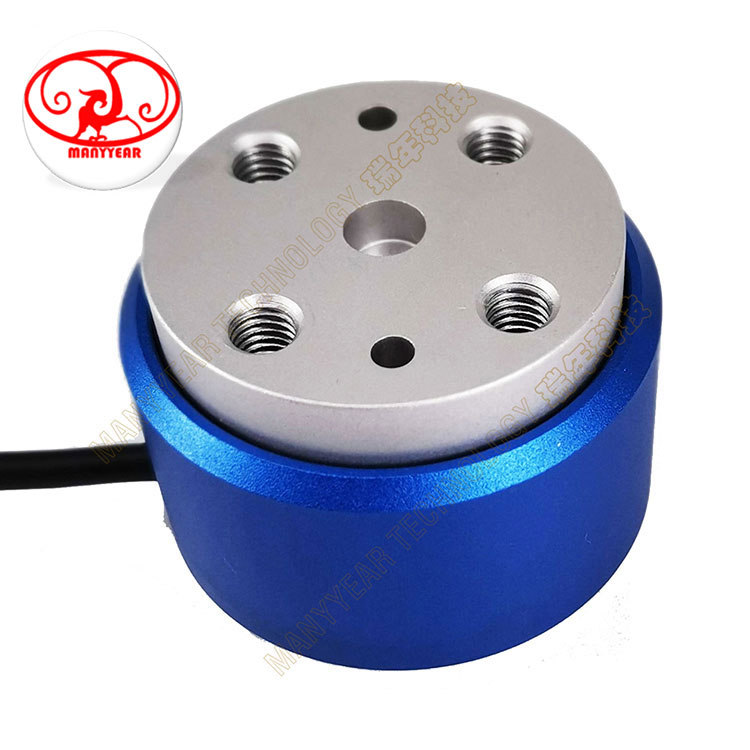

MLC5130 Static torque force sensor

Product Picture Reference

Below spec is only for customer design reference. we can provide ODM product.

MLC5130 Miniature flange type static torque sensor

Range	0～30,50,100 150 Nm	Resonant Frequency	100μS
Rated Output	1.5±10% mV / V	insulation	≥5000MΩ/ 100VDC
Zero Output	±1% F.S.	Work voltage	10VDC(9-15VDC)
Nonlinearity	±0.1，0.3% F.S.	Compensated Temp.	-10 ~ 60℃
Hysteresis	≤±0.05% F.S.	operating Temp.	-20 ~ 65℃
Repeatability	≤±0.05% F.S	Safty overload	150% F.S.
Creep	≤±0.03% F.S/30min	Ultimate overload	200% F.S.
Ratedoutput drift by temp.	0.03% F.S. / 10℃	Wire	Ø5.2×3m
Zero drift by temp.	0.03% F.S. / 10℃	Electric connect	RED/E+，BLK/E-，GRN/S+，WHT/S-
Input resistance	350,750±10Ω	Material	aluminium，stainless steel or alloy steel
Input resistance	350,700±5Ω	Others	Customizabler

MLC5130 Static torque force sensor

Static torque sensor installation
