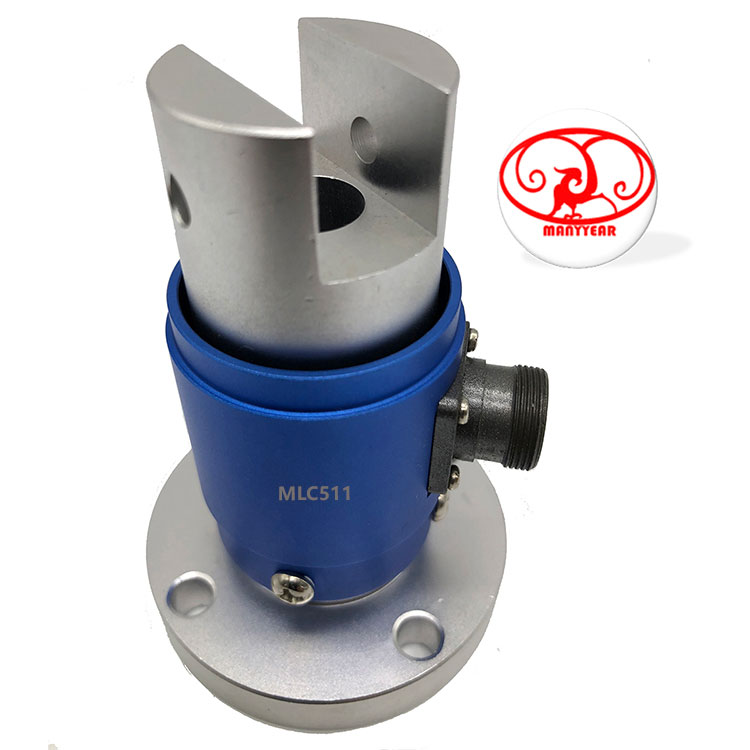

MLC511 static torque sensor-MANYYEAR TECHNOLOGY
MLC511 static torque sensor-MANYYEAR TECHNOLOGY
MLC511 static torque sensor-MANYYEAR TECHNOLOGY

MLC511 static torque sensor

Static torque senor, mechanical torque sensor, Engineering torque sensor, Torque testing machine torque sensor

Model MLC511
Category Torque sensor
Range 0.5,1,2,,5,10,20,30,50,100Nm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application: Static torque senor, mechanical torque sensor, Engineering torque sensor, Torque testing machine torque sensor
.


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales



Product Picture Reference

MLC511 static torque sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC511 static torque sensor

MODEL: MLC511

category: Torque Sensr

Range: 0.5,1,2,,5,10,20,30,50,100Nm

Dimension: D49.5*85mm

Material: alloy steel

Apllication: Static torque measurement, motor torque, engine torque, combustion engine torque, fan torque, viscometer

, the pump torque, the gearbox torque, torque wrench

Torque sensor is the precision measuring instruments to measure torque,revolving speed and the power of the mechanical.

Product characteristics

Resistance strain for sensitive components and integrated circuit consisting of integrated products, high precision, stable and reliable performance, wide measuring range.

Static torque measurement, both ends are key links, easy installation and use.

application

1、Rotating power equipment such as motor, engine, engine output torque and power of detection;

2、Fan, water pump, gear box, torque wrench, torque and power of detection;

3、Railway locomotive, automobile, tractor, airplane, ship, mining machinery, the torque and power of detection;

4、Can be used in the sewage treatment system in torque and power of detection;

5、Can be used in the manufacture of viscometer;

6、Can be used in the laboratory, test department, in the process industry and process industry production monitoring and quality control;



PIC
Technology specification
Range0.5,1,2,,5,10,20,30,50,100NmResonant Frequency100μS
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±1% F.S.Work voltage10VDC(9-15VDC)
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance350,750±10ΩMaterialaluminium,stainless steel or alloy steel
Output resistance350,700±5ΩOthers Customizabler



Product Dimension

MLC511 static torque sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC511 static torque sensor-MANYYEAR TECHNOLOGY

MLC511 static torque sensor-MANYYEAR TECHNOLOGY

Static torque sensor installation

Product Application

MLC511 static torque sensor-MANYYEAR TECHNOLOGY

APF-Viscometer

MLC511 static torque sensor-MANYYEAR TECHNOLOGY

APF-Mechanical Torque

MLC511 static torque sensor-MANYYEAR TECHNOLOGY

APF-torque testing machine
