MLC598 engineering torque load cell

Static torque load cell, mechanical torque load cell, Engineering torque load cell, Torque testing machine torque load cell

Model MLC598
Category Torque sensor
Range 0-100Nm, 1K, 2k, 5K 10KNm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application: Static torque load cell, mechanical torque load cell, Engineering torque load cell, Torque testing machine torque load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

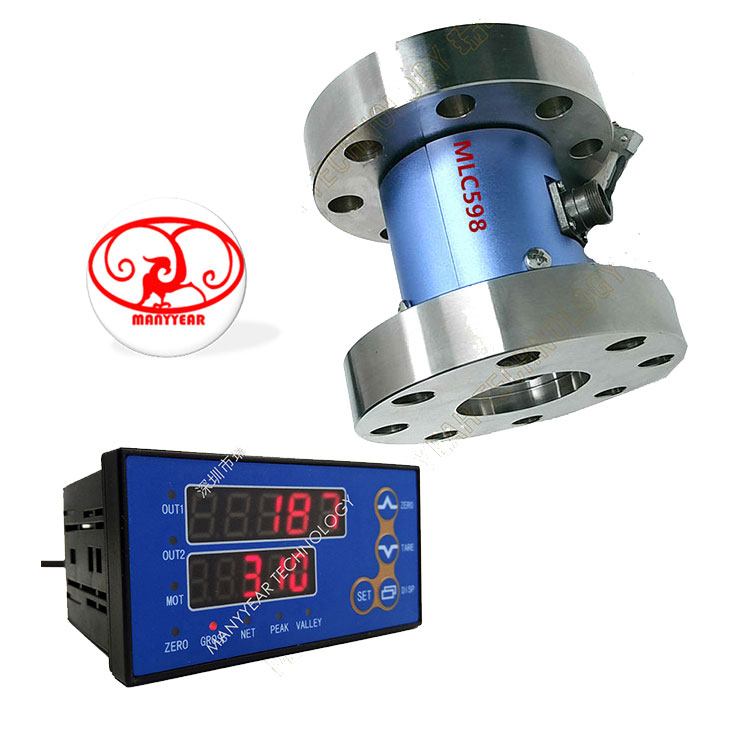

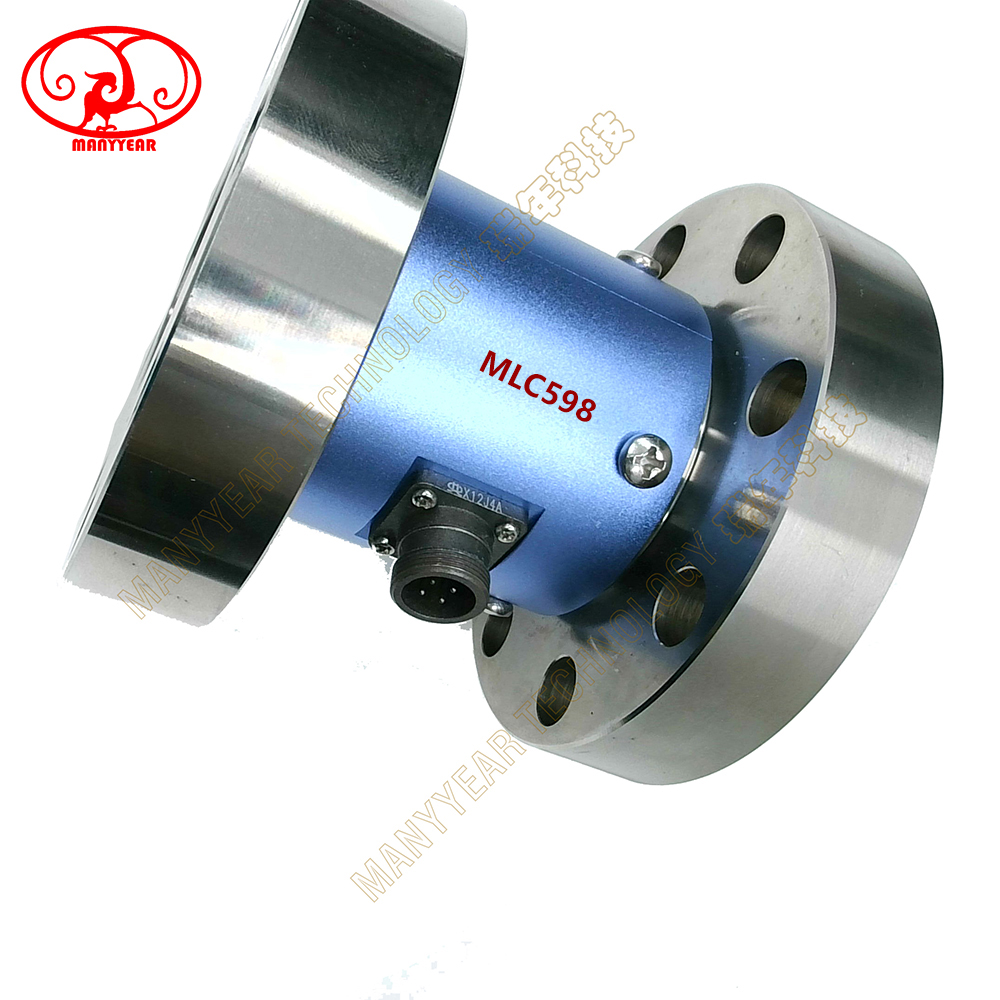

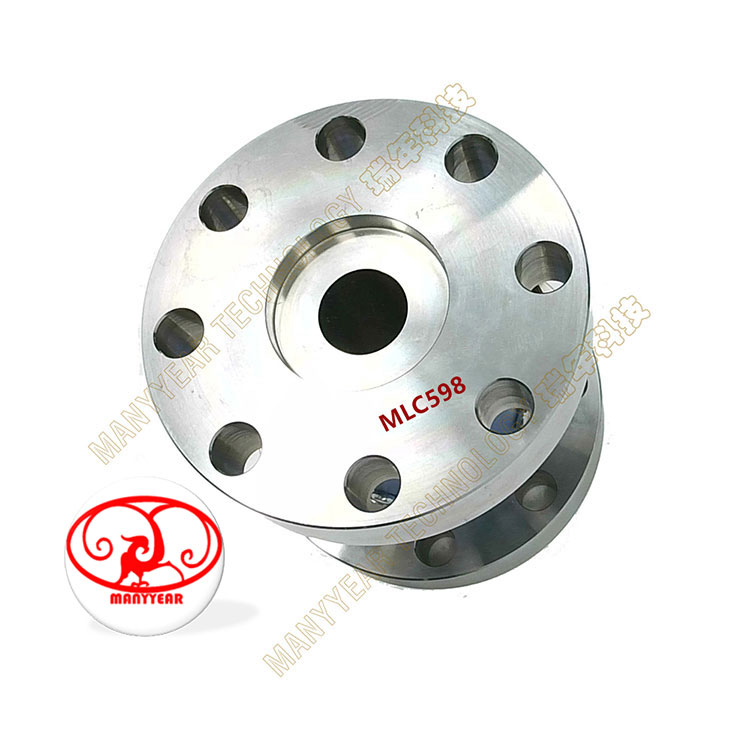

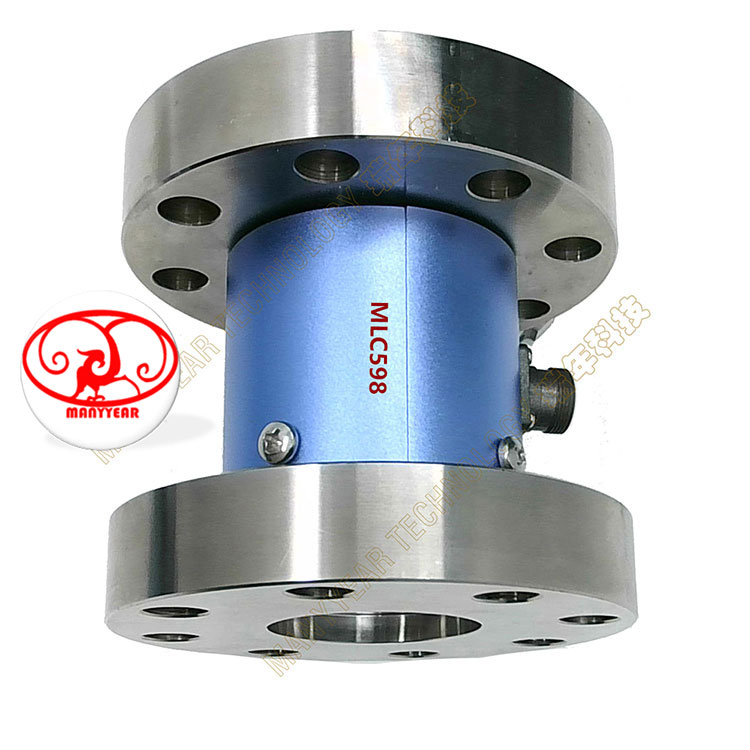

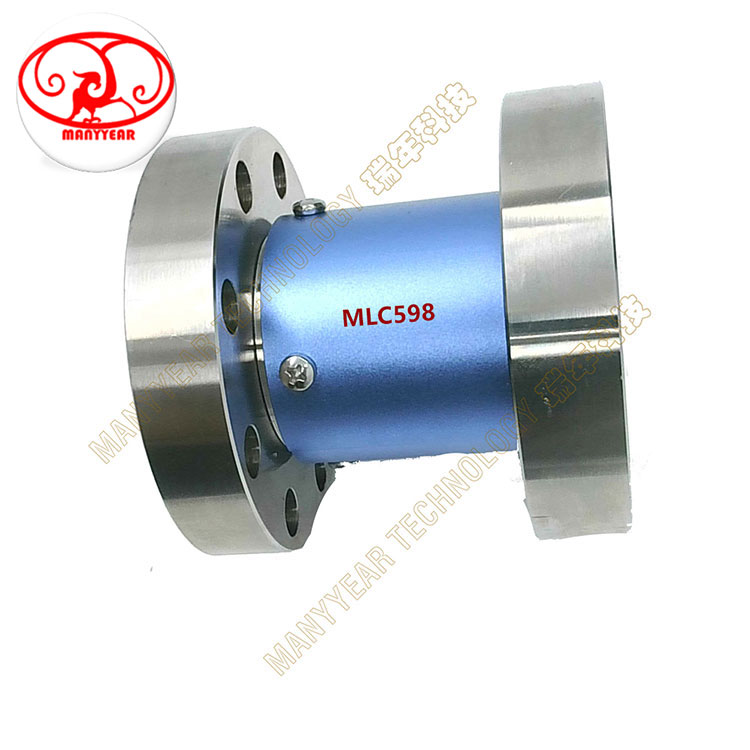

Product Picture Reference



MLC598 engineering torque load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC598 car power torque sensor

Range0-100Nm,1K,2k,5K 10KNmInput resistance700±5Ω
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±1% F.S.Work voltage10-15VDC
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance750±10ΩMaterialstainless steel or alloy steel

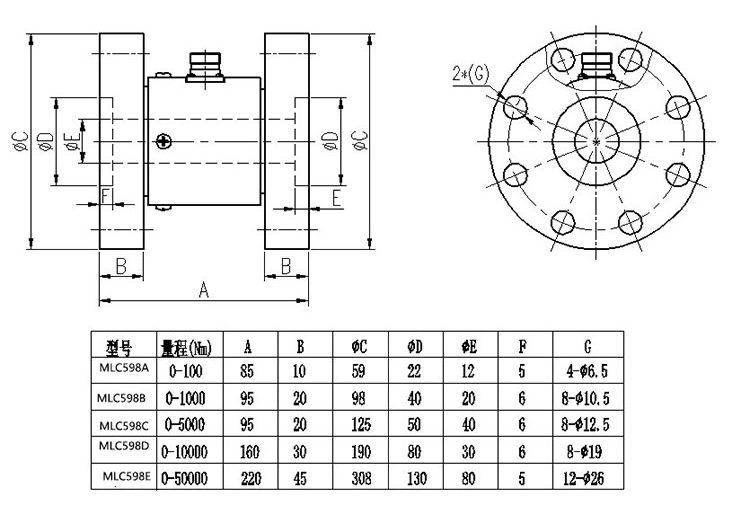

Product Dimension

MLC598 engineering torque load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC598 engineering torque load cell-MANYYEAR TECHNOLOGY

MLC598 engineering torque load cell-MANYYEAR TECHNOLOGY

Static torque sensor installation

Product Application

MLC598 engineering torque load cell-MANYYEAR TECHNOLOGY

APF-Mechanical Torque

MLC598 engineering torque load cell-MANYYEAR TECHNOLOGY

APF-torque testing machine

MLC598 engineering torque load cell-MANYYEAR TECHNOLOGY

APF-Motor Torque-2
