MLC517 Static torque force sensor MLC517 Static torque force sensor
MLC517 Static torque force sensor
MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY
MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY
MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY
MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY

MLC517 Static torque force sensor

Static torque sensor, the pump torque sensor, the gearbox torque load cell, torque wrench sensor

Model MLC517
Category Torque sensor
Range 0-100, 1000, 5000Nm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application: Static torque force sensor, mechanical torque force sensor, Engineering torque force sensor, Torque testing machine torque force sensor, torque wrench force sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

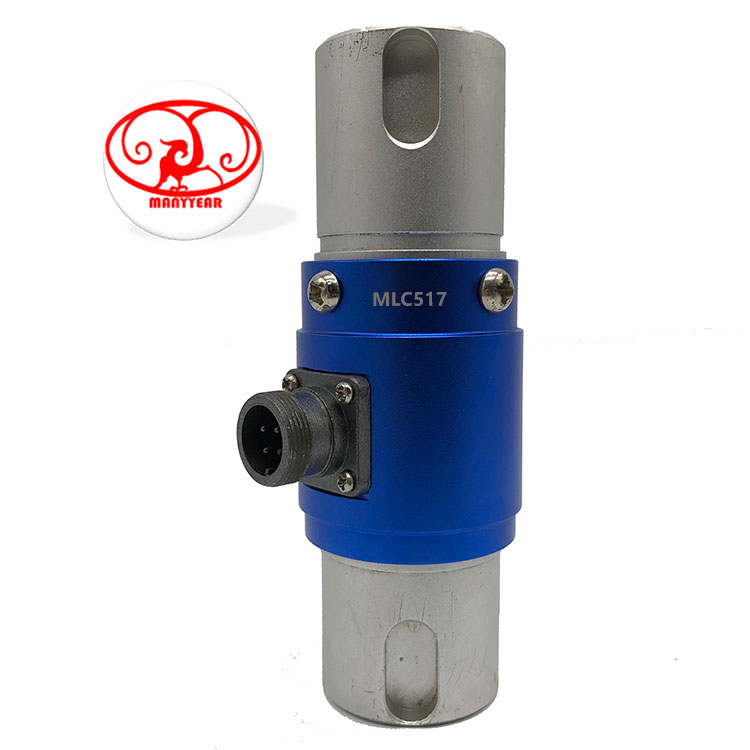

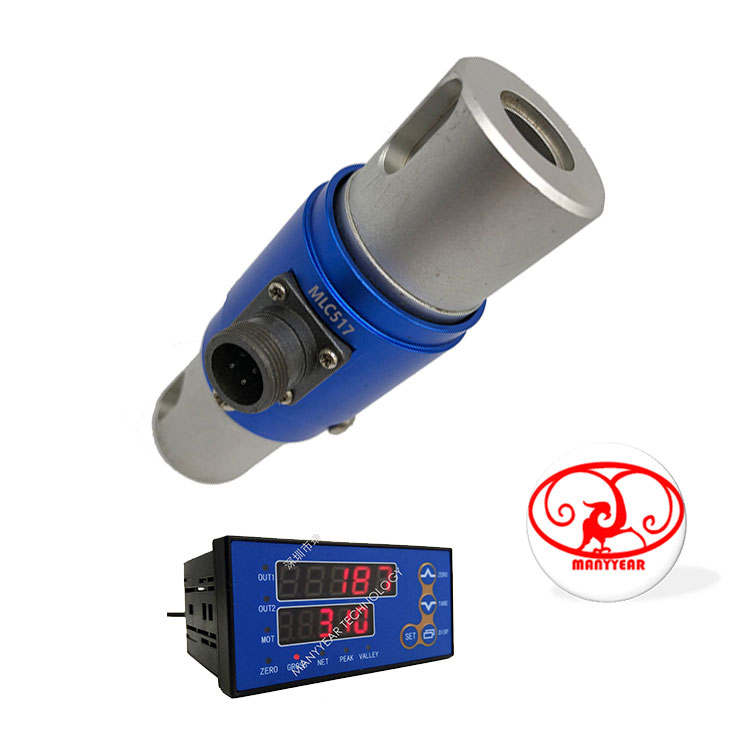

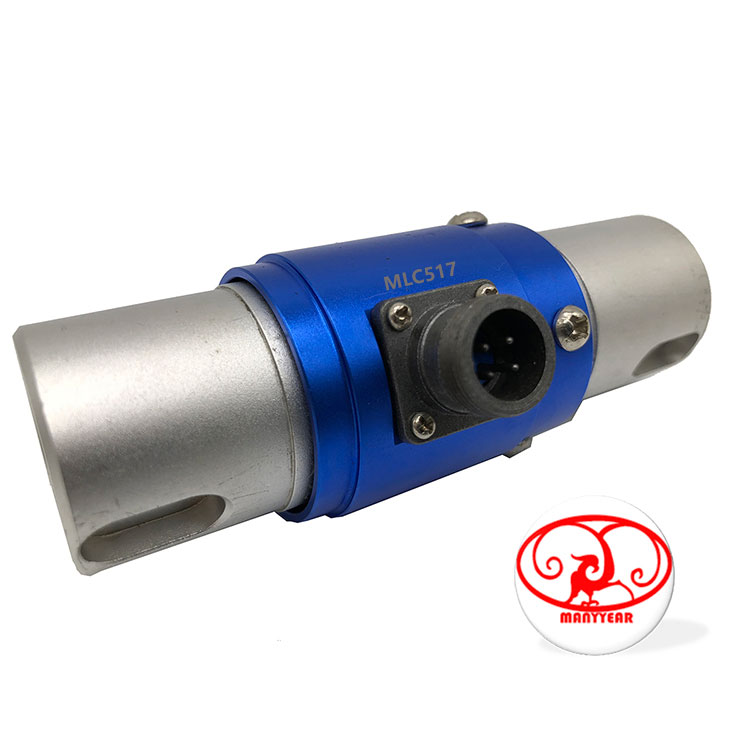

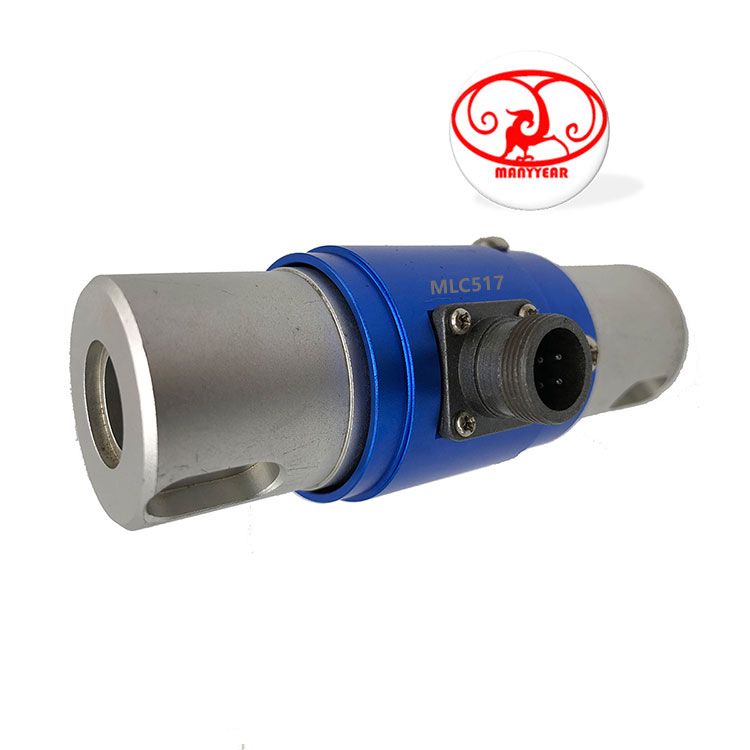

Product Picture Reference

MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC517 Gears Torque sensor

Range0-100,1000,5000NmResonant Frequency100μS
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±1% F.S.Work voltage10VDC(9-15VDC)
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance350,750±10ΩMaterialaluminium,stainless steel or alloy steel
output resistance350,700±5ΩOthers Customizabler

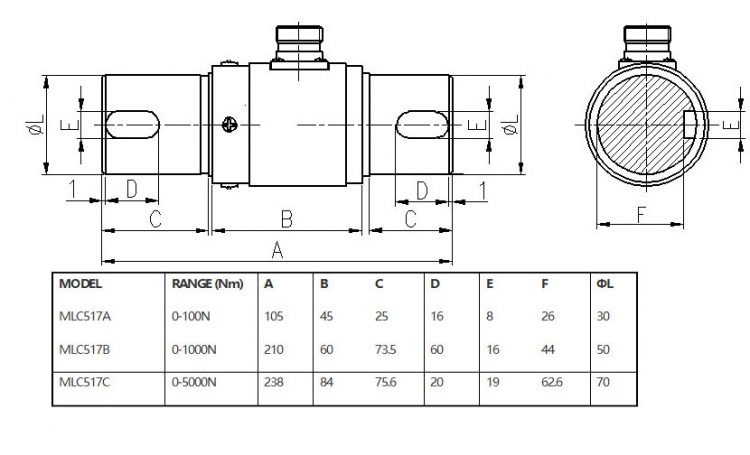

Product Dimension

MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY

MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY

Static torque sensor installation

Product Application

MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY

APF-Viscometer

MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY

APF-torque testing machine

MLC517 Static torque force sensor-MANYYEAR TECHNOLOGY

APF-torque wrench
