MLC5105A Motor shaft dynamic torque load cell MLC5105A Motor shaft dynamic torque load cell
MLC5105A Motor shaft dynamic torque load cell

MLC5105A Motor shaft dynamic torque load cell

Dynamic torque load cell, mining machinery power torque sensor, motor torque sensor

Model MLC5105A
Category Torque sensor
Range 10, 20, 30, 50, 100, 200, 500, 1000Nm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application Dynamic torque load cell, mining machinery power torque sensor, motor torque sensor


  Product selection reference

Online Sales

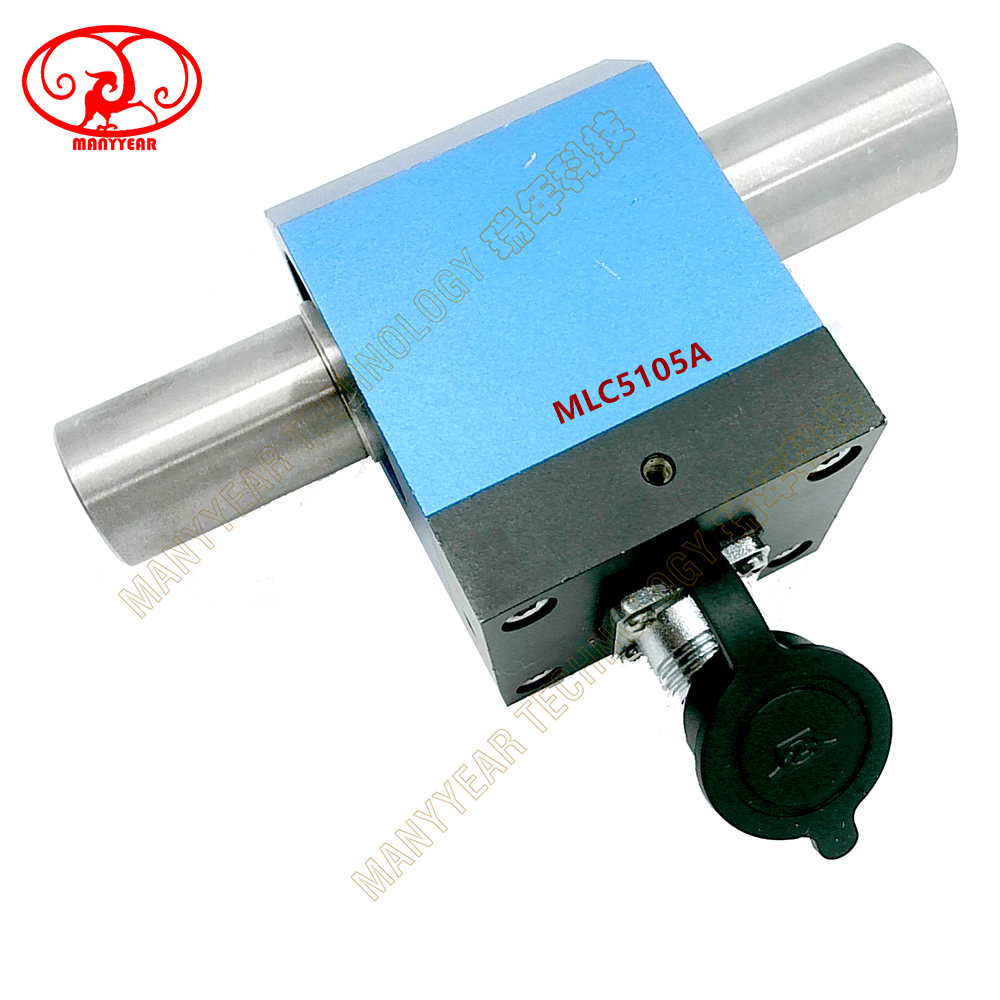

Product Picture Reference

MLC5105A Motor shaft dynamic torque load cell-MANYYEAR TECHNOLOGY

MLC5105A Motor shaft dynamic torque load cell

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC5105A Motor shaft dynamic torque sensor

Range0-10,20,30,50,100,200,500,1000NmInput resistance700±5Ω
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±2% F.S.Work voltage10-15VDC
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60ºC
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 80ºC
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance750±10ΩMaterialstainless steel or alloy steel
Range0-10,20,30,50,100,200,500,1000NmInput resistance700±5Ω

Product Dimension

MLC5105A Motor shaft dynamic torque load cell-MANYYEAR TECHNOLOGY

MLC5105A Motor shaft dynamic torque load cell

Force Structure & Assembly Reference

MLC5105A Motor shaft dynamic torque load cell-MANYYEAR TECHNOLOGY

Product Application

MLC5105A Motor shaft dynamic torque load cell-MANYYEAR TECHNOLOGY

APF-torque testing machine

MLC5105A Motor shaft dynamic torque load cell-MANYYEAR TECHNOLOGY

APF-Motor Torque-2

MLC5105A Motor shaft dynamic torque load cell-MANYYEAR TECHNOLOGY
