MLC5103A Dynamic torque load cell

2021/11/17 Dynamic Torque Sensor Torque Sensor 2696 0

Static torque sensor, the pump torque sensor, the gearbox torque load cell, torque wrench sensor

Model MLC5103A
Category Torque sensor
Range 0-10Nm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485MLC5103A Dynamic torque load cell
Application: Dynamic torque load cell, automatic locking screw machine torque sensor, micro dynamic torque sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

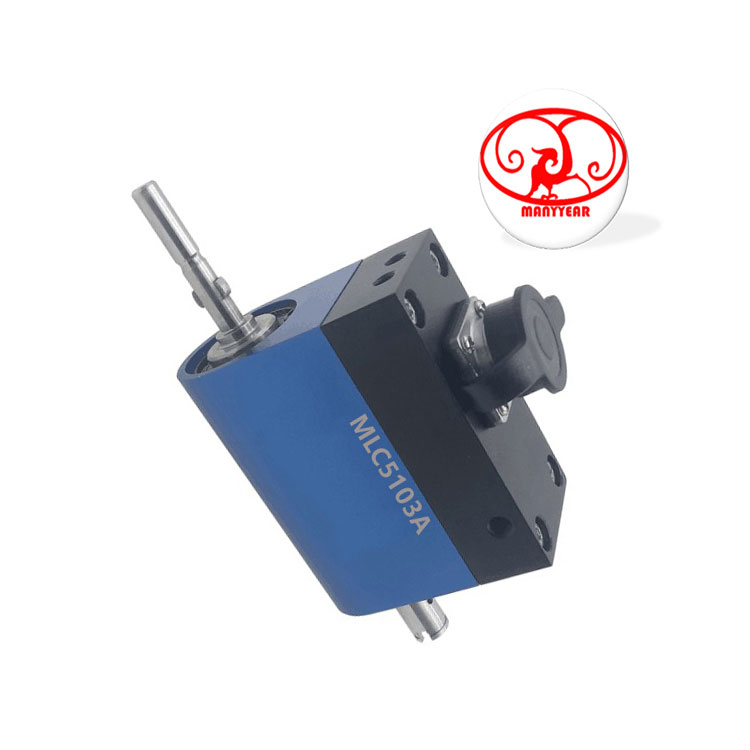

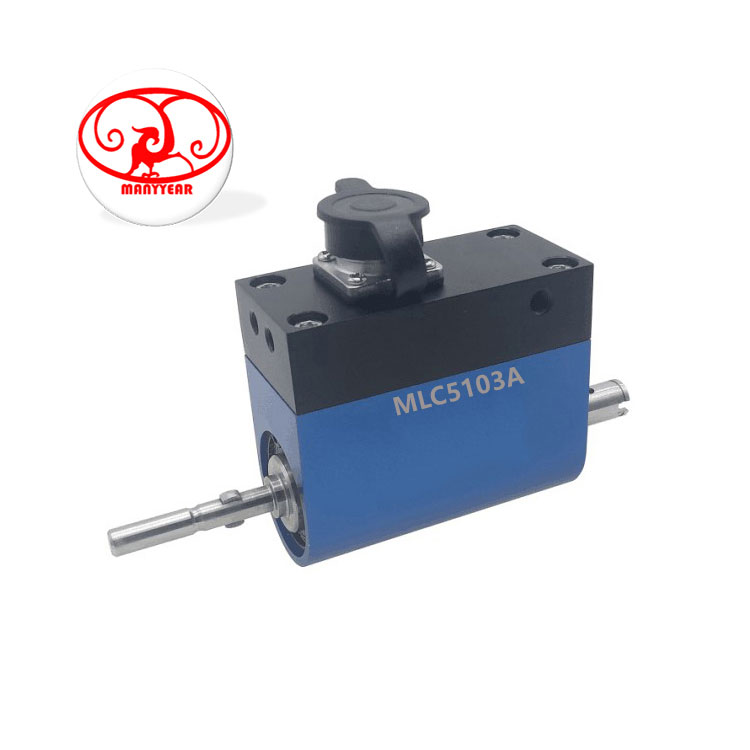

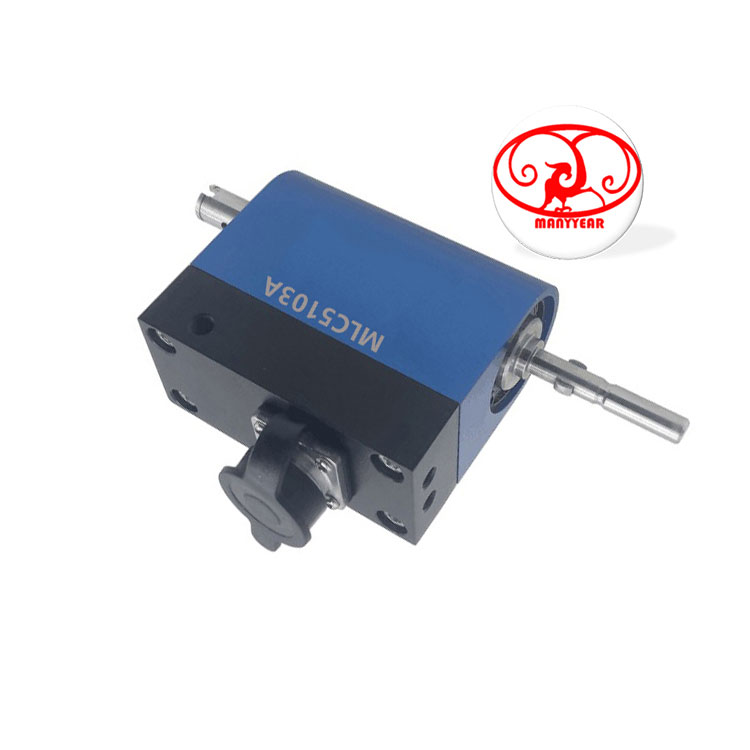

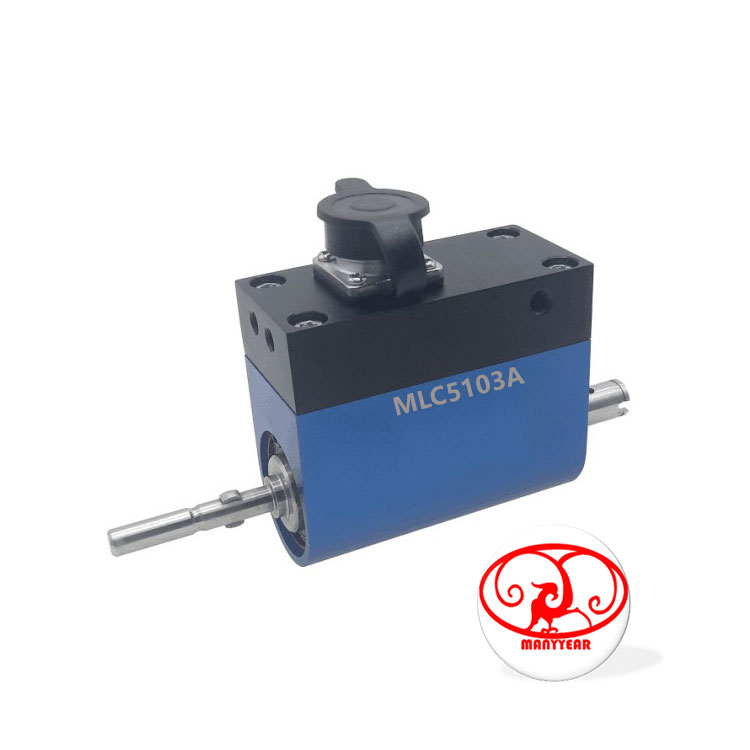

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC5103A Screw torque sensor

Range	0～10Nm	Resonant Frequency	100μS
Rated Output	1.5±10% mV / V	insulation	≥5000MΩ/ 100VDC
Zero Output	±1% F.S.	Work voltage	5~12VDC
Nonlinearity	±0.1，0.3% F.S.	Compensated Temp.	-10 ~ 60℃
Hysteresis	≤±0.05% F.S.	operating Temp.	-20 ~ 65℃
Repeatability	≤±0.05% F.S	Safty overload	150% F.S.
Creep	≤±0.03% F.S/30min	Ultimate overload	200% F.S.
Ratedoutput drift by temp.	0.03% F.S. / 10℃	Wire	Ø5.2×3m
Zero drift by temp.	0.03% F.S. / 10℃	Electric connect	RED/E+，BLK/E-，GRN/S+，WHT/S-
Input resistance	380,750±10Ω	Material	aluminium，stainless steel or alloy steel
output resistance	350,700±5Ω	Others	Customizabler

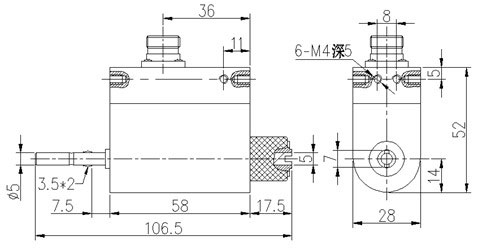

Product Dimension

Force Structure & Assembly Reference

Product Application

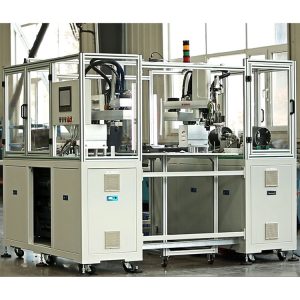

APF-Automatic Locking Screw Machine-1

APF-winding tension

APF-Micro Motor Torque-1
