MLC5155 low-speed dynamic torque load cell

Dynamic torque load cell, winding tension load cell, micro motor torque load cell, micro torque load cell

Model MLC5155
Category Torque sensor
Range 0~3,5,10,20,30,50,100 Nm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application: Dynamic torque load cell, winding tension load cell, micro motor torque load cell, micro torque load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

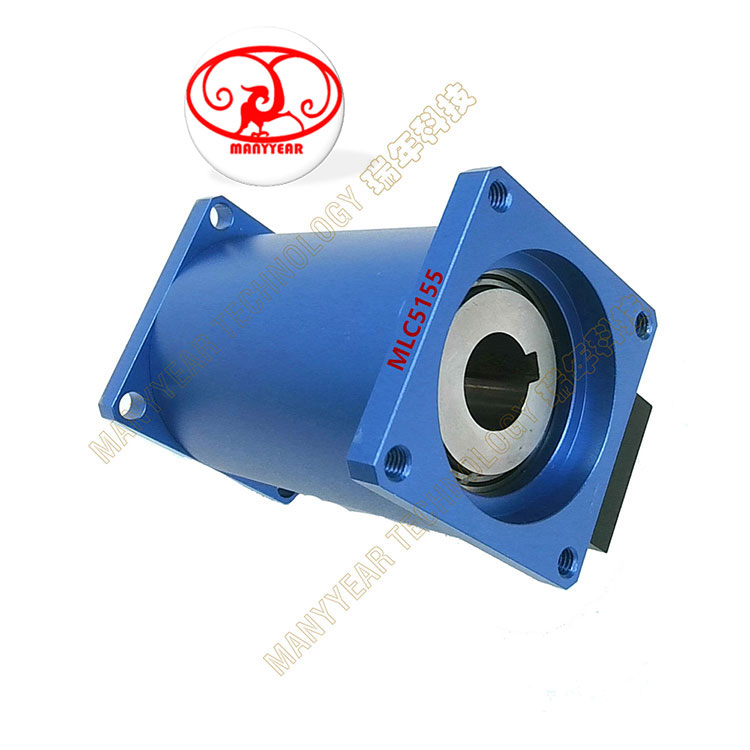

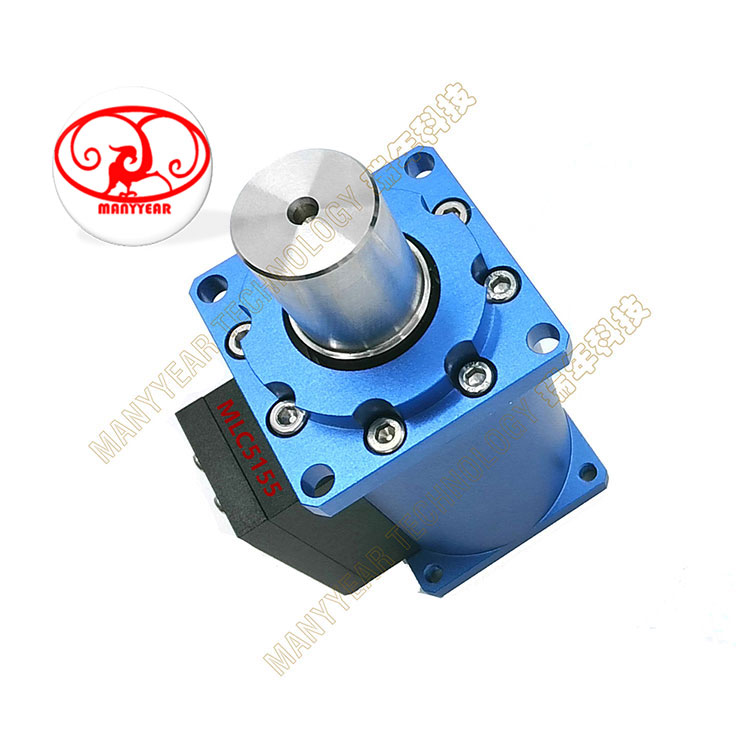

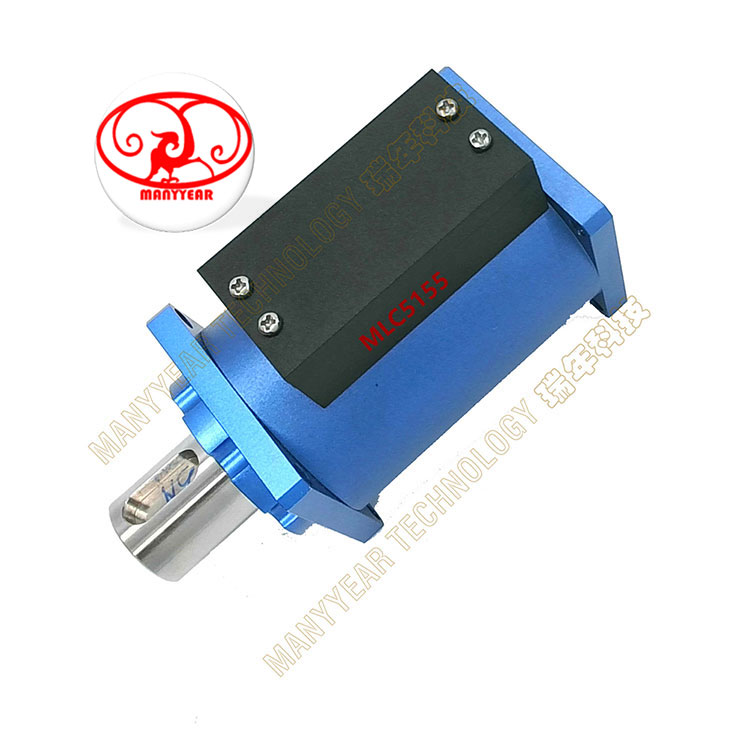

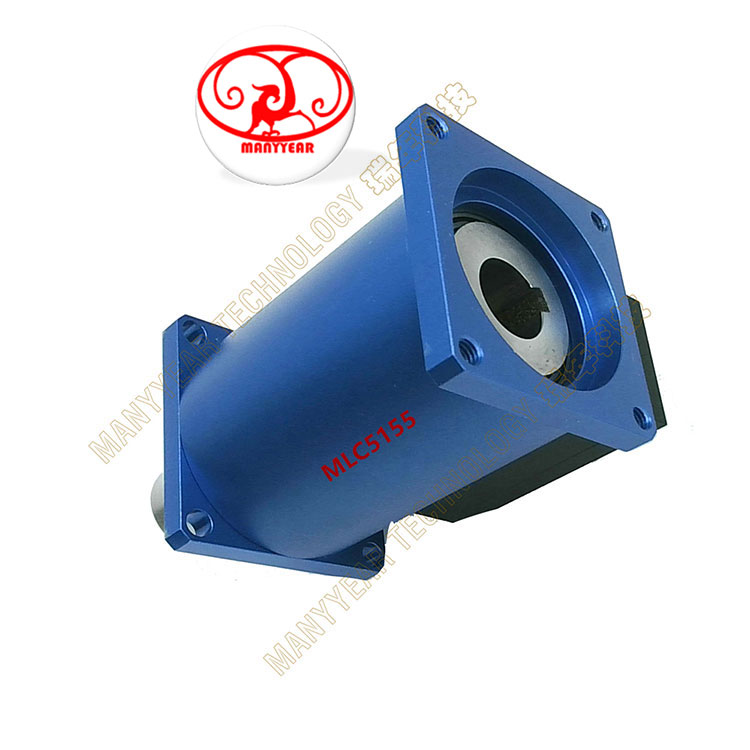

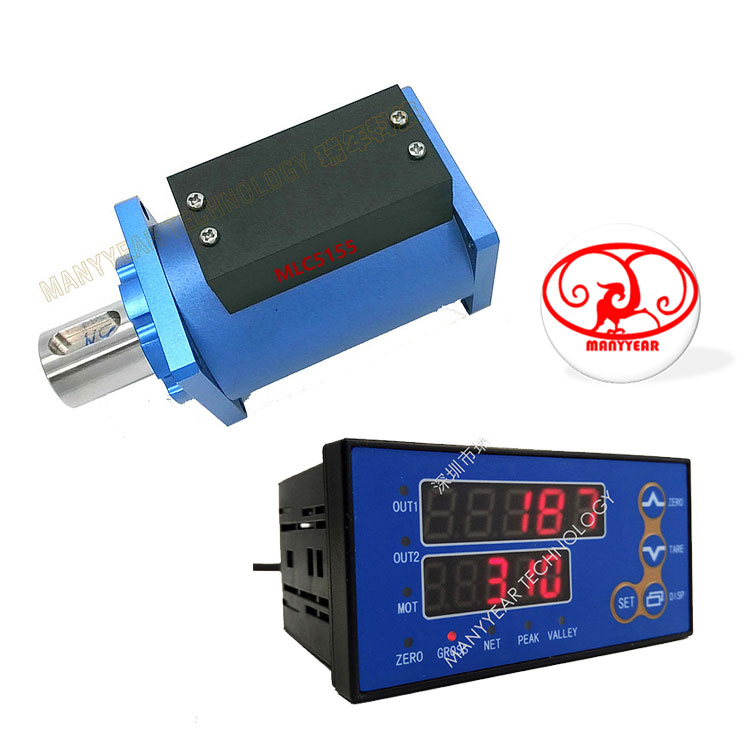

Product Picture Reference



MLC5155 low-speed dynamic torque load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC5155 Miniature low-speed dynamic torque sensor

Range0~3,5,10,20,30,50,100 NmResonant Frequency100μS
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±1% F.S.Work voltage10VDC(9-15VDC)
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance350,750±10ΩMaterialaluminium,stainless steel or alloy steel
output resistance350,700±5ΩOthers Customizabler

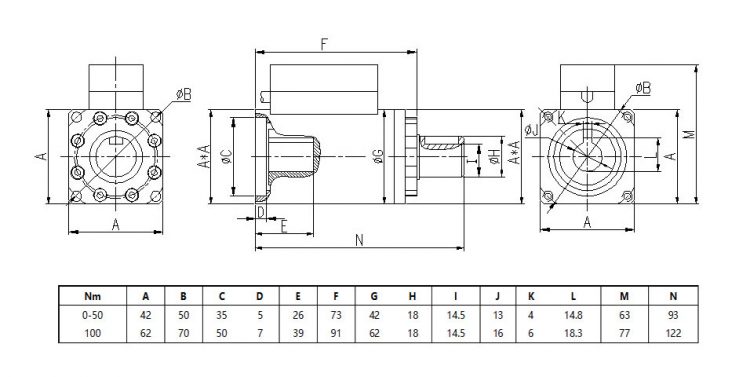

Product Dimension

MLC5155 low-speed dynamic torque load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC5155 low-speed dynamic torque load cell-MANYYEAR TECHNOLOGY

Product Application

MLC5155 low-speed dynamic torque load cell-MANYYEAR TECHNOLOGYMLC5155 low-speed dynamic torque load cell-MANYYEAR TECHNOLOGYMLC5155 low-speed dynamic torque load cell-MANYYEAR TECHNOLOGY
