MLC5101 Motor shaft dynamic torque sensor MLC5101 Motor shaft dynamic torque sensor
MLC5101 Motor shaft dynamic torque sensor

MLC5101 Motor shaft dynamic torque sensor

dynamic torque sensor, Motor shaft torque sensor, car power, tractor power, aircraft power,mining machinery power qorque measurement

MLC5101 Motor shaft dynamic torque sensor
MODEL: MLC5101
category:Torque Sensr
Range: 5,10,20,50,100,200,300,500,1000Nm
Material: alloy steel
Apllication: Motor shaft torque sensor,railway locomotive power, car power, tractor power, aircraft power,mining machinery power qorque measurement


  Product selection reference

Online Sales

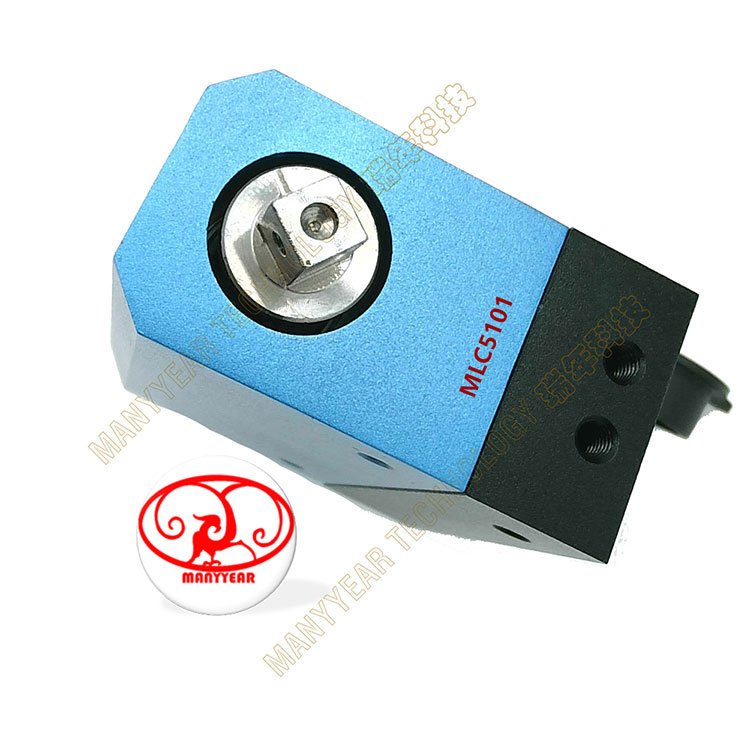

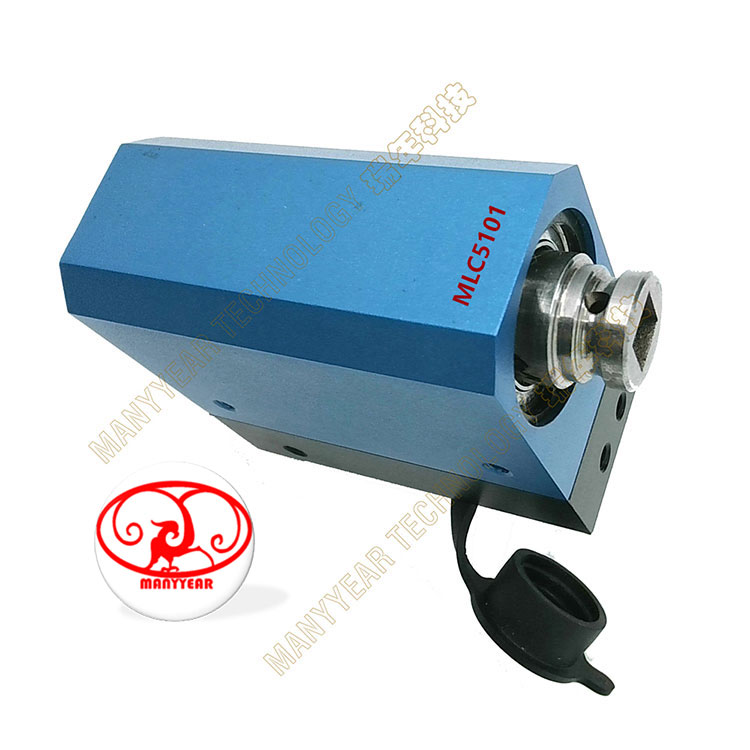

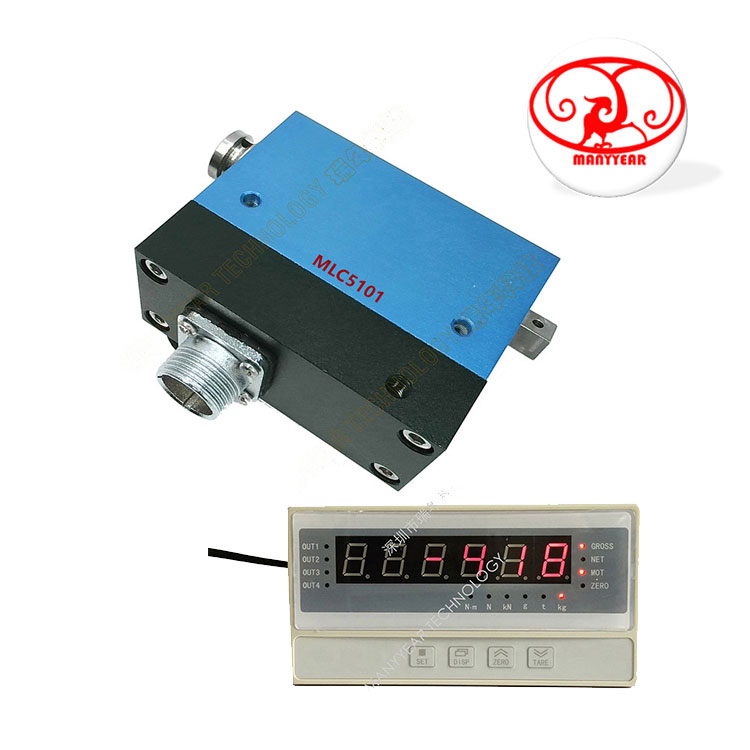

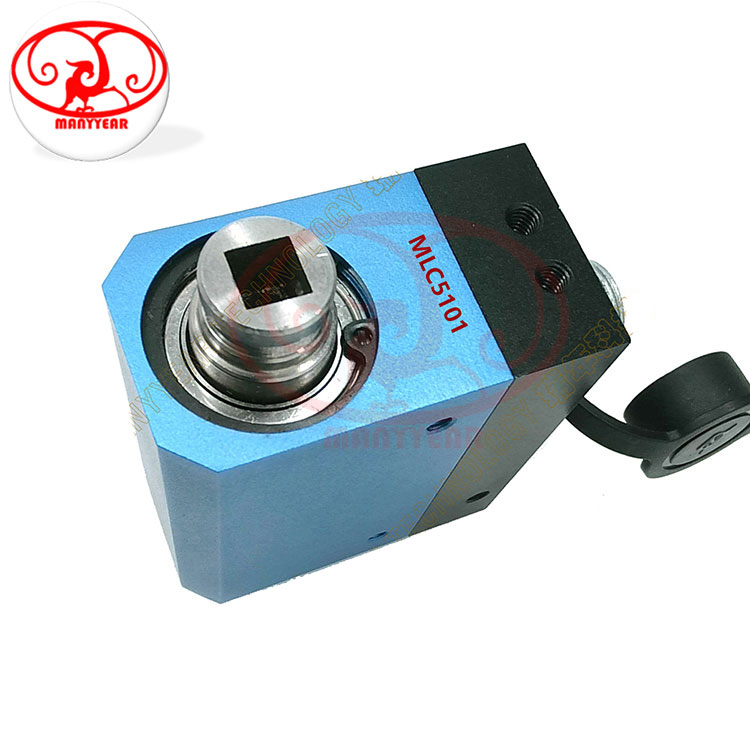

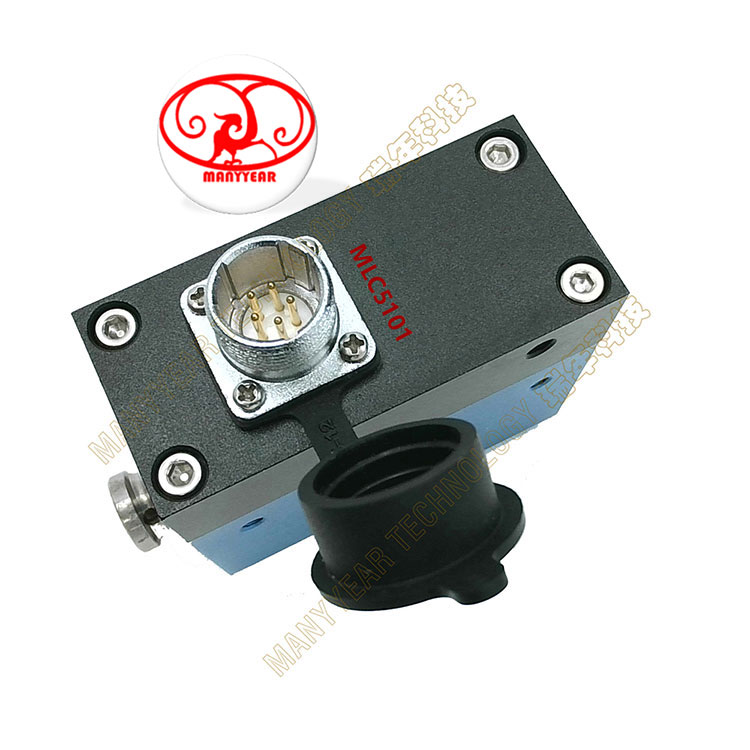

Product Picture Reference

MLC5101 Motor shaft dynamic torque sensor-MANYYEAR TECHNOLOGY

MLC5101 Motor shaft dynamic torque sensor

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC5101 Dynamic micro torque sensor

Range5,10,20,50,100,200,300,500,1000NmResonant Frequency100μS
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±1% F.S.Work voltage10VDC(9-15VDC)
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance350,750±10ΩMaterialaluminium,stainless steel or alloy steel
Input resistance350,700±5ΩOthers Customizabler

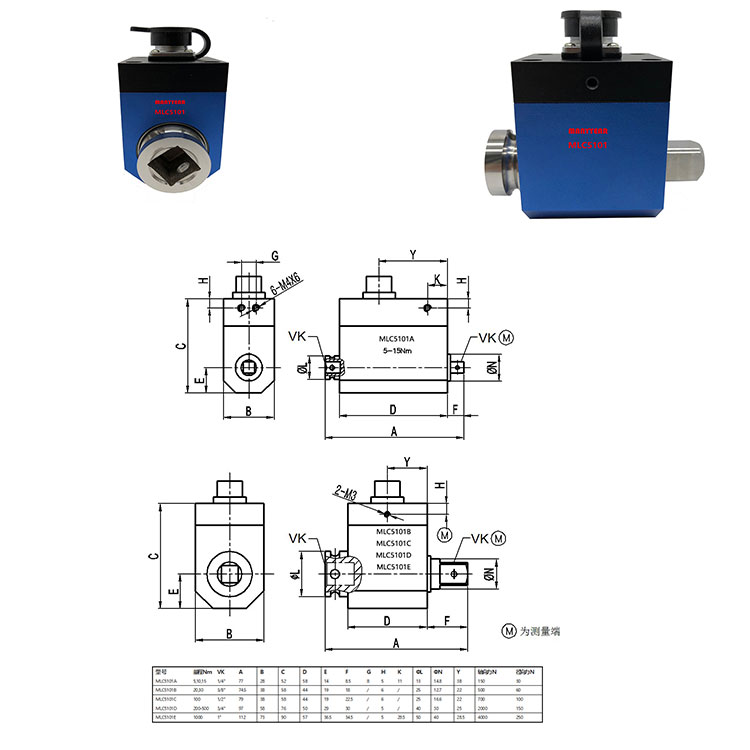

Product Dimension

MLC5101 Motor shaft dynamic torque sensor-MANYYEAR TECHNOLOGY

MLC5101 Motor shaft dynamic torque sensor

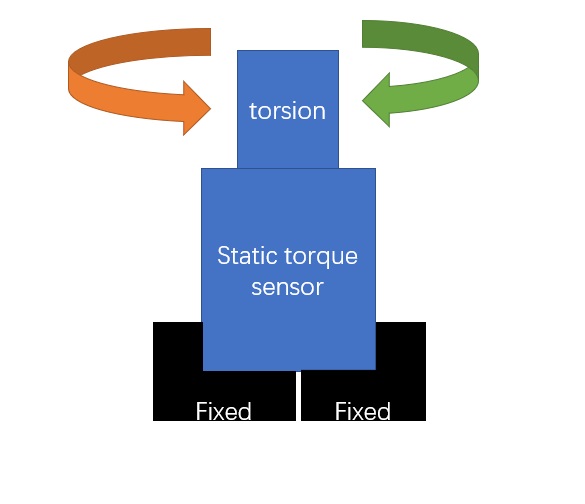

Force Structure & Assembly Reference

MLC5101 Motor shaft dynamic torque sensor-MANYYEAR TECHNOLOGY

Product Application

MLC5101 Motor shaft dynamic torque sensor-MANYYEAR TECHNOLOGY

MLC5101 Motor shaft dynamic torque sensor-MANYYEAR TECHNOLOGY
